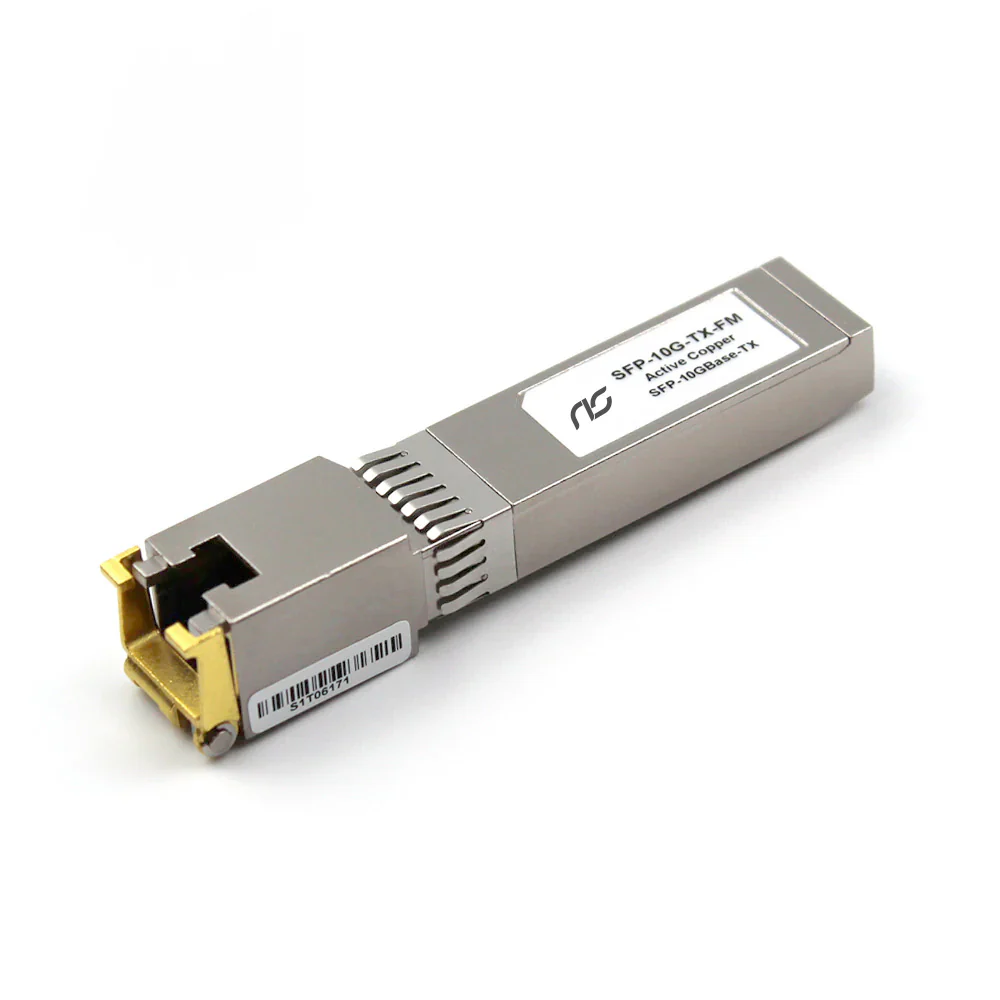

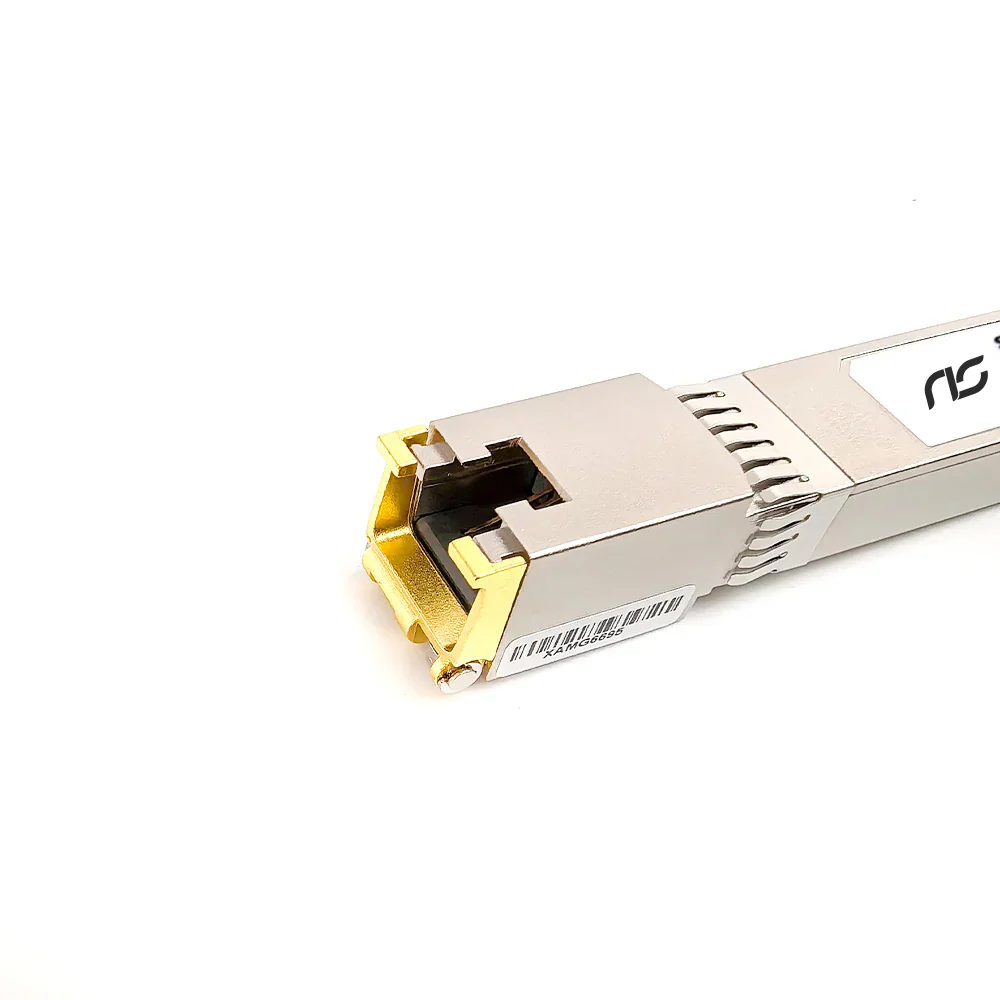

NS-SFP‑10G‑TX Transceiver Module | 10Gbps, RJ45, 30 m/100 m – Compatible with Major Brands

The NSComm NS-SFP‑10G‑TX is a flexible and economical Small Form‑Factor Pluggable Plus (SFP+) copper transceiver designed for 10 Gigabit Ethernet connectivity over twisted‑pair cabling.

It supports transmission rates up to 10 Gbps, using a standard RJ45 connector, and accommodates link distances up to 30 m over Cat6a/Cat7 or up to 100 m at lower speeds (1Gbps/100Mbps) over Cat5e/6 cables.

This module is hot‑swappable, ensuring painless in-field installation or upgrades without shutting down the system. It conforms to IEEE Ethernet standards and SFP+ MSA protocols. Some models may not support Digital Optical Diagnostic Monitoring (DOM).

Compatible Brands

The NS-SFP-10G-TX is universally compatible across all brands. If you need to verify compatibility with your specific switch model, please click Contact Us Now for assistance.

Key Specifications

Specification	Details
Vendor Name	NSComm
Form Factor	SFP+ (Small Form‑Factor Pluggable Plus)
Max. Data Rate	10 Gbps (also supports 1 Gbps and 100 Mbps)
Connector	RJ45
Max. Cable Distance	30 m at 10 Gbps over Cat6a/Cat7; 100 m at lower speeds
Media	Copper twisted-pair cabling
DOM Support	Optional (varies by vendor)
Power Consumption	Up to ~2.5 W
Operating Temperature Range	0 °C to 70 °C (Commercial)
Protocols Compliance	IEEE 802.3an, IEEE 802.3ab, IEEE 802.3u, SFP+ MSA

More Details
