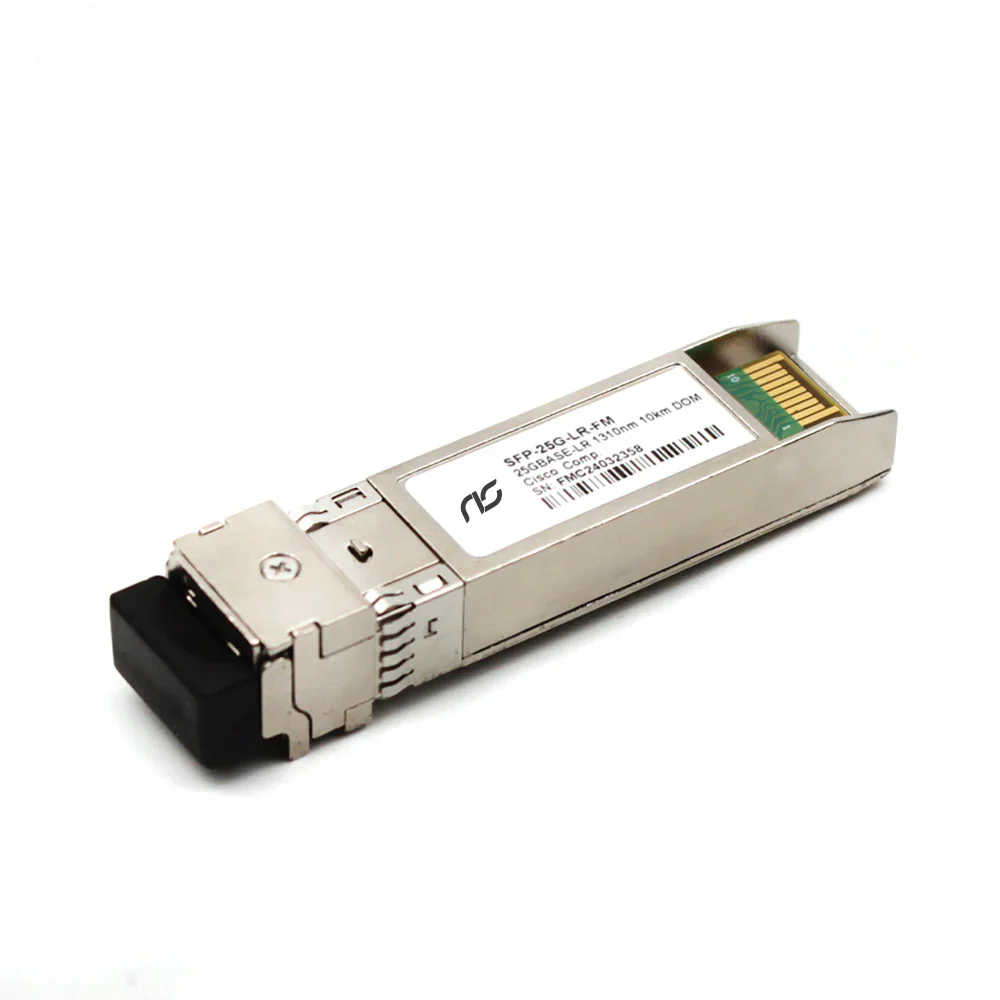

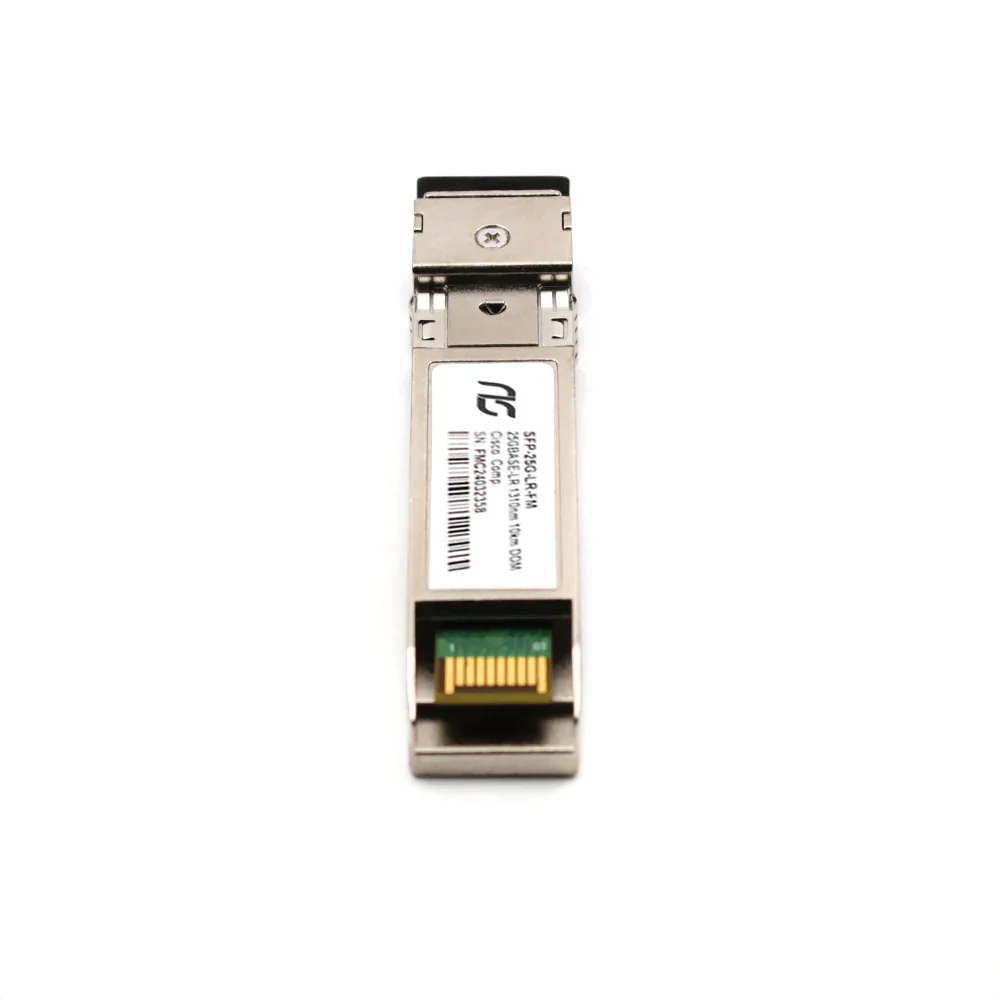

NS-SFP‑25G‑LR Transceiver Module | 25Gbps, 1310nm, Duplex LC, 10km – Compatible with Major Brands

Product Overview

The NSComm NS-SFP‑25G‑LR is a high-speed SFP28 transceiver module tailored for 25 Gigabit Ethernet and Infiniband EDR applications.

It delivers data rates up to 25.78 Gbps over single-mode fiber (SMF) using a 1310 nm wavelength, supporting reach up to 10 km via a duplex LC connector.

This hot‑swappable module meets industry standards and supports Digital Optical Monitoring (DOM), ensuring easy installation and real-time diagnostics.

This transceiver offers universal compatibility with major equipment manufacturers including Cisco, Juniper, Arista, HPE Aruba, Dell, Huawei, and more.

Compatible Brands

The NS-SFP-25G-LR is universally compatible across all brands. If you need to verify compatibility with your specific switch model, please click Contact Us Now for assistance.

Key Specifications

Specification	Details
Vendor Name	NSComm
Form Factor	SFP28
Max. Data Rate	25.78 Gbps
Wavelength	1310 nm
Max. Cable Distance	10 km over SMF G.652 fiber
Connector	Duplex LC
Optical Components	DML (Distributed Modulated Laser) / PIN diode
Media Type	Single‑Mode Fiber (SMF)
DOM Support	Yes
Transmit Power (TX)	-7 to +2 dBm
Receiver Sensitivity	< –11.3 dBm
Operating Temperature Range	Commercial: 0 °C to 70 °C; Industrial available
Protocol Compliance	IEEE 802.3cc, SFF‑8431, SFF‑8472, SFP28 MSA
