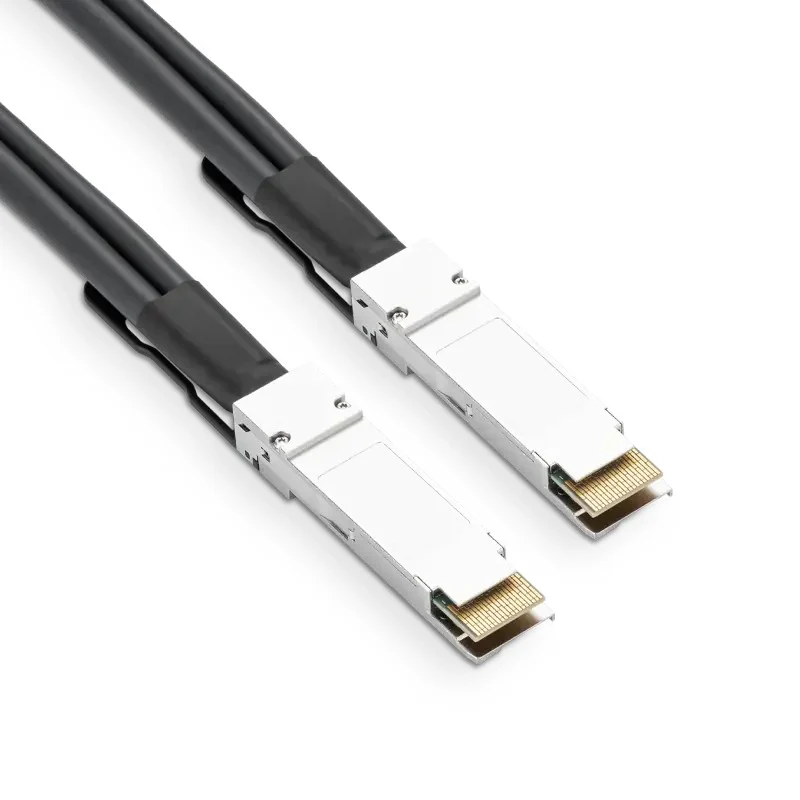

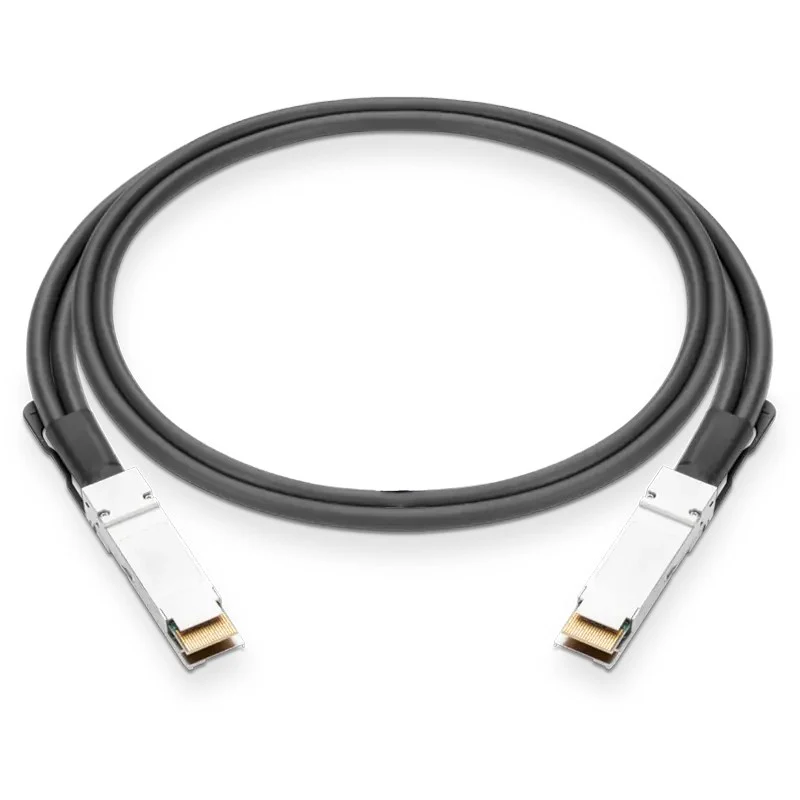

800G OSFP to OSFP Direct Attach Copper Cable (DAC), PVC, Passive, up to 3 m (10 ft)

Overview

The NSComm 800G OSFP to OSFP Direct Attach Copper Cable (DAC) is a next-generation, high-speed interconnect solution engineered for 800 Gigabit Ethernet applications in AI/ML clusters, hyperscale data centers, and HPC environments. With integrated OSFP connectors on both ends, this DAC eliminates the need for costly optical transceivers, offering a plug-and-play, ultra-low latency option for short-distance connectivity.

Constructed with twinax copper cable and a durable PVC jacket, the passive DAC supports links up to 3 m (10 ft) with near-zero power consumption. For extended reach, active copper variants provide up to 5 m (16 ft) at ≤ 6 W per end. It ensures stable signal integrity, excellent EMI performance, and minimal latency, making it ideal for rack-to-rack connections in dense deployments.

Need assistance verifying your specific model? [Contact Us Now] and our team will confirm compatibility.

Key Specifications

Specification	Details
Vendor Name	NSComm
Product Type	800G OSFP to OSFP Direct Attach Copper Cable (DAC)
Data Rate	800 Gbps (8×100 Gbps PAM4 lanes)
Cable Type	Twinax Copper, PVC Jacket, Passive/Active
Max Cable Distance	Passive: up to 3 m (10 ft); Active: up to 5 m (16 ft)
Conductor AWG Options	30 AWG (≤ 2 m), 26 AWG (≤ 3 m), 24 AWG (active ≤ 5 m)
Connector Type	OSFP to OSFP
Power Consumption	Passive ≈ 0 W, Active ≤ 6 W
Temperature Range	0 °C to 70 °C
Standards Compliance	OSFP MSA, IEEE 802.3ck, IEEE 802.3db, RoHS
Applications	800G switch-to-switch, AI/ML clusters, leaf-spine interconnects

Why Choose NSComm 800G OSFP DAC?

Ultra-high bandwidth: Supports full 800 Gbps Ethernet transmission.
Plug-and-play: Integrated OSFP connectors, no optics required.
Lowest latency: Direct copper electrical path.
Energy savings: Passive requires no power; active ≤ 6 W.
Future-ready: Standards-compliant and validated with top-tier vendors.

Length Options

Standard stocked lengths:
1 m (3 ft), 2 m (7 ft), 3 m (10 ft)

Extended (active) lengths:
5 m (16 ft)
