NS-OSFP‑800G‑2FR4 Finned‑Top Transceiver Module | 800 Gbps, 1310 nm CWDM PAM4, Dual Duplex LC, 2 km

Product Overview

The NSComm NS-OSFP-800G-2FR4 is a cutting-edge optical transceiver designed to support 800 Gigabit Ethernet by aggregating two independent 400 GBASE‑FR4 links in one module.

It employs dual sets of four CWDM wavelengths (1271, 1291, 1311, and 1331 nm), each modulated at PAM4, delivering up to 212.5 Gbps per lane for a total throughput of 425 Gbps per channel, aggregated into 800 Gbps performance.

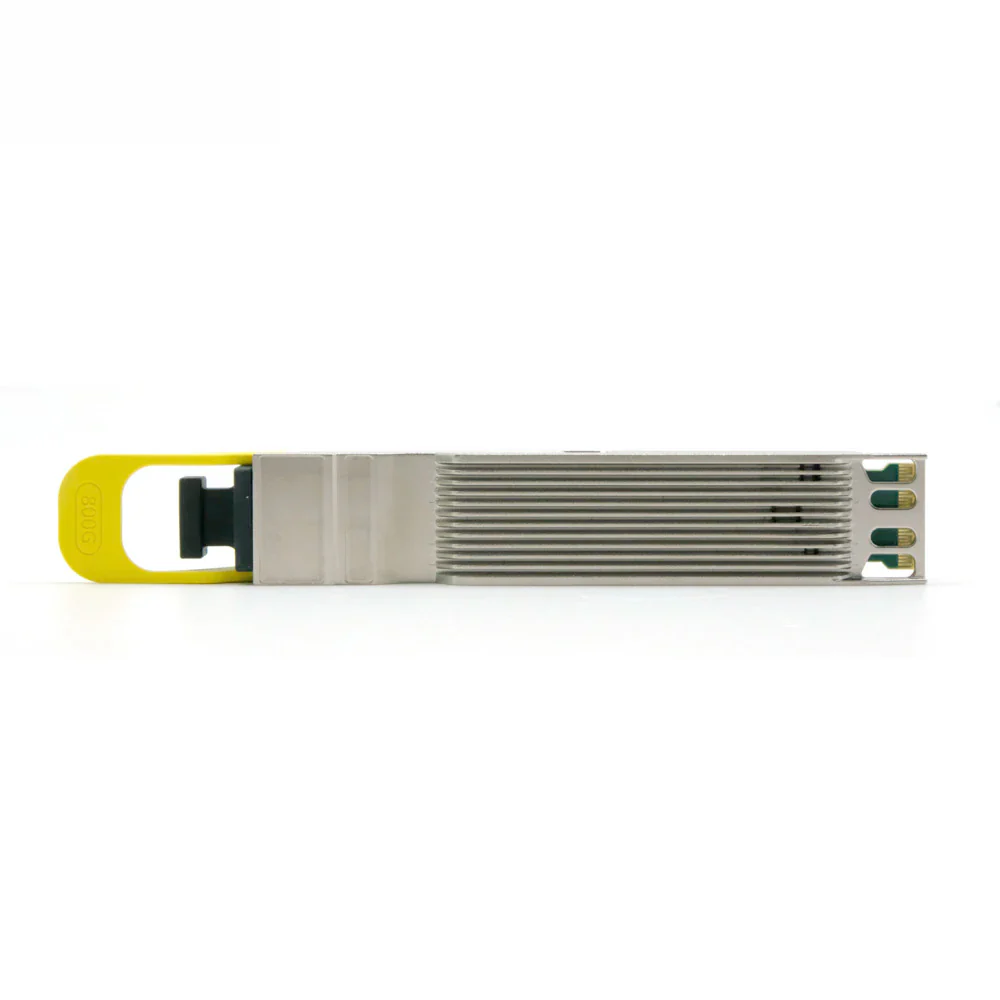

The module reaches up to 2 km over single‑mode fiber (SMF) via dual duplex LC connectors and is hot‑pluggable. It supports Digital Diagnostic Monitoring (DDM/DOM) and is equipped with a finned‑top housing for enhanced heat dissipation.

Designed for universal interoperability, it supports major networking hardware from brands like Cisco, Nvidia and more.

Compatible Brands

The NSComm NS-OSFP-800G-2FR4 is universally compatible across all brands. If you need to verify compatibility with your specific switch model, please click Contact Us Now for assistance.

Product Details

Built to comply with IEEE 802.3ck, IEEE 802.3cu, and OSFP112 MSA standards, the NS-OSFP-800G-2FR4 uses EML lasers and PIN photodiode arrays, compatible with QSFP‑DD CMIS Rev 5.0 host interfaces.

It supports 2×400 G standalone or 8×100 G breakout mode, and requires host‑side Forward Error Correction (FEC) for error-free links. The module operates reliably within a commercial temperature range of 0 °C to 70 °C, and draws < 16 W peak power.

Key Specifications

Specification	Details
Vendor Name	NSComm
Form Factor	OSFP Finned‑Top
Max. Data Rate	800 Gbps (2 × 400 GBASE‑FR4)
Wavelengths	CWDM: 1271–1331 nm (4 channels per 400 G link)
Max. Cable Distance	Up to 2 km over SMF (G.652)
Connector	Dual Duplex LC
Optical Components	EML lasers (CWDM) / PIN photodiodes
Media Type	Single‑Mode Fiber (SMF)
Digital Diagnostics (DDM/DOM)	Supported
Transmit Power (per lane)	Approx. –3.2 to +4.4 dBm
Receiver Sensitivity	Typically < –7.2 dBm
Modulation Format	PAM4
Power Consumption	< 16 W
Operating Temperature Range	0 °C to 70 °C (Commercial)
Protocol Compliance	IEEE 802.3ck, IEEE 802.3cu, OSFP112 MSA, CMIS Rev 5.0
