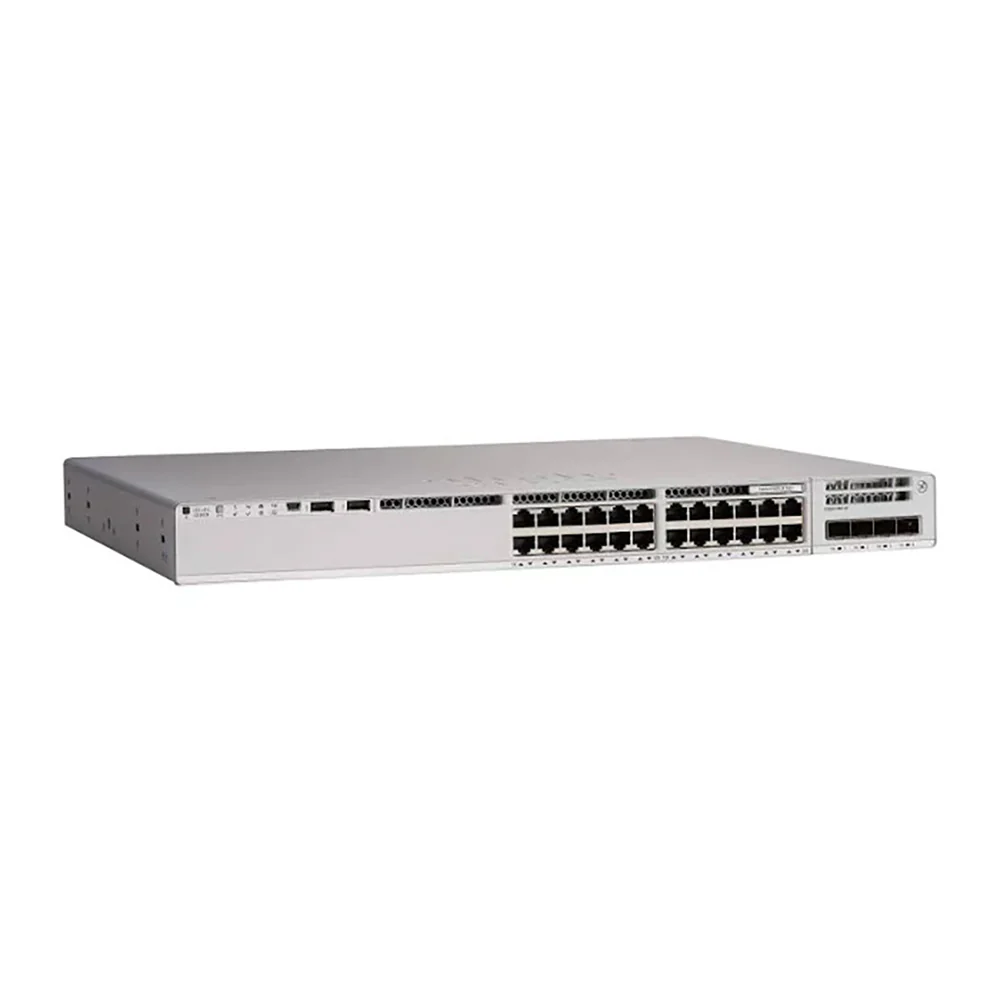

Cisco Catalyst 9200-24P-A 24-Port PoE+ Switch, Advantage License
Cisco Catalyst 9200-24P-A Access Enterprise Switch
The Cisco Catalyst 9200-24P-A is a 1 RU, 24-port PoE+ access switch designed for U.S. campus and branch networks—from powering IP cameras in Los Angeles distribution hubs to driving Wi-Fi 6 access points in Manhattan office towers.
Running Cisco IOS XE with the Network Advantage license on an x86 CPU and UADP 2.0 ASIC, it offers 24 auto-sensing 10/100/1000 RJ-45 PoE+ downlinks and a hot-swappable modular uplink slot for seamless 1 GbE, 10 GbE, or 40 GbE uplinks.
Field-replaceable fans and a redundant power-supply option ensure “always-on” resiliency. Centralized management is available via Cisco Catalyst Center or Meraki Dashboard.
Overview
Highlights
-
24 × 10/100/1000 PoE+ Downlinks
Auto-sensing ports deliver up to 30 W each for IP phones, cameras, and APs; dynamic PoE+ power allocation scales to a maximum of 1 440 W across both power supplies -
Robust PoE Power Budget
Primary PWR-C6-600WAC supplies 370 W PoE+; adding a second PWR-C6-600WAC doubles budget to 740 W -
Wire-Speed Switching
128 Gbps non-blocking switching capacity and 95.23 Mpps forwarding performance at 64-byte packets; stacked, scales to 288 Gbps and 214 Mpps -
StackWise-160 Resiliency
Stack up to eight switches with 160 Gbps bidirectional stacking bandwidth, NSF/SSO, and cross-stack EtherChannel for sub-50 ms failover -
Modular Uplink Flexibility
One hot-swappable slot supports C9200-NM-4G (4×1 GbE), C9200-NM-8X (8×10 GbE), or C9200-NM-2Q (2×40 GbE) modules -
Enterprise-Grade Security
AES-128 MACsec, Secure Boot with Trust Anchor Module, 802.1X authentication, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard, and scalable ACLs -
Energy-Efficient & Always-On Design
IEEE 802.3az Energy-Efficient Ethernet, hot-swap fans, FRU power-supply support, and PoE “Fast PoE” to power devices immediately after reboot -
Advanced Programmability & Telemetry
Open APIs (NETCONF/RESTCONF, gNMI, NX-API/Python), on-box scripting, and streaming telemetry integrate with Cisco DNA Center or Meraki Dashboard
Recommended Accessories
| Accessory | Category | Description |
|---|---|---|
| C9200-NM-4G | Network Module | 4×1 GbE SFP uplink module |
| C9200-NM-8X | Network Module | 8×10 GbE SFP+ uplink module |
| C9200-NM-2Q | Network Module | 2×40 GbE QSFP+ uplink module |
| PWR-C6-600WAC | Power Supply | 600 W AC FRU power supply (370 W PoE+) |
| PWR-C6-600WAC (2) | Power Supply | Secondary 600 W AC PSU for 740 W PoE+ |
| FAN-T2= | Fan Module | Field-replaceable fan tray for N+1 cooling redundancy |
| C9200-STACK-KIT= | Stacking Hardware | StackWise-160 kit (adapters + cable) |
| STACK-T4-50CM | Stacking Cable | 50 cm Type 3 stacking cable (160 Gbps) |
Comparison with Similar Models
| Feature | C9200-24P-A (Advantage) | C9200-24P-E (Essentials) |
C9200-24T-A Advantage |
|---|---|---|---|
| Downlinks & Uplinks | 24×PoE+ + modular slot | 24×PoE+ + modular slot | 24×data only + modular slot |
| License | Network Advantage | Network Essentials | Network Advantage |
| PoE Budget | 370 W (single) / 740 W (dual) | 370 W (single) / 740 W (dual) | N/A |
| Switching Capacity | 128 Gbps full-duplex | 128 Gbps full-duplex | 128 Gbps full-duplex |
| Forwarding Rate | 95.23 Mpps | 95.23 Mpps | 95.23 Mpps |
| Stacking Bandwidth | 160 Gbps | 160 Gbps | 160 Gbps |
Specifications
| Parameter | Specification |
|---|---|
| Model | C9200-24P-A |
| Description | Catalyst 9200 24-port PoE+ Switch with Network Advantage license |
| Software | Cisco IOS XE with Network Advantage |
| Downlink Ports | 24×10/100/1000 RJ-45 PoE+ auto-sensing |
| Uplink Slot | 1× hot-swappable modular slot (4G/8X/2Q) |
| Switching Capacity | 128 Gbps full-duplex |
| Forwarding Rate | 95.23 Mpps (64-byte packets) |
| Stacking | StackWise-160; up to 8 members; 160 Gbps bidirectional bandwidth |
| Default Power Supply | 1× PWR-C6-600WAC (600 W AC, FRU-redundant) |
| Available PoE Power | 370 W (single PSU); 740 W (with secondary PSU) |
| DRAM / Flash | 4 GB DRAM; 4 GB flash |
| CPU & ASIC | Multicore x86 CPU; Cisco UADP 2.0 ASIC |
| MAC Address Table | 32,000 entries |
| IPv4 Routes | 14,000 (10,000 direct + 4,000 indirect) |
| IPv6 Routes | 2,000 |
| Multicast Routing | 1,000 groups |
| QoS Scale Entries | 1,000 |
| ACL Scale Entries | 1,600 |
| Packet Buffer | 6 MB buffers (Gigabit models) |
| Flexible NetFlow Entries | 16,000 flows |
| VLAN IDs | 4,096 |
| Total SVIs | 512 |
| Jumbo Frames | 9,198 bytes |
| Dimensions (HxWxD) | 1.73″×17.5″×13.8″ (4.4×44.5×35.0 cm) chassis-only |
| Weight | 11.02 lb (5.0 kg) |
| Operating Temp. / Humidity | 32 °F–113 °F (0 °C–45 °C); 5–90% RH non-condensing |
| Certifications & Compliance | UL/CSA 60950-1, CE, FCC Class A, RoHS, WEEE |
| Mean Time Between Failures (MTBF) | 422,310 hours |
