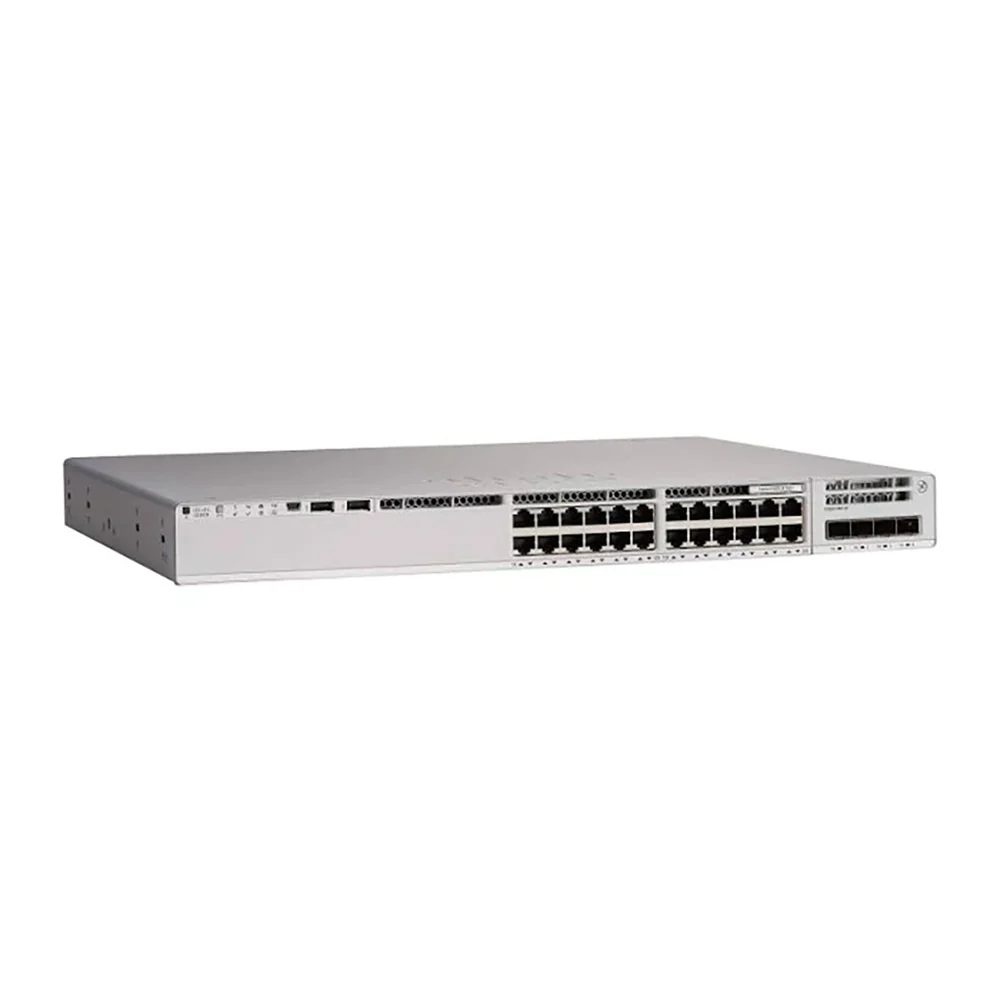

Cisco Catalyst 9200-24P-E 24-Port PoE+ Switch, Essentials License
Cisco C9200-24P-E Access Enterprise Switch
The Cisco Catalyst 9200-24P-E is a 1 RU fixed-port PoE+ access switch purpose-built for U.S. campus and branch deployments—from powering IP cameras in Los Angeles distribution centers to driving Wi-Fi 6 access points in New York City offices.
Running Cisco IOS XE with the Network Essentials license on an x86 CPU paired with the Cisco UADP 2.0 ASIC, it delivers 24 auto-sensing 10/100/1000 RJ-45 PoE+ downlinks, a hot-swappable network-module slot, and field-replaceable power and fan units for “always-on” resiliency.
Centralized management is available via Cisco Catalyst Center or Meraki Dashboard.
Overview
Highlights
-
24 × 1 GbE PoE+ Downlinks & Modular Uplinks
24 autosensing 10/100/1000 RJ-45 PoE+ ports plus one hot-swappable module slot (supports C9200-NM-4G, C9200-NM-8X, C9200-NM-2Q) -
Robust PoE Power Budget
Primary PWR-C6-600WAC PSU supplies 370 W PoE+; add a second PWR-C6-600WAC for 740 W total -
High-Performance Fabric
128 Gbps non-blocking switching capacity; 95.23 Mpps forwarding rate (stacked: 288 Gbps, 214 Mpps) -
StackWise-160 Resiliency
Stack up to 8 switches with 160 Gbps bidirectional stacking bandwidth, NSF/SSO, and cross-stack EtherChannel for < 50 ms failover -
Advanced Layer 2/3 Features
IEEE 802.1Q VLANs; STP/RSTP/MSTP; LACP; static and dynamic IPv4/IPv6 routing (OSPF/EIGRP/RIP); ACLs; PBR; multicast; QoS classification and scheduling -
Enterprise-Grade Security
AES-128 MACsec encryption; Secure Boot with Trust Anchor Module; 802.1X; DHCP Snooping; Dynamic ARP Inspection; IP Source Guard; scalable ACLs -
Programmability & Telemetry
Open APIs (NETCONF/RESTCONF, gNMI, NX-API/Python SDK); on-box scripting; streaming telemetry; Cisco DNA Center / Meraki Dashboard integration -
Energy-Efficient & Always-On Design
IEEE 802.3az Energy-Efficient Ethernet; low-power fan management; FRU-redundant fans and power supply units
Recommended Accessories
| Accessory | Category | Description |
|---|---|---|
| C9200-NM-4G | Network Module | 4 × 1 GbE SFP uplinks for fiber aggregation |
| C9200-NM-8X | Network Module | 8 × 10 GbE SFP+ uplinks for high-speed aggregation |
| C9200-NM-2Q | Network Module | 2 × 40 GbE QSFP+ uplinks for ultra-high-speed uplinks |
| PWR-C6-600WAC | Power Supply | 600 W AC FRU-redundant power supply (370 W PoE+) |
| FAN-T2= | Fan Module | Field-replaceable fan tray for N+1 cooling redundancy |
| Rack-Mount Kit | Mounting Hardware | Standard 19″ rack-mount accessory kit (usually included) |
Comparison with Similar Models
| Feature | C9200-24P-E | C9200-24T-E | C9200-24P-A |
|---|---|---|---|
| Ports & Uplinks | 24 × 1 GbE PoE+ + modular | 24 × 1 GbE data + modular | 24 × 1 GbE PoE+ + modular |
| License | Network Essentials | Network Essentials | Network Advantage |
| Available PoE Power | 370 W (single); 740 W (dual) | N/A | 370 W (single); 740 W (dual) |
| Switching Capacity | 128 Gbps | 128 Gbps | 128 Gbps |
| Forwarding Rate | 95.23 Mpps | 95.23 Mpps | 95.23 Mpps |
| Stacking Bandwidth | 160 Gbps | 160 Gbps | 160 Gbps |
| Ideal Use Case | PoE+ endpoint aggregation | Data-only edge access | Advanced PoE+ with SD-Access |
Specifications
More Details
Quality Certifications
Warranty
100% Low Price Guarantee
Network-switch.com provides high-quality products at low wholesale prices
100% Quality Assurance
All items are ORIGINAL and GENUINE only.
Item conditions are "New Sealed". They are fully tested by CCIE Engineers.
Free Technical Support
Our FREE Expert Consultancy Support is over the phone, by chat, by email or by login remotely.
100% Money Back Guarantee
You can contact our customer service team to exchange or return any product that you bought from us.
Flexible Secure Payment & Shipment
Verified authorization: Mcafee Secure, VeriSign Secured
Return Material Authorization (RMA) Process
Standard Warranty Policy
Original New Sealed Enterprise Hardware: 3 Years
Original New Sealed Consumer Devices: 1 Year
The Support Contacts
If your Cisco products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.
