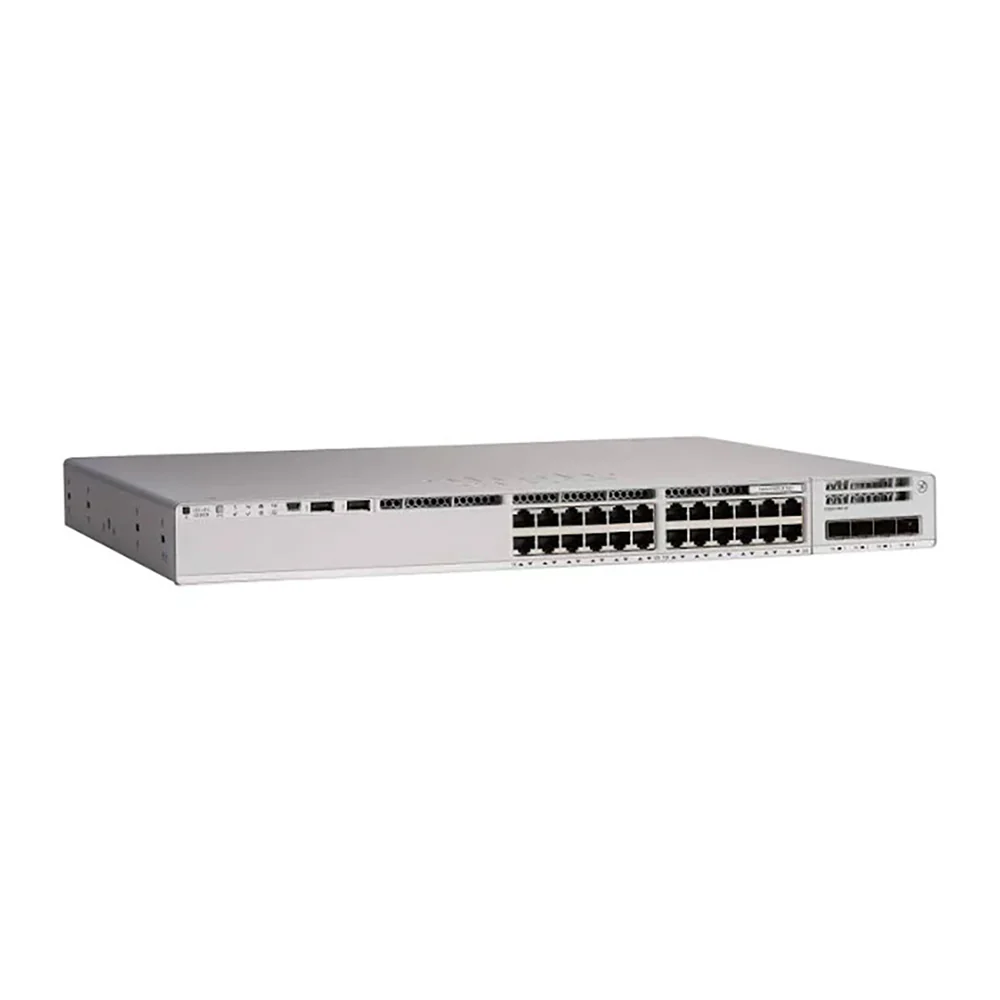

Cisco Catalyst 9200-24T-E 24-Port 1G Switch, Essentials License
Cisco Catalyst 9200-24T-E Access Switch
The Cisco Catalyst 9200-24T-E is a 1 RU fixed-port data-only access switch engineered for U.S. campus and branch deployments—from New York City branch offices to Silicon Valley innovation labs. Part of the Catalyst 9200 Series, it delivers 24 auto-sensing 10/100/1000 RJ-45 downlinks with a hot-swappable network-module slot for uplink versatility. Running Cisco IOS XE with a Network Essentials license, it provides industry-leading simplicity, security, and resiliency, while offering centralized management via Cisco Catalyst Center or Meraki Dashboard.
Overview
Highlights
-
High-Density Data Access
24 × 1 Gbps RJ-45 autosensing downlink ports for robust edge connectivity. -
Modular Uplink Flexibility
One network-module slot supporting C9200-NM-4G (4×1 GbE SFP), C9200-NM-8X (8×10 GbE SFP+), or C9200-NM-2Q (2×40 GbE QSFP+) modules. -
Switching Capacity & Performance
128 Gbps non-blocking switch fabric; 95.23 Mpps wire-speed forwarding; up to 288 Gbps/214 Mpps in a StackWise-160 stack. -
StackWise-160 Stacking
Up to 8 switches in a single stack with 160 Gbps bidirectional stacking bandwidth, NSF/SSO, and cross-stack EtherChannel for < 50 ms failover. -
Enterprise-Grade Security & Resiliency
AES-128 MACsec encryption, Secure Boot with Trust Anchor Module, 802.1X, DHCP snooping, Dynamic ARP Inspection, IP Source Guard, plus FRU-redundant power supplies and fans. -
Programmability & Telemetry
Open APIs (NETCONF/RESTCONF, gNMI, NX-API/Python SDK), on-box scripting, and streaming telemetry for proactive monitoring and automation. -
Energy Efficiency
IEEE 802.3az Energy-Efficient Ethernet and low-power fan management for U.S. sustainability requirements. -
Flexible Management
CLI, embedded Web UI, SNMP v1/v2c/v3, RMON, NETCONF/RESTCONF, plus “Plug and Play” zero-touch through Cisco Catalyst Center or Meraki Dashboard.
Recommended Accessories
| Accessory | Category | Description |
|---|---|---|
| C9200-NM-4G | Network Module | 4×1 GbE SFP uplink module for fiber aggregation |
| C9200-NM-8X | Network Module | 8×10 GbE SFP+ uplink module for high-speed campus backbone |
| C9200-NM-2Q | Network Module | 2×40 GbE QSFP+ uplink module for ultra-high-speed uplinks |
| PWR-C6-125WAC | Power Supply | 125 W AC field-replaceable PSU with FRU redundancy support |
| CAB-SPWR-150CM | Stacking Cable | 15 cm StackWise-160 stacking cable (160 Gbps bandwidth) |
| C-RACK-KIT | Rack-Mount Kit | 1 RU rack-mount accessory kit for Catalyst 9200 Series |
Comparison with Similar Models
| Feature | C9200-24T-E (Data) | C9200-24P-E (PoE+) | C9200-24T-A (Advantage) |
|---|---|---|---|
| Ports | 24×1 GbE data-only | 24×1 GbE PoE+ (445 W budget) | 24×1 GbE data-only |
| License | Network Essentials | Network Essentials | Network Advantage |
| Switching Capacity | 128 Gbps full-duplex | 128 Gbps full-duplex | 128 Gbps full-duplex |
| Forwarding Rate | 95.23 Mpps | 95.23 Mpps | 95.23 Mpps |
| Stacking | StackWise-160 (160 Gbps) | StackWise-160 (160 Gbps) | StackWise-160 (160 Gbps) |
| Ideal Use Case | High-density data edge | PoE+ endpoint aggregation (phones, APs) | Advanced services with deep telemetry |
Specifications
| Parameter | Specification |
|---|---|
| Product Code | C9200-24T-E |
| Description | Catalyst 9200 24-port Data Switch with Network Essentials software |
| Feature Set | Cisco IOS XE with Network Essentials license |
| Downlink Ports | 24 × 10/100/1000 RJ-45 autosensing data ports |
| Uplink Module Slot | 1 × modular slot (supports C9200-NM-4G/-8X/-2Q) |
| Switching Capacity | 128 Gbps full-duplex |
| Forwarding Performance | 95.23 Mpps (64-byte packets) |
| MAC Address Table | 32,000 entries |
| Virtual Networks | 4 VRFs per switch |
| VLAN IDs | 4,096 |
| SVIs | 512 total |
| Jumbo Frame Support | Up to 9,198 bytes |
| DRAM / Flash | 4 GB DRAM; 4 GB flash (hardware common to Catalyst 9200) |
| CPU | Multicore x86 processor |
| Stacking | StackWise-160; up to 8 switches; 160 Gbps bidirectional bandwidth |
| Power Supply | 1 × PWR-C6-125WAC (125 W AC); FRU redundant |
| Fans | Field-replaceable FRU fans |
| Dimensions (H×W×D) | 1.73″ × 17.5″ × 13.8″ (4.4 × 44.5 × 35.0 cm) chassis only; 1.73″ × 17.5″ × 15.4″ (4.4 × 44.5 × 39.1 cm) with FEP & fans |
| Weight | 11.02 lb (5.0 kg) |
| Operating Temperature | 32 °F–113 °F (0 °C–45 °C) |
| Operating Humidity | 5%–95% non-condensing |
| Management Interfaces | CLI, Web UI, SNMP v1/v2c/v3, RMON, NETCONF/RESTCONF; Cisco Catalyst Center; Meraki Dashboard |
| Security Features | AES-128 MACsec, Secure Boot, Trust Anchor Module, 802.1X, DHCP Snooping, DAI, IP Source Guard |
| Certifications & Compliance | FCC Class A, UL/CSA, CE, RoHS, WEEE |
| Warranty | Cisco Enhanced Limited Lifetime Hardware Warranty |
