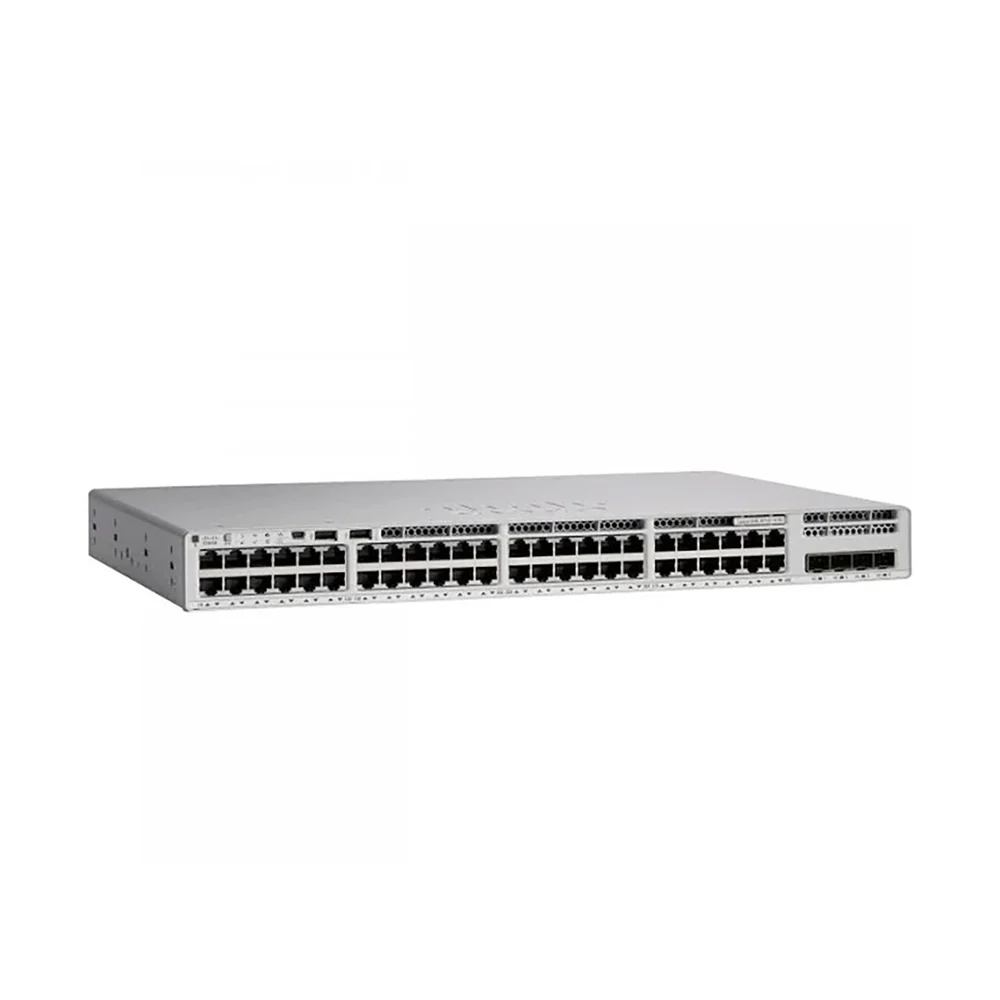

Cisco Catalyst 9200-48P-E 48-Port PoE+ Switch, Essentials License
Cisco C9200-48P-E Access Switch for Enterprise
The Cisco Catalyst 9200-48P-E is a 1 RU fixed-port PoE+ access switch built for U.S. campus and branch networks—from powering IP cameras in Los Angeles distribution centers to driving Wi-Fi 6 access points in New York City offices.
Part of the Catalyst 9200 Series, it runs Cisco IOS XE with the Network Essentials license on an x86 CPU paired with the Cisco UADP 2.0 ASIC, delivering 48 auto-sensing 10/100/1000 RJ-45 PoE+ ports, modular uplinks, and field-replaceable power and fan modules for always-on resiliency.
Centralized management is available via Cisco Catalyst Center or Meraki Dashboard for simplified operations across American IT environments.
Overview
Highlights
-
48 × 1 GbE PoE+ Downlinks
Auto-sensing 10/100/1000 RJ-45 ports deliver up to 30 W per port; single PSU supports up to 740 W of PoE power (dual PSUs up to 1440 W) -
Modular Uplink Flexibility
One hot-swappable module slot for C9200-NM-4G (4×1 GbE SFP), C9200-NM-8X (8×10 GbE SFP+), or C9200-NM-2Q (2×40 GbE QSFP+) modules -
High-Performance Fabric
176 Gbps non-blocking switching capacity and 130.95 Mpps forwarding rate (stacked: 336 Gbps, 250 Mpps) -
StackWise-160 Stacking
Up to 8 switches per stack with 160 Gbps bidirectional stacking bandwidth, sub-50 ms failover (NSF/SSO), and cross-stack EtherChannel -
Enterprise-Grade Security
AES-128 MACsec encryption, Secure Boot with Trust Anchor Module, 802.1X, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard, and scalable ACLs -
Energy-Efficient Design
IEEE 802.3az Energy-Efficient Ethernet (EEE) on RJ-45 ports and low-power fan management support U.S. sustainability goals -
Flexible Management & Automation
CLI, embedded Web UI, SNMP v1/v2c/v3, RMON, NETCONF/RESTCONF, plus zero-touch “Plug and Play” via Catalyst Center or Meraki Dashboard
Recommended Accessories
| Accessory | Category | Description |
|---|---|---|
| C9200-NM-4G | Network Module | 4×1 GbE SFP uplink module for fiber aggregation |
| C9200-NM-8X | Network Module | 8×10 GbE SFP+ uplink module for high-speed campus backbone |
| C9200-NM-2Q | Network Module | 2×40 GbE QSFP+ uplink module for ultra-high-speed aggregation |
| PWR-C6-1KWAC | Power Supply | 1 kW AC field-replaceable FRU power supply |
| C9200-FAN= | Fan Module | Field-replaceable fan tray for N+1 cooling redundancy |
| C9200-STACK-KIT= | Stacking Hardware | StackWise-160 spare kit |
| STACK-T4-50CM | Stacking Cable | 50 cm Type 3 stacking cable (160 Gbps) |
| ACC-KIT-T1= / RACK-KIT-T1= | Rack-Mount Kit | 1 RU accessory kit for standard 19″ racks |
Comparison with Similar Models
| Feature |
C9200-48P-E (Network Essentials) |
C9200-48T-E (Data Essentials) |
C9200-48P-A (PoE+ Advantage) |
|---|---|---|---|
| Ports & PoE | 48×1 GbE PoE+ (30 W/port) | 48×1 GbE data-only | 48×1 GbE PoE+ (30 W/port) |
| License Tier | Network Essentials | Network Essentials | Network Advantage |
| Switching Capacity | 176 Gbps (336 Gbps stacked) | 176 Gbps (336 Gbps stacked) | 176 Gbps (336 Gbps stacked) |
| Forwarding Rate | 130.95 Mpps (250 Mpps stacked) | 130.95 Mpps (250 Mpps stacked) | 130.95 Mpps (250 Mpps stacked) |
| Available PoE Budget | 740 W (single PSU), 1440 W (dual PSU) | N/A | 740 W (single PSU), 1440 W (dual PSU) |
| Stacking Bandwidth | 160 Gbps | 160 Gbps | 160 Gbps |
| Ideal Use Case | PoE+ endpoint aggregation in branches | High-density data edge without PoE | Advanced PoE+ services and telemetry |
Specifications
| Parameter | Specification |
|---|---|
| Model | C9200-48P-E |
| Description | Catalyst 9200 48-port PoE+ Switch, Network Essentials |
| Software | Cisco IOS XE with Network Essentials license |
| Downlink Ports | 48×10/100/1000 RJ-45 PoE+ |
| Uplink Expansion | 1× modular slot (C9200-NM-4G/8X/2Q) |
| Switching Capacity | 176 Gbps full-duplex (336 Gbps with stacking) |
| Forwarding Performance | 130.95 Mpps (250 Mpps with stacking) |
| Available PoE Power | 740 W (single PWR-C6-1KWAC), 1440 W (dual PSUs) |
| Default Power Supply | 1× PWR-C6-1KWAC (1 kW AC, FRU-redundant) |
| DRAM / Flash | 4 GB DRAM; 4 GB flash |
| VLAN IDs | 4,096 |
| Switched Virtual Interfaces (SVIs) | Up to 512 |
| Jumbo Frame Support | Up to 9,198 bytes |
| Packet Buffer | 6 MB per switch |
| MAC Address Table | 32,000 entries |
| Virtual Networks (VRFs) | 4 VLAN-based VRFs |
| Flexible NetFlow Entries | 16,000 flows |
| Stacking | StackWise-160; up to 8 members; 160 Gbps bidirectional |
| Fans | Field-replaceable FRU fans |
| Dimensions (HxWxD) | 1.73″ × 17.5″ × 13.8″ (4.4 × 44.5 × 35.0 cm) chassis only |
| Weight | 12.12 lb (5.5 kg) |
| Operating Temperature | 23 °F to 113 °F (−5 °C to 45 °C) |
| Operating Humidity | 5%–90% non-condensing |
| MTBF | 375,570 hours |
