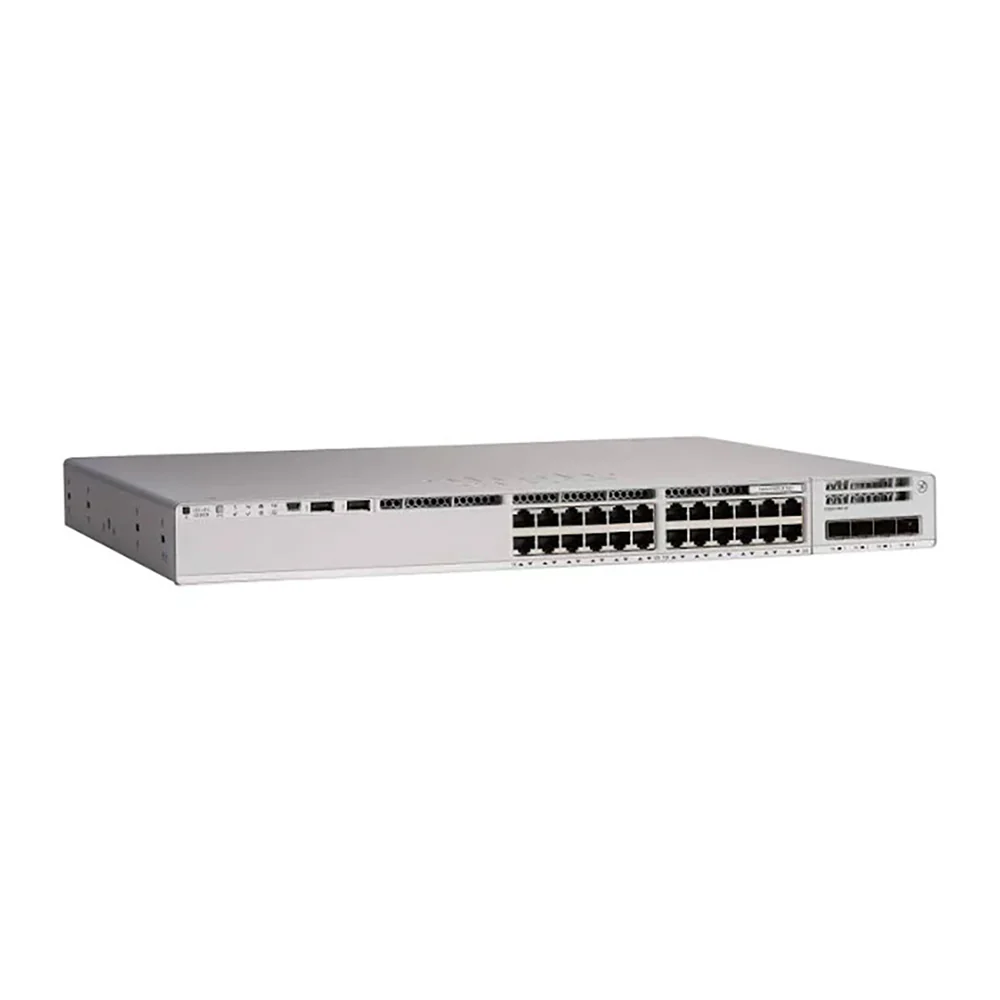

Cisco Catalyst 9200L-24P-4G-A 24-Port PoE+ Switch, Advantage License
Cisco Catalyst 9200L-24P-4G-A 24-Port PoE+ Gigabit Switch with 4×1 Gbps Uplinks, Network Advantage
The Cisco Catalyst 9200L-24P-4G-A is a 1 RU fixed-uplink PoE+ switch in the Catalyst 9200L family, engineered for high-density branch and small-campus deployments. It delivers 24 auto-sensing 10/100/1000 Mbps PoE+ ports (up to 30 W each) and four fixed 1 Gbps SFP uplinks, with a default PWR-C5-600WAC platinum-efficient power supply and fixed redundant fans.
Built on the Cisco UADP 2.0 Mini ASIC with 2 GB DRAM and 4 GB flash, it runs Cisco IOS XE under the Network Advantage license—enabling full Layer 3 routing (OSPF, EIGRP, BGP, VRF, VXLAN, LISP, SGT), advanced security, and programmability—while supporting StackWise-80 stacking up to 136 Gbps of bidirectional back-plane bandwidth for seamless scale-out and sub-50 ms failover.
Overview
Highlights
-
24× Full PoE+ Downlinks
24×10/100/1000 Mbps RJ-45 PoE+ ports (IEEE 802.3at), each supplying up to 30 W inline power. -
4×1 Gbps Fixed Uplinks
Four SFP ports for fiber or copper uplinks—no optional modules required. -
Flexible PoE Budget
370 W total with the default power supply; expandable to 740 W with a second PWR-C5-600WAC PSU. -
Switching Capacity & Forwarding
56 Gbps non-blocking switch fabric; 41.67 Mpps forwarding rate (64-byte packets); stacked capacity up to 136 Gbps and 101 Mpps. -
StackWise-80 Stacking
Stateful stacking of up to 8 switches over fixed ports, delivering 136 Gbps bidirectional backplane bandwidth, NSF/SSO, and cross-stack EtherChannel. -
Enterprise-Grade Security
Line-rate AES-128 MACsec, Secure Boot with Trust Anchor Module, 802.1X, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard, and scalable ACLs. -
Flexible Management
CLI, embedded Web UI, SNMP v1/v2c/v3, RMON, NETCONF/RESTCONF, Plug and Play; native integration with Cisco DNA Center and Meraki Dashboard. -
Programmability & SD-Access
Model-driven APIs, streaming telemetry, and policy-based automation with Cisco DNA Center for SD-Access assurance.
Recommended Accessories
| Accessory | Category | Description |
|---|---|---|
| C9200L-STACK-KIT= | Stacking Module | Spare StackWise-80 kit (2 adapters + cable) |
| STACK-T4-50CM/1M/3M | Stacking Cable | Type 3 stacking cables (0.5 m, 1 m, 3 m lengths) |
| PWR-C5-600WAC/2= | Power Supply | 600 W AC platinum-efficient redundant PSU |
(default accessories shipped with C9200L-24P-4G-A)
Comparison with Similar Models
| Model | Downlinks | Uplinks | PoE Budget | License | Stacking |
|---|---|---|---|---|---|
| C9200L-24P-4G-A | 24× PoE+ (30 W/port) | 4× 1 Gbps SFP | 370 W (740 W) | Network Advantage | 136 Gbps/101 Mpps |
| C9200L-24T-4G-A | 24× data-only | 4× 1 Gbps SFP | None | Network Advantage | 56 Gbps/41.67 Mpps |
| C9200L-48P-4G-A | 48× PoE+ | 4× 1 Gbps SFP | 740 W | Network Advantage | 104 Gbps/77.38 Mpps |
Specifications
| Parameter | Specification |
|---|---|
| Product Code | C9200L-24P-4G-A |
| Description | Catalyst 9200L 24-port PoE+ switch, 4×1 Gbps uplinks, Network Advantage license |
| Downlink Ports | 24×10/100/1000 Mbps RJ-45 PoE+ (IEEE 802.3at) |
| Uplink Ports | 4×1 Gbps SFP fixed |
| Switching Capacity | 56 Gbps non-blocking; 136 Gbps with stacking |
| Forwarding Rate | 41.67 Mpps; 101 Mpps with stacking |
| PoE Budget | 370 W (default PSU); 740 W (with secondary PSU) |
| ASIC / CPU | Cisco UADP 2.0 Mini ASIC with integrated CPU |
| DRAM / Flash | 2 GB DRAM; 4 GB flash |
| Power Supply | PWR-C5-600WAC AC platinum-efficient (600 W) |
| Fans | Fixed, redundant |
| Stacking Bandwidth | 136 Gbps bidirectional (StackWise-80) |
| Security Features | AES-128 MACsec; Secure Boot; Trust Anchor Module; 802.1X; DHCP Snooping; DAI; IP Source Guard; ACLs |
| Management Interfaces | CLI; Web UI; SNMP v1/v2c/v3; RMON; NETCONF/RESTCONF; PnP; Cisco DNA Center; Meraki Dashboard |
| Dimensions (H × W × D) | 1.73″ × 17.5″ × 11.3″ (4.4 × 44.5 × 28.8 cm) |
| Weight | 9.59 lb (4.35 kg) |
| Operating Temp. / Humidity | 32 °F–113 °F (0 °C–45 °C); 5–95 % non-condensing |
| Virtual Networks | 1 |
| MAC Address Table | 16,000 entries |
| IPv4 Routes (ARP + learned) | 11,000 (8,000 direct; 3,000 indirect) |
| IPv6 Routing Entries | 1,500 |
| ACL Scale Entries | 1,500 |
| Packet Buffer | 6 MB |
| Flexible NetFlow Entries | 16,000 flows |
| Jumbo Frames | Up to 9,198 bytes |
| MTBF | 508,700 hours |
More Details
Quality Certifications
Warranty
100% Low Price Guarantee
Network-switch.com provides high-quality products at low wholesale prices
100% Quality Assurance
All items are ORIGINAL and GENUINE only.
Item conditions are "New Sealed". They are fully tested by CCIE Engineers.
Free Technical Support
Our FREE Expert Consultancy Support is over the phone, by chat, by email or by login remotely.
100% Money Back Guarantee
You can contact our customer service team to exchange or return any product that you bought from us.
Flexible Secure Payment & Shipment
Verified authorization: Mcafee Secure, VeriSign Secured
Return Material Authorization (RMA) Process
Standard Warranty Policy
Original New Sealed Enterprise Hardware: 3 Years
Original New Sealed Consumer Devices: 1 Year
The Support Contacts
If your Cisco products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.
