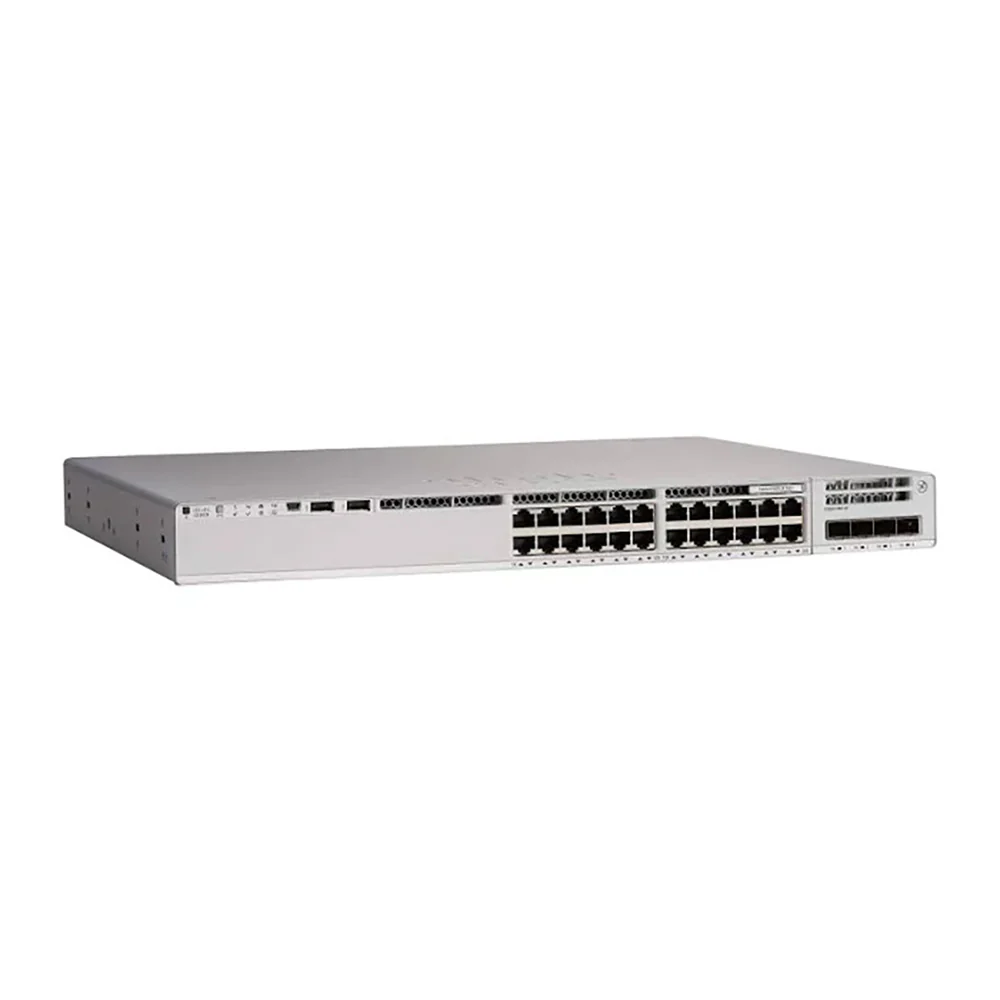

Cisco Catalyst 9200L-24PXG-2Y 24-Port PoE+ mGig Switch, 2×25G Uplinks
Cisco Catalyst 9200L-24PXG-2Y Multigigabit PoE+ Fixed-Uplink Enterprise Branch Switch
The Cisco Catalyst 9200L-24PXG-2Y is a 1 RU access switch in the Catalyst 9200L family, delivering 24 full PoE+ downlink ports (8 multigigabit 10 G/5 G/2.5 G/1 G/100 Mb and 16×1 GbE), two fixed 25 Gbps SFP28 uplinks, and up to 370 W of total PoE budget via a factory-installed 600 W AC platinum-efficient PSU.
Powered by the Cisco UADP 2.0 Mini ASIC under Cisco IOS XE with the Network Essentials feature set, it integrates natively with Cisco DNA Center or Meraki Dashboard for centralized management and automation.
Overview
Highlights
-
24× Full PoE+ Multigigabit Downlinks
8 ports support speeds of 10 G/5 G/2.5 G/1 G/100 Mb, plus 16×1 GbE, each delivering up to 30 W of PoE+ inline power. -
Fixed 2×25 Gbps Uplinks
Two SFP28 uplinks at 25 Gbps each for high-speed aggregation without optional modules. -
370 W PoE Budget
Supports a total of 370 W of PoE+ power with the default PWR-C5-600WAC dual-redundant PSU. -
StackWise-80 Stacking
Stateful stacking up to 8 members with 80 Gbps bidirectional back-plane bandwidth, NSF/SSO, and cross-stack EtherChannel. -
Energy-Efficient, Field-Replaceable Hardware
Fixed redundant fans with front-to-back airflow, low-power fan management, and IEEE 802.3az Energy-Efficient Ethernet. -
Enterprise-Grade Security
Line-rate AES-128 MACsec encryption, Secure Boot with Trust Anchor Module, 802.1X, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard, and scalable ACLs. -
Flexible Management
Manage via CLI, embedded Web UI, SNMP v1/v2c/v3, RMON, NETCONF/RESTCONF, Plug and Play; integrates with Cisco DNA Center and Meraki Dashboard. -
Programmability with Cisco IOS XE
Model-driven APIs, streaming telemetry, and open programmability on the common IOS XE Lite platform.
Recommended Accessories
| Accessory | Category | Description |
|---|---|---|
| C9200L-STACK-KIT= | Stacking Module | Spare StackWise-80 kit for 80 Gbps stacking |
| STACK-T4-50CM/1M/3M | Stacking Cable | Type 3 stacking cables (0.5 m, 1 m, 3 m) |
| PWR-C5-600WAC | Power Supply | 600 W AC platinum-efficient redundant PSU (default) |
Comparison with Similar Models
| Model | Downlinks | Uplinks | PoE Budget | Stacking |
|---|---|---|---|---|
| C9200L-24PXG-2Y | 8× mGig + 16×1 Gb PoE+ | 2×25 Gb SFP28 | 370 W | 80 Gbps |
| C9200L-48PXG-2Y | 8× mGig + 40×1 Gb PoE+ | 2×25 Gb SFP28 | 740 W | 80 Gbps |
| C9200L-24PXG-4X | 8× mGig + 16×1 Gb PoE+ | 4×10 Gb SFP+ | 370 W | 80 Gbps |
Specifications
| Parameter | Specification |
|---|---|
| Product Code | C9200L-24PXG-2Y |
| Description | Catalyst 9200L 24-port multigigabit PoE+ switch, Network Essentials |
| Downlink Ports | 8× 100 Mb/1/2.5/5/10 Gb + 16×1 Gb RJ-45 PoE+ |
| Uplink Ports | 2× 1/10/25 Gb SFP28 fixed uplinks |
| Switching Capacity | 292 Gbps full-duplex |
| Forwarding Rate | 229.16 Mpps (64-byte packets) |
| PoE Budget | 370 W |
| ASIC / CPU | Cisco UADP 2.0 Mini ASIC with integrated CPU |
| DRAM / Flash | 2 GB DRAM; 4 GB Flash |
| Power Supplies | Dual PWR-C5-600WAC AC Platinum-efficient (600 W each) |
| Fans | Fixed, redundant |
| Stacking Bandwidth | 80 Gbps (StackWise-80) |
| Security Features | MACsec, Secure Boot, Trust Anchor, 802.1X, DHCP Snooping, DAI, IP Source Guard, ACLs |
| Management Interfaces | CLI, Web UI, SNMP v1/v2c/v3, RMON, NETCONF/RESTCONF, PnP, DNA Center, Meraki Dashboard |
| Dimensions (H×W×D) | 1.73″×17.5″×13.8″ (4.4×44.5×35.0 cm) |
| Weight | 11.99 lb (5.44 kg) |
| Operating Temp. / Humidity | 32 °F–113 °F (0 °C–45 °C); 5–95% non-condensing |
| Certifications | UL/CSA/EN/IEC 60950-1; AS/NZS 60950.1 |
| MTBF | 337,260 hours |
