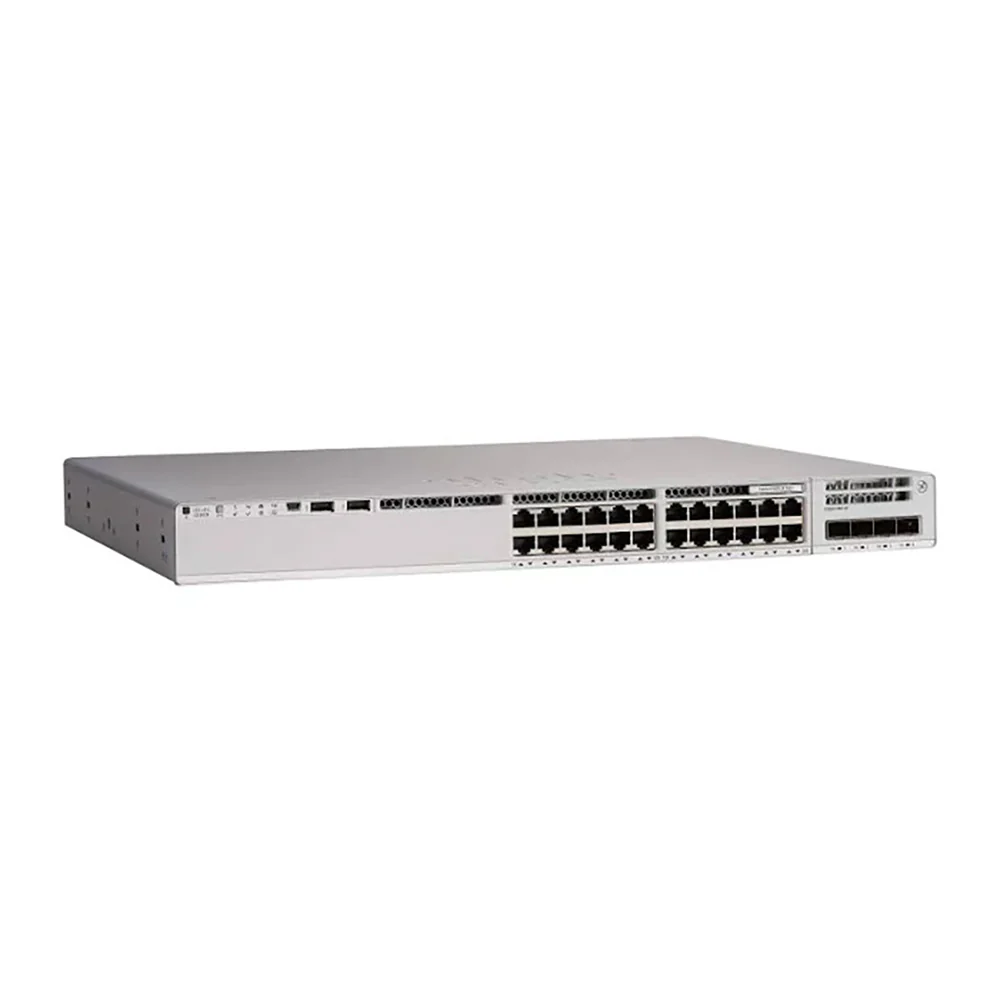

Cisco Catalyst 9200L-24PXG-2Y-A 24-Port PoE+ mGig Switch, Advantage License
Cisco Catalyst 9200L-24PXG-2Y-A Multigigabit PoE+ Fixed-Uplink Branch Switch
The Cisco Catalyst 9200L-24PXG-2Y-A is a 1 RU fixed-uplink multigigabit access switch in the Catalyst 9200L family, engineered for high-density PoE+ branch and converged wired/wireless deployments.
It delivers 24 inline-powered PoE+ ports (8× 100 Mb/1/2.5/5/10 Gbps mGig and 16× 1 Gbps) with up to 370 W of PoE power on the default PSU (expandable to 740 W with a second PSU) and two fixed 1/10/25 Gbps SFP28 uplinks.
Built on the Cisco UADP 2.0 Mini ASIC running Cisco IOS XE with the Network Advantage license, it natively integrates with Cisco DNA Center and Meraki Dashboard for unified management and automation.
Overview
Highlights
-
24× Full PoE+ Multigigabit Downlinks
8 ports auto-negotiate 100 Mb–10 Gbps speeds; 16 ports at 1 Gbps, each supplying up to 30 W. -
Fixed 2× 1/10/25 Gbps Uplinks
Two SFP28 uplinks at 25 Gbps each for high-speed aggregation—no optional modules required. -
Flexible PoE Budget
370 W of PoE+ power with the default PWR-C5-600WAC PSU; scales to 740 W with a secondary PSU. -
StackWise-80 Stacking
Up to eight switches in a stack with 80 Gbps bidirectional back-plane bandwidth, NSF/SSO, and cross-stack EtherChannel. -
Energy-Efficient, Field-Replaceable Hardware
Fixed redundant fans, front-to-back airflow, low-power fan management, and IEEE 802.3az Energy-Efficient Ethernet. -
Advanced Software Features (Network Advantage)
Advanced routing (EIGRP, HSRP, IS-IS, BGP), VRF, VXLAN, LISP, SGT segmentation, model-driven APIs, streaming telemetry, and SD-Access assurance. -
Enterprise-Grade Security
Line-rate AES-128 MACsec encryption and 802.1X authentication for policy-based segmentation. -
Flexible Management & Automation
CLI, embedded Web UI, SNMP v1/v2c/v3, RMON, NETCONF/RESTCONF, Plug and Play; integrates with Cisco DNA Center and Meraki Dashboard.
Recommended Accessories
| Accessory | Category | Description |
|---|---|---|
| C9200L-STACK-KIT | Stacking Module | Spare StackWise-80 kit for C9200L models (2 adapters + cable) |
| STACK-T4-50CM/1M/3M | Stacking Cable | Type 3 stacking cables (0.5 m, 1 m, 3 m lengths) |
| PWR-C5-600WAC | Power Supply | 600 W AC platinum-efficient redundant PSU (default for this model) |
Comparison with Similar Models
| Model | Downlinks | Uplinks | PoE Budget | License |
|---|---|---|---|---|
| C9200L-24PXG-2Y-A | 8× mGig + 16× 1 GbE | 2× 1/10/25 Gbps SFP28 | 370 W / 740 W | Network Advantage |
| C9200L-48PXG-2Y-A | 8× mGig + 40× 1 GbE | 2× 1/10/25 Gbps SFP28 | 740 W / 1440 W | Network Advantage |
| C9200L-24PXG-4X-A | 8× mGig + 16× 1 GbE | 4× 1/10 Gbps SFP+ | 370 W / 740 W | Network Advantage |
Specifications
| Parameter | Specification |
|---|---|
| Product Code | C9200L-24PXG-2Y-A |
| Description | Catalyst 9200L 24-port multigigabit PoE+ switch, Network Advantage license |
| Downlink Ports | 8× (100 Mb/1/2.5/5/10 Gbps) + 16× 1 Gbps RJ-45 PoE+ |
| Uplink Ports | 2× 1/10/25 Gbps SFP28 fixed |
| Switching Capacity | 292 Gbps full-duplex |
| Forwarding Rate | 229.16 Mpps (64-byte packets) |
| PoE Budget | 370 W (single PSU); 740 W (with secondary PSU) |
| ASIC / CPU | Cisco UADP 2.0 Mini ASIC with integrated CPU |
| DRAM / Flash | 2 GB DRAM; 4 GB Flash |
| Power Supplies | Dual PWR-C5-600WAC AC platinum-efficient (600 W each, fixed redundant) |
| Fans | Fixed, redundant |
| Stacking Bandwidth | 80 Gbps (StackWise-80) |
| Security Features | AES-128 MACsec encryption; 802.1X authentication; policy-based segmentation |
| Management Interfaces | CLI, Web UI, SNMP v1/v2c/v3, RMON, NETCONF/RESTCONF, Plug and Play; Cisco DNA Center; Meraki Dashboard |
| Dimensions (H×W×D) | 1.73″ × 17.5″ × 13.8″ (4.4 × 44.5 × 35.0 cm) |
| Weight | 12.0 lb (5.44 kg) |
| Operating Temp. / Humidity | 32 °F–113 °F (0 °C–45 °C); 5–95% non-condensing |
| Certifications | UL/CSA/EN/IEC 60950-1; AS/NZS 60950.1 |
| MTBF | 374,730 hours |
