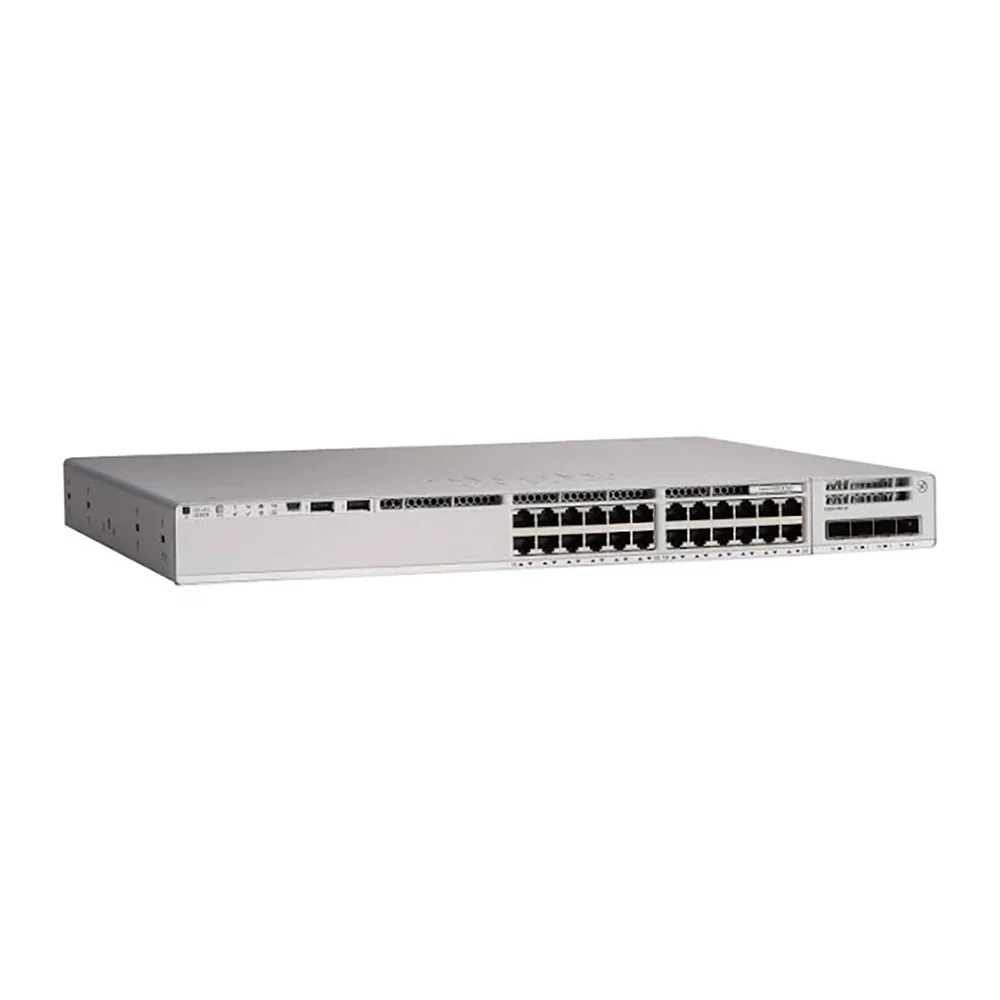

Cisco Catalyst 9200L-24PXG-2Y-E 24-Port PoE+ mGig Switch, Essentials License
Cisco Catalyst 9200L-24PXG-2Y-E Multigigabit PoE+ Fixed-Uplink Access Switch
The Cisco Catalyst 9200L-24PXG-2Y-E is a 1 RU fixed-uplink multigigabit PoE+ switch in the Catalyst 9200L family, engineered for high-density branch and converged wired/wireless access.
It delivers 8 auto-sensing 100 Mb/1/2.5/5/10 Gbps mGig ports plus 16 1 GbE PoE+ ports (all up to 30 W each), two fixed 25 Gbps SFP28 uplinks, and a 740 W total PoE budget.
Built on the UADP 2.0 Mini ASIC under Cisco IOS XE with the Network Essentials feature set, it integrates natively with Cisco DNA Center and Meraki Dashboard for centralized management and automation.
Overview
Highlights
-
24× Full PoE+ Multigigabit Downlinks: 8× mGig (100 Mb–10 Gb), 16× 1 GbE, each port up to 30 W PoE+ inline power.
-
Fixed 2 × 25 Gbps Uplinks: Two SFP28 uplinks at 25 Gbps each—no optional modules required.
-
740 W PoE Budget: Supports up to 740 W of total PoE+ power via the default 600 W platinum-efficient PSU.
-
Switching Capacity & Forwarding: 292 Gbps non-blocking switch fabric; forwarding rate of 229.16 Mpps (64-byte packets).
-
StackWise-80 Stacking: Stateful stacking of up to eight switches with 80 Gbps bidirectional backplane bandwidth.
-
Energy-Efficient, Field-Replaceable Fans: ENERGY STAR® certified with front-to-back fixed redundant fans for reliable, low-power operation.
-
Enterprise-Grade Security: AES-128 MACsec encryption, policy-based segmentation, 802.1X, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard, and scalable ACLs.
-
Flexible Management: CLI, embedded Web UI, SNMP v1/v2c/v3, RMON, NETCONF/RESTCONF, Plug and Play; integrates with Cisco DNA Center and Meraki Dashboard.
-
Programmability with Cisco IOS XE: Common IOS XE Lite platform supporting model-driven APIs and streaming telemetry.
Recommended Accessories
| Accessory | Category | Description |
|---|---|---|
| C9200L-STACK-KIT= | Stacking Module | StackWise-80 kit (1× module + 1× stacking cable) |
| STACK-T4-50CM/1M/3M | Stacking Cable | Type 3 stacking cables (0.5 m, 1 m, 3 m) |
| PWR-C5-600WAC | Power Supply | 600 W AC platinum-efficient PSU (default, redundant) |
Comparison with Similar Models
| Model | Downlink Ports | Uplinks | PoE Budget | License |
|---|---|---|---|---|
| C9200L-24PXG-2Y-E | 8× mGig + 16× 1 GbE | 2× 25 Gbps SFP28 | 740 W | Network Essentials |
| C9200L-24PXG-4X-E | 8× mGig + 16× 1 GbE | 4× 10 Gbps SFP+ | 740 W | Network Essentials |
| C9200L-24PXG-2Y-A | 8× mGig + 16× 1 GbE | 2× 25 Gbps SFP28 | 740 W | Network Advantage |
Specifications
| Parameter | Specification |
|---|---|
| Product Code | C9200L-24PXG-2Y-E |
| Description | Catalyst 9200L 24-port multigigabit PoE+ switch, Network Essentials license |
| Downlink Ports | 8× (100 Mb/1/2.5/5/10 Gbps) + 16× 1 GbE RJ-45 PoE+ |
| Uplink Ports | 2× 1/10/25 Gbps SFP28 fixed |
| Switching Capacity | 292 Gbps full-duplex |
| Forwarding Rate | 229.16 Mpps (64-byte packets) |
| PoE Budget | 740 W total |
| ASIC / CPU | Cisco UADP 2.0 Mini ASIC with integrated CPU |
| DRAM / Flash | 2 GB DRAM; 4 GB Flash |
| Power Supplies | Dual PWR-C5-600WAC AC platinum-efficient (600 W each) |
| Fans | Fixed, redundant |
| Stacking Bandwidth | 80 Gbps (StackWise-80) |
| Security Features | AES-128 MACsec, policy-based segmentation, 802.1X, DHCP Snooping, DAI, IP Source Guard, ACLs |
| Management Interfaces | CLI, Web UI, SNMP v1/v2c/v3, RMON, NETCONF/RESTCONF, PnP; DNA Center, Meraki Dashboard |
| Programmability | Cisco IOS XE Lite with model-driven APIs and streaming telemetry |
| Chassis Dimensions | 1.73 × 17.5 × 13.8 in (4.4 × 44.5 × 35.0 cm) |
| Weight | 11.99 lb (5.44 kg) |
| Operating Temp. / Humidity | 32 °F–113 °F (0 °C–45 °C); 5–95% non-condensing |
