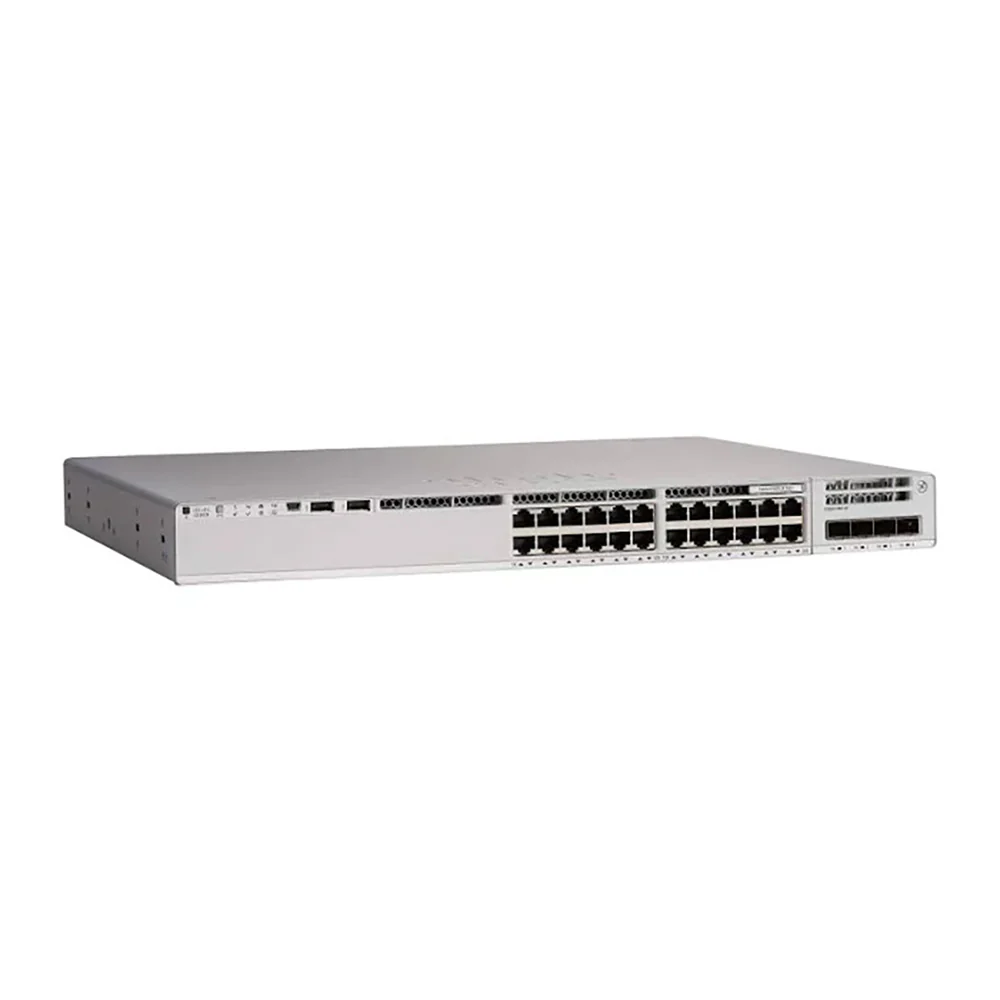

Cisco Catalyst 9200L-24T-4G-E 24-Port 1G Switch, Essentials License
Cisco Catalyst 9200L-24T-4G-E 24-Port Gigabit Data Switch with 4×1 Gbps Uplinks, Network Essentials
The Cisco Catalyst 9200L-24T-4G-E is a 1 RU fixed-uplink access switch in the Catalyst 9200L family, engineered for high-density branch and small-campus environments.
It provides 24 autosensing 10/100/1000 RJ-45 downlink ports, four fixed 1 Gbps SFP uplinks, ships with a PWR-C5-125WAC AC platinum-efficient power supply and fixed redundant fans, and supports StackWise-80 stacking up to 80 Gbps of bidirectional backplane bandwidth.
Built on Cisco’s UADP 2.0 Mini ASIC with 2 GB DRAM and 4 GB flash, it runs Cisco IOS XE under the Network Essentials license and integrates natively with Cisco DNA Center and Meraki Dashboard for centralized management and automation.
Overview
Highlights
-
24× 1 GbE Downlink Ports: 24 autosensing 10/100/1000 RJ-45 data-only ports for high-density wired access.
-
4× 1 Gbps Fixed Uplinks: Four SFP ports for fiber or copper uplinks—no optional modules required.
-
56 Gbps Switching Capacity & 41.67 Mpps Forwarding: Non-blocking fabric delivering wire-speed performance across all ports.
-
Layer 3 Routing (Essentials): Supports static routing plus IP unicast protocols—RIPv1, RIPv2, RIPng, and OSPF—with equal-cost load balancing.
-
StackWise-80 Stacking: Stateful stacking of up to eight switches over fixed ports, delivering 80 Gbps bidirectional backplane bandwidth, NSF/SSO, and cross-stack EtherChannel.
-
Enterprise-Grade Security: Line-rate AES-128 MACsec encryption, Secure Boot with Trust Anchor Module, 802.1X, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard, and scalable ACLs.
-
Flexible Management & Automation: CLI, embedded Web UI, SNMP v1/v2c/v3, RMON, NETCONF/RESTCONF, Plug and Play; native integration with Cisco DNA Center and Meraki Dashboard.
-
Programmability with Cisco IOS XE: Model-driven APIs, streaming telemetry, and programmable ASIC pipeline on a common enterprise OS.
Recommended Accessories
| Accessory | Category | Description |
|---|---|---|
| C9200L-STACK-KIT | Stacking Module | StackWise-80 kit for Catalyst 9200L SKUs (2 adapters + cable) |
| STACK-T4-50CM/1M/3M | Stacking Cable | Type 3 stacking cables (0.5 m, 1 m, 3 m lengths) |
| PWR-C5-125WAC | Power Supply | 125 W AC platinum-efficient fixed redundant PSU |
Comparison with Similar Models
| Model | Downlink Ports | Uplinks | License | Switching Capacity |
|---|---|---|---|---|
| C9200L-24T-4G-E | 24× 1 GbE data-only | 4× 1 Gbps SFP | Network Essentials | 56 Gbps / 41.67 Mpps |
| C9200L-24T-4G-A | 24× 1 GbE data-only | 4× 1 Gbps SFP | Network Advantage | 56 Gbps / 41.67 Mpps |
| C9200L-24P-4G-E | 24× 1 GbE PoE+ (30 W/port) | 4× 1 Gbps SFP | Network Essentials | 56 Gbps / 41.67 Mpps |
Specifications
| Parameter | Specification |
|---|---|
| Product Code | C9200L-24T-4G-E |
| Description | Catalyst 9200L 24-port data 4×1 Gb uplink switch, Network Essentials license |
| Downlink Ports | 24× 10/100/1000 RJ-45 autosensing (data-only) |
| Uplink Ports | 4× 1 Gbps SFP fixed |
| Switching Capacity | 56 Gbps non-blocking |
| Forwarding Rate | 41.67 Mpps (64-byte packets) |
| Stacking Bandwidth | 80 Gbps (StackWise-80) |
| Virtual Networks | 1 |
| DRAM / Flash | 2 GB DRAM; 4 GB flash |
| Power Supply | PWR-C5-125WAC AC platinum-efficient (125 W) |
| Fans | Fixed, redundant |
| Security Features | AES-128 MACsec; Secure Boot; Trust Anchor Module; 802.1X; DHCP Snooping; Dynamic ARP Inspection; IP Source Guard; ACLs |
| Management Interfaces | CLI; Web UI; SNMP v1/v2c/v3; RMON; NETCONF/RESTCONF; PnP; Cisco DNA Center; Meraki Dashboard |
| Layer 3 Routing Protocols | Static; RIPv1; RIPv2; RIPng; OSPF |
| Dimensions (H×W×D) | 1.73″ × 17.5″ × 11.3″ (4.4 × 44.5 × 28.8 cm) |
| Weight | 9.59 lb (4.35 kg) |
| Operating Temp. / Humidity | 32 °F–113 °F (0 °C–45 °C); 5–95 % non-condensing |
| MTBF | 531,030 hours |
