Cisco Catalyst 9200L-24T-4X-E 24-Port Switch 4×10G Uplinks/Essentials

Cisco Catalyst 9200L-24T-4X-E 24-Port Switch 4×10G Uplinks/Essentials

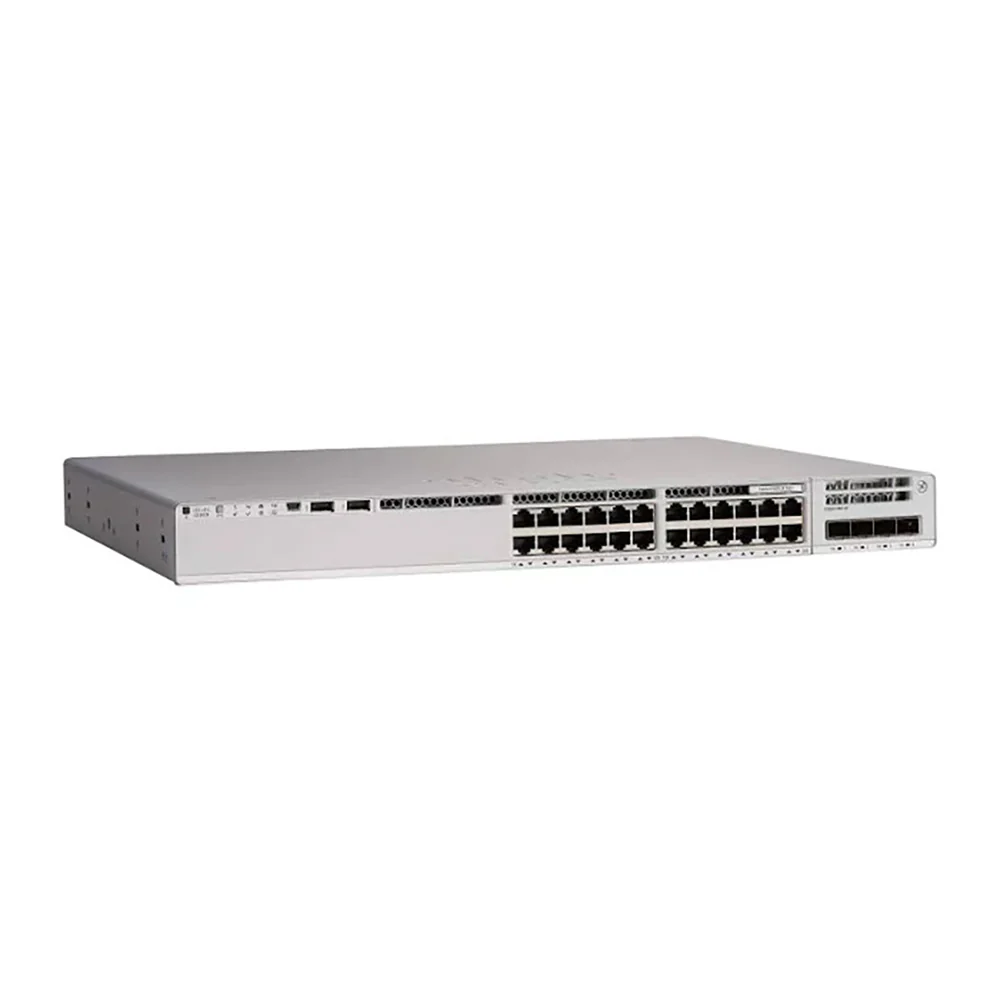

Cisco Catalyst 9200L-24T-4X-E 24-Port Gigabit Data Switch with 4×10 Gbps Uplinks, Network Essentials

The Cisco Catalyst 9200L-24T-4X-E is a 1 RU fixed-uplink access switch in the Catalyst 9200L family, engineered for high-density branch and small-campus environments.

It provides 24 data-only 10/100/1000 RJ-45 ports and four fixed 10 Gbps SFP+ uplinks, powered by a PWR-C5-125WAC AC platinum-efficient PSU with fixed redundant fans.

Built on Cisco’s UADP 2.0 Mini ASIC with 2 GB DRAM and 4 GB flash, it runs Cisco IOS XE under the Network Essentials license, supports StackWise-80 stacking up to 80 Gbps of bidirectional backplane bandwidth, and integrates natively with Cisco DNA Center or Meraki Dashboard for unified management and automation.

Overview

Highlights

  • 24 × 1 GbE Downlink Ports
    24 auto-sensing 10/100/1000 RJ-45 data-only ports.

  • 4 × 10 Gbps Fixed Uplinks
    Four SFP+ ports for high-speed aggregation—no optional modules required.

  • 128 Gbps Switching Capacity & 190.4 Mpps Forwarding
    Non-blocking fabric with wire-speed packet forwarding.

  • StackWise-80 Stacking
    Stateful stacking of up to eight switches with 80 Gbps bidirectional backplane bandwidth and sub-50 ms failover.

  • Enterprise-Grade Security
    AES-128 MACsec encryption, Secure Boot with Trust Anchor, 802.1X, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard, and scalable ACLs.

  • Flexible Management & Automation
    CLI, embedded Web UI, SNMP v1/v2c/v3, RMON, NETCONF/RESTCONF, Plug and Play; integrates with Cisco DNA Center and Meraki Dashboard.

  • Programmability with Cisco IOS XE
    Model-driven APIs, streaming telemetry, and programmable ASIC pipeline on a common enterprise OS.

Recommended Accessories

Accessory Category Description
C9200L-STACK-KIT= Stacking Module StackWise-80 kit spare for Catalyst 9200L
STACK-T4-50CM/1M/3M Stacking Cable Type 3 stacking cables (0.5 m, 1 m, 3 m)
PWR-C5-125WAC/2= Power Supply 125 W AC platinum-efficient spare PSU


Comparison with Similar Models

Model Downlinks Uplinks License
C9200L-24T-4X-E 24× 1 GbE data-only 4× 10 Gbps SFP+ Essentials
C9200L-24T-4X-A 24× 1 GbE data-only 4× 10 Gbps SFP+ Advantage
C9200L-24P-4X-E 24× PoE+ (30 W/port) 4× 10 Gbps SFP+ Essentials
C9200L-24P-4X-A 24× PoE+ (30 W/port) 4× 10 Gbps SFP+ Advantage


Specifications

Parameter Specification
Product Code C9200L-24T-4X-E
Description Catalyst 9200L 24-port data-only switch with 4×10 Gbps uplinks, Network Essentials license
Downlink Ports 24× 10/100/1000 RJ-45 autosensing (data-only)
Uplink Ports 4× 10 Gbps SFP+ fixed
Switching Capacity 128 Gbps non-blocking
Forwarding Rate 190.4 Mpps (64-byte packets)
Stacking Bandwidth 80 Gbps (StackWise-80)
DRAM / Flash 2 GB DRAM; 4 GB flash
Default Power Supply PWR-C5-125WAC AC platinum-efficient
Fans Fixed, redundant
Virtual Networks 1
MAC Address Table 16,000 entries
IPv4 Routes (ARP + learned) 11,000 total (8,000 direct; 3,000 indirect)
IPv4 Routing Entries 3,000
IPv6 Routing Entries 1,500
Multicast Routing Scale 1,000
QoS Scale Entries 1,000
ACL Scale Entries 1,500
Packet Buffer 6 MB
Flexible NetFlow Entries 16,000 flows
VLAN IDs 1,024
SVIs 512
Jumbo Frames Up to 9,198 bytes
Mean Time Between Failures (MTBF) 525,990 hours
Chassis Dimensions (H×W×D) 1.73″ × 17.5″ × 11.3″ (4.4 × 44.5 × 28.8 cm)
Weight 7.27 lb (3.3 kg)
Operating Temperature / Humidity 32 °F–113 °F (0 °C–45 °C); 5–95% non-condensing
Security & Management Features AES-128 MACsec, Secure Boot, Trust Anchor, 802.1X, DHCP Snooping, DAI, IP Source Guard, ACLs; CLI, Web UI, SNMP v1/v2c/v3, RMON, NETCONF/RESTCONF, PnP, Cisco DNA Center, Meraki Dashboard
