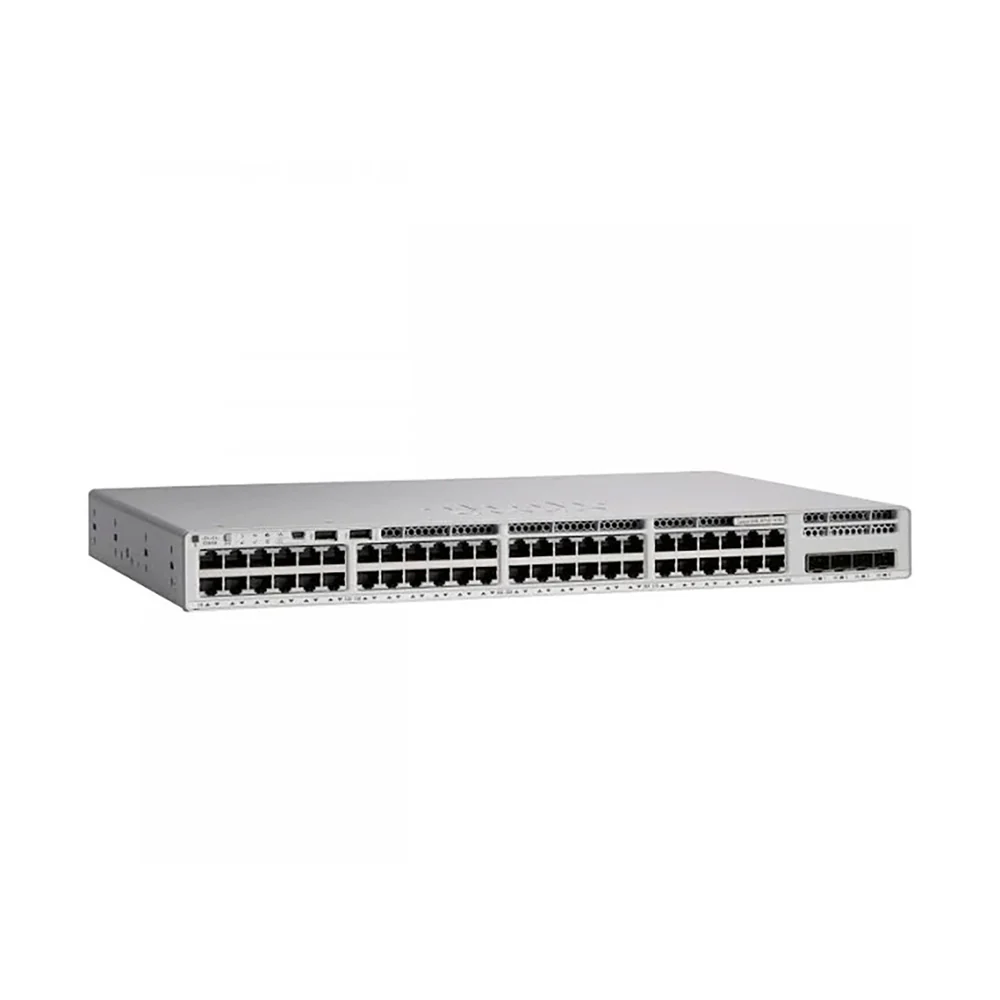

Cisco Catalyst 9200L-48PXG-2Y 48-Port PoE+ mGig Switch, 2×25G Uplinks
Cisco Catalyst 9200L-48PXG-2Y Multigigabit PoE+ Fixed-Uplink Enterprise Branch Switch
The Cisco Catalyst 9200L-48PXG-2Y is a 1 RU, fixed-uplink multigigabit access switch in the Catalyst 9200L family, engineered for high-bandwidth branch and converged wired / wireless deployments.
It offers 48 full PoE+ ports—8 multigigabit (100 Mb/1/2.5/5/10 Gbps) and 40*1 Gbps—alongside two fixed 25 Gbps SFP28 uplinks and a maximum PoE budget of 1440 W.
Powered by the Cisco UADP 2.0 mini ASIC running Cisco IOS XE with the Network Essentials feature set, it integrates natively with Cisco DNA Center and Meraki Dashboard for unified management and automation.
Overview
Highlights
-
48 Full PoE+ Multigigabit Downlinks: 8 ports support 100 Mb/1 Gb/2.5 Gb/5 Gb/10 Gb speeds; 40 ports at 1 Gb, all PoE+ inline powered up to 30 W per port.
-
Fixed 2×25 G Uplinks: Two SFP28 uplinks at 25 Gbps each for high-speed aggregation without optional modules.
-
High PoE Budget: Supports up to 1440 W of total PoE power with dual 1000 W AC platinum-efficient PSUs.
-
StackWise-80 Stacking: Resilient, stateful stacking up to 80 Gbps backplane bandwidth via fixed StackWise-80 ports.
-
Energy-Efficient, Field-Replaceable Hardware: Fixed redundant fans with front-to-back airflow, low-power fan management, and IEEE 802.3az Energy-Efficient Ethernet.
-
Enterprise-Grade Security: AES-128 MACsec encryption, Secure Boot with Trust Anchor, 802.1X, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard, and scalable ACLs.
-
Flexible Management: Manage via CLI, embedded Web UI, SNMP v1/v2c/v3, RMON, NETCONF/RESTCONF, Plug and Play; integrates with Cisco DNA Center and Meraki Dashboard.
-
Programmability with Cisco IOS XE: Model-driven API support and streaming telemetry on the common IOS XE Lite platform.
Recommended Accessories
| Accessory | Category | Description |
|---|---|---|
| C9200L-STACK-KIT= | Stacking Module | C9200L Stack Kit spare (StackWise-80) |
| STACK-T4-50CM/1M/3M | Stacking Cable | Type 3 stacking cables (0.5 m, 1 m, 3 m) |
| PWR-C5-1KWAC/2= | Power Supply | 1000 W AC Platinum-efficient PSU (default for PXG-2Y) |
Comparison with Similar Models
| Model | Downlink Ports | Uplinks | PoE Budget | Stacking |
|---|---|---|---|---|
| C9200L-48PXG-2Y | 8× mGig + 40× 1 Gb | 2× 25 Gb SFP28 | 1440 W | 80 Gbps |
| C9200L-24PXG-2Y | 8× mGig + 16× 1 Gb | 2× 25 Gb SFP28 | 740 W | 80 Gbps |
| C9200L-48PXG-4X | 12× mGig + 36× 1 Gb | 4× 10 Gb SFP+ | 1440 W | 80 Gbps |
Specifications
| Parameter | Specification |
|---|---|
| Product Code | C9200L-48PXG-2Y |
| Description | Catalyst 9200L 48-port multigigabit PoE+ switch, Network Essentials |
| Downlink Ports | 8× 100 Mb/1/2.5/5/10 Gb + 40× 1 Gb RJ-45 PoE+ |
| Uplink Ports | 2× 25 Gb SFP28 fixed uplinks |
| Switching Capacity | 340 Gbps full-duplex |
| Forwarding Rate | 252.97 Mpps (64-byte packets) |
| PoE Budget | 1440 W |
| ASIC / CPU | Cisco UADP 2.0 Mini ASIC with integrated CPU |
| DRAM / Flash | 2 GB DRAM; 4 GB Flash |
| Power Supplies | Dual PWR-C5-1KWAC AC Platinum-efficient (1000 W each) |
| Fans | Fixed, redundant |
| Stacking Bandwidth | 80 Gbps (StackWise-80) |
| Security Features | MACsec, Secure Boot, Trust Anchor, 802.1X, DHCP Snooping, DAI, IP Source Guard, ACLs |
| Management Interfaces | CLI, Web UI, SNMP v1/v2c/v3, RMON, NETCONF/RESTCONF, PnP, DNA Center, Meraki Dashboard |
| Dimensions (H×W×D) | 1.73″ × 17.5″ × 13.8″ (4.4 × 44.5 × 35.0 cm) |
| Weight | 12.6 lb (5.71 kg) |
| Operating Temp. / Humidity | 32 °F–113 °F (0 °C–45 °C); 5–95% non-condensing |
| Certifications | UL/CSA/EN/IEC 60950-1; AS/NZS 60950.1 |
| MTBF | 337,260 hours |
