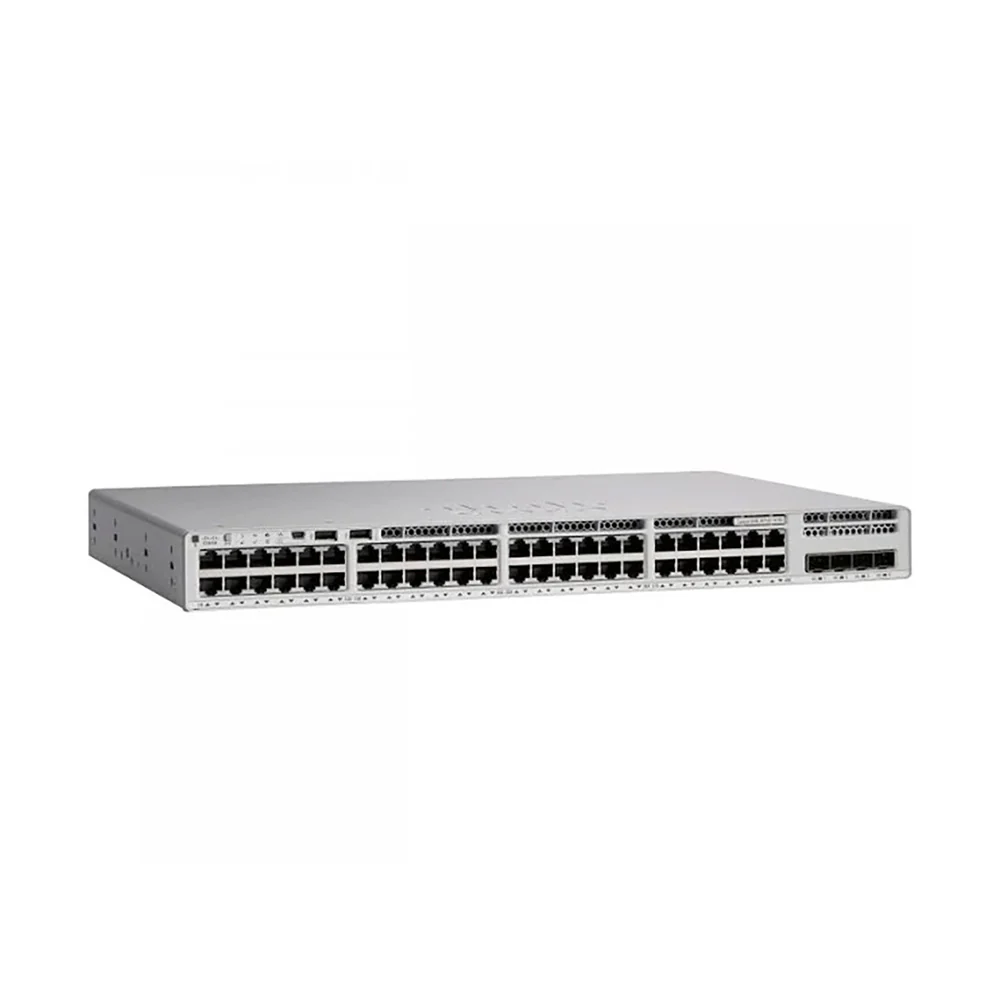

Cisco Catalyst 9200L-48PXG-2Y-A 48-Port PoE+ mGig Switch, Advantage License
Cisco Catalyst 9200L-48PXG-2Y-A Multigigabit PoE+ Fixed-Uplink Enterprise Branch Switch
The Cisco Catalyst 9200L-48PXG-2Y-A is a 1 RU, fixed-access multigigabit PoE+ switch in the Catalyst 9200L family, optimized for high-density branch and converged wired/wireless deployments. It supplies 48 inline-powered ports (up to 30 W each) with a total PoE budget of 1 440 W, plus two fixed 25 Gbps SFP28 uplinks.
Built on the Cisco UADP 2.0 Mini ASIC with an integrated x86 CPU, it runs Cisco IOS XE with the Network Advantage feature set and integrates seamlessly with Cisco DNA Center and Meraki Dashboard for unified management, automation, and advanced analytics.
Overview
Highlights
-
48 Full PoE+ Multigigabit Downlinks
8 ports autonegotiate 100 Mb/1 Gb/2.5 Gb/5 Gb/10 Gb speeds; 40 ports at 1 Gb, each up to 30 W inline power. -
Fixed 2×25 Gbps Uplinks
Two SFP28 uplinks at 25 Gbps each for high-speed aggregation—no additional modules required. -
High PoE Budget
Up to 1 440 W of total PoE+ power (with dual AC 1 kW PSUs) for powering cameras, APs, and IoT devices. -
StackWise-80 Stacking
Stateful stacking of up to 8 switches over fixed StackWise-80 ports, delivering 80 Gbps bidirectional backplane bandwidth and sub-50 ms failover. -
Energy-Efficient, Field-Replaceable Hardware
Fixed, redundant fans with front-to-back airflow, low-power fan management, and IEEE 802.3az Energy-Efficient Ethernet. -
Enterprise-Grade Security
Line-rate AES-128 MACsec, Secure Boot with Trust Anchor, 802.1X, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard, and scalable ACLs. -
Flexible Management & Automation
CLI, embedded Web UI, SNMP v1/v2c/v3, RMON, NETCONF/RESTCONF, Plug and Play; native integration with Cisco DNA Center and Meraki Dashboard. -
Advanced Software Features (Network Advantage)
Enables VRF, VXLAN, LISP, SGT segmentation; enhanced routing (EIGRP, HSRP, IS-IS, BSR, MSDP, IP SLA, OSPF); model-driven APIs, streaming telemetry, Full Flexible NetFlow, and SD-Access assurance.
Recommended Accessories
| Accessory | Category | Description |
|---|---|---|
| C9200L-STACK-KIT= | Stacking Module | Spare StackWise-80 kit for 80 Gbps stacking |
| STACK-T4-50CM/1M/3M | Stacking Cable | Type 3 stacking cables (0.5 m, 1 m, 3 m) |
| PWR-C5-1KWAC | Power Supply | 1 kW AC platinum-efficient PSU (default for PoE+ models) |
Comparison with Similar Models
| Model | Downlinks | Uplinks | PoE Budget | License |
|---|---|---|---|---|
| C9200L-48PXG-2Y-A | 8× mGig + 40×1 Gb PoE+ | 2×25 Gb SFP28 | 1 440 W | Advantage |
| C9200L-48PXG-2Y-E | 8× mGig + 40×1 Gb PoE+ | 2×25 Gb SFP28 | 1 440 W | Essentials |
| C9200L-48PXG-4X-A | 12× mGig + 36×1 Gb PoE+ | 4×10 Gb SFP+ | 1 440 W | Advantage |
Specifications
| Parameter | Specification |
|---|---|
| Product Code | C9200L-48PXG-2Y-A |
| Description | Catalyst 9200L 48-port multigigabit PoE+ switch, Network Advantage |
| Downlink Ports | 8×100 Mb/1/2.5/5/10 Gb + 40×1 Gb RJ-45 PoE+ |
| Uplink Ports | 2×25 Gb SFP28 fixed ports |
| PoE Budget | 1 440 W total |
| Stacking Bandwidth | 80 Gbps (StackWise-80) |
| ASIC / CPU | Cisco UADP 2.0 Mini ASIC with integrated x86 CPU |
| Software | Cisco IOS XE with Network Advantage |
| Memory | 2 GB DRAM; 4 GB Flash |
| Power Supplies | Dual PWR-C5-1KWAC AC platinum-efficient (1 kW each) |
| Fans | Fixed, redundant |
| Management Interfaces | CLI, Web UI, SNMP v1/v2c/v3, RMON, NETCONF/RESTCONF, PnP, DNA Center, Meraki Dashboard |
| Security Features | MACsec-128, Secure Boot, Trust Anchor, 802.1X, DHCP Snooping, DAI, IP Source Guard, ACLs |
| Dimensions (H×W×D) | 1.73″×17.5″×13.8″ (4.4×44.5×35.0 cm) |
| Weight | 12.6 lb (5.7 kg) |
| Operating Temp/Humidity | 32 °F–113 °F (0 °C–45 °C); 5–95% non-condensing |
| Certifications | UL/CSA/EN/IEC 60950-1; AS/NZS 60950.1 |
| MTBF | 337,260 hours |
