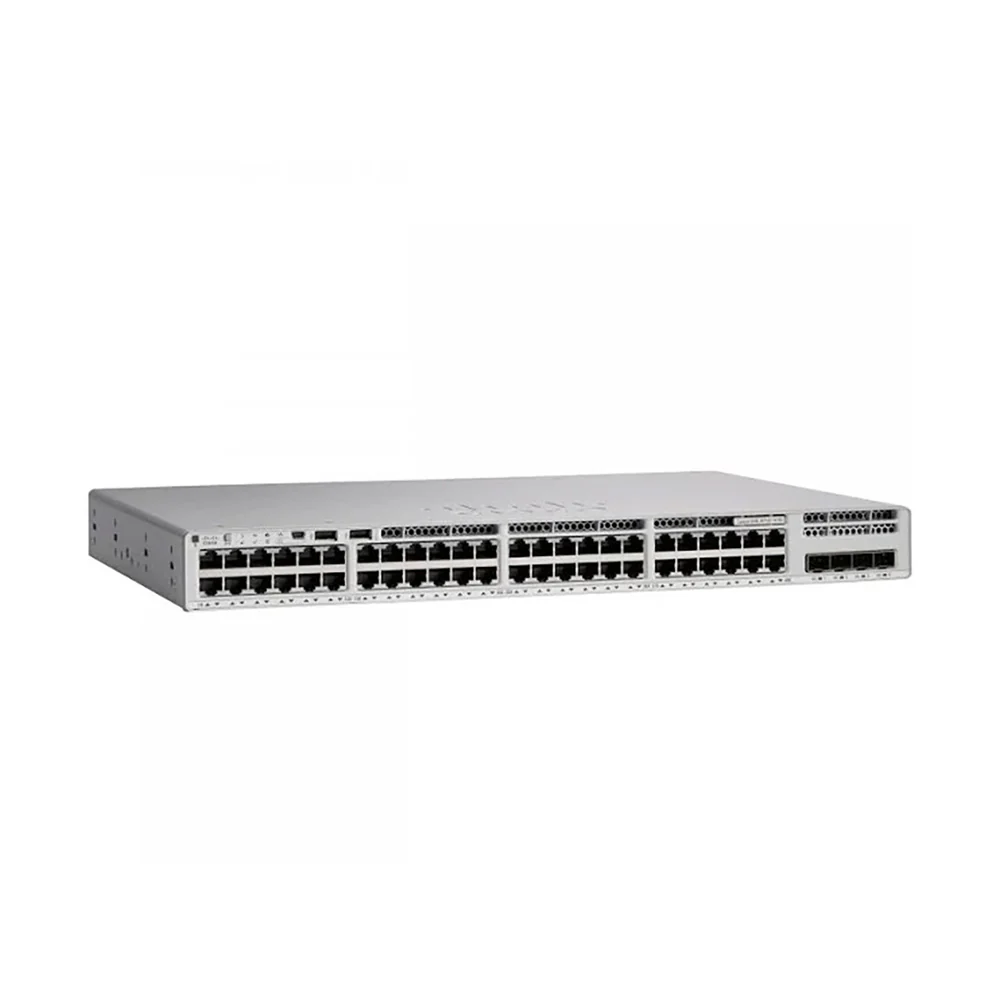

Cisco Catalyst 9200L-48T-4G-E 48-Port 1G Switch, Essentials License
Cisco Catalyst 9200L-48T-4G-E 48-Port Gigabit Data Switch with 4×1 G Fixed Uplinks, Network Essentials
The Cisco Catalyst 9200L-48T-4G-E is a 1 RU fixed-uplink data-only switch in the Catalyst 9200L family, engineered for high-density branch and small-campus environments. It provides 48 auto-sensing 10/100/1000 RJ-45 ports for data, plus four fixed 1 Gbps SFP uplinks, powered by Cisco’s UADP 2.0 Mini ASIC with an integrated CPU.
Running Cisco IOS XE with the Network Essentials license, it supports StackWise-80 stacking up to 80 Gbps of bidirectional backplane bandwidth, includes 2 GB DRAM and 4 GB flash storage, and features fixed redundant fans with a single PWR-C5-125WAC power supply.
Seamless integration with Cisco DNA Center and Meraki Dashboard enables unified management and automation.
Overview
Highlights
-
48 × 1 GbE Downlink Ports
10/100/1000 RJ-45 data-only autosensing ports for high-density wired access. -
4 × 1 Gbps Fixed Uplinks
Four SFP ports for fiber or copper uplink connectivity—no optional modules required. -
StackWise-80 Stacking
Stateful stacking of up to eight switches with 80 Gbps bidirectional backplane bandwidth and sub-50 ms failover. -
Data-Only, Energy-Efficient Design
Data-only architecture reduces power overhead; ENERGY STAR®-certified with IEEE 802.3az Energy-Efficient Ethernet on RJ-45 ports and fixed redundant fans. -
Enterprise-Grade Security
Line-rate AES-128 MACsec encryption, Secure Boot with Trust Anchor, 802.1X authentication, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard, and scalable ACLs. -
Flexible Management & Automation
Manage via CLI, embedded Web UI, SNMP v1/v2c/v3, RMON, NETCONF/RESTCONF, Plug and Play; integrates natively with Cisco DNA Center and Meraki Dashboard. -
Programmability with Cisco IOS XE
Model-driven APIs, streaming telemetry, and a programmable ASIC pipeline enable advanced automation and visibility.
Recommended Accessories
| Accessory | Category | Description |
|---|---|---|
| C9200L-STACK-KIT= | Stacking Module | Spare StackWise-80 kit for Catalyst 9200L stacking |
| STACK-T4-50CM/1M/3M | Stacking Cable | Type 3 stacking cables (0.5 m, 1 m, 3 m lengths) |
| PWR-C5-125WAC/2= | Power Supply | Spare 125 W AC platinum-efficient PSU |
Comparison with Similar Models
| Model | Downlink Ports | Uplinks | License | PoE Budget | Stacking |
|---|---|---|---|---|---|
| C9200L-48T-4G-E | 48× 1 GbE data-only | 4× 1 Gbps SFP | Essentials | None | 80 Gbps |
| C9200L-48T-4G-A | 48× 1 GbE data-only | 4× 1 Gbps SFP | Advantage | None | 80 Gbps |
| C9200L-48P-4G-E | 48× 1 GbE PoE+ | 4× 1 Gbps SFP | Essentials | 740 W | 80 Gbps |
Specifications
| Parameter | Specification |
|---|---|
| Product Code | C9200L-48T-4G-E |
| Description | Catalyst 9200L 48-port data-only switch, Network Essentials license |
| Downlink Ports | 48× 10/100/1000 RJ-45 autosensing (data-only) |
| Uplink Ports | 4× 1 Gbps SFP fixed |
| Switching Capacity | 104 Gbps non-blocking |
| Forwarding Rate | 154.76 Mpps (64-byte packets) |
| Stacking Bandwidth | 80 Gbps (StackWise-80) |
| DRAM / Flash | 2 GB DRAM; 4 GB flash |
| Power Supply | PWR-C5-125WAC AC platinum-efficient |
| Fans | Fixed, redundant |
| Virtual Networks | 1 |
| MAC Address Table | 16,000 entries |
| IPv4 Routes (ARP + learned) | 11,000 total (8,000 direct; 3,000 indirect) |
| IPv4 Routing Entries | 3,000 |
| IPv6 Routing Entries | 1,500 |
| Multicast Routing Scale | 1,000 |
| ACL Scale Entries | 1,500 |
| Flexible NetFlow Entries | 16,000 flows |
| Packet Buffer | 6 MB |
| VLAN IDs | 1,024 |
| SVIs | 512 |
| Jumbo Frames | Up to 9,198 bytes |
| Dimensions (H×W×D) | 1.73″×17.5″×11.3″ (4.4×44.5×28.8 cm) |
| Weight | 4.35 kg (9.59 lb) |
| MTBF | 508,700 hours |
| Operating Temp. / Humidity | 32 °F–113 °F (0 °C–45 °C); 5–95% non-condensing |
