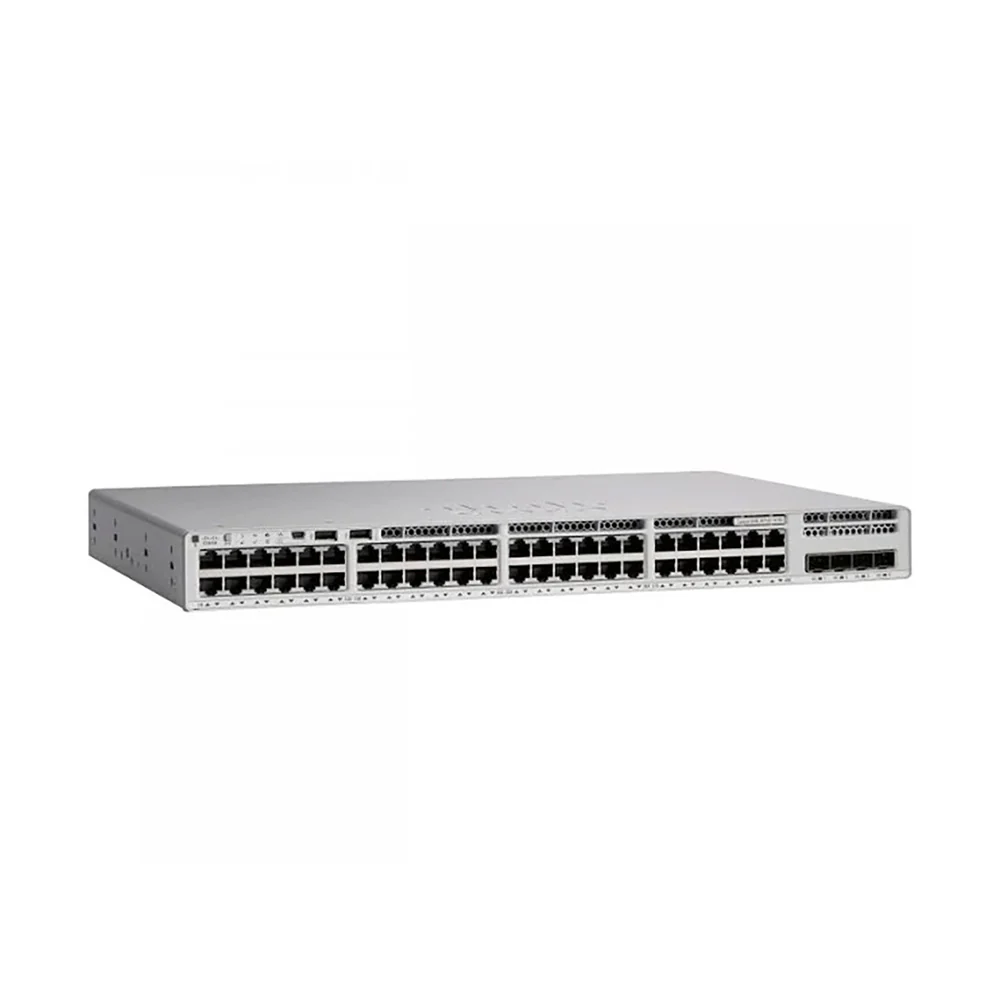

Cisco Catalyst 9200L-48T-4X-E 48-Port Switch 4×10G Uplinks/Essentials
Cisco Catalyst 9200L-48T-4X-E 48-Port Data Switch, 4×10 Gbps Uplinks, Network Essentials
The Cisco Catalyst 9200L-48T-4X-E is a compact, fixed-uplink access switch in the Catalyst 9200L family, engineered for high-density branch and small-campus environments. It provides 48 data-only 10/100/1000 RJ-45 downlinks and four fixed 10 Gbps SFP+ uplinks, powered by a single PWR-C5-125WAC AC platinum PSU and fixed redundant fans.
Built on the Cisco UADP 2.0 Mini ASIC with 2 GB DRAM and 4 GB flash, it runs Cisco IOS XE under the Network Essentials license and supports StackWise-80 stacking (up to 80 Gbps). Native integration with Cisco DNA Center and Meraki Dashboard delivers unified management and automation.
Overview
Highlights
-
48 × 1 GbE Downlink Ports
48 10/100/1000 RJ-45 autosensing data-only ports. -
4 × 10 Gbps Fixed Uplinks
Four SFP+ uplinks at 10 Gbps each—no optional modules required. -
176 Gbps Non-Blocking Fabric & 130.95 Mpps Forwarding
Wire-speed performance across all ports. -
StackWise-80 Stacking
Up to 8 switches stacked with 80 Gbps bidirectional backplane bandwidth and sub-50 ms failover. -
Energy-Efficient, Resilient Hardware
Fixed, redundant fans with front-to-back airflow and IEEE 802.3az Energy-Efficient Ethernet. -
Enterprise-Grade Security
AES-128 MACsec, Secure Boot with Trust Anchor, 802.1X, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard, and scalable ACLs. -
Flexible Management & Automation
CLI, embedded Web UI, SNMP v1/v2c/v3, RMON, NETCONF/RESTCONF, Plug and Play; integrates with Cisco DNA Center and Meraki Dashboard. -
Programmability with Cisco IOS XE
Model-driven APIs and streaming telemetry on a common enterprise OS.
Recommended Accessories
| Accessory | Category | Description |
|---|---|---|
| C9200L-STACK-KIT= | Stacking Module | StackWise-80 kit (2 adapters + stacking cable) |
| STACK-T4-50CM/1M/3M | Stacking Cable | Type 3 stacking cables (0.5 m, 1 m, 3 m) |
| PWR-C5-125WAC | Power Supply | 125 W AC platinum-efficient fixed PSU |
Comparison with Similar Models
| Model | Downlinks | Uplinks | License | Stacking |
|---|---|---|---|---|
| C9200L-48T-4X-E | 48×1 GbE data-only | 4×10 Gbps SFP+ | Network Essentials | 80 Gbps |
| C9200L-48T-4X-A | 48×1 GbE data-only | 4×10 Gbps SFP+ | Network Advantage | 80 Gbps |
| C9200L-48P-4X-E | 48×1 GbE PoE+ | 4×10 Gbps SFP+ | Network Essentials | 80 Gbps |
| C9200L-48P-4X-A | 48×1 GbE PoE+ | 4×10 Gbps SFP+ | Network Advantage | 80 Gbps |
Specifications
| Parameter | Specification |
|---|---|
| Product Code | C9200L-48T-4X-E |
| Description | Catalyst 9200L 48-port data switch with 4×10 Gbps uplinks, Network Essentials license |
| Downlink Ports | 48× 10/100/1000 RJ-45 autosensing (data-only) |
| Uplink Ports | 4× 1/10 Gbps SFP+ fixed |
| Switching Capacity | 176 Gbps non-blocking |
| Capacity with Stacking | 256 Gbps |
| Forwarding Rate | 130.95 Mpps (64-byte packets) |
| Forwarding with Stacking | 190 Mpps |
| Stacking Bandwidth | 80 Gbps (StackWise-80) |
| DRAM / Flash | 2 GB DRAM; 4 GB flash |
| Total MAC Addresses | 16,000 entries |
| IPv4 Routes (ARP + learned) | 11,000 total (8,000 direct + 3,000 indirect) |
| IPv6 Routing Entries | 1,500 |
| ACL Scale Entries | 1,500 |
| Packet Buffer | 6 MB |
| Flexible NetFlow Entries | 16,000 flows |
| Jumbo Frames | Up to 9,198 bytes |
| Power Supply | PWR-C5-125WAC AC platinum (125 W) |
| Fans | Fixed, redundant |
| Dimensions (H × W × D) | 1.73″ × 17.5″ × 11.3″ (4.4 × 44.5 × 28.8 cm) |
| Weight | 9.97 lb (4.53 kg) |
| Operating Temp. / Humidity | 32 °F–113 °F (0 °C–45 °C); 5–95% non-condensing |
| Certifications | UL/CSA/EN/IEC 60950-1; AS/NZS 60950.1 |
| Mean Time Between Failures (MTBF) | 503,400 hours |
