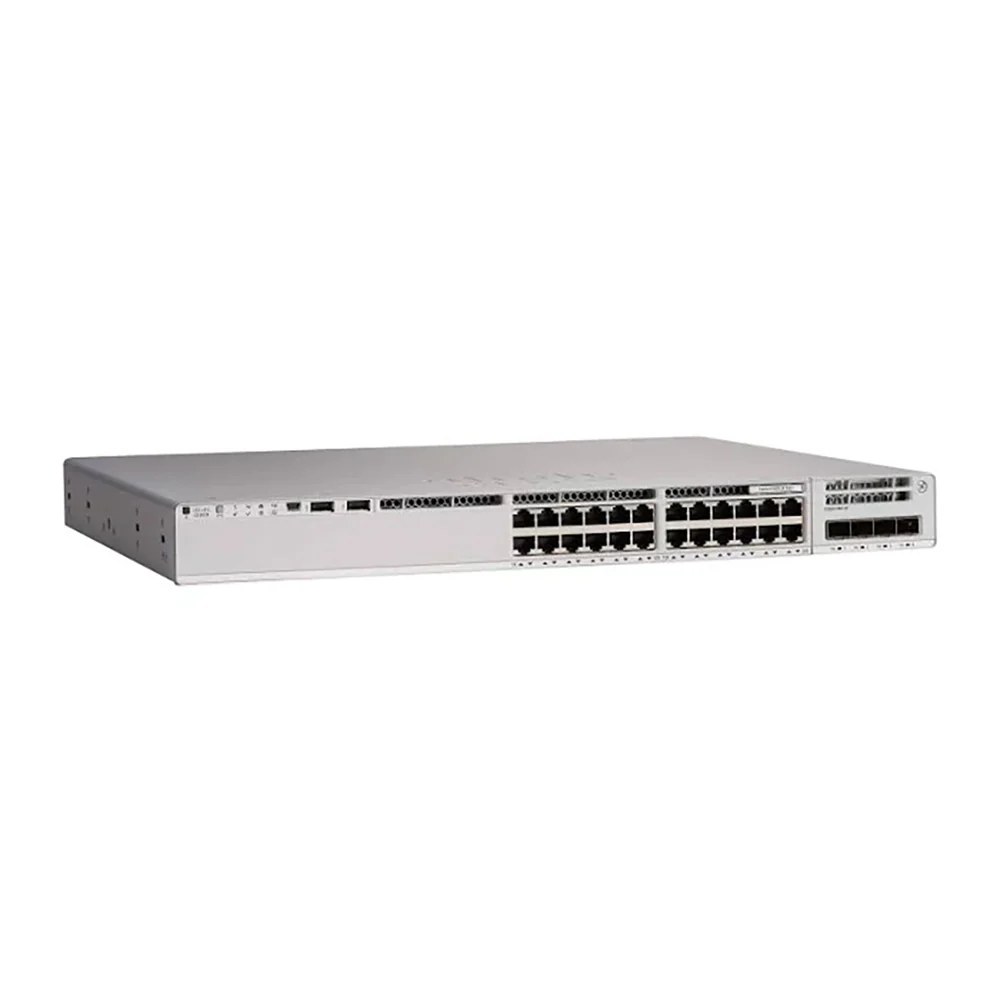

Cisco Catalyst 9300-24P-E Essentials License 24-Port PoE+ Switch
Cisco C9300-24P-E Access Enterprise Switch
The Cisco Catalyst 9300-24P-E is a 1 RU fixed-access enterprise switch engineered for U.S. campus and branch deployments—from powering PoE+ devices in financial trading floors to supporting Wi-Fi 6 access points in California tech campuses.
As part of the Catalyst 9300 family with the Network Essentials license, it offers 24 auto-sensing 10/100/1000 RJ-45 PoE+ downlinks, one modular uplink slot for flexible 1 GbE/10 GbE/40 GbE expansion, and an x86 CPU with Cisco’s UADP 2.0 ASIC under Cisco IOS XE.
Ideal for converged voice, video, and IoT deployments, it delivers robust security, programmability, and high-availability stacking—all manageable via Cisco DNA Center or Meraki Dashboard.
Overview
Highlights
-
High-Density PoE+ Connectivity
24 × 10/100/1000 RJ-45 autosensing PoE+ ports (30 W per port) plus one network-module slot for uplinks. -
Robust Power Budget
Default 445 W total PoE+ budget, upgradeable to 720 W with a secondary power supply. -
Wire-Speed Switching
208 Gbps non-blocking switch fabric with 154.76 Mpps forwarding performance (64-byte packets). -
StackWise-480 Resiliency
Stack up to 8 units with 480 Gbps bidirectional stacking bandwidth, NSF/SSO, cross-stack EtherChannel, and sub-50 ms failover. -
Programmable UADP 2.0 ASIC
Cisco UADP 2.0 ASIC with programmable pipeline for dynamic allocation of Layer 2/3 forwarding, ACLs, and QoS entries. -
Energy-Efficient Design
IEEE 802.3az Energy-Efficient Ethernet and low-power fan management to support U.S. sustainability initiatives. -
Enterprise-Grade Security
Line-rate AES-256 MACsec, Secure Boot with Trust Anchor Module, 802.1X authentication, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard, and scalable ACLs. -
Flexible Management & Telemetry
CLI, embedded Web UI, SNMP v1/v2c/v3, RMON, NETCONF/RESTCONF, plus Cisco DNA Center and Meraki Dashboard integration for centralized control.
Recommended Accessories
| Accessory | Category | Description |
|---|---|---|
| C9300-NM-4G | Network Module | 4 × 1 GbE SFP uplinks for compact fiber aggregation |
| C9300-NM-8X | Network Module | 8 × 10 GbE SFP+ uplinks for high-speed campus backbone |
| C9300-NM-2Q | Network Module | 2 × 40 GbE QSFP+ uplinks for ultra-high-speed aggregation |
| PWR-C1-715WAC-P | Power Supply | 715 W AC platinum-rated PSU (default) for full PoE+ support |
| PWR-C1-1100WAC-P | Power Supply | 1 100 W AC platinum-rated PSU (upgrade) for extended PoE capacity |
| FAN-T2= | Fan Module | Field-replaceable fan module for N+1 cooling redundancy |
Comparison with Similar Models
| Feature | C9300-24P-E | C9300-24T-E | C9300-24P-A |
|---|---|---|---|
| Ports & Uplinks | 24 × 1 GbE PoE+ + 1 NM slot | 24 × 1 GbE data + 1 NM slot | 24 × 1 GbE PoE+ + 1 NM slot |
| PoE Budget | 445 W (up to 720 W with secondary PSU) | None | 445 W (up to 720 W with secondary PSU) |
| License | Network Essentials | Network Essentials | Network Advantage |
| Switching Capacity | 208 Gbps full-duplex | 208 Gbps full-duplex | 208 Gbps full-duplex |
| Forwarding Rate | 154.76 Mpps standalone; 511.90 Mpps stacked | 154.76 Mpps standalone; 511.90 Mpps stacked | 154.76 Mpps standalone; 511.90 Mpps stacked |
| Ideal Use Case | PoE+ endpoint aggregation (phones, APs, cameras) | High-density data-only access layer | Advanced PoE+ services with deep telemetry |
Specifications
| Parameter | Specification |
|---|---|
| Model Code | C9300-24P-E |
| Description | Catalyst 9300 24-port 1G copper, PoE+, modular uplinks, Network Essentials |
| Software Package | Cisco IOS XE with Network Essentials license |
| Downlink Ports | 24 × 10/100/1000 RJ-45 autosensing PoE+ ports |
| Uplink Slot | 1 × modular slot (supports C9300-NM-4G/-8X/-2Q) |
| Available PoE Budget | 445 W default; up to 720 W with secondary PSU |
| Default Power Supply | 1 × 715 W AC platinum (PWR-C1-715WAC-P) |
| Switching Capacity | 208 Gbps full-duplex |
| Forwarding Performance | 154.76 Mpps (64-byte packets) |
| UADP ASIC | Cisco UADP 2.0 ASIC with programmable pipeline |
| CPU & Memory | x86 multicore CPU; 8 GB DRAM; 16 GB flash; USB 3.0 SSD slot |
| StackWise-480 | Up to 8 switches; 480 Gbps bidirectional stacking bandwidth |
| Security Features | MACsec (AES-256), Secure Boot, 802.1X, DHCP Snooping, DAI, IP Source Guard, ACLs |
| Management Interfaces | CLI, Web UI, SNMP v1/v2c/v3, RMON, NETCONF/RESTCONF, Cisco DNA Center & Meraki Dashboard |
| Energy Efficiency | IEEE 802.3az Energy-Efficient Ethernet; low-power fan management |
| Dimensions (H×W×D) | 1.73″ × 17.5″ × 16.1″ (4.4 × 44.5 × 40.9 cm) |
| Weight (with PSU) | 16.33 lb (7.4 kg) |
| Operating Temperature | 32 °F–113 °F (0 °C–45 °C) |
| Mean Time Between Failures | 299 000 hours |
