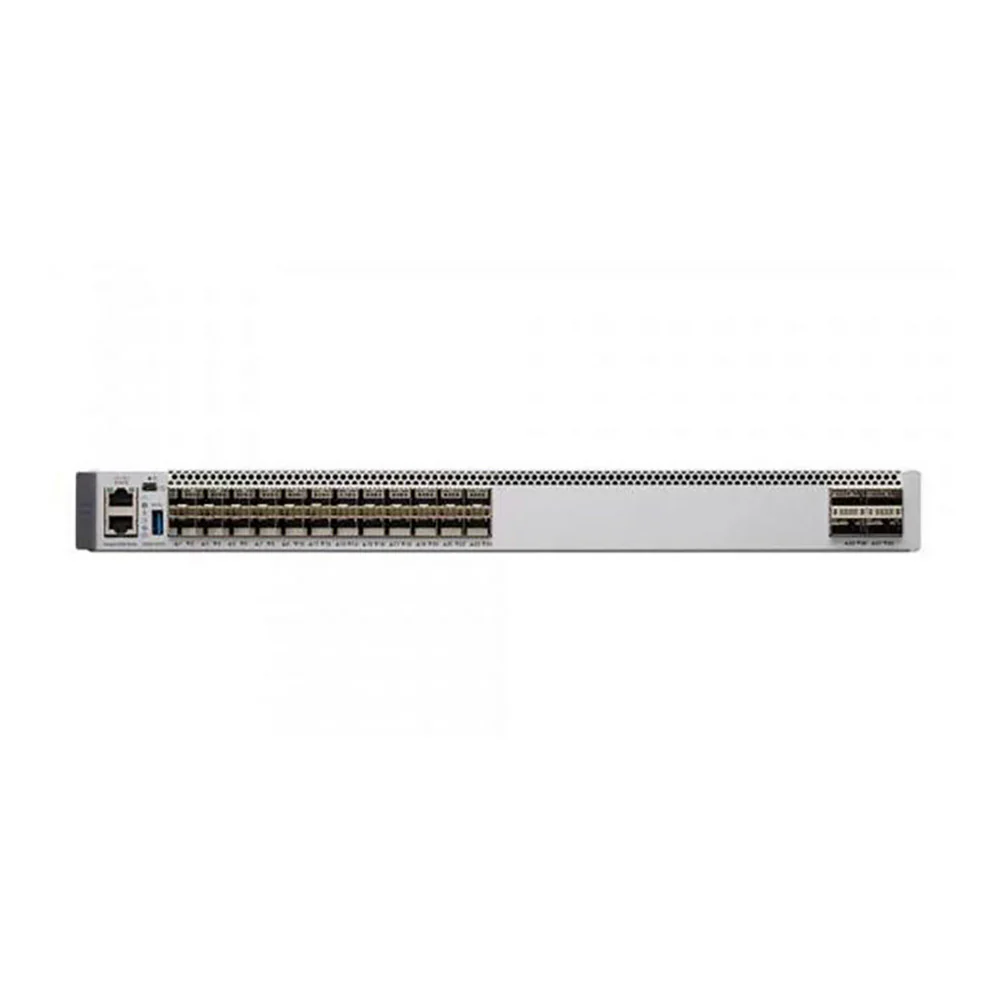

Cisco Catalyst 9500-24X-A 24x10G SFP+ Switch, Advantage License
Cisco C9500-24X-A Enterprise Aggregation Switch
The Cisco Catalyst 9500-24X-A is a 1 RU fixed-core enterprise aggregation switch optimized for U.S. campus and data-center deployments—from Silicon Valley innovation campuses to Wall Street trading floors.
It delivers 16 auto-sensing 10 Gbps SFP+ downlink ports plus one C9500-NM-8X network module slot (8×10 Gbps SFP+ included), all powered by a multicore x86 CPU and Cisco’s UADP ASIC for security, IoT, and cloud-scale performance.
Running Cisco IOS XE with the Network Advantage license, it supports advanced Layer 2/3 services, Programmable Pipeline extensibility, and deep buffer capacity—while maintaining seamless integration via Cisco Catalyst Center or Meraki cloud monitoring.
Overview
Highlights
-
Ports & Uplink Flexibility
16 × 10 Gbps SFP+ fixed ports + 1 hot-swappable C9500-NM-8X slot (8×10 Gbps SFP+ module included) for versatile uplink options. -
Ultra-High Performance
Up to 960 Gbps full-duplex switching capacity and 720 Mpps wire-speed forwarding ensure bandwidth-intensive applications run without bottlenecks. -
Advanced Layer 2/3 Services
IEEE 802.1Q VLANs, STP/RSTP/MSTP, LACP, static and dynamic IPv4/IPv6 routing, OSPF/EIGRP/BGP, MPLS L2/L3 VPNs, VXLAN/EVPN, and QoS for campus-core resiliency. -
Enterprise-Grade Security & Resilience
Wire-rate MACsec (802.1ae), Secure Boot with Trust Anchor Module, Cisco Nonstop Forwarding with Stateful Switchover (NSF/SSO), and redundant platinum-rated power supplies and fans. -
Programmability & Telemetry
Open APIs (NETCONF/RESTCONF, gNMI), NX-API/Python SDK, on-box scripting, and real-time streaming telemetry for proactive monitoring and automation. -
StackWise Virtual
Logical switch pairing for active-active resiliency and sub-second failover—simplifying management of multi-switch deployments. -
Data-Center-Ready Cooling
Field-replaceable N+1 redundant fan trays with front-to-back airflow optimize thermal efficiency in rack environments.
Recommended Accessories
| Accessory | Category | Description |
|---|---|---|
| C9500-NM-8X | Network Module | 8-port 1/10 Gbps SFP/SFP+ module for uplink expansion |
| C9500-NM-2Q | Network Module | 2-port 40 Gbps QSFP+ module for high-speed uplinks |
| PWR-C4-950WAC-R | Power Supply | 950 W AC front-to-back airflow PSU (supports 1+1 redundancy) |
| CAB-CONSOLE-RJ45 | Console Cable | 6 ft RJ-45 to DB9F serial console cable for CLI access |
| CAB-CONSOLE-USB | Console Cable | 6 ft USB Type-A to Mini-B console cable for out-of-band management |
| C9500-ACCKITH-19I= | Rack-Mount Kit | High-end 19″ rack-mount accessory kit for Catalyst 9500 Series |
Comparison with Similar Models
| Feature | C9500-24X-A | C9500-24X-E | C9500-24Y4C-A |
|---|---|---|---|
| Ports & Uplinks | 16 × 10 Gbps SFP+ + NM slot (8×10 Gbps) | 16 × 10 Gbps SFP+ + NM slot (8×10 Gbps) | 24 × 1/10/25 Gbps SFP28 + 4 × 40/100 Gbps QSFP28 |
| Switching Capacity | 960 Gbps full-duplex | 960 Gbps full-duplex | 960 Gbps full-duplex |
| Forwarding Rate | 720 Mpps | 720 Mpps | 720 Mpps |
| License | Network Advantage | Network Essentials | Network Advantage |
| Ideal Use Case | Advanced campus-core services | Essentials-only aggregation | High-density campus leaf with multi-rate ports |
Specifications
| Parameter | Specification |
|---|---|
| Product Code | C9500-24X-A |
| Description | Catalyst 9500 16-port 10 Gbps switch + 8×10 Gbps network module, Network Advantage license |
| Enclosure | 1 RU rack-mountable, front-to-back airflow |
| Fixed Ports | 16 × 10 Gbps SFP+ auto-sensing |
| Network Module Slot | 1 × C9500-NM-8X (8 × 10 Gbps SFP+) included |
| Switching Capacity | 960 Gbps full-duplex |
| Forwarding Performance | 720 Mpps (64-byte packets) |
| DRAM / Flash | 16 GB DDR4 DRAM; 16 GB flash |
| CPU | Multi-core x86 CPU |
| Management Interfaces | CLI, Web UI, SNMP v1/v2c/v3, RMON, NETCONF, RESTCONF, NX-API, USB/mini-USB console; Catalyst Center, Meraki cloud |
| Stacking | StackWise Virtual (active-active pairing) |
| Security | IEEE 802.1ae MACsec, Secure Boot, NSF/SSO, Trust Anchor Module, ACLs, 802.1X, RADIUS/TACACS+ |
| Power Supply | 1 × PWR-C4-950WAC-R (950 W AC), front-to-back airflow; redundant supported |
| Fans | Up to 5 field-replaceable N+1 redundant fans |
| Dimensions (H×W×D) | 1.73″ × 17.5″ × 21.52″ (43.9 × 444.5 × 546.6 mm) |
| Weight | 25.75 lb (11.68 kg) |
| Operating Temp./Humidity | 32 °F–104 °F (0 °C–40 °C); 5–90% non-condensing |
| Altitude | Up to 6,000 ft (1,829 m) |
| Warranty | Enhanced Limited Lifetime Warranty, Next-Business-Day hardware replacement |
