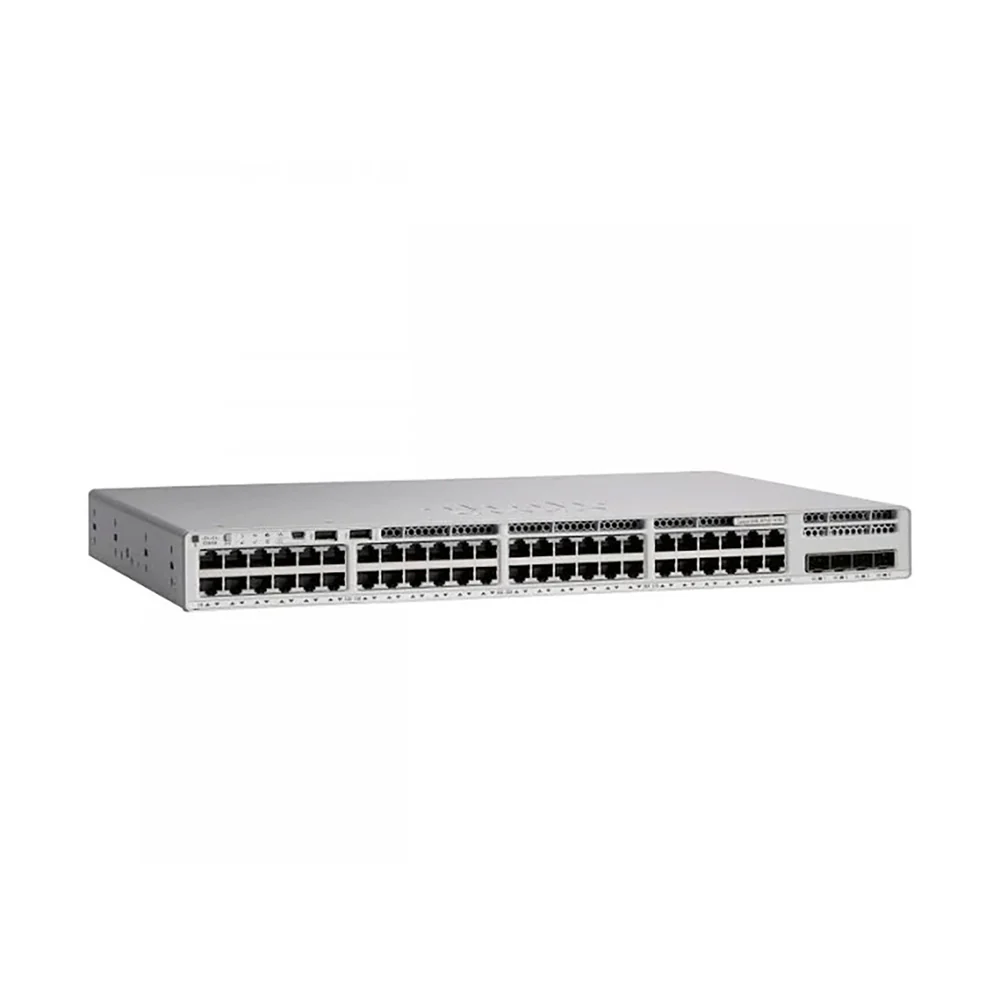

Cisco Catalyst 9200-48T-A 48-Port 1G Switch, Advantage License
Cisco Catalyst 9200-48T-A Access Campus Switch
The Cisco Catalyst 9200-48T-A is a 1 RU, data-only access switch designed for U.S. campus and branch deployments—from high-density wiring closets in New York City offices to distributed branch sites in Silicon Valley.
It runs Cisco IOS XE with the Network Advantage license on an x86 CPU paired with the Cisco UADP 2.0 Mini ASIC for intent-based networking, programmability, and enhanced security.
With 48 auto-sensing 10/100/1000 RJ-45 downlinks, hot-swappable modular uplinks, and field-replaceable FRU power and fan modules, the 9200-48T-A delivers always-on resiliency and simplified operations for modern American networks.
Overview
Highlights
-
Data-Only 48 × 1 GbE Downlinks
Forty-eight autosensing 10/100/1000 copper ports for high-density access-layer connectivity -
Modular Uplink Flexibility
One hot-swappable network-module slot supporting C9200-NM-4G (4 × 1 GbE), C9200-NM-8X (4 × 10 GbE), C9200-NM-BLANK, or C9200-NM-2Q (2 × 40 GbE) modules -
FRU Redundancy & Resiliency
Field-replaceable PWR-C6-125WAC primary power supply and redundant fan modules keep the switch always on -
High-Performance Fabric
176 Gbps non-blocking switching capacity and up to 261.9 Mpps forwarding rate for wire-speed traffic handling -
StackWise-160 Stacking
Up to eight switches per stack with 160 Gbps bidirectional stacking bandwidth, NSF/SSO, and cross-stack EtherChannel for <50 ms failover -
Cisco UADP 2.0 Mini ASIC
Programmable pipeline and micro-engine support for granular QoS, ACLs, and Layer 2/3 forwarding -
Advanced Security & Segmentation
AES-128 MACsec encryption, Secure Boot with Trust Anchor Module, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard, and policy-based segmentation -
Network Advantage Feature Set
Full Layer 3 routing (OSPF, EIGRP, RIP, static), Cisco SD-Access, Full Flexible NetFlow, streaming telemetry, and model-driven programmability
Recommended Accessories
| Accessory | Category | Description |
|---|---|---|
| C9200-NM-4G | Network Module | 4 × 1 GbE SFP uplink module for fiber connectivity |
| C9200-NM-8X | Network Module | 8 × 10 GbE SFP+ uplink module for high-speed aggregation |
| C9200-NM-BLANK | Network Module | Blank network-module cover |
| C9200-STACK-KIT= | Stacking Hardware | StackWise-160 kit spare |
| STACK-T4-50CM | Stacking Cable | 50 cm Type 3 stacking cable |
| PWR-C6-125WAC/2 | Power Supply | 125 W AC power-supply spare |
| FAN-T2= | Fan Module | Field-replaceable fan tray for N+1 cooling redundancy |
Comparison with Similar Models
| Feature | C9200-48T-A (Data) | C9200-48T-E (Essentials) | C9200-48P-A (PoE+, Adv) |
|---|---|---|---|
| Ports | 48 × 1 GbE data | 48 × 1 GbE data | 24 × 1 GbE PoE+ + 24 × 1 GbE data |
| License | Network Advantage | Network Essentials | Network Advantage |
| Switching Capacity | 176 Gbps full-duplex | 176 Gbps full-duplex | 176 Gbps full-duplex |
| Forwarding Rate | 261.9 Mpps | 261.9 Mpps | 261.9 Mpps |
| Stacking Bandwidth | 160 Gbps | 160 Gbps | 160 Gbps |
| PoE Budget | N/A | N/A | 445 W default (up to 720 W) |
Specifications
| Parameter | Specification |
|---|---|
| Model | C9200-48T-A |
| Description | Catalyst 9200 48-port Data Switch, Network Advantage |
| Downlink Ports | 48 × 10/100/1000 RJ-45 auto-sensing ports |
| Uplink Slot | 1 × hot-swappable module slot (4G/8X/BLANK/2Q) |
| Switching Capacity | 176 Gbps full-duplex |
| Forwarding Rate | 261.9 Mpps (64-byte packets) |
| DRAM / Flash | 4 GB DRAM; 4 GB flash |
| Stacking | StackWise-160; up to 160 Gbps bidirectional bandwidth; 8 members |
| MAC Address Table | 32,000 entries |
| Virtual Networks (VRFs) | Up to 4 VLAN-based VRFs |
| IPv4 Routes | 10,000 direct; 4,000 indirect |
| IPv6 Routes | 2,000 entries |
| Multicast Routing | 1,000 groups |
| QoS Scale Entries | 1,000 entries |
| ACL Scale Entries | 1,600 entries |
| Packet Buffer | 6 MB |
| Flexible NetFlow | 16,000 flows |
| Power Supply | 1 × PWR-C6-125WAC (125 W AC) (FRU redundant) |
| Fans | Field-replaceable FRU fans |
| Chassis Dimensions (H × W × D) | 1.73″ × 17.5″ × 13.8″ (4.4 × 44.5 × 35.0 cm) |
| Weight (with PSU) | 11.02 lb (5.0 kg) |
| Operating Temperature | 32 °F to 113 °F (0 °C to 45 °C) |
| Operating Humidity | 5% to 95% non-condensing |
| Mean Time Between Failures (MTBF) | 571,440 hours |
| Software & Licensing | Cisco IOS XE with Network Advantage license; Layer 3 (OSPF, EIGRP, RIP), SD-Access, telemetry, APIs |
