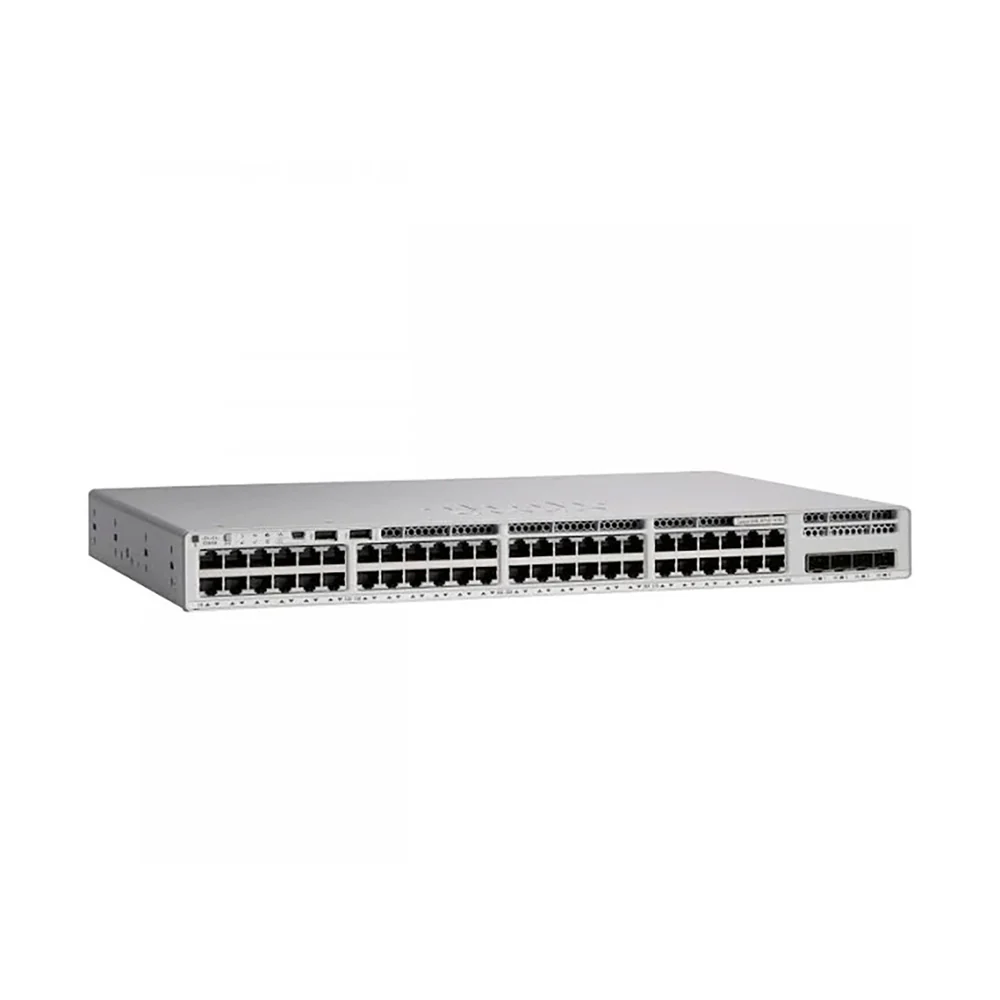

Cisco Catalyst 9200-48T-E 48-Port 1G Switch, Essentials License
Cisco C9200-48T-E Access Campus Switch
The Cisco Catalyst 9200-48T-E is a 1 RU, fixed-port data-only access switch designed for U.S. campus and branch deployments—from high-density wiring closets in New York City offices to distributed branch offices in Silicon Valley.
Running Cisco IOS XE with the Network Essentials license on an x86 CPU and UADP 2.0 ASIC, it provides 48 auto-sensing 10/100/1000 RJ-45 downlinks, a field-replaceable modular uplink slot, and industry-leading intent-based networking features for simplified operations, security, and resiliency.
Overview
Highlights
-
48 × 1 GbE Downlinks & Modular Uplinks
48 auto-sensing 10/100/1000 RJ-45 ports plus a hot-swappable network-module slot (supports C9200-NM-4G, C9200-NM-8X, C9200-NM-2Q). -
High-Performance Switching
176 Gbps non-blocking capacity and 130.95 Mpps wire-speed forwarding; in a StackWise-160 stack, scales to 336 Gbps and 250 Mpps. -
StackWise-160 Stacking
Up to 8 switches in a single logical stack with 160 Gbps of bidirectional stacking bandwidth, NSF/SSO, and cross-stack EtherChannel for < 50 ms failover. -
Advanced Layer 2/3 Features
IEEE 802.1Q VLANs; STP/RSTP/MSTP; LACP; static and dynamic IPv4/IPv6 routing (OSPF, EIGRP, RIP); ACLs; PBR; multicast; and robust QoS classification and scheduling. -
Enterprise-Grade Security & Resilience
AES-128 MACsec encryption; Secure Boot with Trust Anchor Module; dynamic ARP inspection; DHCP snooping; IP Source Guard; FRU-redundant fans and power supplies. -
Programmability & Telemetry
Open APIs (NETCONF/RESTCONF, gNMI, NX-API/Python SDK); on-box scripting; streaming telemetry; seamless integration with Cisco DNA Center and Meraki Dashboard. -
Energy Efficiency & Simplicity
IEEE 802.3az Energy-Efficient Ethernet; low-power fan management; optional cold-patch software upgrades; blue beacon LEDs for easy asset identification.
Recommended Accessories
| Accessory | Category | Description |
|---|---|---|
| C9200-NM-4G | Network Module | 4 × 1 GbE SFP uplink module for compact fiber connectivity |
| C9200-NM-8X | Network Module | 8 × 10 GbE SFP+ uplink module for high-speed aggregation |
| C9200-NM-2Q | Network Module | 2 × 40 GbE QSFP+ uplink module for ultra-high-speed uplinks |
| PWR-C6-125WAC | Power Supply | 125 W AC front-replaceable PSU (default) with FRU redundancy |
| CAB-SPWR-150CM | Stacking Cable | 15 cm StackWise-160 stacking cable for up to 160 Gbps bandwidth |
| C-RACK-KIT | Rack-Mount Kit | 1 RU accessory kit for 19″ rack mounting |
Comparison with Similar Models
| Feature | C9200-48T-E | C9200-24T-E | C9200-48P-E |
|---|---|---|---|
| Ports & Uplinks | 48 × 1 GbE data + modular slot | 24 × 1 GbE data + modular slot | 48 × 1 GbE PoE+ + modular slot |
| Switching Capacity | 176 Gbps (336 Gbps stacked) | 128 Gbps (288 Gbps stacked) | 176 Gbps (336 Gbps stacked) |
| Forwarding Rate | 130.95 Mpps (250 Mpps stacked) | 95.23 Mpps (214 Mpps stacked) | 130.95 Mpps (250 Mpps stacked) |
| Stacking Bandwidth | 160 Gbps | 160 Gbps | 160 Gbps |
| License | Network Essentials | Network Essentials | Network Essentials |
| Ideal Use Case | High-density data-only access | Mid-density data-only access | PoE+ device aggregation |
Specifications
| Parameter | Specification |
|---|---|
| Model | C9200-48T-E |
| Description | Catalyst 9200 48-port Data Switch, Network Essentials license |
| Downlink Ports | 48 × 10/100/1000 RJ-45 auto-sensing |
| Uplink Expansion | 1 × modular slot (supports C9200-NM-4G/-8X/-2Q) |
| Switching Capacity | 176 Gbps full-duplex; 336 Gbps with StackWise-160 |
| Forwarding Rate | 130.95 Mpps (250 Mpps stacked) |
| Stacking | Cisco StackWise-160; up to 160 Gbps bidirectional bandwidth |
| Virtual Networks | 4 VLAN-based VRFs |
| MAC Address Table | Up to 32,000 entries |
| Jumbo Frame Support | Up to 9,198 bytes |
| DRAM / Flash | 8 GB DRAM; 16 GB flash |
| Management Interfaces | CLI, Web UI, SNMP v1/v2c/v3, RMON, NETCONF/RESTCONF, Catalyst Center, Meraki Dashboard |
| Power Supply | 1 × PWR-C6-125WAC (125 W); FRU-redundant supported |
| Power Consumption | Full-port traffic: 125 W max |
| Dimensions (H×W×D) | 1.73″ × 17.5″ × 13.8″ (4.4 × 44.5 × 35.0 cm) |
| Weight | 11.02 lb (5.0 kg) |
| Mean Time Between Failures | 571,440 hours |
| Software & Licensing | Cisco IOS XE with Network Essentials license |
| Security Features | AES-128 MACsec, Secure Boot, Trust Anchor Module, 802.1X, DHCP Snooping, DAI, IP Source Guard |
| Layer 3 Features | Static & dynamic IPv4/IPv6 routing (OSPF, EIGRP, RIP), PBR, multicast routing |
