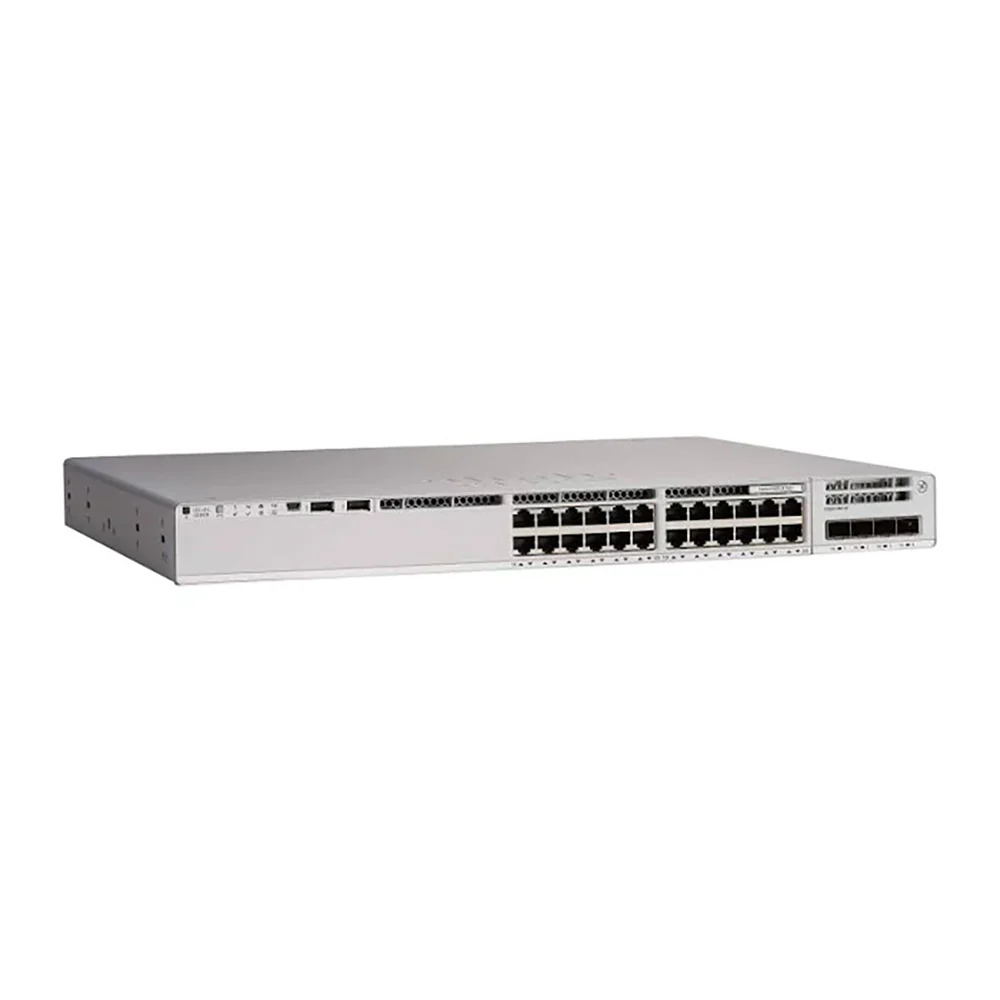

Cisco Catalyst 9200L-24P-4X-E 24-Port PoE+ 4×10G Uplinks/Essentials
Cisco Catalyst 9200L-24P-4X-E 24-Port PoE+ Gigabit Switch with 4×10 Gbps Uplinks, Network Essentials
The Cisco Catalyst 9200L-24P-4X-E is a 1 RU fixed-uplink access switch in the Catalyst 9200L family, engineered for high-density branch and small-campus environments. It provides 24 auto-sensing 10/100/1000 Mbps PoE+ copper downlinks (up to 30 W per port) and four fixed 10 Gbps SFP+ uplinks.
By default it ships with a PWR-C5-600WAC AC platinum-efficient power supply and fixed redundant fans. Built on the Cisco UADP 2.0 Mini ASIC with 2 GB DRAM and 4 GB flash, it delivers 128 Gbps of non-blocking switching capacity and a forwarding rate of 190.4 Mpps.
Running Cisco IOS XE under the Network Essentials license, it supports StackWise-80 stacking (80 Gbps bidirectional backplane), and integrates natively with Cisco DNA Center or Meraki Dashboard for unified management and automation.
Overview
Highlights
-
24× Full PoE+ Downlink Ports
24× 10/100/1000 Mbps RJ-45 PoE+ ports (IEEE 802.3at, up to 30 W each). -
4×10 Gbps Fixed Uplinks
Four SFP+ uplink ports at 10 Gbps—no optional modules required. -
Robust Switching Performance
128 Gbps non-blocking fabric; 190.4 Mpps forwarding rate. -
StackWise-80 Stacking
Stateful stacking of up to eight switches with 80 Gbps bidirectional backplane bandwidth and sub-50 ms failover. -
Enterprise-Grade Security & Resiliency
AES-128 MACsec encryption, Secure Boot with Trust Anchor, 802.1X, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard, scalable ACLs; fixed redundant fans and optional secondary PSU. -
Programmability & Automation
Cisco IOS XE with model-driven APIs, streaming telemetry, Plug-and-Play; native integration with Cisco DNA Center and Meraki Dashboard.
Recommended Accessories
| Accessory | Category | Description |
|---|---|---|
| C9200L-STACK-KIT= | Stacking Module | StackWise-80 kit spare for Catalyst 9200L models |
| STACK-T4-1M | Stacking Cable | 1 m Type 3 stacking cable for StackWise-80 |
| PWR-C5-600WAC/2= | Power Supply | 600 W AC platinum-efficient spare PSU |
Comparison with Similar Models
| Model | Downlinks | Uplinks | License |
|---|---|---|---|
| C9200L-24P-4X-E | 24× 1 GbE PoE+ | 4× 10 Gbps SFP+ | Network Essentials |
| C9200L-24P-4X-A | 24× 1 GbE PoE+ | 4× 10 Gbps SFP+ | Network Advantage |
| C9200L-24T-4X-E | 24× 1 GbE data-only | 4× 10 Gbps SFP+ | Network Essentials |
Specifications
| Parameter | Specification |
|---|---|
| Product Code | C9200L-24P-4X-E |
| Description | Catalyst 9200L 24-port PoE+ switch with 4×10 Gbps uplinks, Network Essentials license |
| Downlink Ports | 24× 10/100/1000 Mbps RJ-45 PoE+ (up to 30 W/port) |
| Uplink Ports | 4× 10 Gbps SFP+ fixed uplinks |
| Default Power Supply | PWR-C5-600WAC AC platinum-efficient |
| Fans | Fixed, redundant |
| Software License | Network Essentials |
| DRAM / Flash | 2 GB DRAM; 4 GB flash |
| Switching Capacity | 128 Gbps non-blocking |
| Forwarding Rate | 190.4 Mpps (64-byte packets) |
| Stacking Bandwidth | 80 Gbps (StackWise-80) |
| Total MAC Addresses | 16,000 entries |
| IPv4 Routes (ARP + learned) | 11,000 total (8,000 direct, 3,000 indirect) |
| IPv4 Routing Entries | 3,000 entries |
| IPv6 Routing Entries | 1,500 entries |
| Multicast Routing Scale | 1,000 entries |
| QoS Scale Entries | 1,000 entries |
| ACL Scale Entries | 1,500 entries |
| Packet Buffer | 6 MB |
| Flexible NetFlow Entries | 16,000 flows |
| VLAN IDs | 4,094 |
| Total Switched Virtual Interfaces (SVIs) | 512 |
| Jumbo Frames | Up to 9,198 bytes |
| Mean Time Between Failures (MTBF) | 390,310 hours |
| Chassis Dimensions (H×W×D) | 1.73″ × 17.5″ × 11.3″ (4.4 × 44.5 × 28.8 cm) |
| Weight | 7.27 lb (3.30 kg) |
| Operating Temperature / Humidity | 32 °F–113 °F (0 °C–45 °C); 5–95 % non-condensing |
