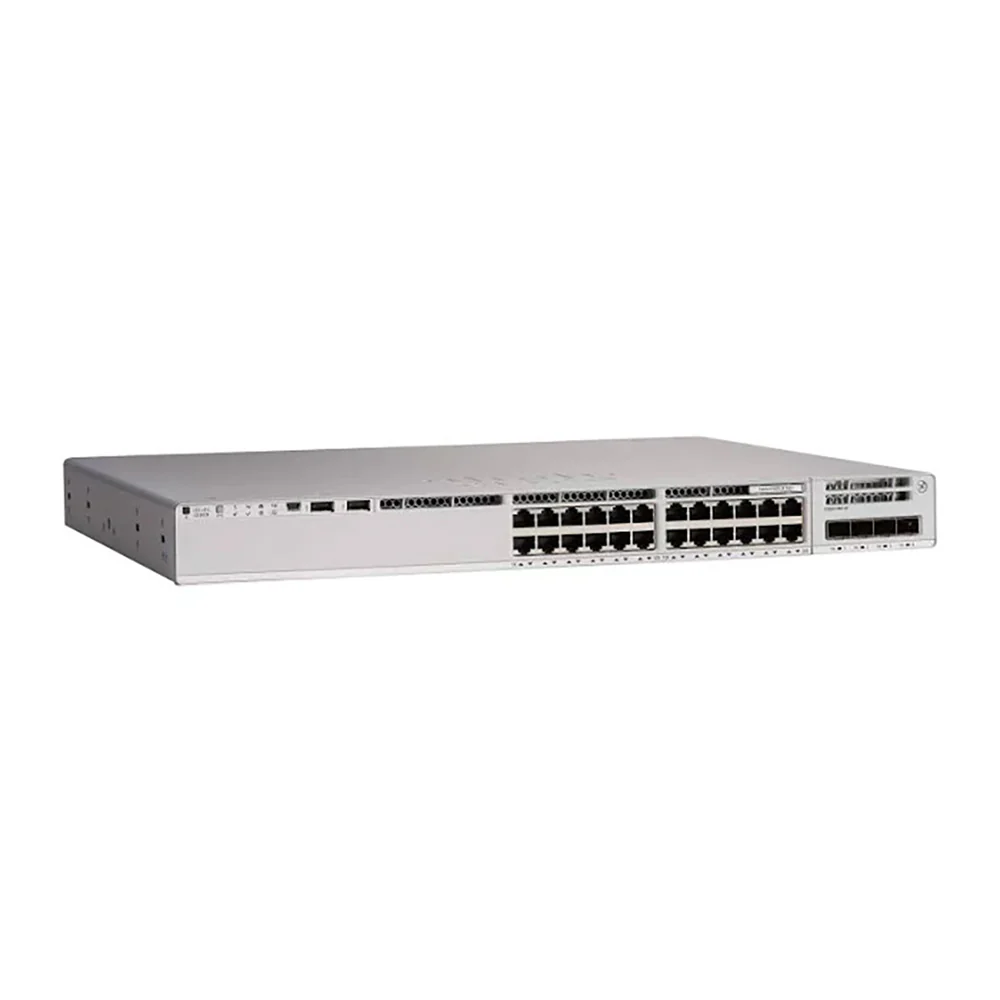

Cisco Catalyst 9300-24T-E Essentials License 24-Port Gigabit Switch
Cisco C9300-24T-E Access Enterprise & Campus Switch
The Cisco Catalyst 9300-24T-E is a 1 RU, fixed-access enterprise campus switch engineered for U.S. networks—from New York City branch offices to Silicon Valley innovation labs.
As the data-only member of the Catalyst 9300 Series with the Network Essentials license, it delivers 24 auto-sensing 10/100/1000 RJ-45 downlink ports and one hot-swappable network-module slot for flexible uplink expansion.
With 208 Gbps of non-blocking switching capacity and a wire-speed forwarding rate of 154.76 Mpps, it supports Cisco StackWise-480 stacking for up to 480 Gbps of bidirectional back-panel bandwidth.
Powered by an x86 CPU complex with 8 GB DRAM, 16 GB flash, and a USB 3.0 SSD slot, it runs Cisco IOS XE and integrates seamlessly with Cisco DNA Center or Meraki Dashboard for centralized management.
Overview
Highlights
-
24 × 1 GbE Downlinks + Modular Uplinks
24 × 10/100/1000 RJ-45 autosensing data ports plus one network-module slot (supports C9300-NM-4G/-8X/-2Q, etc.) -
Switching Capacity & Performance
208 Gbps non-blocking switch fabric; 154.76 Mpps forwarding (64-byte packets); up to 511.90 Mpps in a StackWise-480 stack. -
StackWise-480 Stacking
Up to 8 switches in a stack with 480 Gbps of bidirectional stacking bandwidth, NSF/SSO, cross-stack EtherChannel, and sub-50 ms failover. -
Data-Only, Energy-Efficient Design
No PoE overhead; low-power fan management and IEEE 802.3az Energy-Efficient Ethernet help meet sustainability goals. -
Enterprise-Grade Security
Line-rate AES-256 MACsec, Secure Boot with Trust Anchor Module, 802.1X, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard, and scalable ACLs. -
Flexible Management
Manage via CLI, embedded Web UI, SNMP v1/v2c/v3, RMON, NETCONF/RESTCONF, Plug and Play; integrates with Cisco DNA Center and Meraki Dashboard. -
Rugged Hardware Platform
x86 CPU, 8 GB DRAM, 16 GB flash, USB 3.0 SSD slot; field-replaceable fans; operating temp 32 °F–113 °F (0 °C–45 °C).
Recommended Accessories
| Accessory | Category | Description |
|---|---|---|
| C9300-NM-4G | Network Module | 4×1 GbE SFP uplink module for compact fiber connectivity |
| C9300-NM-8X | Network Module | 8×10 GbE SFP+ uplink module for high-speed aggregation |
| C9300-NM-2Q | Network Module | 2×40 GbE QSFP+ uplink module for ultra-high-speed uplinks |
| PWR-C1-350WAC-P | Power Supply | 350 W AC platinum PSU (default for data-only models) |
| CAB-SPWR-150CM | Stacking Cable | 15 cm StackWise-480 stacking cable for 480 Gbps bandwidth |
| C9300-ACCKIT-19I= | Rack-Mount Kit | 1 RU rack-mount accessory kit for Catalyst 9300 Series |
Comparison with Similar Models
| Feature | 9300-24T-E | 9300-24P-E | 9300-24T-A |
|---|---|---|---|
| Ports & Uplinks | 24×1 GbE data + module slot | 24×1 GbE PoE+ + module slot | 24×1 GbE data + module slot |
| PoE Power | None | 445 W total | None |
| Switching Capacity | 208 Gbps | 208 Gbps | 208 Gbps |
| Forwarding Rate | 154.76 Mpps | 154.76 Mpps | 154.76 Mpps |
| License | Network Essentials | Network Essentials | Network Advantage |
| Ideal Use Case | High-density data-only access layer | PoE+ endpoint access layer | Advanced services with deep telemetry |
Specifications
| Parameter | Specification |
|---|---|
| Product Code | C9300-24T-E |
| Description | Catalyst 9300 24-port data-only switch, Network Essentials license |
| Downlink Ports | 24 × 10/100/1000 RJ-45 autosensing |
| Uplink Slot | 1 × network module slot (supports C9300-NM-4G/-8X/-2Q, etc.) |
| Switching Capacity | 208 Gbps full-duplex |
| Forwarding Performance | 154.76 Mpps (64-byte packets); 511.90 Mpps in stack |
| MAC Address Table | 32,000 entries |
| Packet Buffer | 16 MB |
| Flexible NetFlow | 64,000 flows |
| DRAM / Flash | 8 GB DRAM; 16 GB flash; USB 3.0 SSD slot |
| CPU | x86 multi-core CPU |
| Stacking Technology | StackWise-480; up to 8 members; 480 Gbps bidirectional bandwidth |
| Security Features | MACsec, Secure Boot, Trust Anchor Module, 802.1X, DHCP Snooping, DAI, IP Source Guard, ACLs |
| Management Interfaces | CLI, Web UI, SNMP v1/v2c/v3, RMON, NETCONF/RESTCONF, Plug and Play, Cisco DNA Center, Meraki |
| Power Supply | 350 W AC platinum PSU (PWR-C1-350WAC-P) |
| Fans | 3 field-replaceable fans; low-power management |
| Dimensions (H×W×D) | 1.73″ × 17.5″ × 19.2″ (4.4 × 44.5 × 48.8 cm) |
| Weight | 16.33 lb (7.4 kg) |
| Operating Temp. / Humidity | 32 °F–113 °F (0 °C–45 °C); 5–95% non-condensing |
| Certifications | UL 60950-1; CAN/CSA C22.2 No 60950-1; EN 60950-1; IEC 60950-1; AS/NZS 60950.1 |
| MTBF | 299,000 hours |
