Huawei CloudEngine S5736-S24UM4XC 24×Multi-Gig PoE+ & 4×10G SFP+ Switch

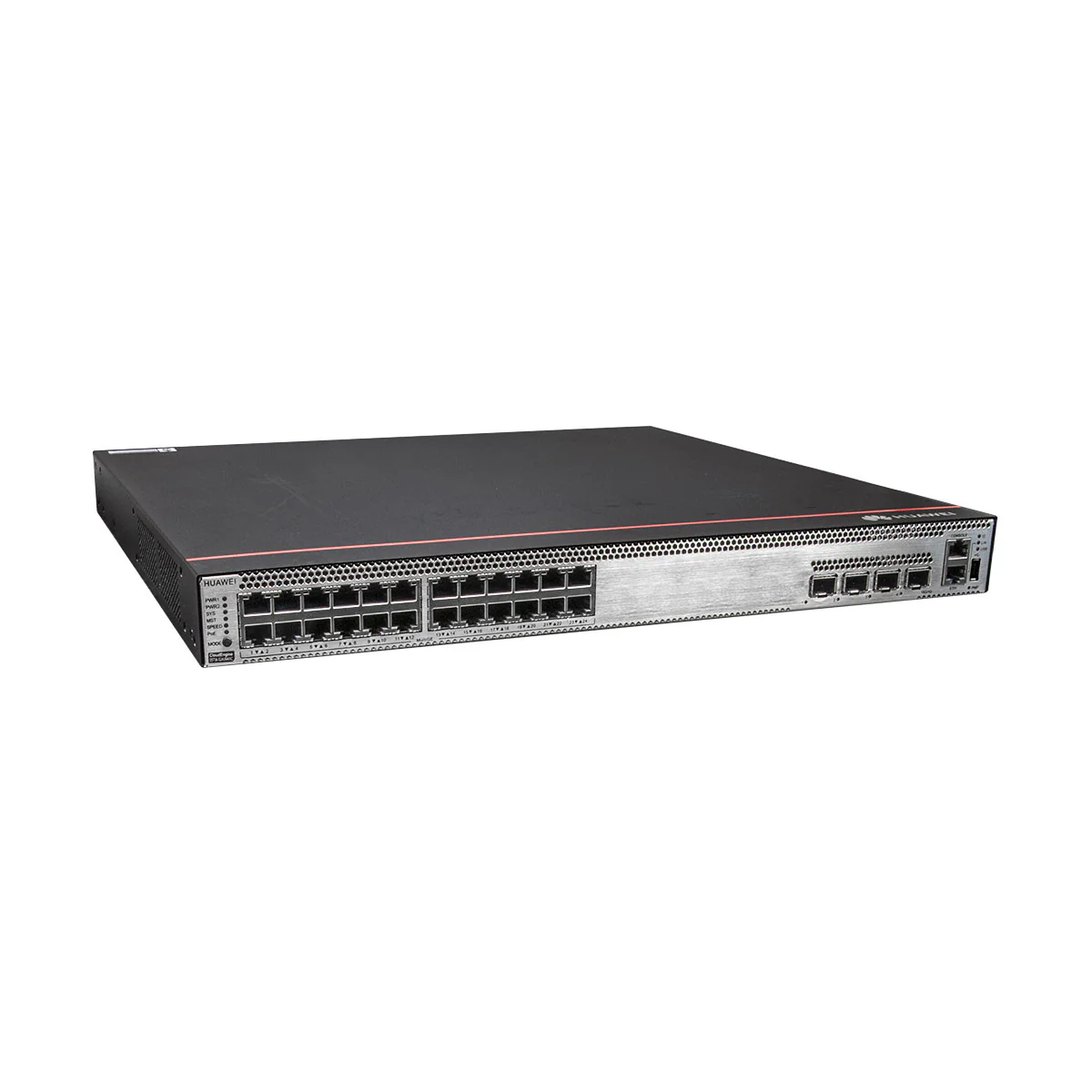

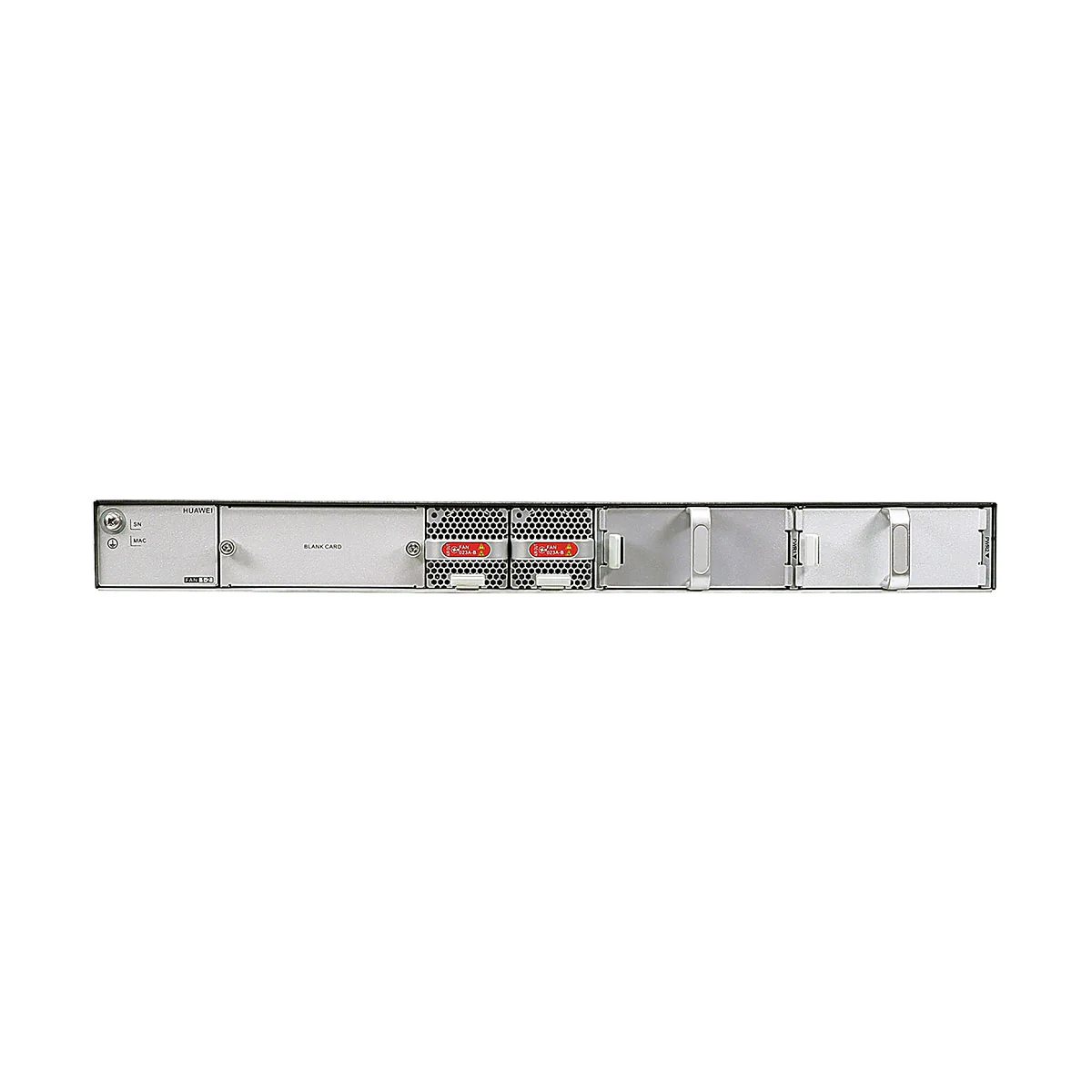

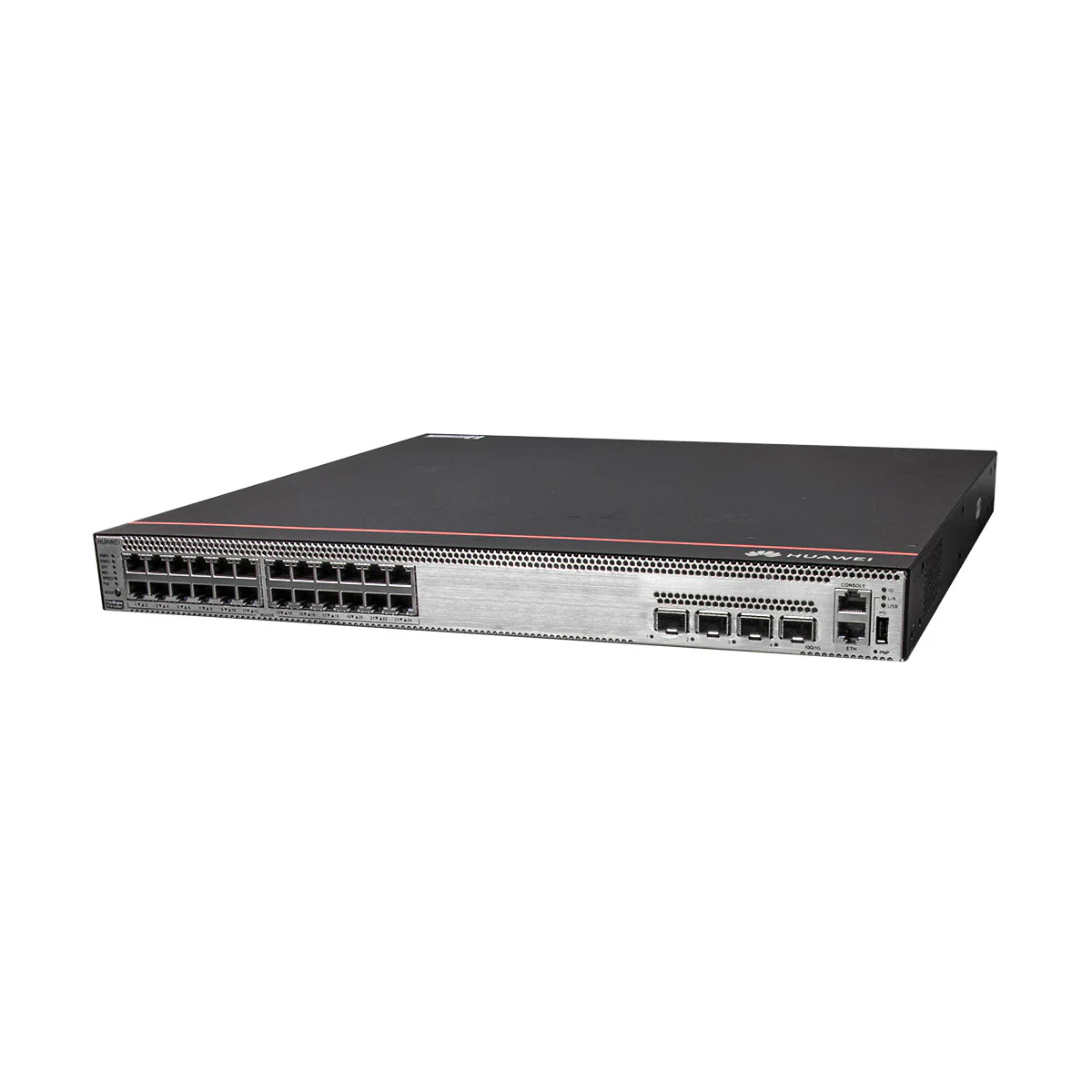

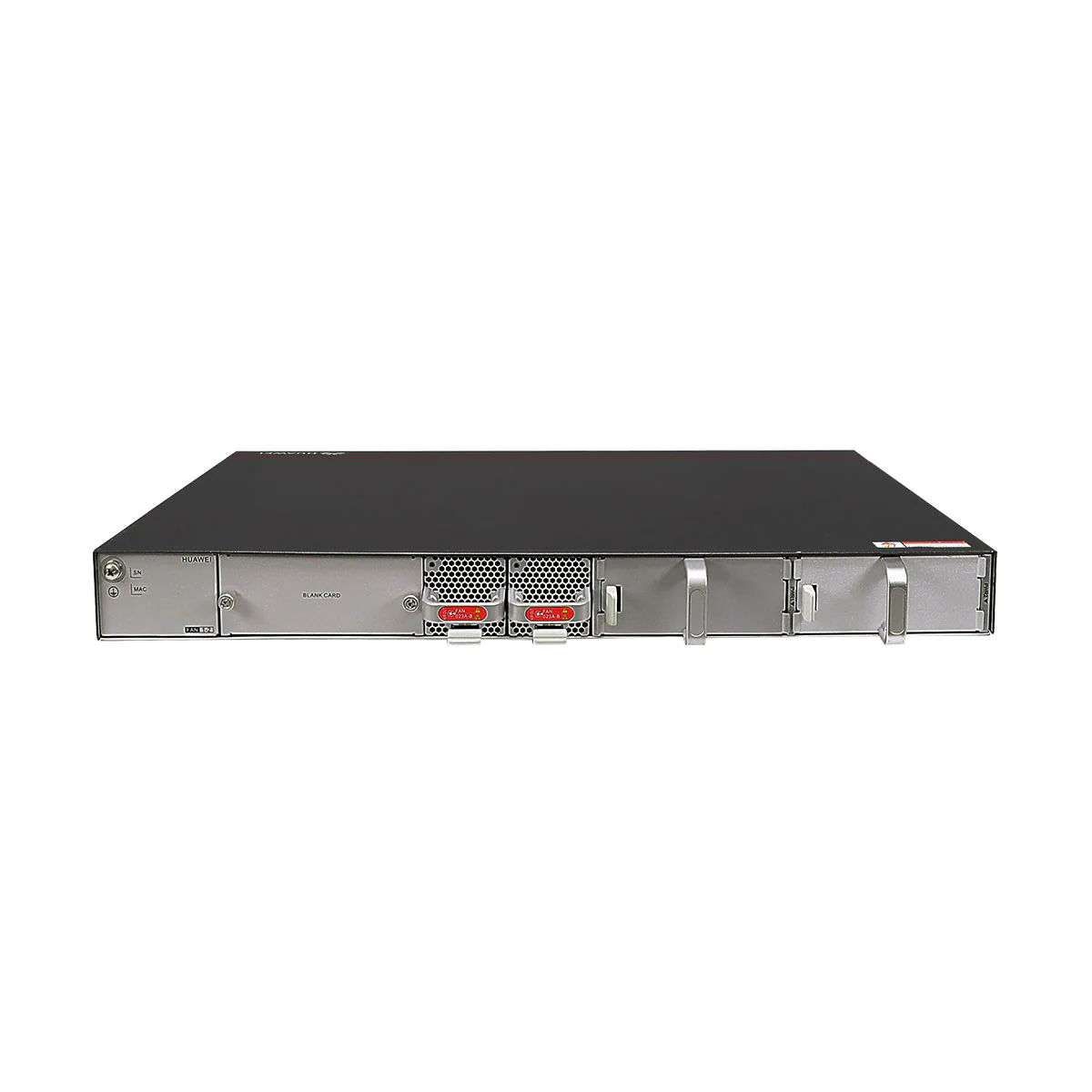

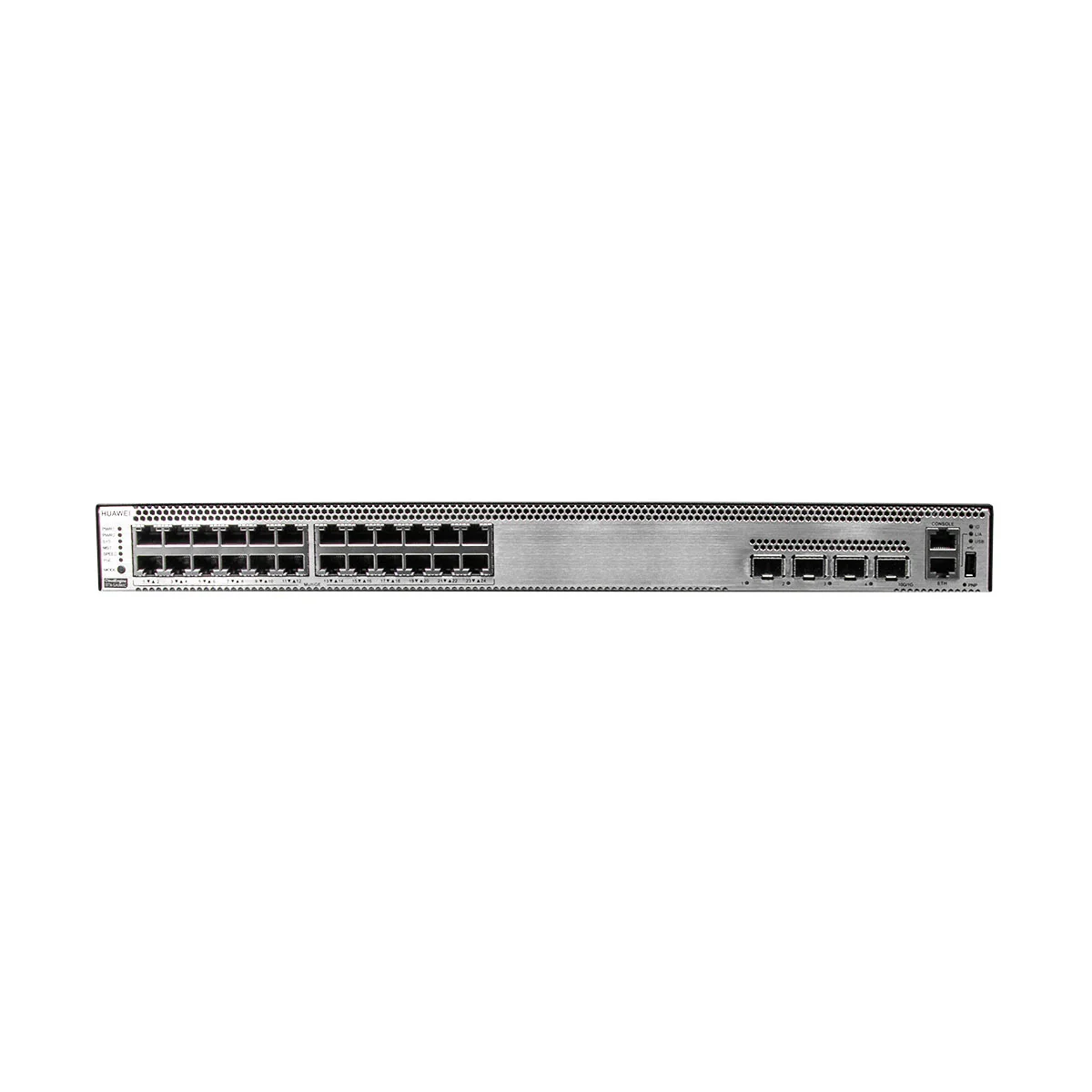

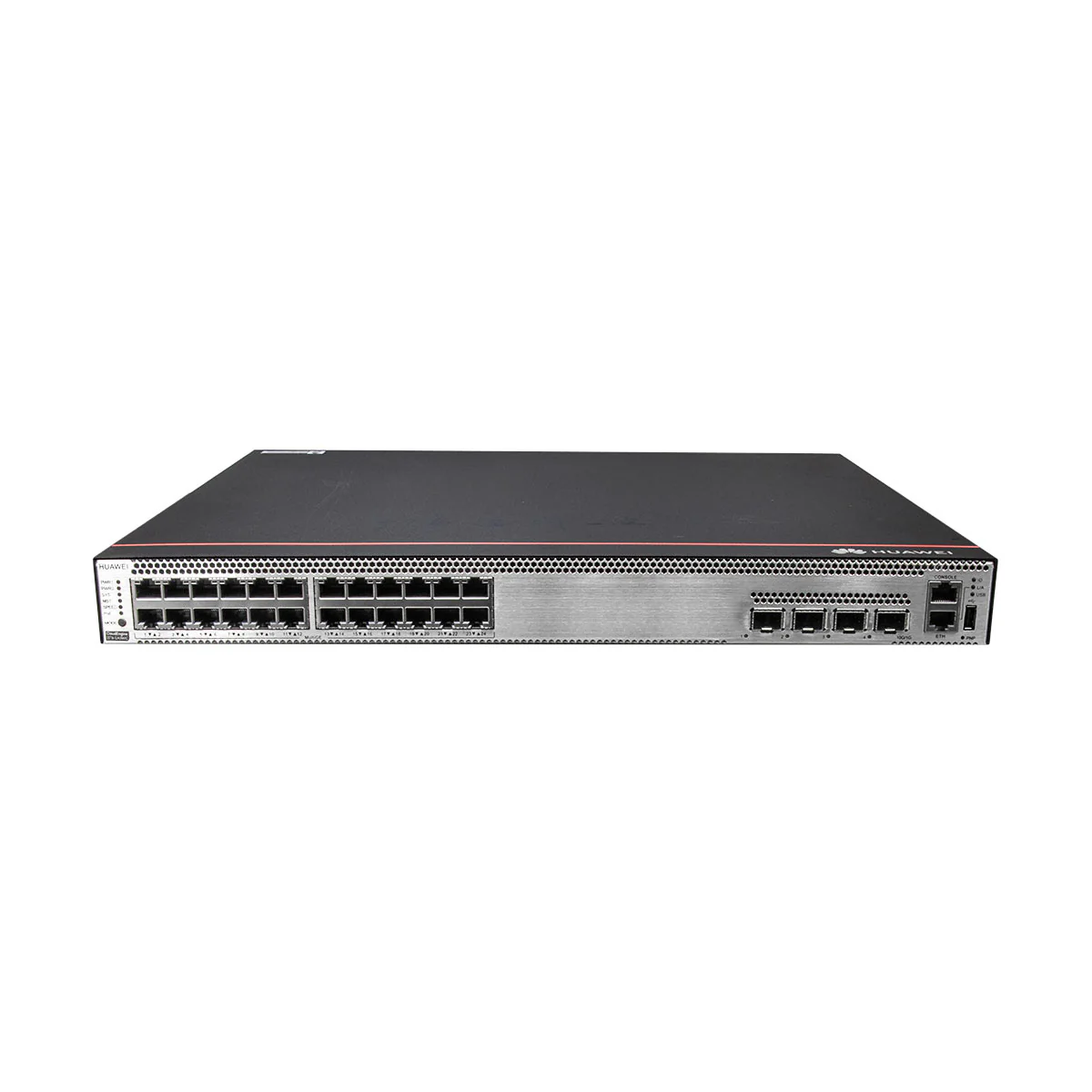

Huawei CloudEngine S5736-S24UM4XC Switch
The Huawei CloudEngine S5736-S24UM4XC is a high-performance Layer 3 Multi-Gigabit Ethernet switch designed for modern enterprise campus networks, particularly those leveraging Wi-Fi 6 technologies.
It features 24 Multi-Gigabit Ethernet ports supporting speeds from 100 Mbps to 10 Gbps, 4 10GE SFP+ uplink ports, and one extended slot for additional modules. With a switching capacity of up to 880 Gbps and forwarding performance of 480 Mpps, this switch ensures efficient data handling.
It supports advanced features such as intelligent stacking (iStack), comprehensive security mechanisms, and energy-efficient design, making it a versatile solution for various networking needs.
Overview
Highlights
-
Port Configuration: 24 × 100M/1G/2.5G/5G/10G Base-T ports, 4 × 10GE SFP+ uplink ports, and 1 extended slot supporting additional modules.
-
High Performance: Switching capacity of up to 880 Gbps and forwarding rate of 480 Mpps ensure efficient data processing.
-
Advanced Layer 3 Features: Supports static routing, RIP, OSPF, BGP, and IS-IS for robust network routing capabilities.
-
Comprehensive Security: Features include 802.1X authentication, MAC address filtering, DHCP snooping, ARP inspection, and port isolation.
-
Intelligent Stacking (iStack): Supports stacking of up to 9 switches, simplifying network management and enhancing scalability.
-
Energy-Efficient Design: Intelligent fan speed adjustment for reduced power consumption and noise.
-
Robust Management: Offers web-based management, SNMP v1/v2/v3, RMON, and CLI via console or Telnet.
Recommended Accessories
| Product Model | Category | Description |
|---|---|---|
| SFP-10G-SR | SFP+ Transceiver | 10GBASE-SR SFP+, 850nm, multimode fiber, up to 300m |
| SFP-10G-LR | SFP+ Transceiver | 10GBASE-LR SFP+, 1310nm, single-mode fiber, up to 10km |
| SFP-10G-ER | SFP+ Transceiver | 10GBASE-ER SFP+, 1550nm, single-mode fiber, up to 40km |
| SFP-10G-ZR | SFP+ Transceiver | 10GBASE-ZR SFP+, 1550nm, single-mode fiber, up to 80km |
| CAB-SFP-1M | SFP+ Cable | 1-meter SFP+ direct attach copper cable |
| CAB-SFP-3M | SFP+ Cable | 3-meter SFP+ direct attach copper cable |
| CAB-SFP-5M | SFP+ Cable | 5-meter SFP+ direct attach copper cable |
Comparison with Similar Items
| Feature | S5736-S24UM4XC | S5736-S24UM2CC | S5736-S48UM4XC |
|---|---|---|---|
| Downlink Ports | 24 × Multi-GE | 24 × Multi-GE | 48 × Multi-GE |
| Uplink Ports | 4 × 10GE SFP+ | 2 × 100GE QSFP28 | 4 × 10GE SFP+ |
| PoE Support | Yes (PoE++) | Yes (PoE++) | Yes (PoE++) |
| Switching Capacity | 880 Gbps | 1.2 Tbps | 1.2 Tbps |
| Forwarding Rate | 480 Mpps | 720 Mpps | 720 Mpps |
| Stacking Support | Yes (iStack) | Yes (iStack) | Yes (iStack) |
| Ideal Use Case | High-speed access | High-speed access | High-density access |
Specifications
| Parameter | Specification |
|---|---|
| Model | S5736-S24UM4XC |
| Downlink Ports | 24 × 100M/1G/2.5G/5G/10G Base-T ports |
| Uplink Ports | 4 × 10GE SFP+ ports |
| Extended Slot | 1 slot supporting additional modules (e.g., 8 × 10GE SFP+, 4 × 40GE QSFP+) |
| Switching Capacity | Up to 880 Gbps |
| Forwarding Rate | 480 Mpps |
| MAC Address Table | 32K entries |
| VLANs | Supports up to 4,096 VLANs (IEEE 802.1Q) |
| QoS | 8 queues per port, SP, WRR, and SP+WRR scheduling algorithms |
| IPv6 Features | IPv6 host, static routes, OSPFv3, BGP4+, IS-ISv6 |
| Security Features | 802.1X, MAC filtering, DHCP snooping, ARP inspection, port isolation |
| Management | Web-based, CLI, Telnet, SNMP v1/v2/v3, RMON, SSHv2 |
| Power Supply | Supports dual hot-swappable power modules (AC/DC) |
| Power Consumption | Typical: 66.85W; Maximum: 93.92W |
| Operating Temperature | -5°C to 50°C (23°F to 122°F) |
| Dimensions (W×D×H) | 442 mm × 220 mm × 43.6 mm (17.4 in. × 8.7 in. × 1.7 in.) |
| Weight | ≤ 3.13 kg (6.90 lbs) |
| Warranty | Limited lifetime warranty |
