Huawei S6720S-26Q-EI-24S-AC 24×10G SFP+ & 2×40G QSFP+ Compact AC Switch
Huawei S6720S-26Q-EI-24S-AC Switch Overview
The Huawei S6720S-26Q-EI-24S-AC is a high-performance Layer 3 switch designed for enterprise data centers and campus networks. It offers 24 10GE SFP+ ports and 2 40GE QSFP+ uplink ports, providing high-density 10G access and 40G uplink capabilities.
With a switching capacity of 2.56 Tbps and forwarding performance of 480 Mpps, this switch ensures efficient data handling. Its compact design with a depth of 220 mm makes it suitable for installation in 300 mm deep cabinets, saving space in data center deployments.
Highlights
-

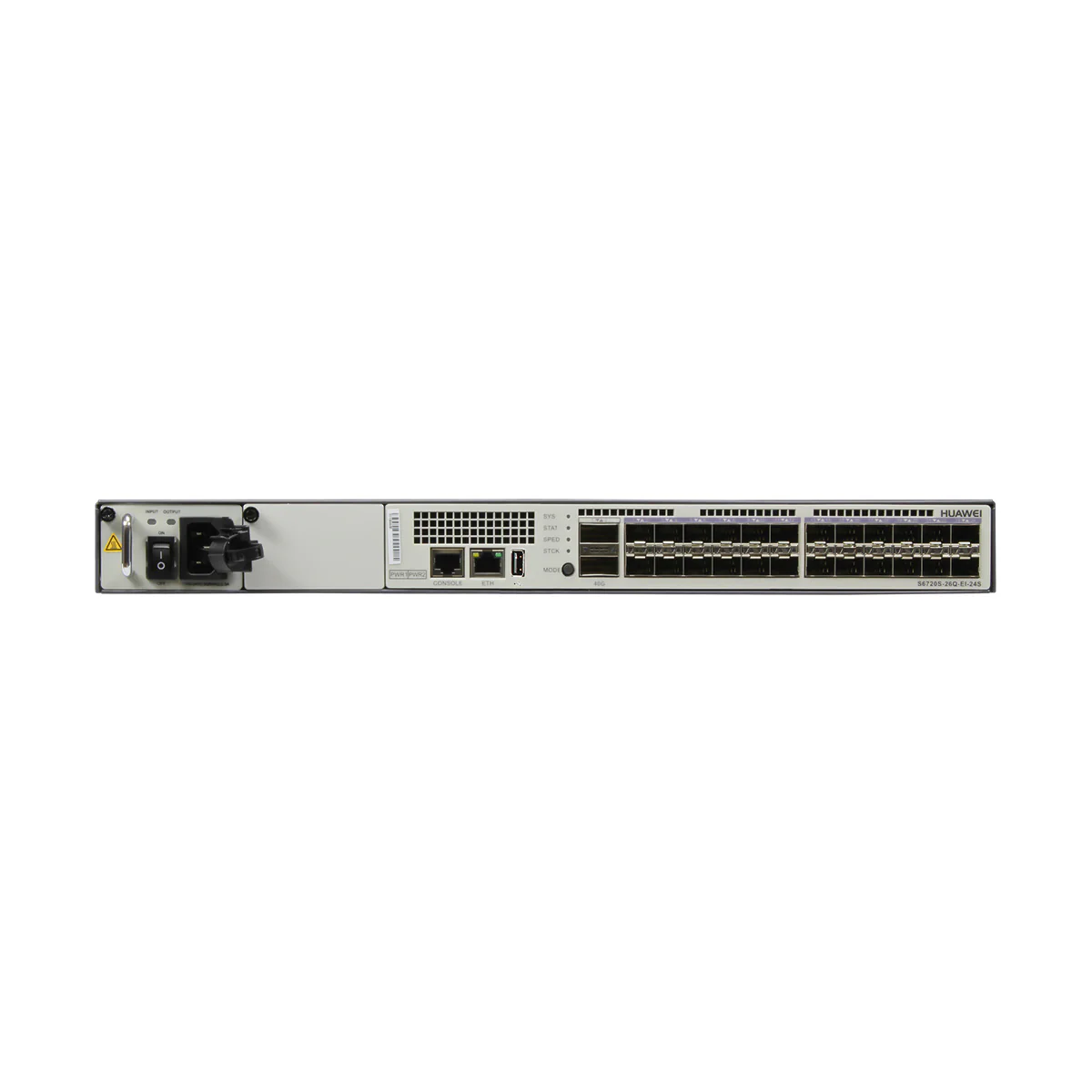

Port Configuration: 24 × 10GE SFP+ ports and 2 × 40GE QSFP+ uplink ports.
-
High Performance: Switching capacity of 2.56 Tbps and forwarding rate of 480 Mpps ensure efficient data processing.
-
Advanced Layer 3 Features: Supports static routing, RIP, OSPF, BGP, and IS-IS for robust network routing capabilities.
-
Comprehensive Security: Features include 802.1X authentication, MAC address filtering, DHCP snooping, ARP inspection, and port isolation.
-
Intelligent Stacking: Supports stacking of up to 9 switches, simplifying network management and enhancing scalability.
-
Energy-Efficient Design: Intelligent fan speed adjustment for reduced power consumption and noise.
-
Robust Management: Offers web-based management, SNMP v1/v2/v3, RMON, and CLI via console or Telnet.
Recommended Accessories
| Product Model | Category | Description |
|---|---|---|
| SFP-10G-SR | SFP+ Transceiver | 10GBASE-SR SFP+, 850nm, multimode fiber, up to 300m |
| SFP-10G-LR | SFP+ Transceiver | 10GBASE-LR SFP+, 1310nm, single-mode fiber, up to 10km |
| QSFP-40G-SR4 | QSFP+ Transceiver | 40GBASE-SR4 QSFP+, 850nm, multimode fiber, up to 100m |
| QSFP-40G-LR4 | QSFP+ Transceiver | 40GBASE-LR4 QSFP+, 1310nm, single-mode fiber, up to 10km |
| CAB-SFP-1M | SFP+ Cable | 1-meter SFP+ direct attach copper cable |
| CAB-QSFP-3M | QSFP+ Cable | 3-meter QSFP+ direct attach copper cable |
| CAB-QSFP-5M | QSFP+ Cable | 5-meter QSFP+ direct attach copper cable |
Comparison with Similar Items
| Feature | S6720S-26Q-EI-24S-AC | S6720-30C-EI-24S-AC | S6720-54C-EI-48S-AC |
|---|---|---|---|
| Downlink Ports | 24 × 10GE SFP+ | 24 × 10GE SFP+ | 48 × 10GE SFP+ |
| Uplink Ports | 2 × 40GE QSFP+ | 2 × 40GE QSFP+ | 2 × 40GE QSFP+ |
| Extended Slot | Not supported | 1 × slot for 4 × 40GE | 1 × slot for 4 × 40GE |
| Switching Capacity | 2.56 Tbps | 2.56 Tbps | 2.56 Tbps |
| Forwarding Rate | 480 Mpps | 720 Mpps | 1080 Mpps |
| Power Supply | Dual AC (hot-swappable) | Dual AC (hot-swappable) | Dual AC (hot-swappable) |
| Ideal Use Case | High-density 10G access | Modular uplink flexibility | High-density aggregation |
Specifications
| Parameter | Specification |
|---|---|
| Model | S6720S-26Q-EI-24S-AC |
| Downlink Ports | 24 × 10GE SFP+ ports |
| Uplink Ports | 2 × 40GE QSFP+ ports |
| Switching Capacity | 2.56 Tbps |
| Forwarding Rate | 480 Mpps |
| MAC Address Table | 288K entries |
| VLANs | Supports up to 4,096 VLANs (IEEE 802.1Q) |
| QoS | 8 queues per port, SP, WRR, and SP+WRR scheduling algorithms |
| IPv6 Features | IPv6 host, static routes, OSPFv3, BGP4+, IS-ISv6 |
| Security Features | 802.1X, MAC filtering, DHCP snooping, ARP inspection, port isolation |
| Management | Web-based, CLI, Telnet, SNMP v1/v2/v3, RMON, SSHv2 |
| Power Supply | Dual hot-swappable 170W AC power modules |
| Power Consumption | Typical: 108.59W; Maximum: 143.4W |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Dimensions (W×D×H) | 442 mm × 222.3 mm × 44.4 mm (17.4 in. × 8.75 in. × 1.75 in.) |
| Weight | ≤ 5.35 kg (11.79 lbs) |
| Warranty | Limited lifetime warranty |
