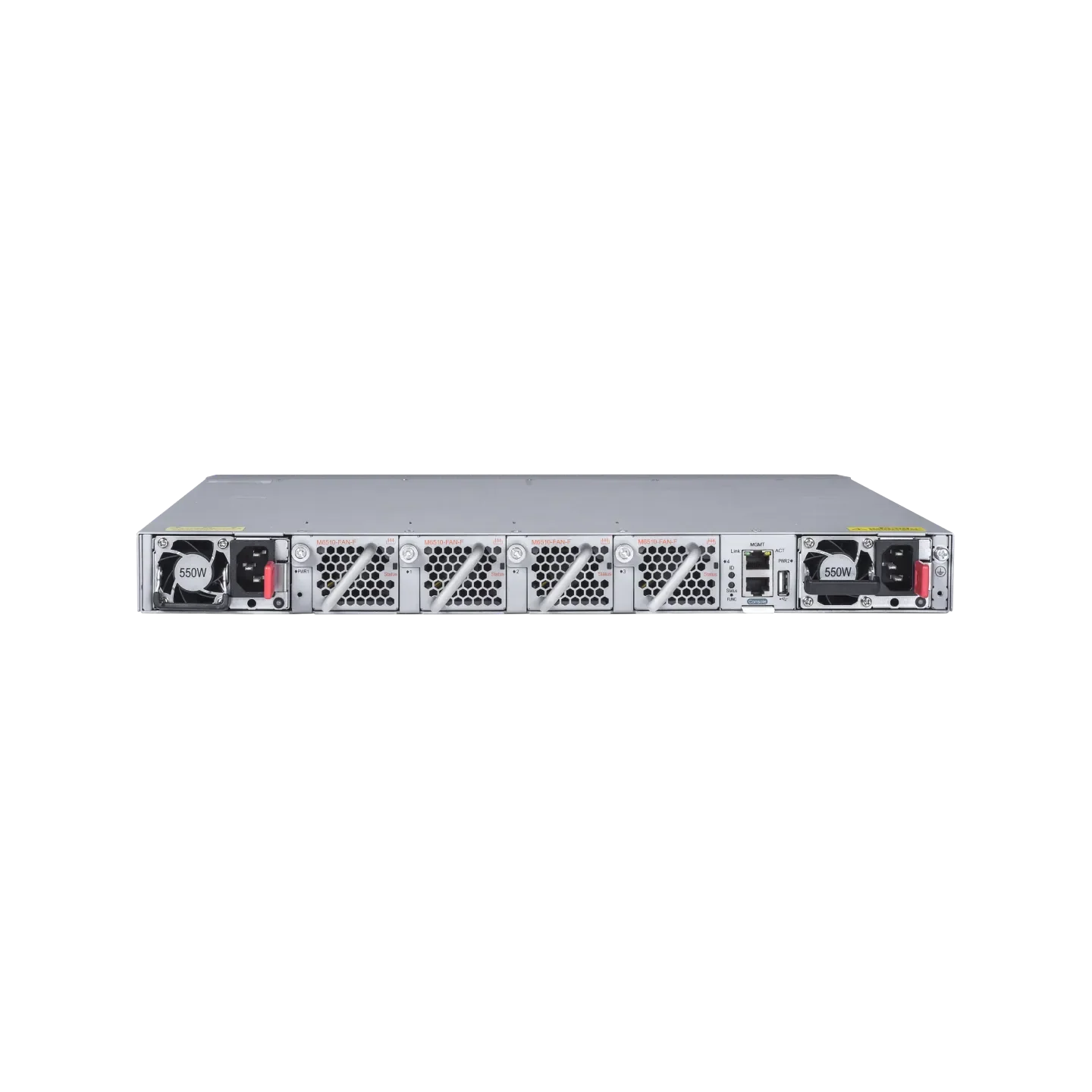

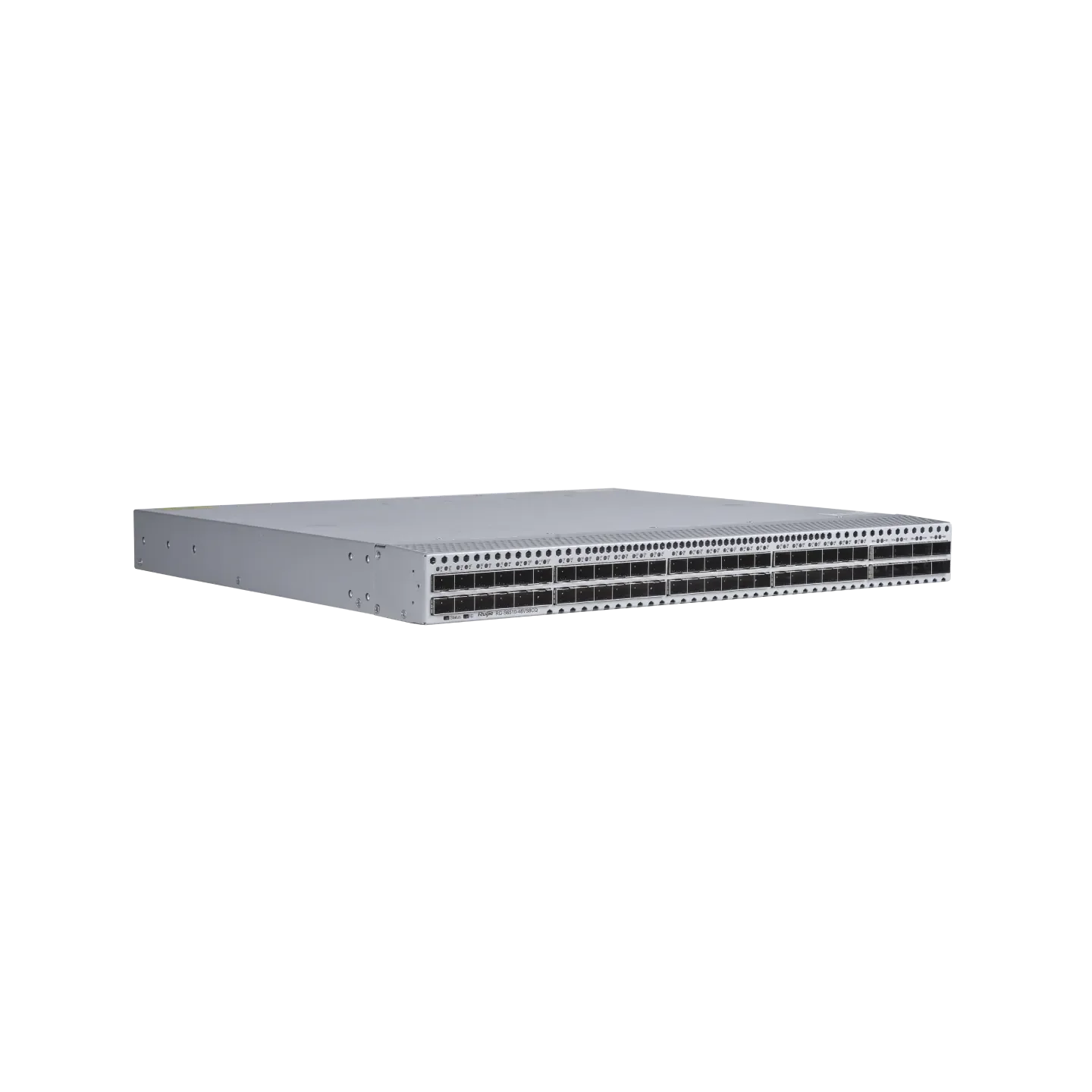

Ruijie RG-S6510-48VS8CQ 48×25G SFP28 & 8×100G QSFP28 Spine Switch
Ruijie RG-S6510-48VS8CQ 1 RU 48×25 GE SFP28 & 8×100 GE QSFP28 Data Center Access Switch
The Ruijie RG-S6510-48VS8CQ is a high-performance, high-density data center access switch designed to meet the demands of modern networking environments.
Equipped with 48 × 25GE SFP28 ports and 8 × 100GE QSFP28 ports, this 1U switch offers a switching capacity of 4.0 Tbps and a packet forwarding rate of 2000 Mpps37007, making it perfect for high-throughput, low-latency, and lossless data transmission in AI, machine learning30971143 and big data analytics scenarios.
The RG-S6510-48VS8CQ supports advanced features like Virtual Extensible LAN (VXLAN) tunneling, Remote Direct Memory Access (RDMA) with Priority Flow Control (PFC), and Explicit Congestion Notification (ECN) to ensure lossless Ethernet and ultra-low latency.
Its hardware-level redundancy such as 1+1 hot-swappable power supplies, 3+1 redundant fan modules ensure the continuous operation and service reliability.
The switch also features telemetry-based network monitoring enabling real-time insights and simplified operations and maintenance.
Overview
Highlights
-
High-Density Connectivity: Offers 48 × 25GE SFP28 ports and 8 × 100GE QSFP28 ports, supporting flexible deployment scenarios.
-
Exceptional Performance: Delivers a switching capacity of 4.0 Tbps and a packet forwarding rate of 2000 Mpps, ensuring high-speed data processing.
-
Lossless Ethernet Support: Integrates RDMA, PFC, and ECN technologies to achieve zero packet loss and ultra-low latency.
-
Robust Redundancy: Features 1+1 hot-swappable power supplies and 3+1 redundant fan modules for enhanced reliability.
-
Advanced Monitoring: Supports telemetry-based network monitoring, providing real-time insights for efficient management.
-
Flexible Networking: Supports VSU, M-LAG, and de-stacking for device-level redundancy and simplified network architecture.
Recommended Accessories
Here are some compatible accessories to enhance the functionality of the Ruijie RG-S6510-48VS8CQ:
| Product Name | Category | Description |
| RG-PA550I-F | Power Supply Module |
550W AC/HVDC power supply module, supporting 1+1 redundancy for uninterrupted power. |
| RG-PD800I-F | Power Supply Module |
800W DC power supply module, supporting 1+1 redundancy for uninterrupted power. |
| M6510-FAN-F | Fan Module |
High-efficiency fan module with front-to-rear airflow, supporting 3+1 redundancy. |
| 100G-QSFP-SR-MM850 | Optical Transceiver |
100G SR module, QSFP28 form factor, MPO, 850 nm, up to 100 m over MMF. |
| 100G-QSFP-LR4-SM1310 | Optical Transceiver |
100G LR4 module, QSFP28 form factor, Duplex LC, 1310 nm, up to 10 km over SMF. |
| 100G-QSFP-iLR4-SM1310 | Optical Transceiver |
100G iLR4 module, QSFP28 form factor, Duplex LC, 1310 nm, up to 2 km over SMF. |
Comparison with Similar Models
| Model | Service Ports | Uplink Ports | Capacity | Forwarding Rate |
|---|---|---|---|---|
| RG-S6510-48VS8CQ | 48×25 GE SFP28 | 8×100 GE QSFP28 | 4.0 Tbps | 2000 Mpps |
| RG-S6510-32CQ | 32×100 GE QSFP28 | – | 6.4 Tbps | 2030 Mpps |
| RG-S6510-4C | Modular chassis with 4 line-card slots (25/100 GE) | Depends on line cards | 6.4 Tbps | 2030 Mpps |
| RG-S6250-48XS8CQ | 48×10 GE SFP+ + 8×100 GE QSFP28 | – | 4.8 Tbps | 2000 Mpps |
| RG-S6000C-48GT4XS-E | 48×1 GE RJ45 + 4×10 GE SFP+ | – | 256 Gbps | 192 Mpps |
Specifications
| Parameter | Specification |
| Model | RG-S6510-48VS8CQ |
| Port Configuration | 48 × 25GE SFP28, 8 × 100GE QSFP28 |
| Switching Capacity | 4.0 Tbps |
| Packet Forwarding Rate | 2000 Mpps |
| MAC Address Table | 256,000 entries |
| ARP Table Size | 8,000 entries |
| IPv4 Unicast Routes | 64,000 |
| IPv6 Unicast Routes | 32,000 |
| Access Control Entries | Ingress: 5,000; Egress: 2,500 |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Storage Temperature | –40°C to +70°C (–40°F to 158°F) |
| Operating Humidity | 10% to 90% RH (non-condensing) |
| Power Supply | 1+1 redundant, hot-swappable |
| Fan Modules | 3+1 redundant, hot-swappable |
| Dimensions (W × D × H) | 442 mm × 387 mm × 44 mm (17.40 in. × 15.24 in. × 1.73 in.) |
| Weight | Approximately 8.2 kg (18.08 lbs) |
| Mounting | 19-inch rack mount |
| Ingress Protection | IP40 (Protection from solid objects larger than 1mm) |
| ESD Protection | Air discharge: 8 kV / Contact discharge: 6 kV |
