Ruijie RG-S6120-20XS4VS2QXS 20×10G SFP+/4×25G SFP28/2×40G QSFP+ Switch
Ruijie 1RU 20×1 / 2.5 / 10 GE SFP+ & 4×10 / 25 GE SFP28 & 2×40 GE QSFP+ Core & Aggregation Switch
According to the Ruijie RG-S6120-20XS4VS2QXS specifications, it is a high-performance layer 3 managed switch that can be deployed in enterprise campus and metropolitan area network (MAN) and data center networks.
RG-S6120-20XS4VS2QXS highlights Flexibility with: 1 RU 20 × 1GE/2.5GE/10GE SFP+ ports; 4 × 10GE/25GE SFP28 ports; 2 × 40GE QSFP+ uplink ports.
This platform effectively supports advanced features like virtual switch unit (VSU) virtualization, full Layer 3 routing protocols, and a full set of security policies that empower the large-scale core and aggregation layers.
Overview
Highlights

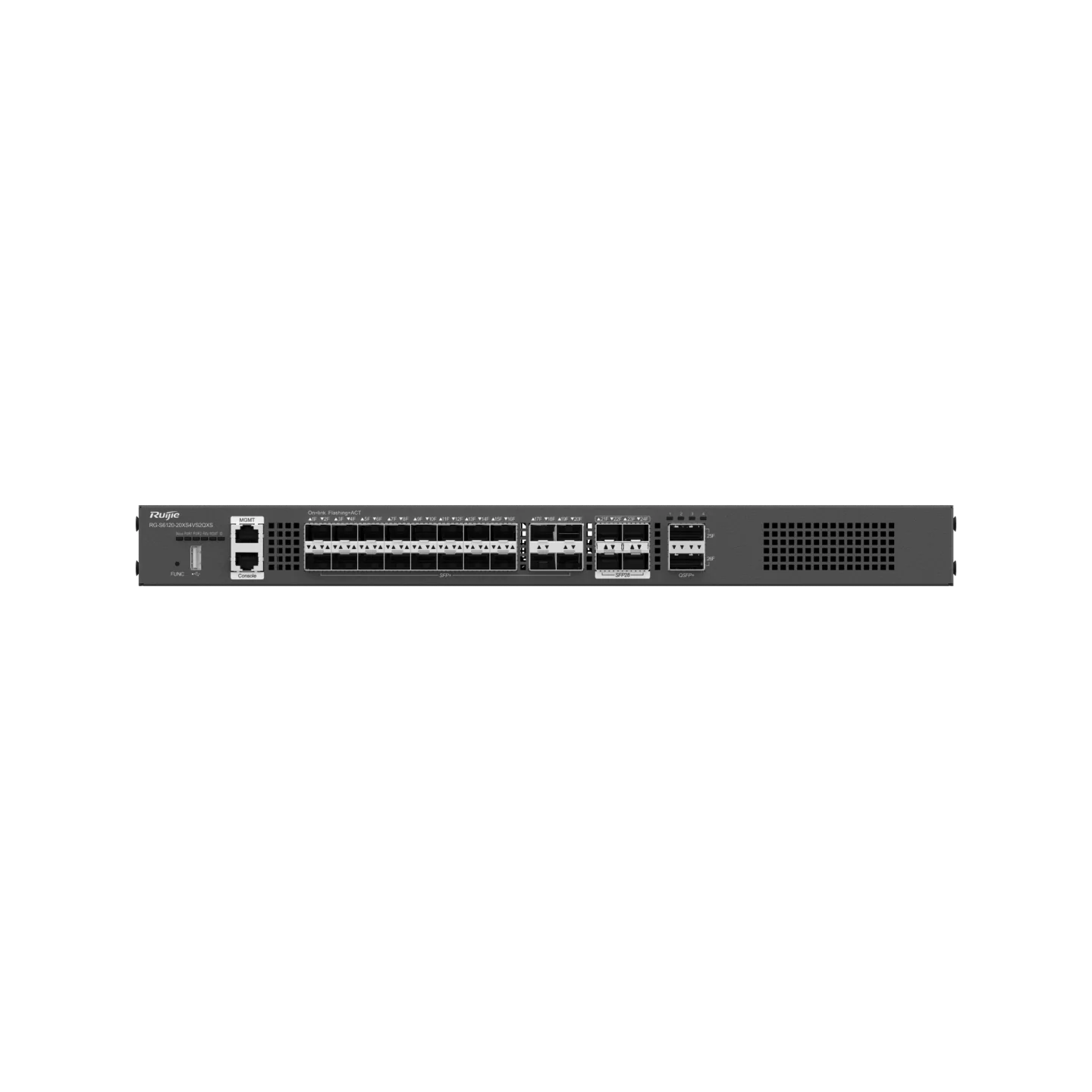

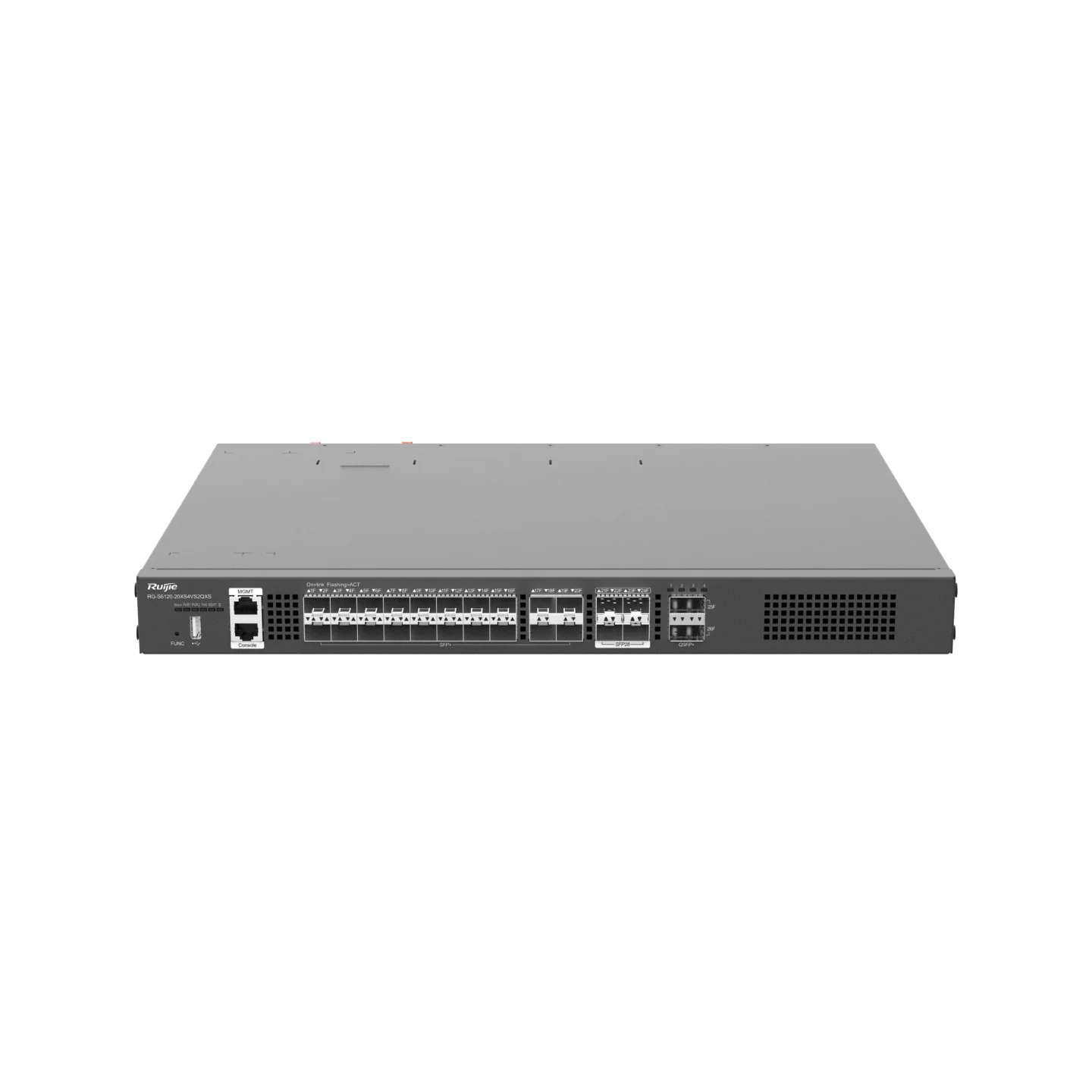

- High-Density Port Configuration: Provides 20 × 1GE/2.5GE/10GE SFP+ ports, 4 × 10GE/25GE SFP28 ports, and 2 × 40GE QSFP+ uplink ports, supporting flexible deployment options.
- VSU Virtualization: Supports Virtual Switch Unit (VSU) technology, allowing multiple physical switches to operate as a single logical unit, simplifying network management and enhancing reliability.
- Advanced Layer 3 Routing: Offers comprehensive Layer 3 routing protocols, including static routing, RIP, OSPF, IS-IS, and BGP, supporting both IPv4 and IPv6 networks.
- Robust Security Features: Incorporates multiple security mechanisms such as ACLs, DHCP Snooping, ARP inspection, and support for SSH and SNMPv3 for secure management.

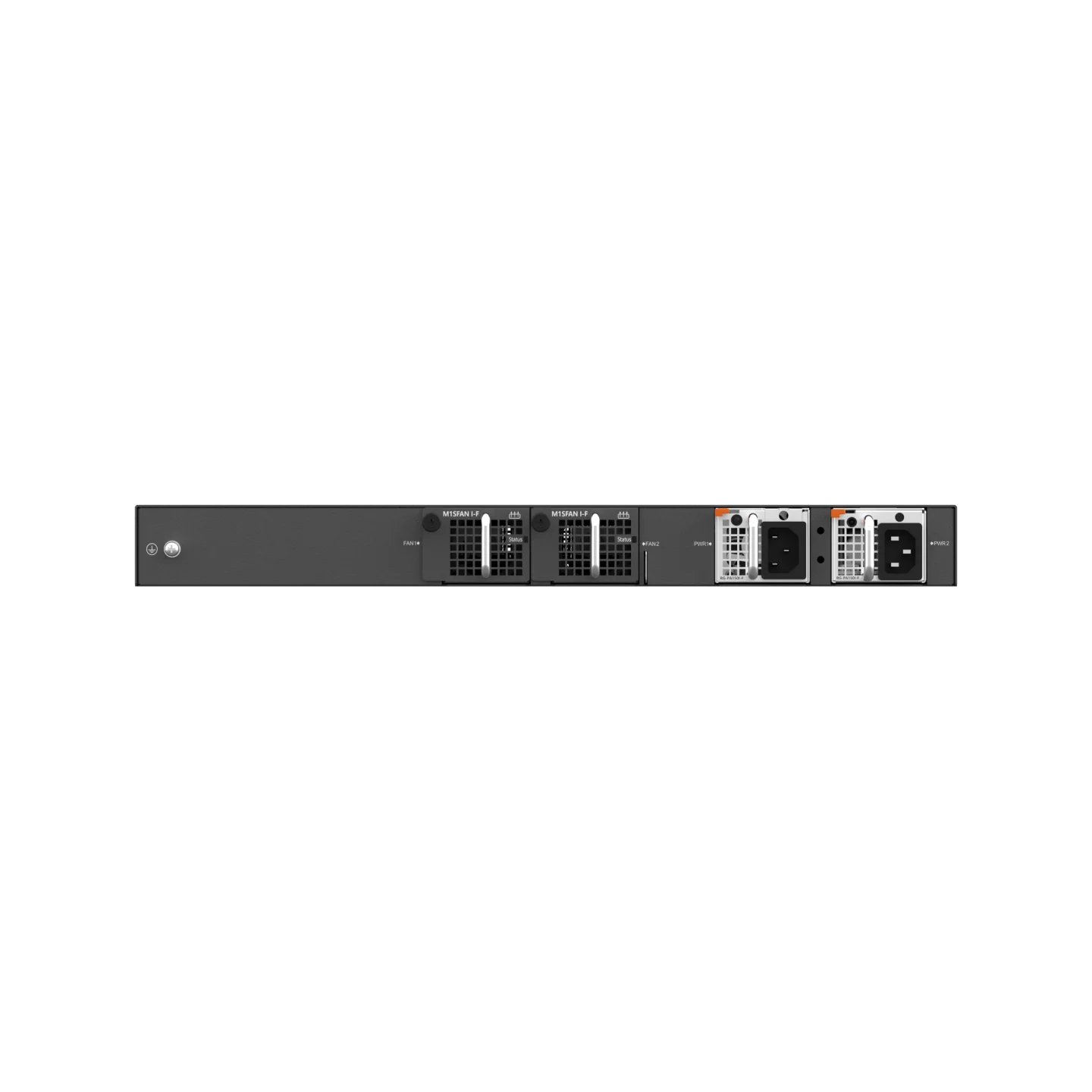

- High Reliability: Features hot-swappable power modules and fan modules with redundancy, ensuring continuous operation and service reliability.
- Efficient Management: Supports various management methods, including CLI, web-based management, Telnet, and integration with Ruijie’s INC for simplified operations and maintenance.
Recommended Accessories
Here are some compatible accessories to enhance the functionality of the Ruijie RG-S6120-20XS4VS2QXS:
| Product Model | Category | Description |
| RG-PA150I-F | Power Supply Module | 150W AC power supply module, supporting hot-swapping and redundancy. |
| RG-PD150IB-F | Power Supply Module | 150W DC power supply module, supporting hot-swapping and redundancy. |
| M1SFAN I-F | Fan Module | Pluggable fan module for efficient cooling and airflow management. |
| XG-SFP-SR-MM850 | Optical Transceiver | 10GE SR module, SFP+ form factor, LC connector, 850 nm, up to 300 m over OM3 MMF. |
| XG-SFP-LR-SM1310 | Optical Transceiver | 10GE LR module, SFP+ form factor, LC connector, 1310 nm, up to 10 km over SMF. |
| VG-SFP-SR-MM850 | Optical Transceiver | 25GE SR module, SFP28 form factor, LC connector, 850 nm, up to 100 m over OM4 MMF. |
| VG-SFP-LR-SM1310 | Optical Transceiver | 25GE LR module, SFP28 form factor, LC connector, 1310 nm, up to 10 km over SMF. |
| 40G-QSFP-SR-MM850 | Optical Transceiver | 40GE SR module, QSFP+ form factor, MPO connector, 850 nm, up to 150 m over OM4 MMF. |
| 40G-QSFP-LR4-SM1310 | Optical Transceiver | 40GE LR module, QSFP+ form factor, LC connector, 1310 nm, up to 10 km over SMF. |
Comparison with Similar Models
| Model | Service Ports | Uplink Ports | Capacity | Forwarding |
|---|---|---|---|---|
| RG-S6120-20XS4VS2QXS | 20×1 / 2.5 / 10 GE SFP+ | 4×10 / 25 GE SFP28 2×40 GE QSFP+ |
912 Gbps | 678 Mpps |
| RG-S6110-48MG4VS2QXS-UP | 48×100 M/1 G/2.5 G/5 GBASE-T | 4×10 / 25 GE SFP28 2×40 GE QSFP+ |
1 008 Gbps | 750 Mpps |
| RG-S6120-24XMG4XS4VS-UP-H | 24×100 M/1 G/2.5 G/5 G/10 GBASE-T 4×10 / 4×25 GE |
— | 760 Gbps | 565 Mpps |
| RG-S6120-48VS8CQ-X | 48×1 / 10 / 25 GE SFP28 | 8×40 / 100 GE QSFP28 | 4 Tbps | 1 472 Mpps |
| RG-S6150-24VS8CQ-X | 24×1 / 10 / 25 GE SFP28 | 8×40 / 100 GE QSFP28 | 2.8 Tbps | 1 024 Mpps |
Specifications
| Parameter | Specification |
| Model | RG-S6120-20XS4VS2QXS |
| Service Ports | 20 × 1GE/2.5GE/10GE SFP+ |
| Uplink Ports | 4 × 10GE/25GE SFP28, 2 × 40GE QSFP+ |
| Switching Capacity | 912 Gbps |
| Packet Forwarding Rate | 678 Mpps |
| MAC Address Table | Up to 32,768 entries |
| ARP Table Size | Up to 16,000 entries |
| IPv4 Unicast Routes | Up to 16,000 entries |
| IPv6 Unicast Routes | Up to 16,000 entries |
| IPv4 Multicast Routes | Up to 4,000 entries |
| IPv6 Multicast Routes | Up to 2,000 entries |
| Power Module Slots | 2 (supporting 1+1 redundancy) |
| Fan Module Slots | 2 pluggable fan modules |
| Management Ports | 1 × RJ45 console port, 1 × RJ45 MGMT port, 1 × USB 2.0 port |
| Dimensions (W × D × H) | 442 mm × 330 mm × 43.6 mm (17.40 in. × 12.99 in. × 1.72 in.) |
| Weight | Approximately 4.6 kg (with two fan modules) |
| Power Supply | AC 100–240V, 50/60 Hz or DC –36V to –75V |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Operating Humidity | 10% to 90% RH (non-condensing) |
| MTBF | ≥ 200,000 hours |
More Details
Quality Certifications
Warranty
100% Low Price Guarantee
Network-switch.com provides high-quality products at low wholesale prices
100% Quality Assurance
All items are ORIGINAL and GENUINE only.
Item conditions are "New Sealed". They are fully tested by Ruijie RCNP Engineers.
Free Technical Support
Our FREE Expert Consultancy Support is over the phone, by chat, by email or by login remotely.
100% Money Back Guarantee
You can contact our customer service team to exchange or return any product that you bought from us.
Flexible Secure Payment & Shipment
Verified authorization: Mcafee Secure, VeriSign Secured
Return Material Authorization (RMA) Process
Standard Warranty Policy
Original New Sealed Enterprise Hardware: 3 Years
Original New Sealed Consumer Devices: 1 Year
The Support Contacts
If your Ruijie products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.
