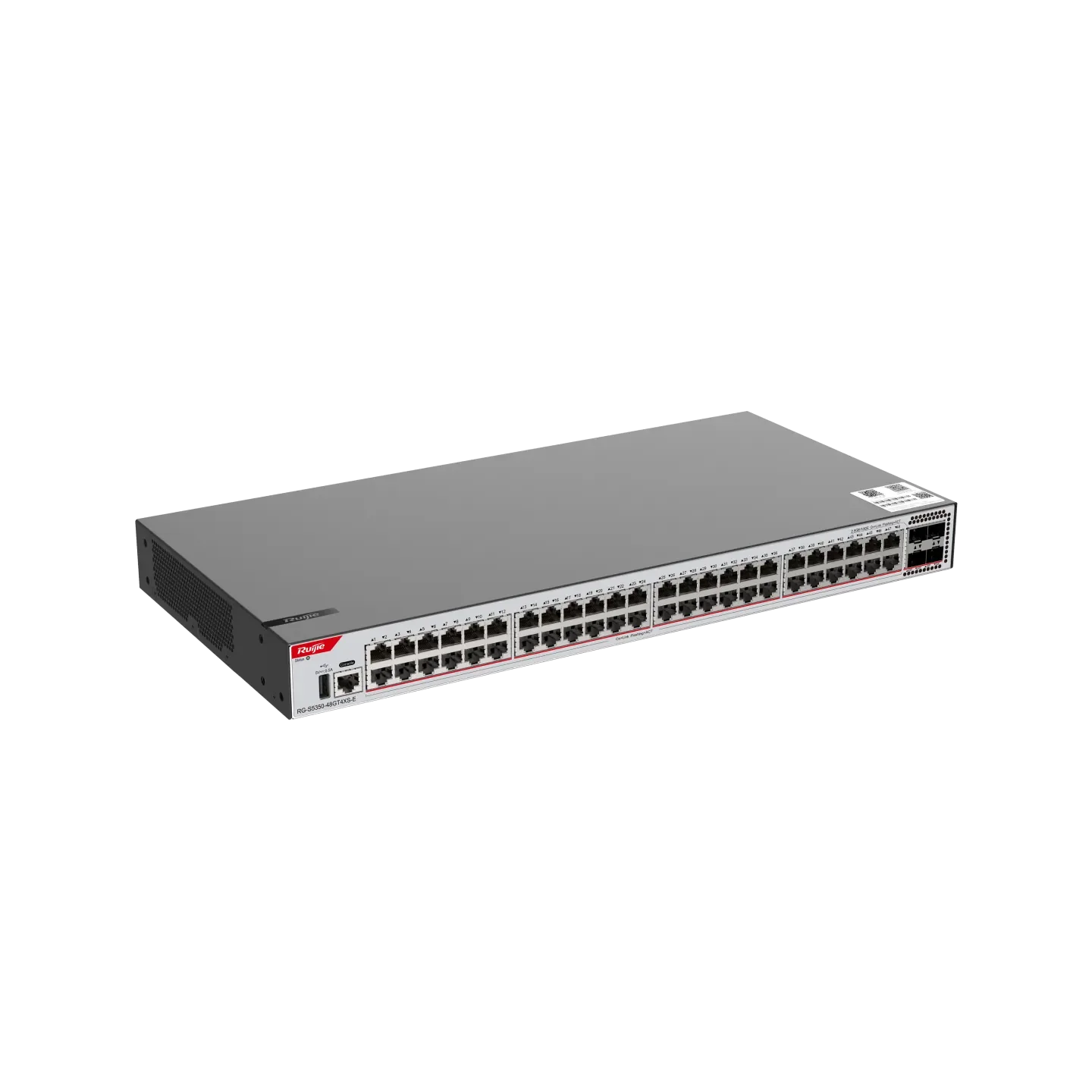

Ruijie RG-S5350-48GT4XS-E 48×Gigabit & 4×10G SFP+ L2+ Switch
Ruijie RG-S5350-48GT4XS-E 48-Port GE Layer 3 Access Switch, 4×1 GE/10 GE SFP+ Uplinks
The RG-S5350-48GT4XS-E sits in Ruijie’s RG-S5350 series as a compact, fan-silent Layer 3 access switch. It provides 48 auto-negotiating 10/100/1000 BASE-T downlinks and four fixed SFP+ slots supporting both 1 GE and 10 GE optics.
Powered by a dual-core 1.0 GHz CPU with 1 GB DDR4 and a 4 MB packet buffer, it delivers 154 Gbps non-blocking switching capacity and 115 Mpps forwarding—ideal for high-density campus edge deployments.
Housed in a 1 RU, IP 40 chassis with a fixed AC power supply, it supports VSU virtualization, hardware CPU Protection Policy (CPP) and NFPP control-plane defenses, and multiple management modes via CLI, SNMP, Web GUI, USB, or Ruijie INC/Cloud for zero-touch O&M.
Overview
Highlights
- 211 Gbps High Switching Capacity, 158 Mpps Forwarding Rate, RG-S5350-48GT4XS-E can process a large amount of traffic358356415356|358_40
- Robust Security: Endowed with features such as IEEE 802.1X authentication, IP Source Guard, and Dynamic ARP Inspection, the RG-S5350-48GT4XS-E helps protect your network from unauthorized users and attacks.
- Extensive Management Options: The switch supports various management options, such as SNMP, Web, and CLI, ensuring that network administrators have simple configuration, monitoring, and maintenance tools at their disposal.
Recommended Accessories
Here are some compatible accessories to enhance the functionality of the Ruijie RG-S5350-48GT4XS-E:
| Product Name | Category | Description |
| Ruijie RG-PA150IB-F | Power Supply Units |
150W AC power supply module, suitable for industrial switches like the RG-S5350-48GT4XS-E. |
| Ruijie RG-PD150IB-F | Power Supply Units |
150W DC power supply module, offering a compact solution for smaller setups. |
| Ruijie RG-PA600I-P-F | Power Supply Units |
600W AC power supply module, providing higher power output for demanding applications. |
| MokerLink 1U Rack Mount Kit | Rack Mount Kits |
Compatible with 19-inch switches, including the RG-S5350-48GT4XS-E, facilitating secure rack installation. |
| Ruijie XG-SFP-SR-MM850 | SFP Transceivers |
10G SFP+ transceiver with 850nm wavelength, suitable for short-range fiber connections. |
Comparison with Similar Models
| Model | Downlinks & Uplinks | PoE Support | Capacity / Forwarding |
|---|---|---|---|
| RG-S5350-48GT4XS-E | 48×GE + 4×10 GE SFP+ | None | 154 Gbps / 115 Mpps |
| RG-S5350-24GT4XS-E | 24×GE + 4×10 GE SFP+ | None | 154 Gbps / 115 Mpps |
| RG-S5350-48GT4XS-P-E | 48×GE PoE+ + 4×10 GE SFP+ | PoE+/PoE | 154 Gbps / 115 Mpps |
Specifications
| Parameter | Specification |
| Model | RG-S5350-48GT4XS-E |
| Port Configuration | 48 x 10/100/1000BASE-T, 4 x 1G/10G SFP+ |
| Switching Capacity | 211 Gbps |
| Forwarding Rate | 158 Mpps |
| MAC Address Table | 32,000 entries |
| ARP Table Size | 4,000/16,000 (authorized) |
| ND Table Size | 2,000/8,000 (authorized) |
| IPv4 Unicast Routes | 8,000/12,000 (authorized) |
| IPv6 Unicast Routes | 4,000 |
| Access Control Entries | Ingress: 3,500; Egress: 1,500 |
| Operating Temperature | 0°C to 45°C |
| Storage Temperature | -40°C to +70°C |
| Power Input | AC: 100V to 240V, 50/60Hz |
| Maximum Power Consumption | 65 W (without PoE load); 810 W (full PoE load) |
| Dimensions (W x D x H) | 442 mm x 420 mm x 43.6 mm |
| Weight | 4.3 kg |
| Mounting | 19-inch rack mount |
| Ingress Protection | IP40 (Protection from solid objects larger than 1mm) |
| ESD Protection | Air discharge: 8 kV / Contact discharge: 6 kV |
