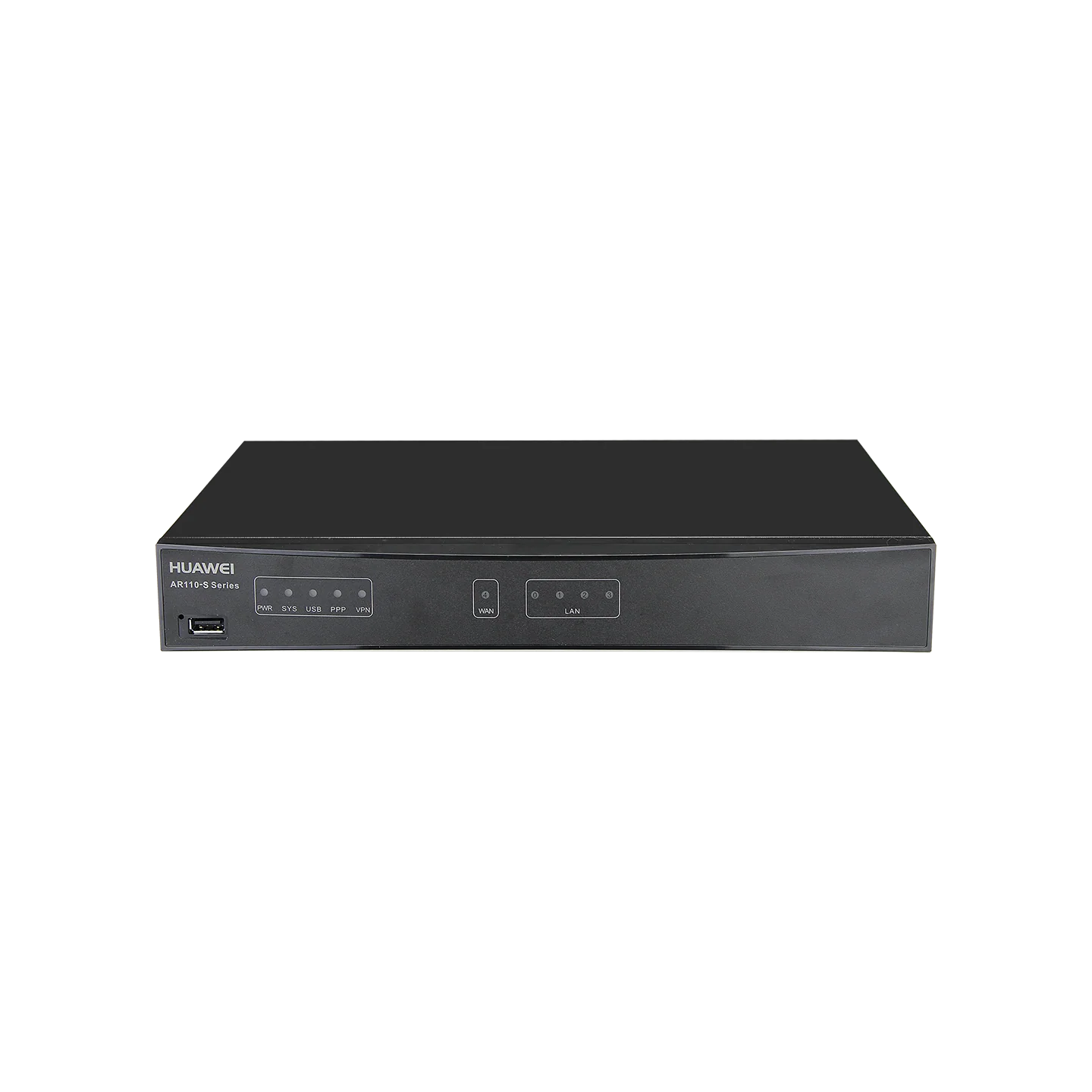

Huawei AR111-S – 50 Mbps SOHO Router, 8×FE LAN & 1×GE WAN

Huawei AR111-S Compact Fanless Router

The Huawei AR111-S is a compact, fanless enterprise router tailored for small businesses and branch offices. As part of Huawei's AR100 series, it integrates routing, switching, and security functionalities into a single device, providing a cost-effective networking solution.

With its silent operation and robust feature set, the AR111-S is ideal for environments where space and noise are considerations.

Overview

Highlights

• Integrated Networking Functions: Combines routing, switching, and security features to deliver a unified networking solution.

• Performance: Supports up to 50 Mbps WAN throughput with services enabled, ensuring efficient data processing.

• Flexible Interface Configuration: Features 1 GE WAN port and 4 GE LAN ports, which can be configured as WAN interfaces to meet diverse networking requirements.

• Comprehensive Security: Offers robust security features including firewall, ACL, AAA authentication, and VPN support to safeguard network integrity.

• User-Friendly Management: Provides multiple management interfaces such as web-based GUI, CLI, and SNMP for easy configuration and monitoring.

Compare to Similar Items

Model	Port Configuration	Max Throughput	Form Factor	Power Consumption	Software Support	Target Use	Redundancy
Huawei AR111-S	1×GE WAN, 4×GE LAN	50 Mbps	Fixed	24W	Huawei VRP	SMBs, Branch Offices	No
Huawei AR161-S	1×GE WAN, 4×GE LAN	150 Mbps	Fixed	24W	Huawei VRP	SMBs, Branch Offices	No
Cisco ISR 4321	2×GE WAN, 2×GE LAN	50 Mbps	Fixed	60W	Cisco IOS XE	SMBs, Branch Offices	Yes
Juniper SRX300	6×GE Ports	1 Gbps	Fixed	30W	Junos OS	SMBs, Branch Offices	Yes



Recommended Accessories

Model	Description
SFP-GE-LX	1000Base-LX SFP Transceiver Module
SFP-GE-SX	1000Base-SX SFP Transceiver Module
CAB-CONSOLE-RJ45	Console Cable for Configuration
LC-LC-OM3-3M	3m LC-LC OM3 Multimode Fiber Patch Cable
LC-LC-OS2-5M	5m LC-LC OS2 Singlemode Fiber Patch Cable



Specifications

Category	Specification
Model	AR111-S
Product Type	Enterprise Router
Fixed Interfaces	1 × GE WAN, 4 × GE LAN (configurable)
USB Ports	1 × USB 2.0
Console Port	1 × RJ45
Memory	256 MB RAM, 256 MB Flash
WAN Throughput	Up to 50 Mbps
VPN Support	IPSec, GRE, DSVPN, L2TP
Security Features	Firewall, ACL, AAA, RADIUS
Management Interfaces	Web GUI, CLI, SNMP
Power Supply	AC 100–240V, 50/60 Hz
Power Consumption	Maximum 24W
Dimensions (H × W × D)	44.0 mm × 300.0 mm × 216.4 mm
Weight	Approximately 2.8 kg
Operating Temperature	0°C to 45°C
Relative Humidity	5% to 95% non-condensing
Software Compatibility	Huawei VRP
Form Factor	1U Rack-Mountable
