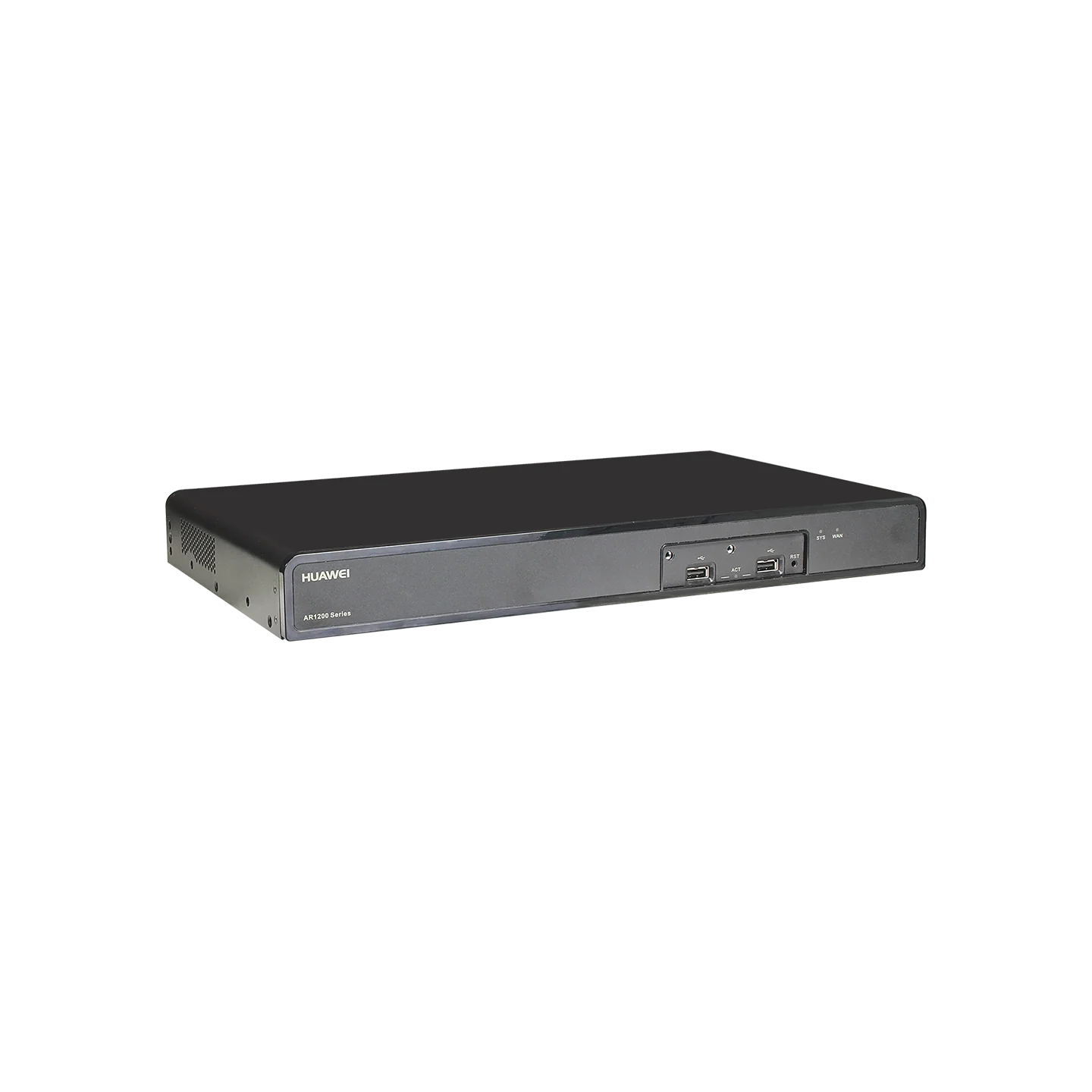

Huawei AR1220C-S Enterprise Router – Pluggable PSU, 2×GE Combo & 8×GE LAN

Huawei AR1220C-S Modular Enterprise Class Router

The Huawei AR1220C-S is a modular enterprise-class router designed for small to medium-sized businesses and branch offices. As part of Huawei's AR1200 series, it integrates routing, switching, security, and voice capabilities into a single device, providing a comprehensive networking solution.

With its modular design, the AR1220C-S allows for flexible interface configurations to meet diverse networking requirements.

Overview

Highlights

• Integrated Networking Functions: Combines routing, switching, security, and voice features to deliver a unified networking solution.

• Performance: Supports up to 200 Mbps WAN throughput with services enabled, ensuring efficient data processing.

• Flexible Interface Configuration: Features 4 GE WAN ports, 1 GE SFP port, and 8 GE LAN ports, which can be configured as WAN interfaces to meet diverse networking requirements.

• Comprehensive Security: Offers robust security features including firewall, ACL, AAA authentication, and VPN support to safeguard network integrity.

• User-Friendly Management: Provides multiple management interfaces such as web-based GUI, CLI, and SNMP for easy configuration and monitoring.

Compare to Similar Items

Model	Port Configuration	Max Throughput	Form Factor	Power Consumption	Software Support	Target Use	Redundancy
Huawei AR1220C-S	4×GE WAN, 1×GE SFP, 8×GE LAN	200 Mbps	Modular	25W	Huawei VRP	SMBs, Branch Offices	No
Huawei AR1220E	2×GE Combo, 8×GE LAN	400 Mbps	Modular	60W	Huawei VRP	SMBs, Branch Offices	No
Cisco ISR 4321	2×GE WAN, 2×GE LAN	50 Mbps	Fixed	60W	Cisco IOS XE	SMBs, Branch Offices	Yes
Juniper SRX300	6×GE Ports	1 Gbps	Fixed	30W	Junos OS	SMBs, Branch Offices	Yes

Recommended Accessories

Model	Description
SFP-GE-LX	1000Base-LX SFP Transceiver Module
SFP-GE-SX	1000Base-SX SFP Transceiver Module
CAB-CONSOLE-RJ45	Console Cable for Configuration
LC-LC-OM3-3M	3m LC-LC OM3 Multimode Fiber Patch Cable
LC-LC-OS2-5M	5m LC-LC OS2 Singlemode Fiber Patch Cable



Specifications

Category	Specification
Model	AR1220C-S
Product Type	Enterprise Router
Fixed Interfaces	4 × GE WAN, 1 × GE SFP, 8 × GE LAN (configurable)
USB Ports	2 × USB 2.0
Console Port	1 × RJ45
Memory	512 MB RAM, 512 MB Flash
WAN Throughput	Up to 200 Mbps
VPN Support	IPSec, GRE, DSVPN, L2TP
Security Features	Firewall, ACL, AAA, RADIUS
Management Interfaces	Web GUI, CLI, SNMP
Power Supply	AC 100–240V, 50/60 Hz
Power Consumption	Maximum 25W
Dimensions (H × W × D)	44.5 mm × 390 mm × 220 mm
Weight	Approximately 2.9 kg
Operating Temperature	0°C to 45°C
Relative Humidity	5% to 95% non-condensing
Software Compatibility	Huawei VRP
Form Factor	1U Rack-Mountable
