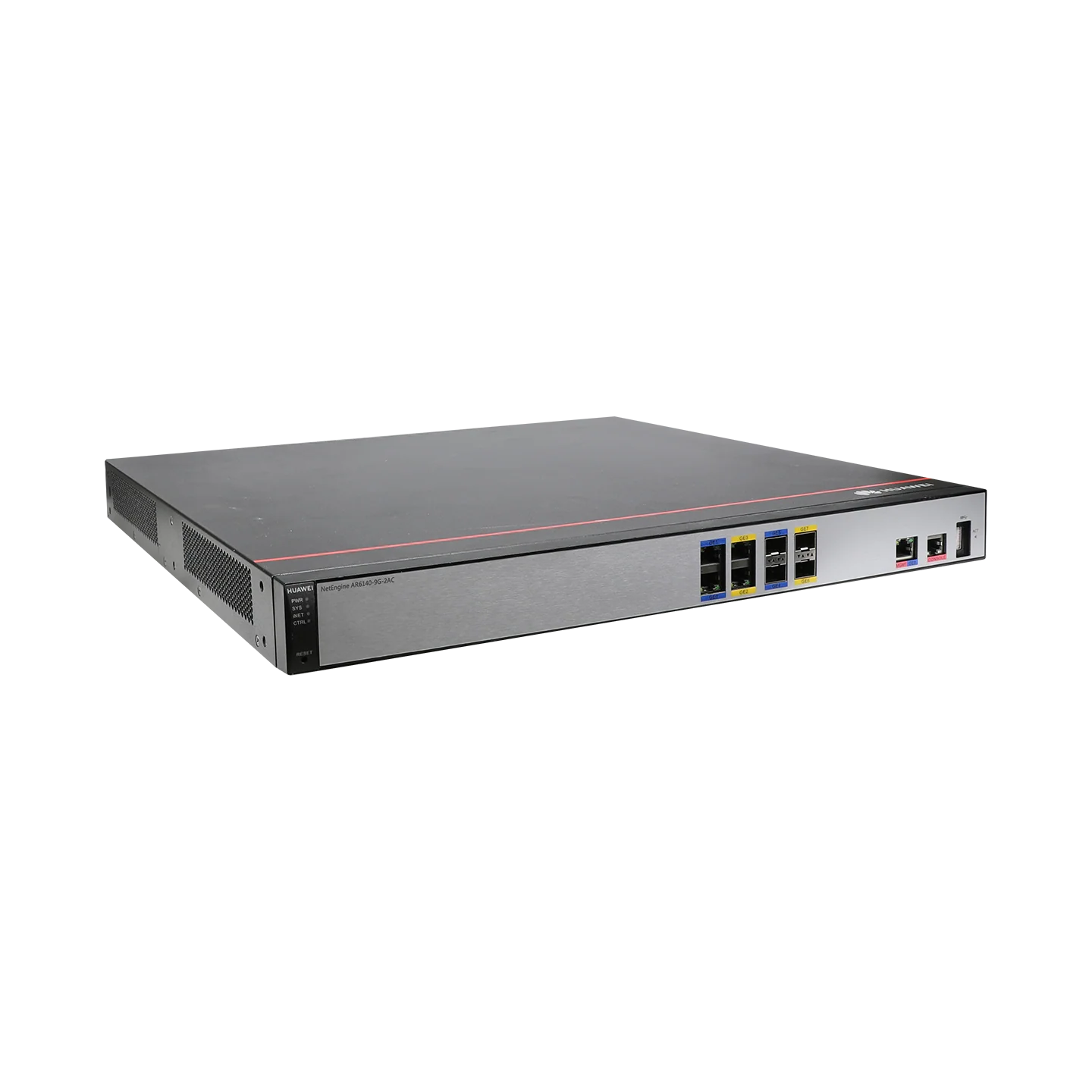

Huawei NetEngine AR6140-9G-2AC – 2 Gbps SRU-400H Router, 8×GE LAN
Huawei NetEngine AR6140-9G-2AC Modular Enterprise Router
The Huawei NetEngine AR6140-9G-2AC is a high-performance, modular enterprise router designed for large enterprises and branch offices. As part of Huawei's NetEngine AR6000 series, it integrates routing, switching, security, and voice capabilities into a single device, providing a comprehensive networking solution.
With its modular design, the AR6140-9G-2AC allows for flexible interface configurations to meet diverse networking requirements.
Overview
Highlights
-
Integrated Networking Functions: Combines routing, switching, security, and voice features to deliver a unified networking solution.
-
Performance: Supports up to 6 Gbps WAN throughput with services enabled, ensuring efficient data processing.
-
Flexible Interface Configuration: Features 5 GE RJ45 ports and 4 GE SFP ports, along with 4 SIC slots, allowing for diverse networking requirements.
-
Comprehensive Security: Offers robust security features including firewall, ACL, AAA authentication, and VPN support to safeguard network integrity.
-
User-Friendly Management: Provides multiple management interfaces such as web-based GUI, CLI, and SNMP for easy configuration and monitoring.
Compare to Similar Items
| Model | Port Configuration | Max Throughput | Form Factor | Power Consumption | Software Support | Target Use | Redundancy |
|---|---|---|---|---|---|---|---|
| Huawei AR6140-9G-2AC | 5×GE RJ45, 4×GE SFP | 6 Gbps | Modular | 32W | Huawei VRP | Large Enterprises | Yes |
| Huawei AR6280 | 14×10GE SFP+, 10×GE RJ45 | 12 Gbps | Modular | 160W | Huawei VRP | Large Enterprises | Yes |
| Cisco ISR 4451-X | 3×GE WAN, 2×GE LAN | 1 Gbps | Modular | 200W | Cisco IOS XE | Large Enterprises | Yes |
| Juniper SRX550 | 8×GE Ports | 1 Gbps | Modular | 150W | Junos OS | Large Enterprises | Yes |
Recommended Accessories
| Model | Description |
|---|---|
| SFP-GE-LX | 1000Base-LX SFP Transceiver Module |
| SFP-GE-SX | 1000Base-SX SFP Transceiver Module |
| CAB-CONSOLE-RJ45 | Console Cable for Configuration |
| LC-LC-OM3-3M | 3m LC-LC OM3 Multimode Fiber Patch Cable |
| LC-LC-OS2-5M | 5m LC-LC OS2 Singlemode Fiber Patch Cable |
Specifications
| Category | Specification |
|---|---|
| Model | AR6140-9G-2AC |
| Product Type | Enterprise Router |
| Fixed Interfaces | 5 × GE RJ45, 4 × GE SFP |
| SIC Slots | 4 |
| WSIC Slots | 0 (default), up to 2 |
| XSIC Slots | 0 (default), up to 1 |
| USB Ports | 1 × USB 3.0 |
| Console Port | 1 × RJ45 |
| Memory | 2 GB RAM, 1 GB Flash |
| WAN Throughput | Up to 6 Gbps |
| VPN Support | IPSec, GRE, DSVPN, L2TP |
| Security Features | Firewall, ACL, AAA, RADIUS |
| Management Interfaces | Web GUI, CLI, SNMP |
| Power Supply | AC 100–240V, 50/60 Hz |
| Power Consumption | Maximum 32W |
| Dimensions (H × W × D) | 44.5 mm × 442 mm × 420 mm |
| Weight | Approximately 5.05 kg |
| Operating Temperature | 0°C to 45°C |
| Relative Humidity | 5% to 95% non-condensing |
| Software Compatibility | Huawei VRP |
| Form Factor | 1U Rack-Mountable |
More Details
Quality Certifications
Warranty
100% Low Price Guarantee
Network-switch.com provides high-quality products at low wholesale prices
100% Quality Assurance
All items are ORIGINAL and GENUINE only.
Item conditions are "New Sealed". They are fully tested by Huawei HCIE Engineers.
Free Technical Support
Our FREE Expert Consultancy Support is over the phone, by chat, by email or by login remotely.
100% Money Back Guarantee
You can contact our customer service team to exchange or return any product that you bought from us.
Flexible Secure Payment & Shipment
Verified authorization: Mcafee Secure, VeriSign Secured
Return Material Authorization (RMA) Process
Standard Warranty Policy
Original New Sealed Enterprise Hardware: 3 Years
Original New Sealed Consumer Devices: 1 Year
The Support Contacts
If your Huawei products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.
