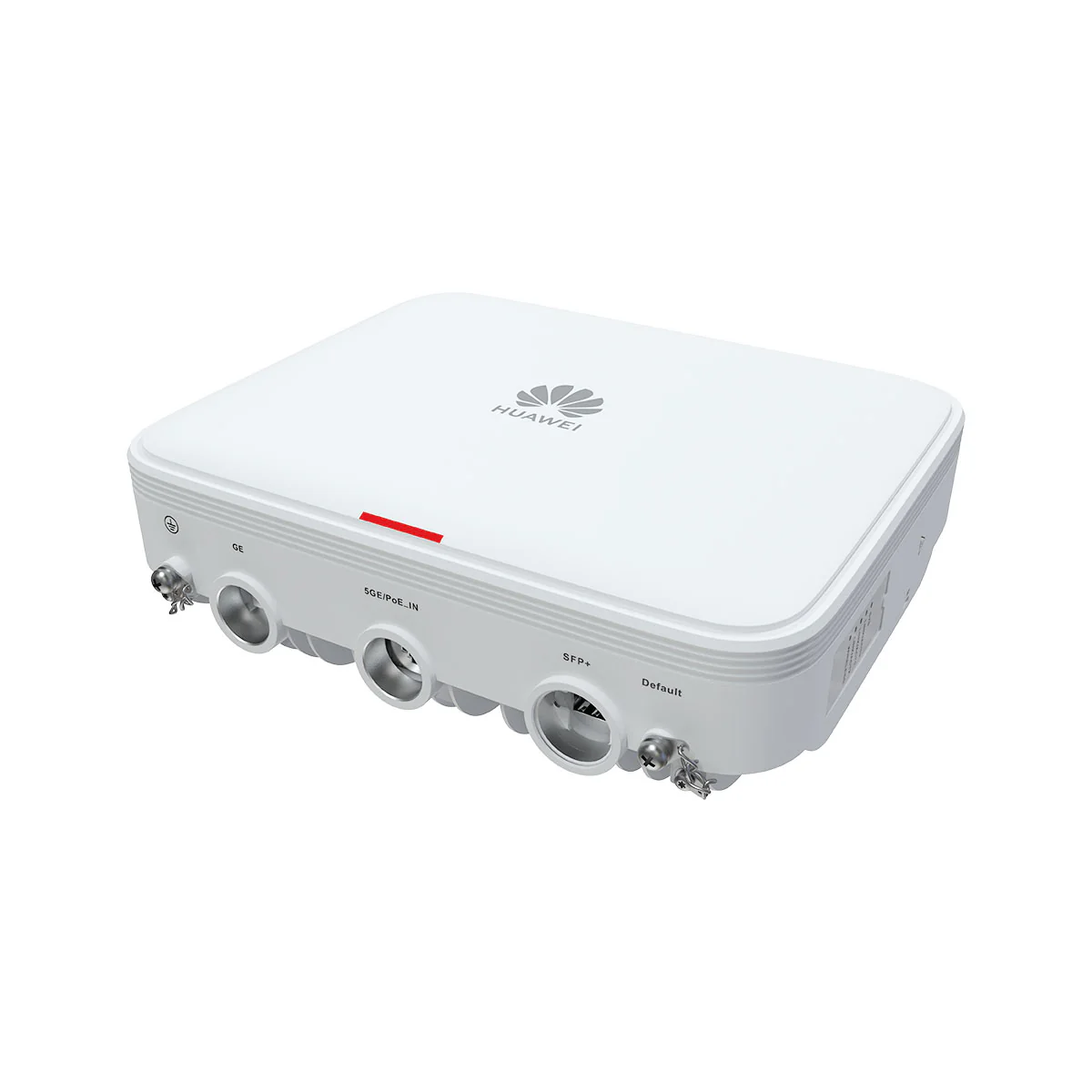

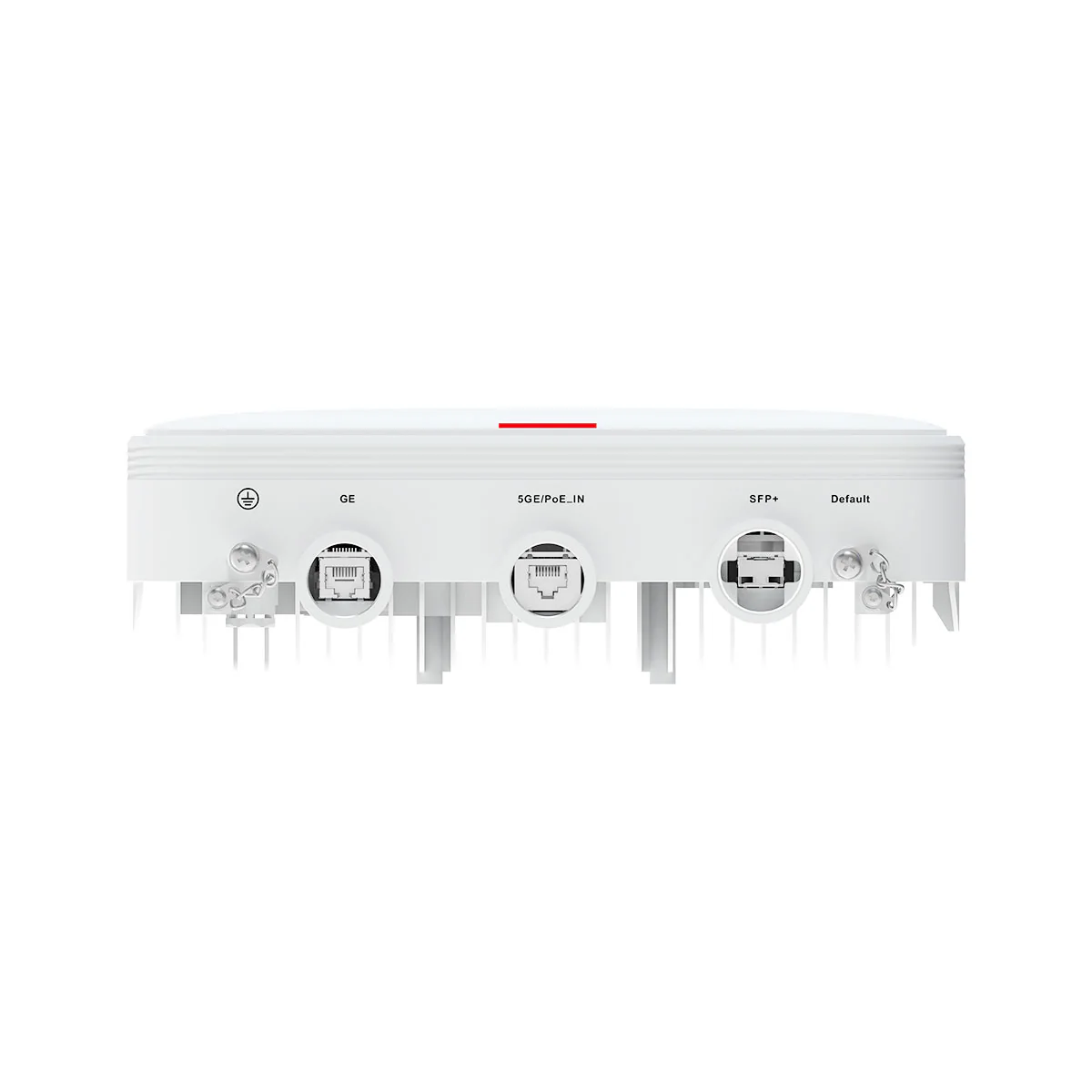

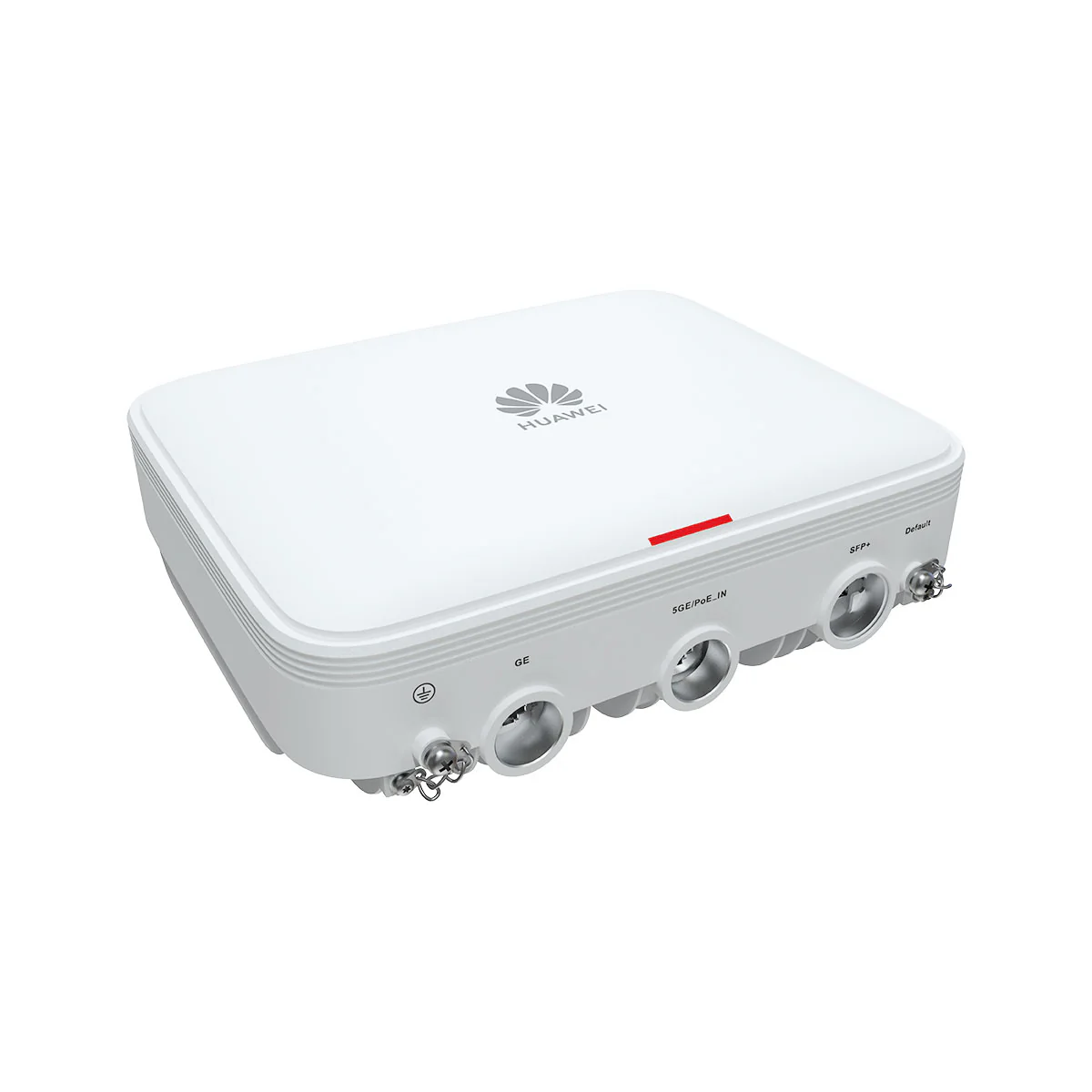

Huawei AirEngine 6760R-51E Outdoor Wi-Fi 6 AP, 5.95 Gbps, IP68 Rated
Huawei AirEngine 6760R-51E: Outdoor Wi-Fi 6 AP with 5.95 Gbps & External Antennas
The Huawei AirEngine 6760R-51E is an outdoor Wi-Fi 6 (802.11ax) access point designed for robust coverage in harsh environments. With 4×4 MIMO on both 2.4 GHz and 5 GHz, it delivers up to 5.95 Gbps peak throughput.
Featuring external antenna ports, IP68 waterproof/dustproof protection, –40 °C to +65 °C operation, and both electrical and optical uplinks, it ensures reliable connectivity for stadiums, campuses, and transportation hubs.
Overview
Highlights
-
Dual-Radio 4x4 MIMO: Supports simultaneous dual-band operation with 4x4 MIMO on both 2.4 GHz and 5 GHz bands, achieving a combined peak data rate of up to 5.95 Gbps.
-
External Antenna Support: Equipped with external antenna ports, allowing for flexible antenna deployment to suit various coverage requirements.
-
Rugged Outdoor Design: IP68-rated for water and dust resistance, and offers 6 kV/6 kA surge protection, ensuring reliable operation in harsh outdoor conditions.
-
Versatile Uplink Options: Features both optical and electrical uplink ports, including 1 × 5 GE electrical, 1 × GE electrical, and 1 × 10 GE SFP+, allowing flexible deployment scenarios.
-
High User Capacity: Supports up to 1024 concurrent users, making it ideal for high-density environments.
-
Advanced Security: Offers robust security features including WPA3 encryption, 802.1X authentication, and rogue device monitoring, ensuring network integrity.
-
Intelligent Management: Compatible with Huawei’s CloudCampus platform and supports multiple management modes (Cloud / Fit / Fat) for simplified operations and maintenance.
Recommended Accessories
| Product Model | Category | Description |
|---|---|---|
| AP-Mount-Kit | Mounting Kit | Outdoor pole- or wall-mount kit |
| SFP-GE-SX-MM850 | Optical Transceiver | 1000Base-SX SFP, 850 nm, up to 550 m over multimode fiber |
| SFP-GE-LH10-SM1310 | Optical Transceiver | 1000Base-LH SFP, 1310 nm, up to 10 km over single-mode fiber |
| Surge-Protector-6K | Surge Protection Unit | Standalone inline surge protector for additional Ethernet port protection |
Comparison with Similar Models
| Model | Peak Rate | Antennas | Uplink Ports |
|---|---|---|---|
| AirEngine 6760R-51E | 5.95 Gbps | External | 1×5 GE; 1×GE; 1×10 GE SFP+ |
| AirEngine 6760R-51 | 5.95 Gbps | Built-in | 1×5 GE; 1×GE; 1×10 GE SFP+ |
| AirEngine 6760-X1 | 10.75 Gbps | Built-in | 1×10 GE; 1×GE; 1×10 GE optical |
| AirEngine 6761-21 | 5.375 Gbps | Built-in | 1×2.5 GE; 1×10 GE optical |
| AirEngine 6761-21T | 6.575 Gbps | Built-in | 1×2.5 GE; 1×GE |
Specification
| Parameter | Specification |
|---|---|
| Model | AirEngine 6760R-51E |
| Wi-Fi Standards | IEEE 802.11a/b/g/n/ac/ac Wave 2/ax |
| Radio Configuration | Dual-radio: 2.4 GHz (4x4 MIMO), 5 GHz (4x4 MIMO) |
| Peak Data Rate | Up to 5.95 Gbps |
| Ethernet Ports | 1 × 5 GE electrical, 1 × GE electrical, 1 × 10 GE SFP+ |
| Antenna Type | External antennas |
| Power Supply | PoE: IEEE 802.3bt compliant |
| Maximum Power Consumption | 35.3 W |
| Security | WPA3, WPA2, WPA, 802.1X, rogue device monitoring |
| Management | Cloud, Fit, and Fat modes; compatible with CloudCampus |
| Operating Temperature | –40°C to +65°C |
| Storage Temperature | –40°C to +70°C |
| Operating Humidity | 5% to 95% RH (non-condensing) |
| Storage Humidity | 5% to 95% RH (non-condensing) |
| Dimensions (H × W × D) | 85 mm × 270 mm × 220 mm |
| Weight | 3.1 kg |
| Warranty | Limited lifetime warranty |
