Ruijie RG-S6510-32CQ 32×100G QSFP28 Access Switch, 6.4Tbps Capacity
Ruijie RG-S6510-32CQ 1RU 32×100 GE QSFP28 Data Center 100GE DCI Access Switch

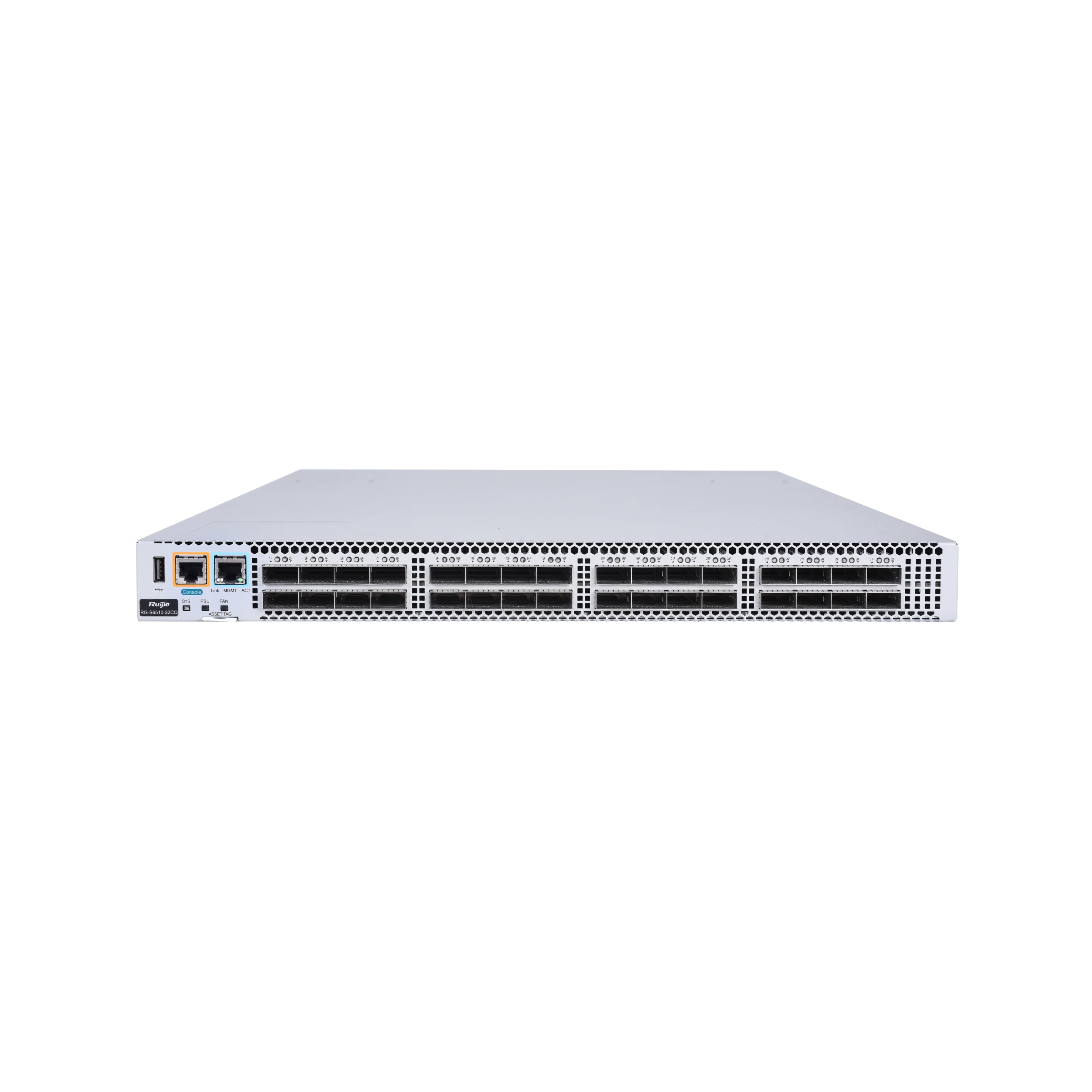

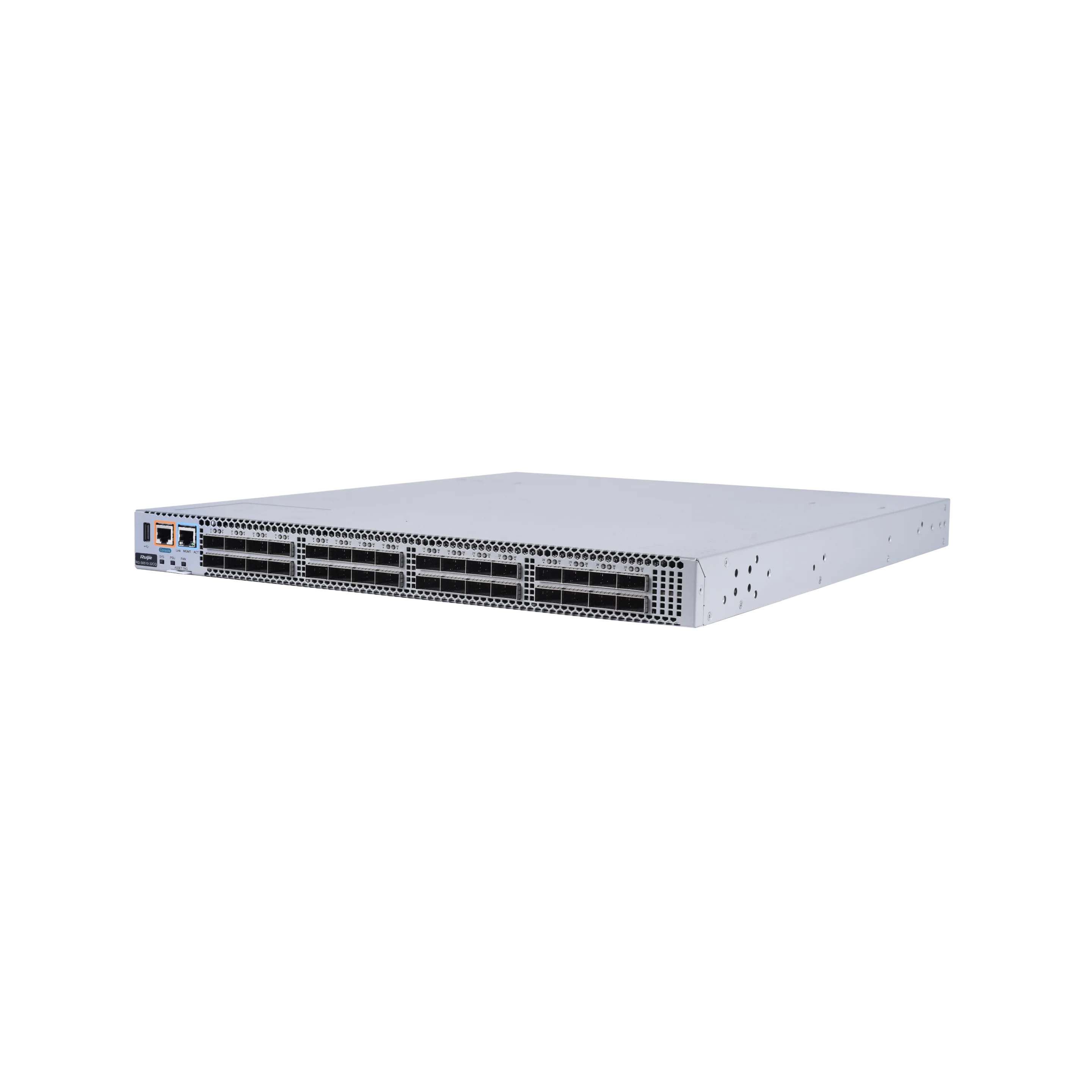

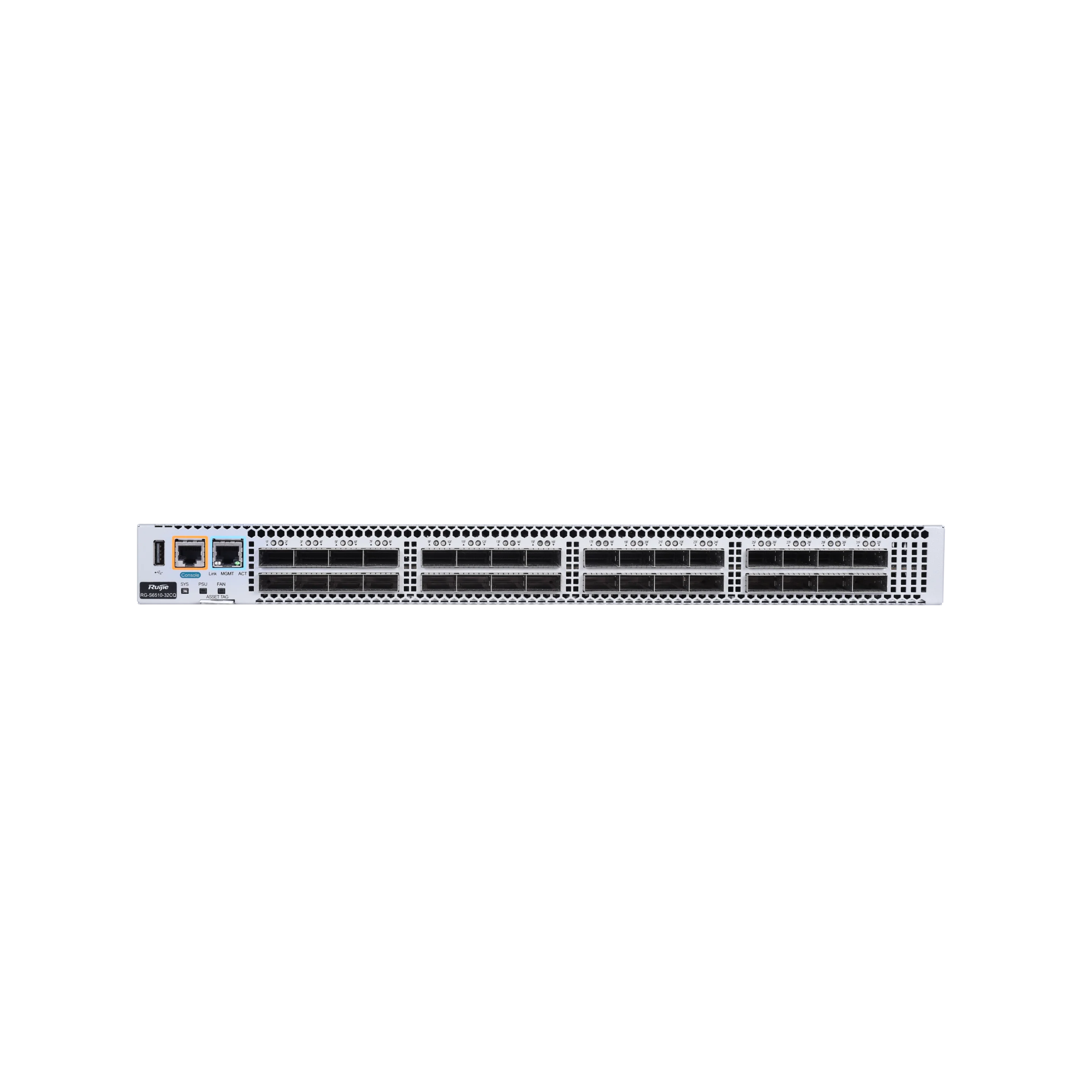

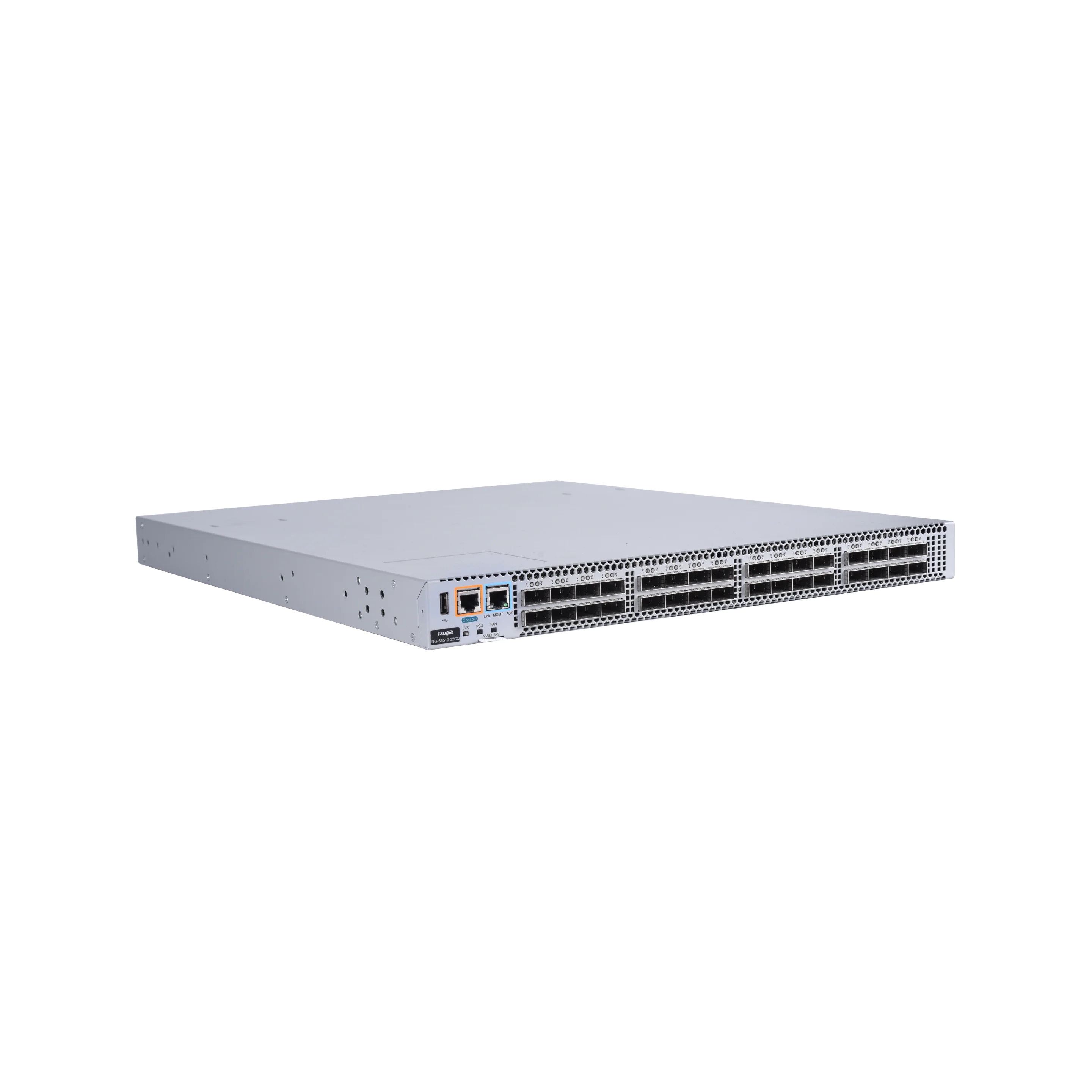

Ruijie RG-S6510-32CQ data center switch. The 32 × 100GE QSFP28 ports 1U switch has a switching capacity of 6.4 Tbps and a 2030 Mpps packet forwarding rate to meet the requirements of high-throughput, low-latency, and lossless data transmission scenarios, including AI, machine learning, and big data analytics.
To guarantee lossless Ethernet and ultra-low latency, the RG-S6510-32CQ supports advanced features such as Virtual Extensible LAN (VXLAN) tunneling.
Remote Direct Memory Access (RDMA) with Priority Flow Control (PFC) and Explicit Congestion Notification (ECN). It also ensures continuous operation and service reliability through its hardware-level redundancy features, such as 1+1 hot-swappable power supplies and 4+1 redundant fan modules.
Moreover, the switch provides telemetry-based network monitoring, enabling minute-to-minute visibility into operations and maintenance.
Overview
Highlights
-
High-Density Connectivity: Offers 32 × 100GE QSFP28 ports, supporting flexible deployment scenarios.
-
Exceptional Performance: Delivers a switching capacity of 6.4 Tbps and a packet forwarding rate of 2030 Mpps, ensuring high-speed data processing.
-
Lossless Ethernet Support: Integrates RDMA, PFC, and ECN technologies to achieve zero packet loss and ultra-low latency.
-

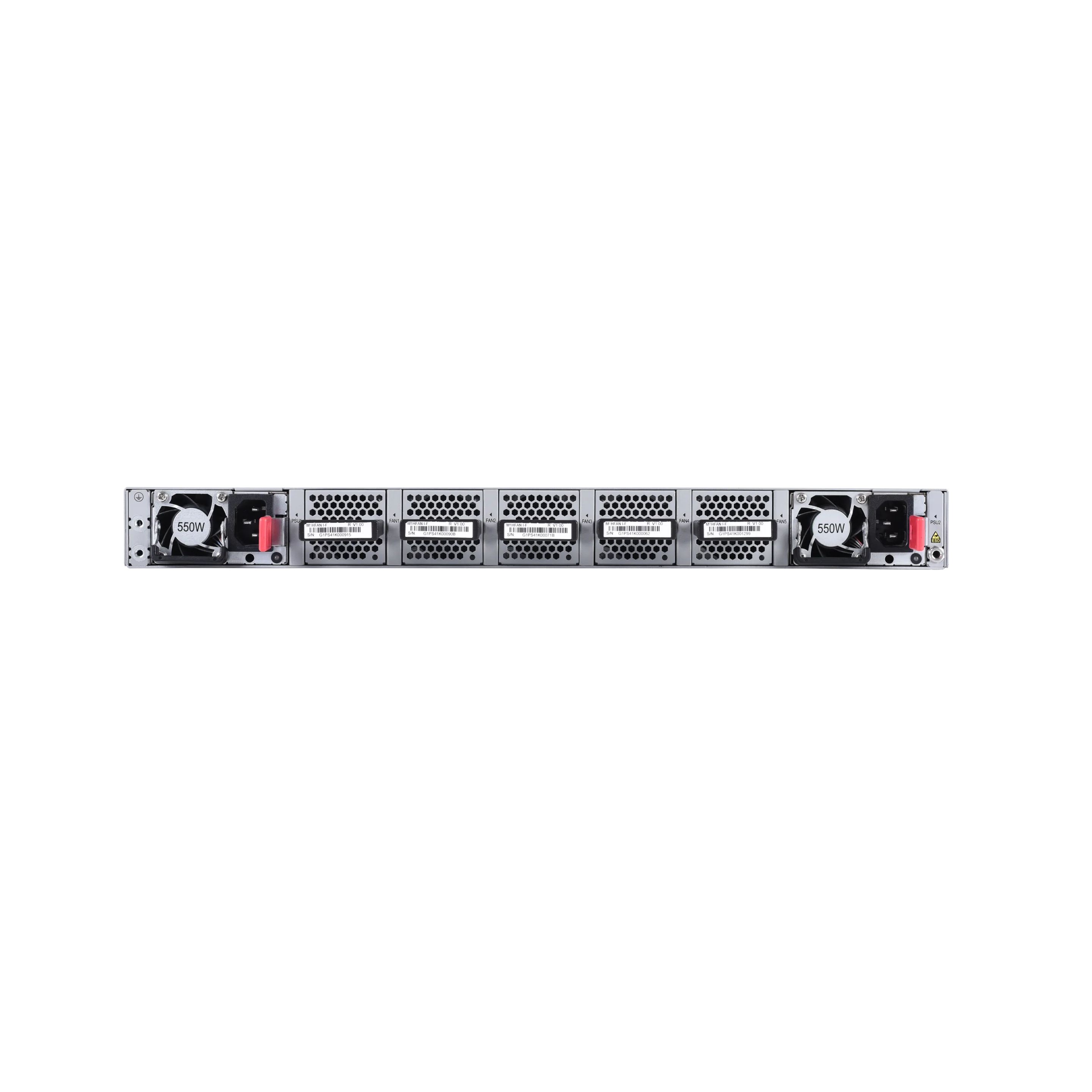

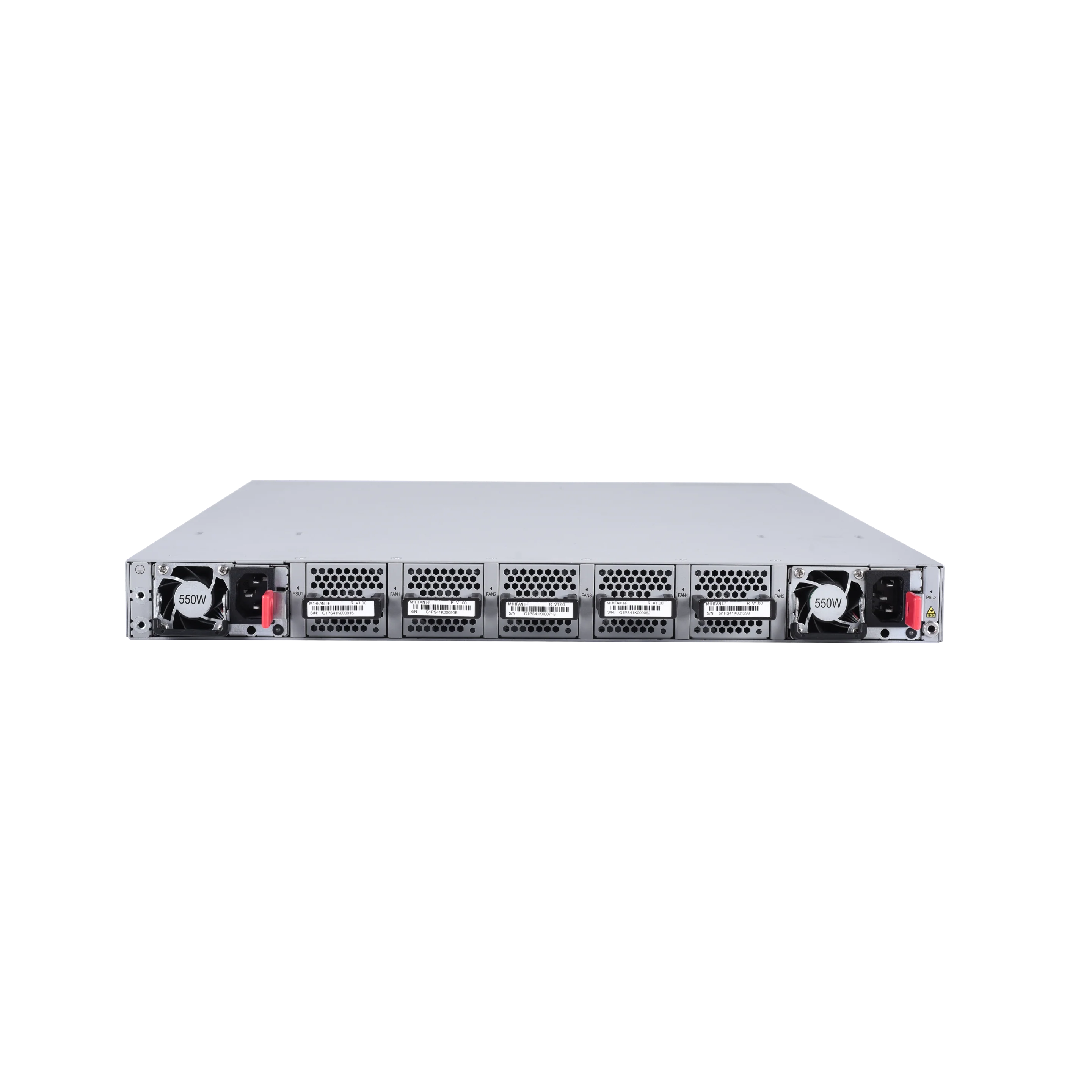

Robust Redundancy: Features 1+1 hot-swappable power supplies and 4+1 redundant fan modules for enhanced reliability.
-
Advanced Monitoring: Supports telemetry-based network monitoring, providing real-time insights for efficient management.
-
Flexible Networking: Supports VSU, M-LAG, and de-stacking for device-level redundancy and simplified network architecture.
Recommended Accessories
Here are some compatible accessories to enhance the functionality of the Ruijie RG-S6510-32CQ:
| Product Name | Category | Description |
| RG-PA550I-F | Power Supply Module |
550W AC/HVDC power supply module, supporting 1+1 redundancy for uninterrupted power. |
| M1HFAN I-F | Fan Module |
High-efficiency fan module with front-to-rear airflow, supporting 4+1 redundancy. |
| 100G-QSFP-SR-MM850 | Optical Transceiver |
100G SR module, QSFP28 form factor, MPO, 850 nm, up to 100 m over MMF. |
| 100G-QSFP-LR4-SM1310 | Optical Transceiver |
100G LR4 module, QSFP28 form factor, Duplex LC, 1310 nm, up to 10 km over SMF. |
| 100G-QSFP-iLR4-SM1310 | Optical Transceiver |
100G iLR4 module, QSFP28 form factor, Duplex LC, 1310 nm, up to 2 km over SMF. |
Comparison with Similar Models
| Model | Ports | Switching Capacity | Packet Forwarding Rate |
|---|---|---|---|
| RG-S6510-32CQ | 32×100 GE QSFP28 | 6.4 Tbps | 2030 Mpps |
| RG-S6510-48VS8CQ | 48×25 GE SFP28 + 8×100 GE QSFP28 | 4.0 Tbps | 2000 Mpps |
| RG-S6510-4C | Modular 4-slot chassis (25/100 GE line cards) | 6.4 Tbps | 2030 Mpps |
| RG-S6250-48XS8CQ | 48×10 GE SFP+ + 8×100 GE QSFP28 | 2.56 Tbps | 2000 Mpps |
| RG-S6000C-48GT4XS-E | 48×1 GbE RJ45 + 4×10 GE SFP+ | 256 Gbps | 192 Mpps |
Specifications
| Parameter | Specification |
| Model | RG-S6510-32CQ |
| Port Configuration | 32 × 100GE QSFP28 |
| Switching Capacity | 6.4 Tbps |
| Packet Forwarding Rate | 2030 Mpps |
| MAC Address Table | 256,000 entries |
| ARP Table Size | 8,000 entries |
| IPv4 Unicast Routes | 64,000 |
| IPv6 Unicast Routes | 32,000 |
| Access Control Entries | Ingress: 5,000; Egress: 2,500 |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | –40°C to +70°C (–40°F to 158°F) |
| Operating Humidity | 10% to 90% RH (non-condensing) |
| Power Supply | 1+1 redundant, hot-swappable |
| Fan Modules | 4+1 redundant, hot-swappable |
| Dimensions (W × D × H) | 442 mm × 560 mm × 44 mm (17.40 in. × 22.05 in. × 1.73 in.) |
| Weight | Approximately 11.43 kg (25.20 lbs) |
| Mounting | 19-inch rack mount |
| Ingress Protection | IP40 (Protection from solid objects larger than 1mm) |
| ESD Protection | Air discharge: 8 kV / Contact discharge: 6 kV |
