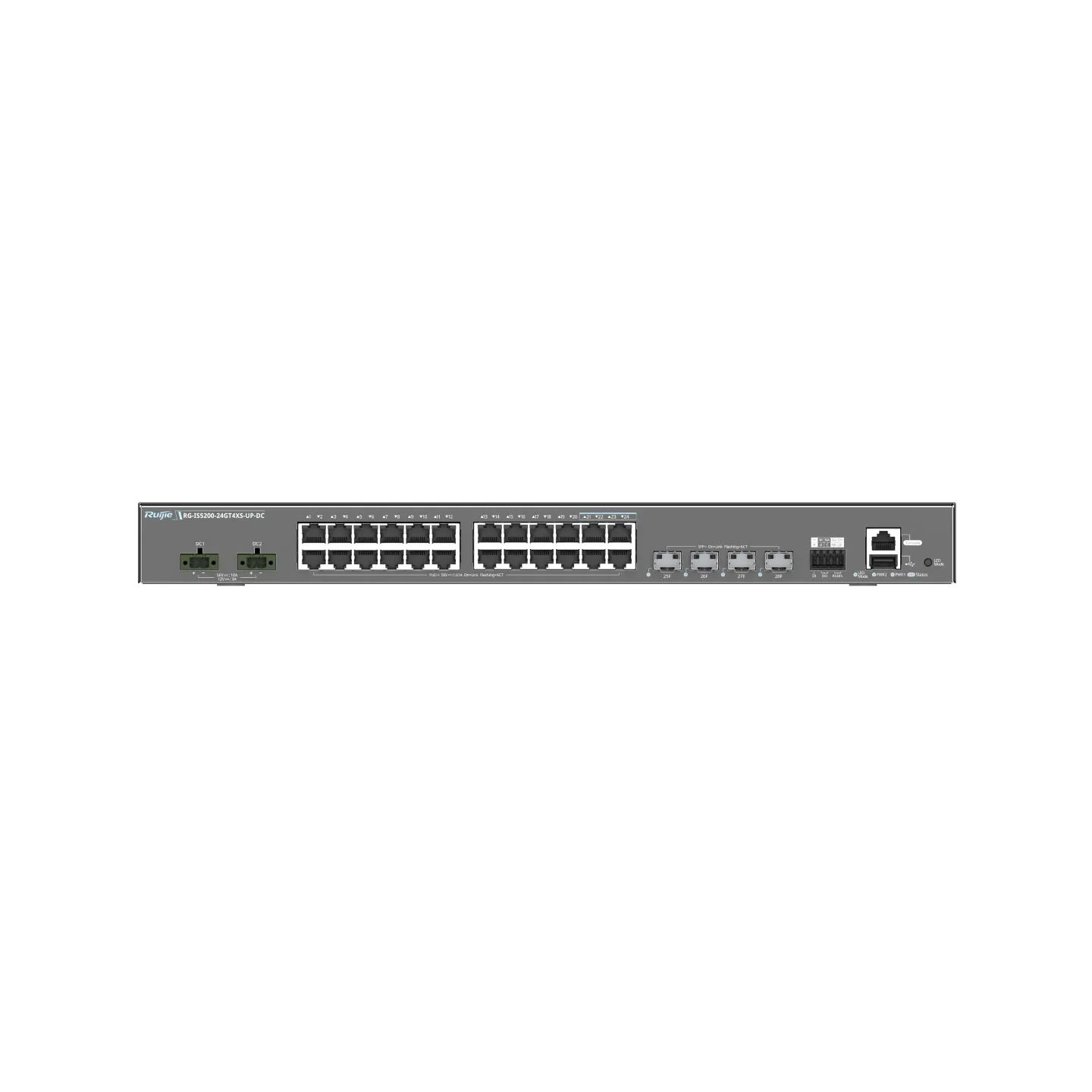

Ruijie RG-IS5200-24GT4XS-UP-DC Industrial 24-Port PoE+ Switch 4×10G Uplinks
Ruijie RG-IS5200-24GT4XS-UP-DC Industrial Ethernet Switch
Designed for deployment in challenging environments, the Ruijie RG-IS5200-24GT4XS-UP-DC is a high-performance, industrial-grade, Layer 3 managed switch that boasts exceptional durability and reliability.
The configuration includes 24 × 10/100/1000BASE-T PoE/PoE+/PoE++ ports and 4 × 1GE/10GE SFP+ uplink ports, enabling flexible and scalable connectivity options.
Ideal for aggregation layers in the industrial networks, the switch delivers high-performance scalability with advanced features including Virtual Switch Unit (VSU) virtualization, rich Layer 3 routing protocols, and comprehensive security policies.
Overview
Highlights
- Industrial-Grade Design: Built to withstand harsh environmental conditions, including wide temperature ranges (-40°C to +75°C), electromagnetic interference, and mechanical vibrations.
- High-Density PoE Port Configuration: Provides 24 × 10/100/1000BASE-T PoE/PoE+/PoE++ ports and 4 × 1GE/10GE SFP+ uplink ports, supporting flexible deployment options.
- VSU Virtualization: Supports Virtual Switch Unit (VSU) technology, allowing multiple physical switches to operate as a single logical unit, simplifying network management and enhancing reliability.
- Advanced Layer 3 Routing: Offers comprehensive Layer 3 routing protocols, including static routing, RIP, OSPF, IS-IS, and BGP, supporting both IPv4 and IPv6 networks.
- Robust Security Features: Incorporates multiple security mechanisms such as ACLs, DHCP Snooping, ARP inspection, and support for SSH and SNMPv3 for secure management.
- High Reliability: Features dual DC power inputs with redundancy, ensuring continuous operation and service reliability.
- Efficient Management: Supports various management methods, including CLI, web-based management, Telnet, and integration with Ruijie’s INC for simplified operations and maintenance.
Recommended Accessories
Here are some compatible accessories to enhance the functionality of the Ruijie RG-IS5200-24GT4XS-UP-DC:
| Product Model | Category | Description |
| IPA60 | Power Supply Module | 60W AC power supply module, supporting hot-swapping and redundancy. |
| IPA240-P | Power Supply Module | 240W AC power supply module, supporting hot-swapping and redundancy. |
| IS52-shield | Protective Enclosure | IP55-rated enclosure for enhanced protection against dust and water ingress. |
| XG-SFP-SR-MM850-I | Optical Transceiver | 10GE SR module, SFP+ form factor, LC connector, 850 nm, up to 300 m over OM3 MMF. |
| XG-SFP-LR-SM1310-I | Optical Transceiver | 10GE LR module, SFP+ form factor, LC connector, 1310 nm, up to 10 km over SMF. |
Comparison with Similar Models
| Model | Downlinks | Uplinks | Power Input | Capacity / Forwarding |
|---|---|---|---|---|
| RG-IS5200-24GT4XS-UP-DC | 24×GE PoE/PoE+/PoE++ | 4×1 GE/10 GE SFP+ | Dual 12–48 V DC (IPA60/IPA240-P) | 128 Gbps / 96 Mpps |
| RG-IS5200-8GT4XS-UP-DC | 8×GE PoE/PoE+/PoE++ | 4×1 GE/10 GE SFP+ | Dual 12–48 V DC (IPA240-P) | 96 Gbps / 72 Mpps |
| RG-IS5200-8GT4XS-DC | 8×GE PoE/PoE+/PoE++ | 4×1 GE/10 GE SFP+ | Dual 12–48 V DC (IPA60) | 96 Gbps / 72 Mpps |
| RG-IS5200-24GT4XS-DC | 24×GE PoE/PoE+/PoE++ | 4×1 GE/10 GE SFP+ | Dual 12–48 V DC (IPA60) | 128 Gbps / 96 Mpps |
| Model | Ports / Uplinks | PoE Support | Capacity / Rate | Key Selling Points |
|---|---|---|---|---|
| Ruijie RG‑IS5200‑8GT4XS‑DC | 8×1 GbE + 4×SFP+ | None | 96 Gbps / 72 Mpps | Industrial-grade Temp, Surge, VSU, DIN mount |
| Network‑Switch NS‑IS5200‑8GT4XS‑DC | Same | None | Same | Identical spec under your brand |
| Ruijie RG‑IS5200‑8GT4XS‑UP‑DC | 8×GbE PoE + 4×SFP+ | PoE/PoE+/PoE++ | 96 Gbps / 72 Mpps | PoE-REP, Industry-ready, VSU, Surge |
| Network‑Switch NS‑IS5200‑8GT4XS‑UP‑DC | Same | Same | Same | Same spec, customized branding |
| Ruijie RG‑IS5200‑24GT4XS‑UP‑DC | 24×GbE PoE + 4×SFP+ | PoE/PoE+/PoE++ | 128 Gbps / 96 Mpps | High-density PoE, industrial protection |
| Network‑Switch NS‑IS5200‑24GT4XS‑UP‑DC | Same | Same | Same | Brand-equivalent model, full industrial feature |
Specifications
| Parameter | Specification |
| Model | RG-IS5200-24GT4XS-UP-DC |
| Service Ports | 24 × 10/100/1000BASE-T PoE/PoE+/PoE++ |
| Uplink Ports | 4 × 1GE/10GE SFP+ |
| Switching Capacity | 128 Gbps |
| Packet Forwarding Rate | 96 Mpps |
| MAC Address Table | 32,000 entries |
| ARP Table Size | 16,000 entries |
| IPv4 Unicast Routes | 16,000 entries |
| IPv6 Unicast Routes | 8,000 entries |
| IPv4 Multicast Routes | 2,000 entries |
| IPv6 Multicast Routes | 1,000 entries |
| Power Module Slots | Dual DC power inputs (supporting redundancy) |
| Fan Module Slots | Fanless design |
| Management Ports | 1 × RJ45 console port, 1 × USB 2.0 port |
| Expansion Slots | 1 × RS-485 port, 1 × DI, 1 × DO |
| Dimensions (W × D × H) | 442 mm × 220 mm × 43.6 mm (17.40 in. × 8.66 in. × 1.72 in., 1 RU) |
| Weight | Approximately 2.85 kg (including all modules) |
| Power Supply | Dual DC power inputs, supporting 60 W power input through the IPA60 power adapter or 240 W power input through the IPA240-P power adapter |
| Operating Temperature | -40°C to +75°C (-40°F to +167°F) |
| Operating Humidity | 5% to 95% RH (non-condensing) |
| MTBF | ≥ 200,000 hours |
