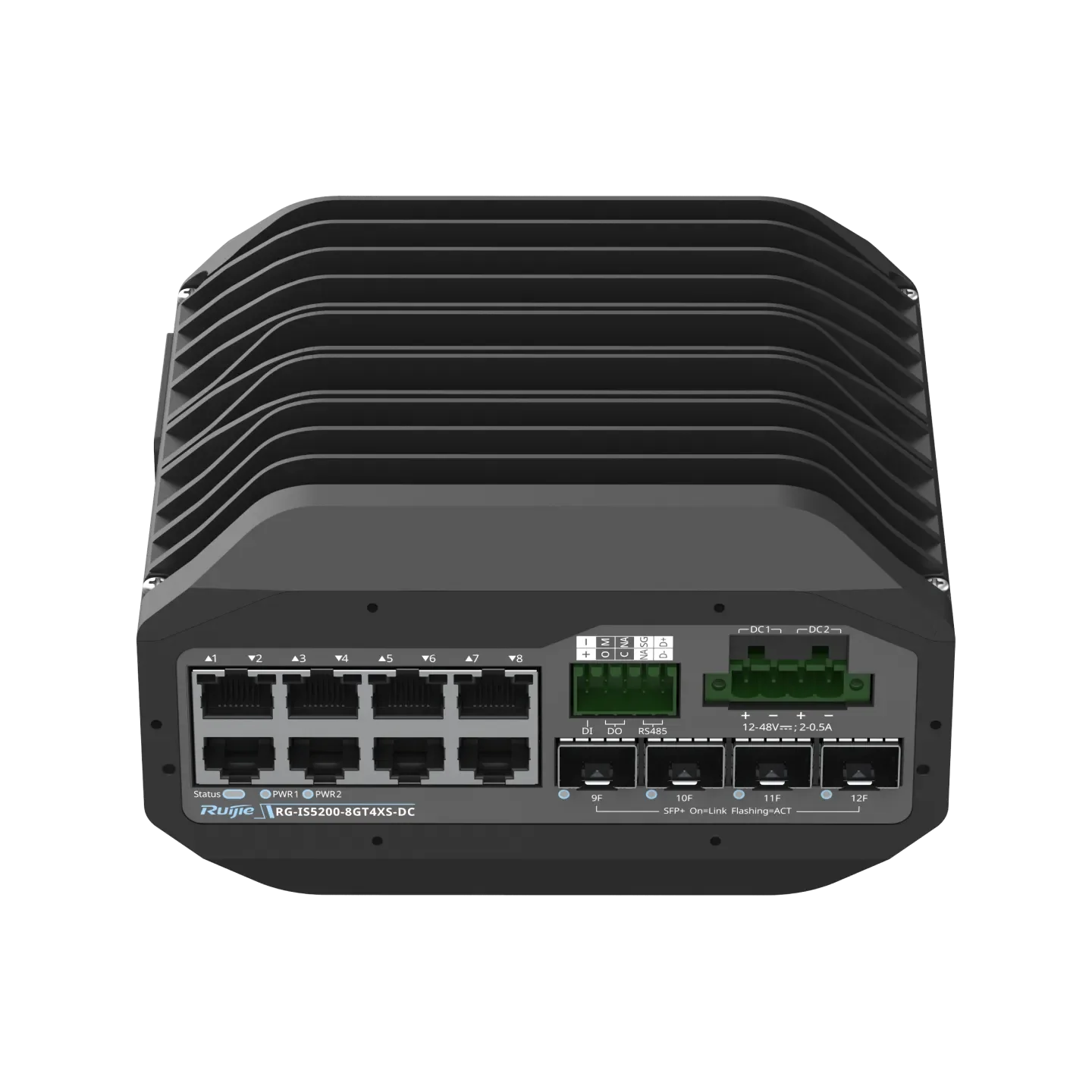

Ruijie RG-IS5200-8GT4XS-DC Industrial 8-Port Gigabit Switch 4×10G Uplinks
Ruijie RG-IS5200-8GT4XS-DC Industrial Ethernet Switch
The RG-IS5200-8GT4XS-DC is the DC-powered variant of Ruijie’s industrial S5360-E series, designed for extreme environments. It offers eight auto-sensing Gigabit RJ-45 ports supporting IEEE 802.3af/at/bt PoE/PoE+/PoE++ (up to 30 W per port) and four fixed SFP+ slots for 1 GE/2.5 GE/10 GE optics.
A dual-core ARM Cortex-A55 @ 1 GHz CPU with 1 GB DDR4, 512 MB flash, and a 4 MB packet buffer drives 96 Gbps of non-blocking switching and 72 Mpps forwarding.
The IP 41-rated, fanless chassis accepts dual 12–48 V DC inputs for 1:1 power redundancy, operates from –40 °C to +75 °C, and withstands 10 kV surge and vibration—fully manageable via SNMP/Web/CLI or Ruijie Cloud for plug-and-play O&M.
Overview
Highlights
-
Industrial-Grade Design: Built to withstand harsh environmental conditions, including wide temperature ranges (-40°C to +75°C), electromagnetic interference, and mechanical vibrations.
-
High-Density Port Configuration: Provides 8 × 10/100/1000BASE-T ports and 4 × 1GE/10GE SFP+ uplink ports, supporting flexible deployment options.
-
VSU Virtualization: Supports Virtual Switch Unit (VSU) technology, allowing multiple physical switches to operate as a single logical unit, simplifying network management and enhancing reliability.
-
Advanced Layer 3 Routing: Offers comprehensive Layer 3 routing protocols, including static routing, RIP, OSPF, IS-IS, and BGP, supporting both IPv4 and IPv6 networks.
-
Robust Security Features: Incorporates multiple security mechanisms such as ACLs, DHCP Snooping, ARP inspection, and support for SSH and SNMPv3 for secure management.
-
High Reliability: Features dual DC power inputs with redundancy, ensuring continuous operation and service reliability.
-
Efficient Management: Supports various management methods, including CLI, web-based management, Telnet, and integration with Ruijie’s INC for simplified operations and maintenance.
Recommended Accessories
| Accessory | Category | Description |
|---|---|---|
| IPA240-P | DC PoE Power Module | 240 W terminal-block DC adapter for PoE/PoE+/PoE++; supports 1:1 hot-standby. |
| IP55 Enclosure | Protective Housing | IP 55-rated cover for harsh outdoor or wash-down environments. |
| XG-SFP-SR-MM850-I | 10 GE SFP+ Transceiver | Industrial 10GBASE-SR, 850 nm, LC duplex, up to 300 m (OM3) / 400 m (OM4). |
| GE-SFP-LR-SM1310-I | 1 GE SFP Transceiver | Industrial 1000BASE-LR, 1310 nm, LC duplex, up to 10 km. |
| DIN-Rail Kit | Mounting Accessory | Standard DIN-rail clips and screws for cabinet or wall mounting. |
Comparison with Similar Models
| Model | Downlinks & Uplinks | Power Input | Capacity / Forwarding |
|---|---|---|---|
| RG-IS5200-8GT4XS-DC | 8×GE PoE+/PoE++ + 4×10 GE | Dual 12–48 V DC (1:1 Redundancy) | 96 Gbps / 72 Mpps |
| RG-IS5200-8GT4XS | 8×GE PoE+/PoE++ + 4×10 GE | Single AC (100–240 VAC) | 96 Gbps / 72 Mpps |
| RG-IS5200-8GT4XS-UP-DC | 8×GE PoE+/PoE++ + 4×10 GE | Dual 56 V DC with IPA240-P | 96 Gbps / 72 Mpps |
| RG-IS5200-24GT4XS-UP-DC | 24×GE PoE+/PoE++ + 4×10 GE | Dual 56 V DC with IPA240-P | 128 Gbps / 96 Mpps |
| Model | Ports / Uplinks | PoE Support | Capacity / Rate | Key Selling Points |
|---|---|---|---|---|
| Ruijie RG‑IS5200‑8GT4XS‑DC | 8×1 GbE + 4×SFP+ | None | 96 Gbps / 72 Mpps | Industrial-grade Temp, Surge, VSU, DIN mount |
| Network‑Switch NS‑IS5200‑8GT4XS‑DC | Same | None | Same | Identical spec under your brand |
| Ruijie RG‑IS5200‑8GT4XS‑UP‑DC | 8×GbE PoE + 4×SFP+ | PoE/PoE+/PoE++ | 96 Gbps / 72 Mpps | PoE-REP, Industry-ready, VSU, Surge |
| Network‑Switch NS‑IS5200‑8GT4XS‑UP‑DC | Same | Same | Same | Same spec, customized branding |
| Ruijie RG‑IS5200‑24GT4XS‑UP‑DC | 24×GbE PoE + 4×SFP+ | PoE/PoE+/PoE++ | 128 Gbps / 96 Mpps | High-density PoE, industrial protection |
| Network‑Switch NS‑IS5200‑24GT4XS‑UP‑DC | Same | Same | Same | Brand-equivalent model, full industrial feature |
Specifications
| Parameter | Specification |
| Model | RG-IS5200-8GT4XS-DC |

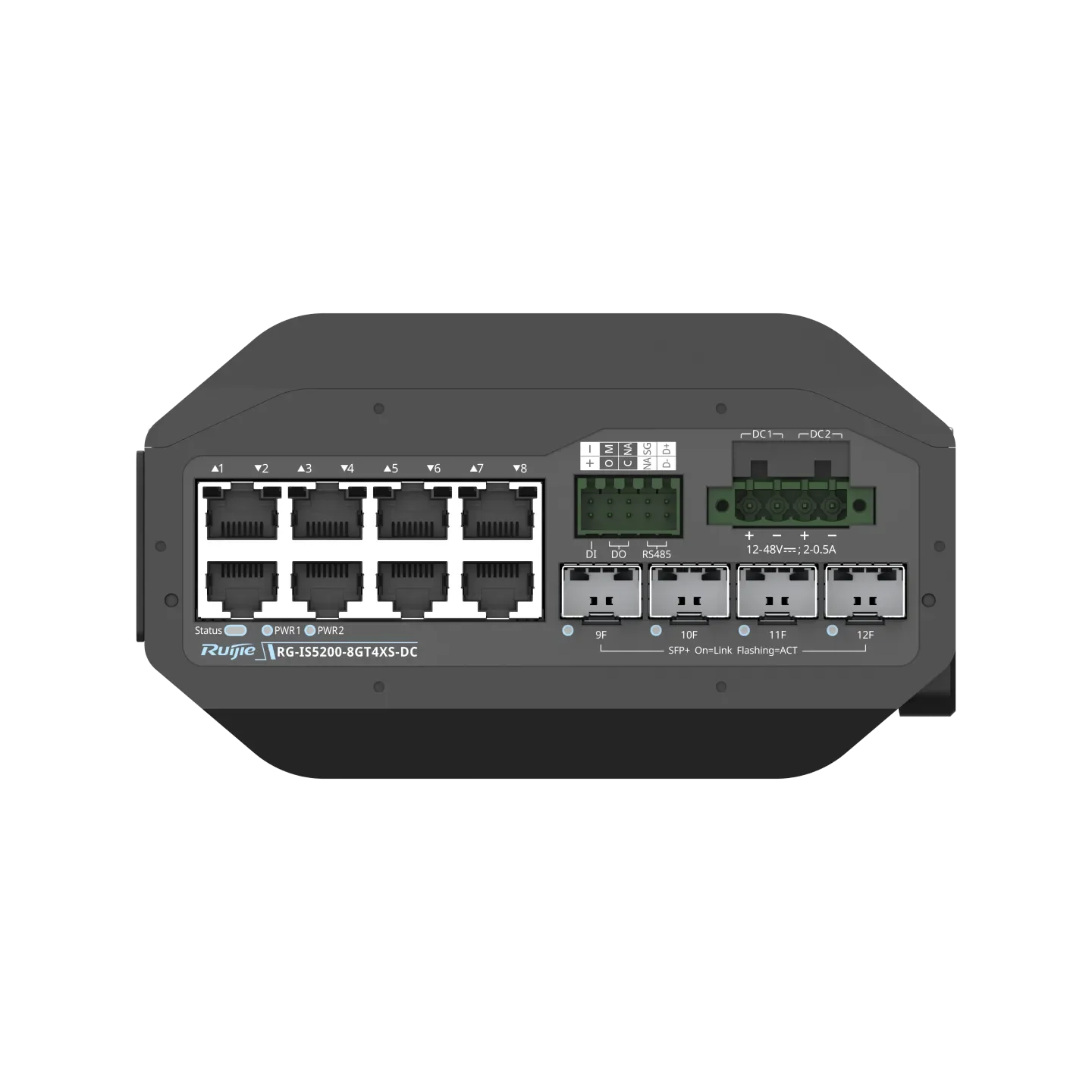

| Service Ports | 8 × 10/100/1000BASE-T |
| Uplink Ports | 4 × 1GE/10GE SFP+ |
| Switching Capacity | 96 Gbps |
| Packet Forwarding Rate | 72 Mpps |
| MAC Address Table | 32,000 entries |
| ARP Table Size | 16,000 entries |
| IPv4 Unicast Routes | 16,000 entries |
| IPv6 Unicast Routes | 8,000 entries |
| IPv4 Multicast Routes | 2,000 entries |
| IPv6 Multicast Routes | 1,000 entries |
| Power Module Slots | Dual DC power inputs (supporting redundancy) |
| Fan Module Slots | Fanless design |
| Management Ports | 1 × RJ45 console port, 1 × USB 2.0 port |
| Expansion Slots | 1 × RS-485 port, 1 × DI, 1 × DO |
| Dimensions (W × D × H) | 150 mm × 133 mm × 86 mm (5.91 in. × 5.24 in. × 3.39 in.) |
| Weight | Approximately 1.5 kg (including all modules) |
| Power Supply | Dual DC power inputs, supporting 60 W power input through the IPA60 power adapter |
| Operating Temperature | -40°C to +75°C (-40°F to +167°F) |
| Operating Humidity | 5% to 95% RH (non-condensing) |
| MTBF | ≥ 200,000 hours |
