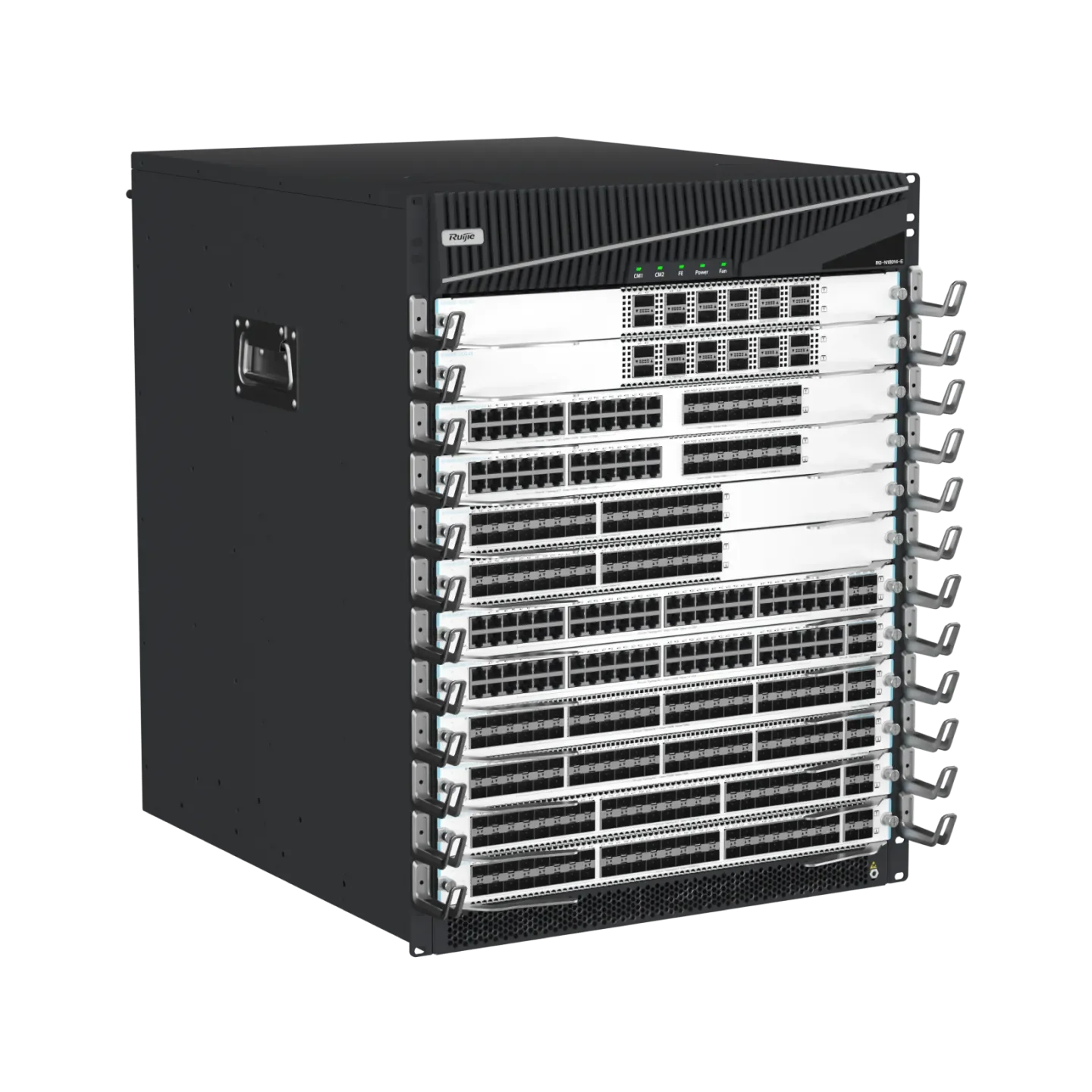

Ruijie RG-N18014-E 14U 12-Slot 28.8Tbps High-Density Core Switch(Chassis)
Ruijie RG-N18014-E 14 RU 12-Slot High-Density Large-Buffer Core Switch
The RG-N18014-E is the mid-range chassis in Ruijie’s RG-N18000-E Series, engineered for cloud-centric campus, MAN, and data center core/aggregation deployments. It combines a 14 RU form factor with ultra-high port density and large-buffer architecture to meet the demands of hyperscale environments.
Featuring a modular 14 RU design with 12 hot-swappable line-card slots, dual supervisor slots, and four fabric modules, the RG-N18014-E delivers up to 28.8 Tbps non-blocking switching capacity and 21 000 Mpps packet forwarding at wire speed.
Its Clos orthogonal architecture, Y-shaped front/right-to-rear airflow, and carrier-class hardware redundancy ensure ultra-low latency, efficient heat dissipation, and uninterrupted operation.
The fully-decoupled RGOS supports live upgrades, SDN automation, and real-time telemetry, enabling rapid deployment and simplified O&M.
Overview
Highlights
-
High-Density Port Configuration: Supports up to 52 × 10GE ports and 12 × 100GE ports per line card, totaling up to 768 × 10GE ports and 96 × 100GE ports per switch.
-
Advanced Architecture: Clos orthogonal design delivers non-blocking forwarding and high-speed transmission without packet loss.
-
Modular Operating System: RGOS provides independent components and nonstop services, allowing live upgrades and ensuring high availability.
-
Enhanced Reliability: Multiple hardware-level protections, including dual redundancy and fault isolation, ensure continuous operation without downtime.
-
Efficient Cooling: Innovative Y-shaped airflow and in-line fan connections improve heat dissipation efficiency, enhancing system reliability.
-
SDN Support: Facilitates rapid deployment and automated operations for campus networks.
Recommended Accessories
Here are some compatible accessories to enhance the functionality of the Ruijie RG-N18014-E:
| Product Name | Category | Description |
| M18000E-8SFX | Line Card Module |
8 × SFX 10GE ports; CWDM line card for core switches, applicable to SOE solution 3.0. |
| M18000E-8SFG | Line Card Module |
8 × SFG GE ports; CWDM line card for core switches, applicable to SOE solution 3.0. |
| M18000E-HCA | Line Card Module |
Large-capacity carrier card for authentication, supporting two DNMX interface cards; 20 × 10GE optical ports and 4 × 100GE optical ports. |
| RG-PA1600I | Power Supply Module |
1600W AC/HVDC power supply module, supporting M+N redundancy for uninterrupted power. |
| M14FAN-F | Fan Module |
High-efficiency fan module with Y-shaped airflow design for enhanced cooling performance. |
Comparison with Similar Models
| Model | Line / Supervisor Slots | Switching Capacity | Forwarding Rate |
|---|---|---|---|
| RG-N18010-E | 8 / 2 | 19.2 Tbps | 14 200 Mpps |
| RG-N18014-E | 12 / 2 | 28.8 Tbps | 21 000 Mpps |
Specifications
| Parameter | Specification |
| Model | RG-N18014-E |
| Module Slots | 14 (12 line card slots, 2 supervisor module slots) |
| Switch Fabric Module Slots | 4 |
| Switching Capacity | 28.8 Tbps |
| Packet Forwarding Rate | 21,000 Mpps |
| Port Configurations | Supports up to 52 × 10GE ports and 12 × 100GE ports per line card |
| Power Module Slots | 4 |
| Fan Module Slots | 2 |
| Dimensions (W × D × H) | 482.6 mm × 570.7 mm × 605.1 mm (19.00 in. × 22.47 in. × 23.82 in., 14 RU) |
| Weight | Approximately 68.3 kg (150.58 lbs., including fan modules) |
| Power Supply | RG-PA1600I (AC 100–240V or HVDC 192–350V) |
| Ventilation | Front and right air inlets with rear air outlets (Y-shaped airflow) |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Storage Temperature | –40°C to +70°C (–40°F to 158°F) |
| Operating Humidity | 10% to 90% RH (non-condensing) |
| Storage Humidity | 5% to 95% RH (non-condensing) |
| Altitude | Operating: up to 5000 m (16404.20 ft.) |
| MTBF | ≥ 200,000 hours |
