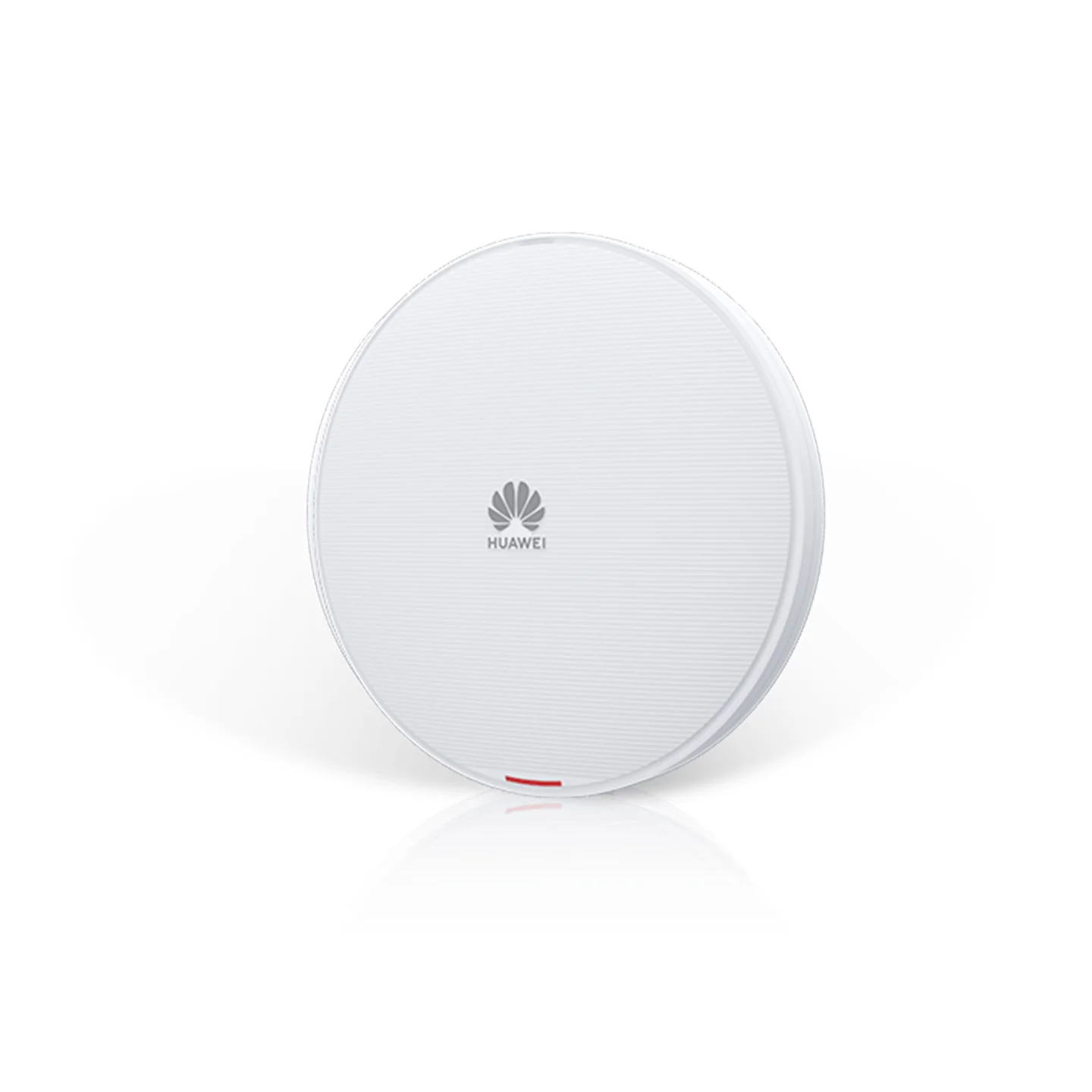

Huawei AirEngine 5761-11 Wi-Fi 6 AP, 2×2 MIMO & Smart Antenna, 1.775 Gbps
Huawei AirEngine 5761-11: Wi-Fi 6 AP with 1.775 Gbps, 2×2 MIMO
The Huawei AirEngine 5761-11 is an indoor Wi-Fi 6 (802.11ax) access point featuring dual-radio 2×2 MIMO on both 2.4 GHz and 5 GHz bands, delivering up to 1.775 Gbps device throughput.
Its built-in smart antennas follow users to boost coverage and signal quality, while a USB port supports external IoT modules (ZigBee, RFID) and built-in Bluetooth 5.0 enables O&M and precise terminal positioning.
The AP supports Fat, Fit, and Cloud modes, making it ideal for small-to-mid-size enterprise offices, hospitals, and cafés.
Overview
Highlights
-
Dual-Radio Design: Supports simultaneous dual-band operation with 2x2 MIMO on both 2.4 GHz and 5 GHz bands, achieving a combined peak data rate of up to 1.775 Gbps.
-
Advanced Wireless Technologies: Incorporates Wi-Fi 6 features such as OFDMA, MU-MIMO, and 1024-QAM, enhancing efficiency and reducing latency in high-density environments.
-
Smart Antenna Technology: Built-in smart antennas automatically adjust coverage direction and signal strength, providing precise and stable coverage as clients move.
-
Flexible Deployment: Supports both DC and PoE power supply modes (IEEE 802.3af/at), catering to diverse installation requirements.
-
Enhanced Security: Offers robust security features including WPA3 encryption, 802.1X authentication, and rogue device monitoring, ensuring network integrity.
-
Intelligent Management: Compatible with Huawei’s CloudCampus platform and supports multiple management modes (Cloud / Fit / Fat) for simplified operations and maintenance.
Recommended Accessories
| Product Model | Category | Description |
|---|---|---|
| L-AP5761-11-1AP | 1-AP License | License to manage 1 AP |
| L-AP5761-11-10AP | 10-AP License | License to manage up to 10 APs |
Comparison with Similar Models
| Model | Max Data Rate | Ports |
|---|---|---|
| AirEngine 5761-11 | 1.775 Gbps | 1 × 10/100/1000 Mbps RJ45 |
| AirEngine 5760-10 | 1.774 Gbps | 2 × GE (RJ45); 1 × USB |
| AirEngine 5760-22W | 5.37 Gbps | 1 × 2.5 GE; 1 × 10 GE SFP+; 4 × GE; 2 × RJ45 passthrough |
| AirEngine 5760-51 | 5.37 Gbps (basic) / 5.95 Gbps (RTU) | 1 × 5 GE; 1 × GE |
| AirEngine 5761-21 | 5.375 Gbps | 2 × GE (RJ45) |
Specification
| Parameter | Specification |
|---|---|
| Model | AirEngine 5761-11 |
| Wi-Fi Standards | IEEE 802.11a/b/g/n/ac/ac Wave 2/ax |
| Radio Configuration | Dual-radio: 2.4 GHz (2x2 MIMO), 5 GHz (2x2 MIMO) |
| Peak Data Rate | Up to 1.775 Gbps |
| Ethernet Ports | 1 × 10/100/1000BASE-T RJ45 port |
| Antenna Type | Built-in smart antennas |
| Power Supply | DC: 12 V ±10%; PoE: IEEE 802.3af/at compliant |
| Maximum Power Consumption | 15.3 W (excluding USB) |
| Security | WPA3, WPA2, WPA, 802.1X, rogue device monitoring |
| Management | Cloud, Fit, and Fat modes; compatible with CloudCampus |
| Operating Temperature | –10°C to +50°C |
| Storage Temperature | –40°C to +70°C |
| Operating Humidity | 5% to 95% RH (non-condensing) |
| Storage Humidity | 5% to 95% RH (non-condensing) |
| Dimensions (Diameter × Height) | Φ220 mm × 50 mm |
| Weight | ≤ 0.5 kg |
| Warranty | Limited lifetime warranty |
