Huawei S1720-10GW-PWR-2P 8×Gigabit PoE+ & 2×1G SFP AC Switch
Huawei S1720-10GW-PWR-2P Switches
The Huawei S1720-10GW-PWR-2P is a Layer 2 managed Gigabit Ethernet switch designed for small to medium-sized enterprises, educational institutions, and hospitality networks.
Featuring 8 10/100/1000BASE-T PoE+ ports and 2 Gigabit SFP uplink ports, it offers robust connectivity and scalability.
The switch incorporates advanced features such as energy-efficient design, comprehensive security policies, and flexible management options, ensuring reliable and sustainable network operations.
Overview
Highlights
-
PoE+ Support: Delivers up to 30W per port, with a total PoE power budget of 124W, suitable for powering devices like IP phones and wireless access points.
-
Energy-Efficient Design: Supports Energy Efficient Ethernet (EEE) and intelligent fan speed adjustment, reducing power consumption and noise levels.
-
Advanced Layer 2 Features: Offers comprehensive Layer 2 features, including VLAN, STP/RSTP/MSTP, LACP, and static routing, supporting both IPv4 and IPv6 networks.
-
Robust Security Features: Incorporates multiple security mechanisms such as ACLs, DHCP Snooping, ARP inspection, and support for 802.1X, RADIUS, and Portal authentication, ensuring secure network access.
-
Efficient Management: Supports various management methods, including web-based management, SNMP, and integration with Huawei's network management platforms for simplified operations and maintenance.
Recommended Accessories
| Product Model | Category | Description |
|---|---|---|
| GE SFP SX-MM850 | SFP Transceiver | 1000BASE-SX SFP, 850nm, multimode fiber, up to 550m |
| GE SFP LX-SM1310 | SFP Transceiver | 1000BASE-LX SFP, 1310nm, single-mode fiber, up to 10km |
| GE SFP LH40-SM1310 | SFP Transceiver | 1000BASE-LH SFP, 1310nm, single-mode fiber, up to 40km |
| GE SFP ZX50-SM1550 | SFP Transceiver | 1000BASE-ZX SFP, 1550nm, single-mode fiber, up to 50km |
| GE SFP ZX80-SM1550 | SFP Transceiver | 1000BASE-ZX SFP, 1550nm, single-mode fiber, up to 80km |
| GE SFP ZX100-SM1550 | SFP Transceiver | 1000BASE-ZX SFP, 1550nm, single-mode fiber, up to 100km |
| GE SFP LX20-SM1310-BIDI | SFP Transceiver | 1000BASE-LX BiDi SFP, TX1310/RX1550nm, single-mode fiber, up to 20km |
| GE SFP LX20-SM1550-BIDI | SFP Transceiver | 1000BASE-LX BiDi SFP, TX1550/RX1310nm, single-mode fiber, up to 20km |
| GE SFP LH40-SM1310-BIDI | SFP Transceiver | 1000BASE-LH BiDi SFP, TX1310/RX1550nm, single-mode fiber, up to 40km |
| GE SFP LH40-SM1550-BIDI | SFP Transceiver | 1000BASE-LH BiDi SFP, TX1550/RX1310nm, single-mode fiber, up to 40km |
Comparison with Similar Items
| Feature | S1720-10GW-PWR-2P | S1720-10GW-2P | S1720-28GWR-4P |
|---|---|---|---|
| Service Ports | 8 × GE PoE+ | 8 × GE | 24 × GE |
| Uplink Ports | 2 × GE SFP | 2 × GE SFP | 4 × GE SFP |
| PoE Support | Yes (124W budget) | No | Yes (370W budget) |
| Switching Capacity | 68 Gbps | 68 Gbps | 68 Gbps |
| Forwarding Rate | 15 Mpps | 15 Mpps | 42 Mpps |
| Management | Web-managed | Web-managed | Web-managed |
| Ideal Use Case | Small PoE deployments | Basic access | Medium PoE deployments |
Specifications
| Parameter | Specification |
|---|---|
| Model | S1720-10GW-PWR-2P |
| Service Ports | 8 × 10/100/1000BASE-T PoE+ ports |
| Uplink Ports | 2 × Gigabit SFP ports |
| Switching Capacity | 68 Gbps |
| Packet Forwarding Rate | 15 Mpps |
| MAC Address Table | Up to 16,000 entries |
| VLANs | Supports up to 4,000 VLANs |
| Routing Entries | Supports IPv4 and IPv6 static routing |
| Power Supply | AC input: 100V to 240V AC, 50/60 Hz |
| PoE Standards | IEEE 802.3af/802.3at (up to 30W per port) |
| PoE Power Budget | Total PoE power budget up to 124W |
| Power Consumption | ≤ 150.1W (including maximum PoE output) |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Operating Humidity | 5% to 95% RH (non-condensing) |
| Dimensions (W × D × H) | 320 mm × 220 mm × 43.6 mm (12.6 in. × 8.7 in. × 1.7 in.) |
| Weight | ≤ 2.9 kg (6.4 lbs) |
| Warranty | Limited lifetime warranty |
More Details
Quality Certifications
Warranty
100% Low Price Guarantee
Network-switch.com provides high-quality products at low wholesale prices
100% Quality Assurance
All items are ORIGINAL and GENUINE only.
Item conditions are "New Sealed". They are fully tested by Huawei HCIE Engineers.
Free Technical Support
Our FREE Expert Consultancy Support is over the phone, by chat, by email or by login remotely.
100% Money Back Guarantee
You can contact our customer service team to exchange or return any product that you bought from us.
Flexible Secure Payment & Shipment
Verified authorization: Mcafee Secure, VeriSign Secured
Return Material Authorization (RMA) Process
Standard Warranty Policy
Original New Sealed Enterprise Hardware: 3 Years
Original New Sealed Consumer Devices: 1 Year
The Support Contacts
If your Huawei products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.
More Images

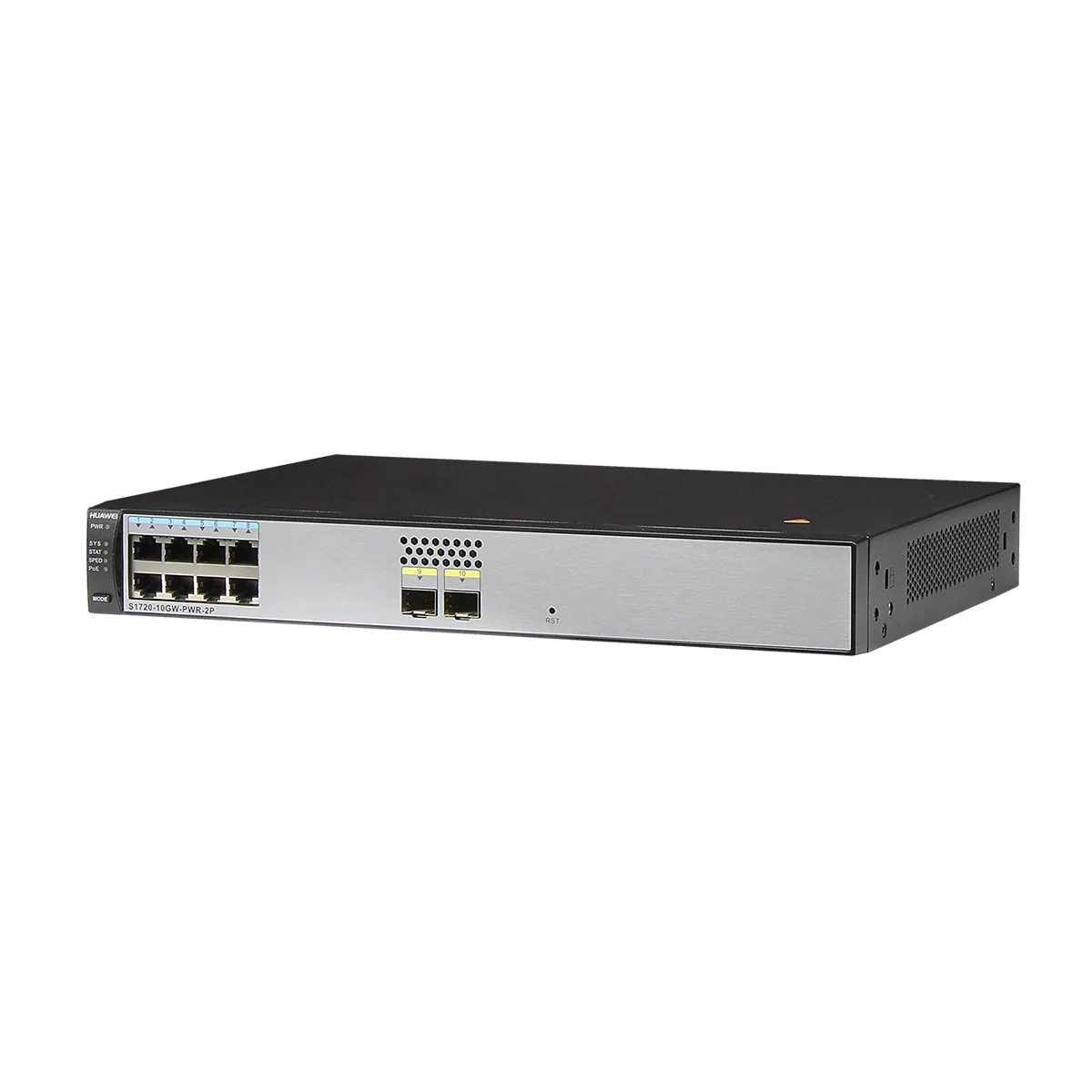

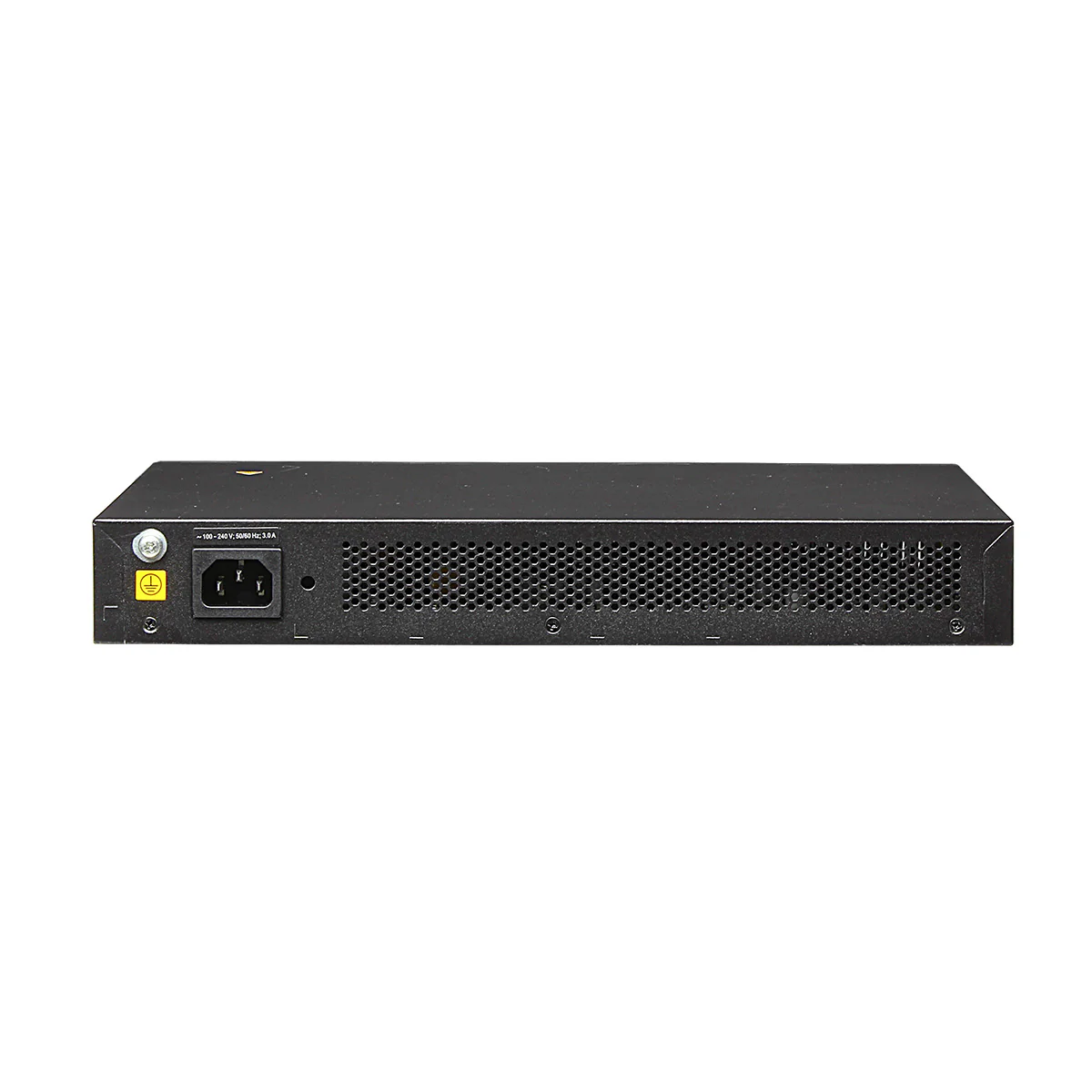

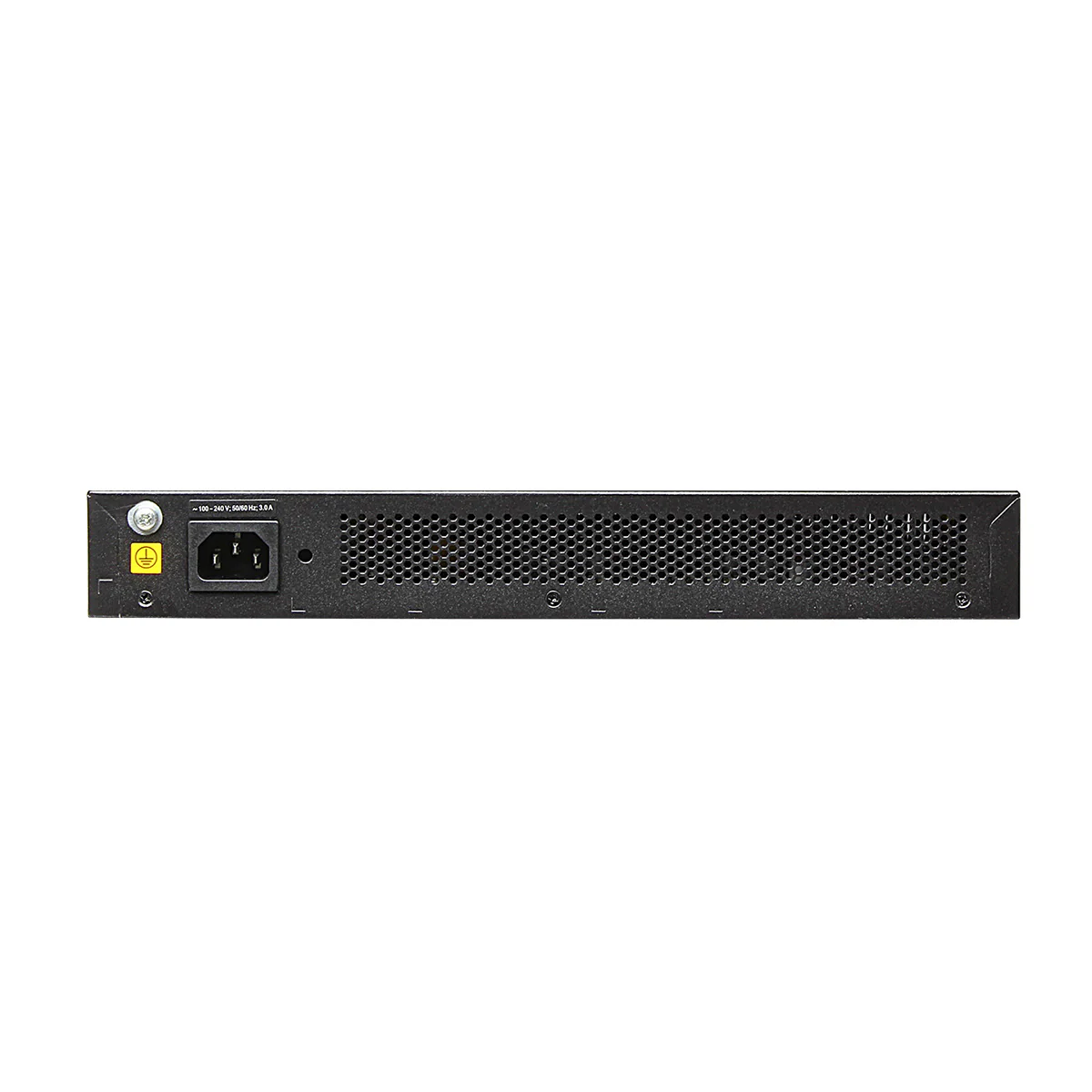

Huawei S1720-10GW-PWR-2P 8×Gigabit PoE+ & 2×1G SFP AC Switch
