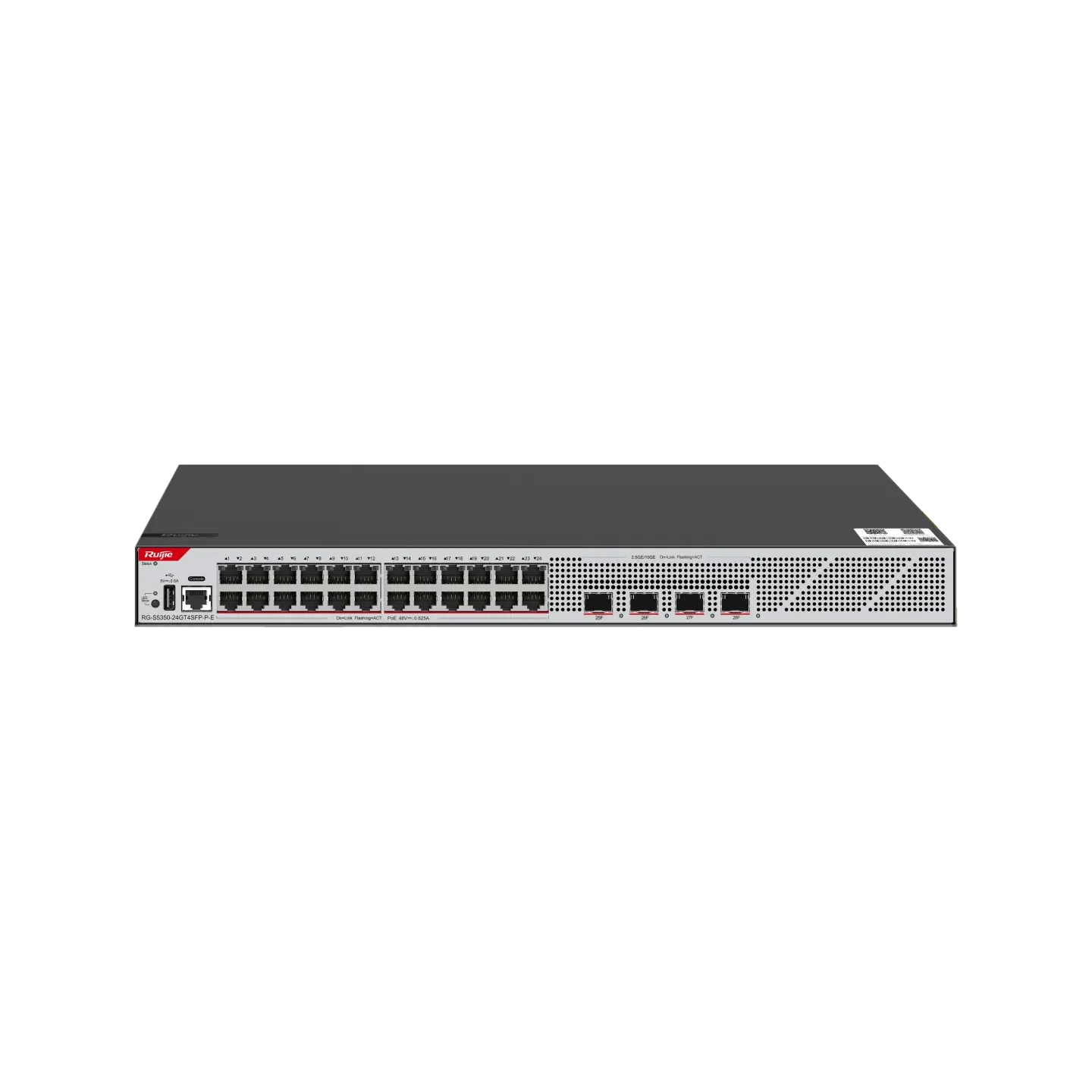

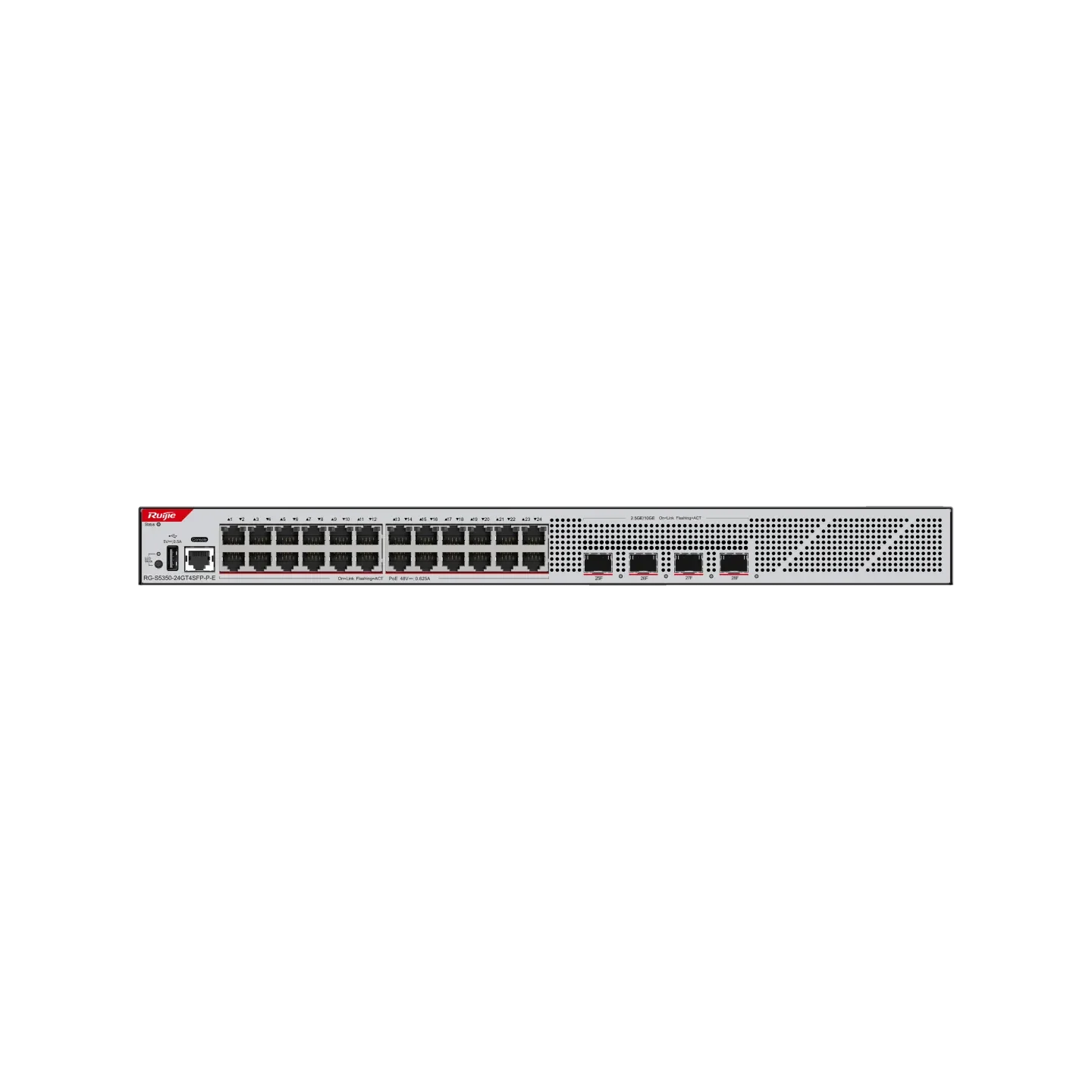

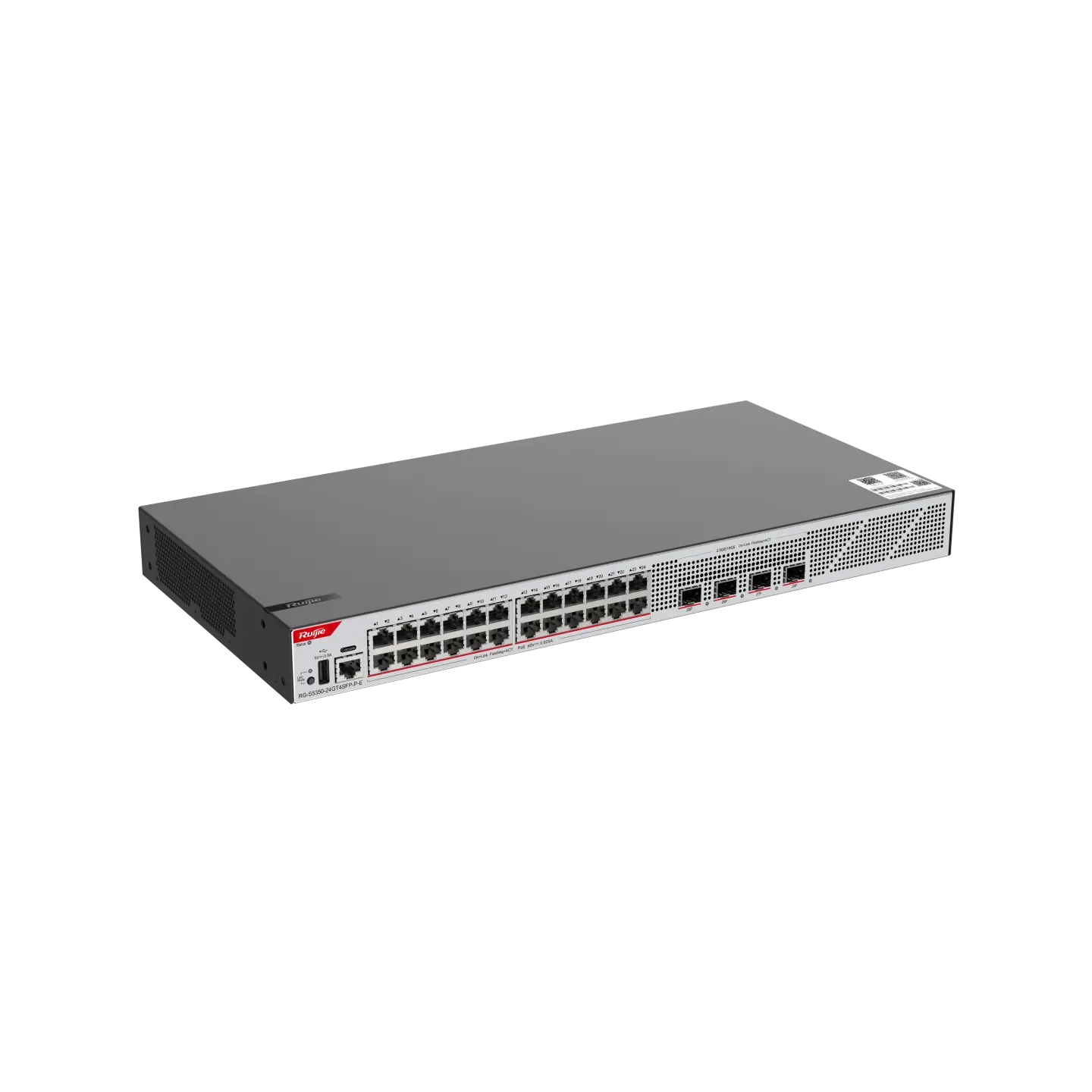

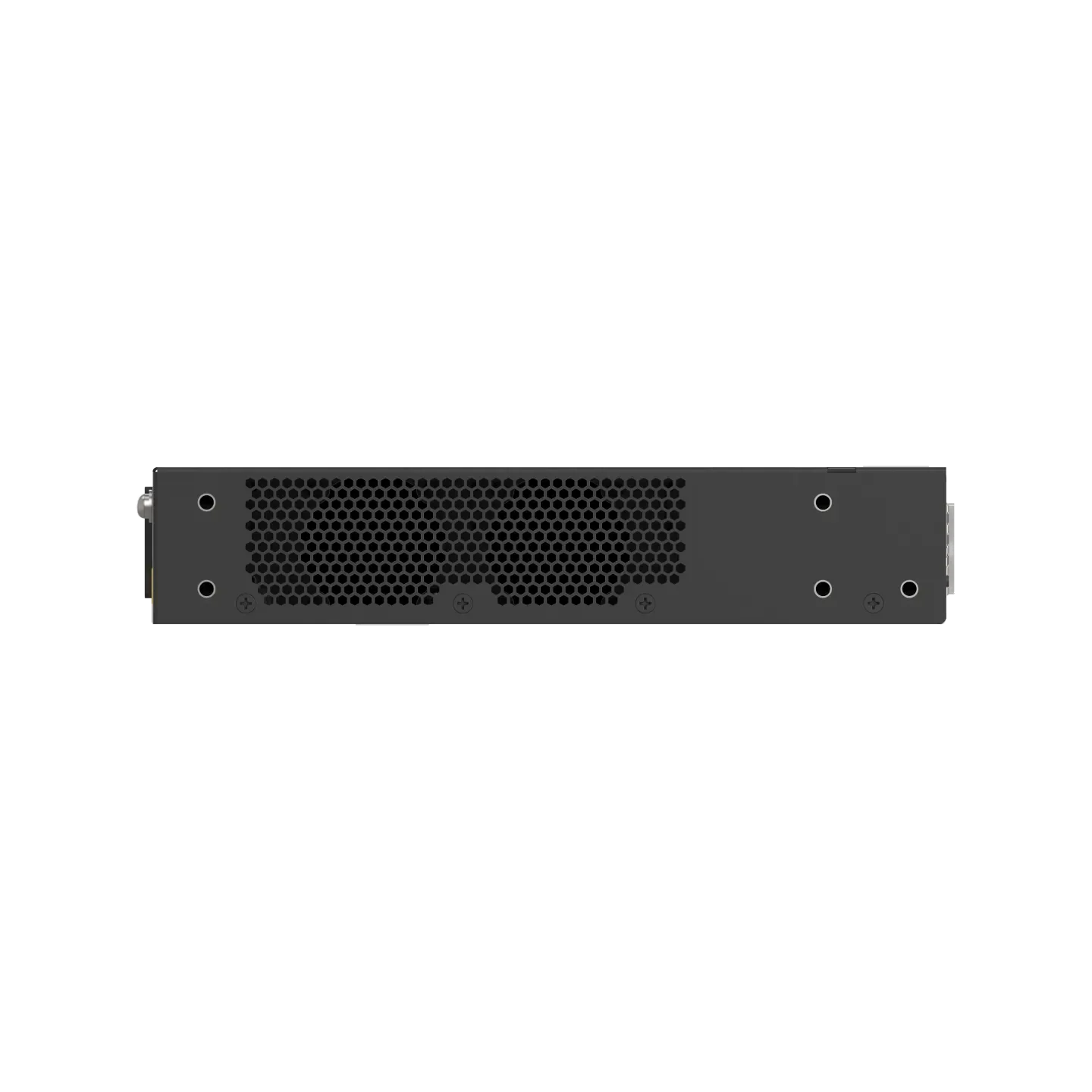

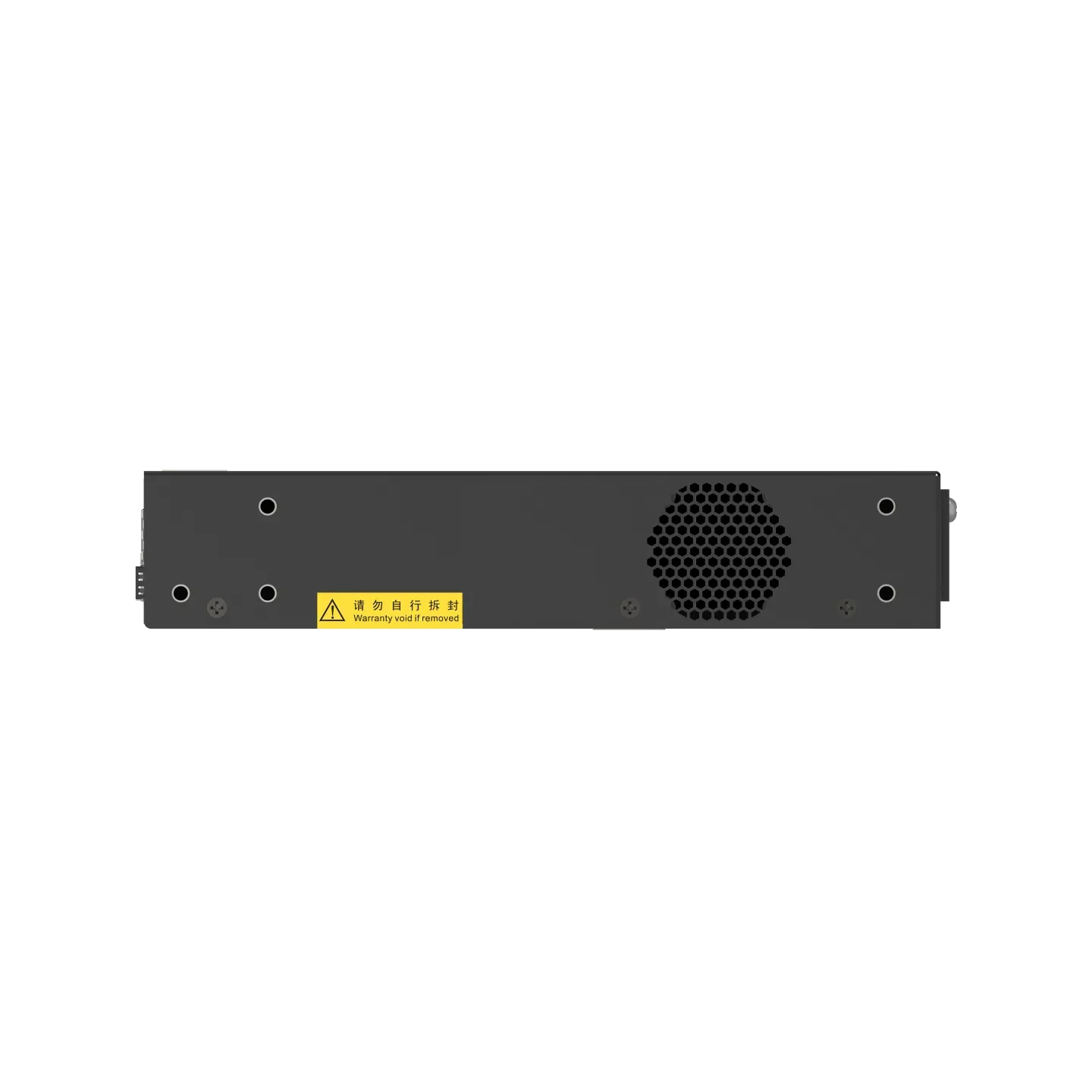

Ruijie RG-S5350-24GT4SFP-P-E 24×Gigabit PoE+ & 4×1G SFP L2+ Switch
Ruijie RG-S5350-24GT4SFP-P-E 24-Port GE Layer 3 Managed PoE+ Switch, 4×1 GE SFP Uplinks
The RG-S5350-24GT4SFP-P-E from Ruijie’s S5350-E Essentials series is built for large-scale enterprise and campus LANs. It provides 24 auto-sensing 10/100/1000 BASE-T ports with IEEE 802.3af/at PoE+ (up to 30 W per port) and four fixed 1 GE SFP uplinks for fiber aggregation.
Housed in a fanless, IP 40, 1 RU chassis with a fixed AC PSU, it delivers 67 Gbps of non-blocking switching capacity and up to 50 Mpps forwarding.
It supports CPU Protection Policy (CPP) and Network Foundation Protection Policy (NFPP) for control-plane defense, and integrates VSU virtualization, IEEE 802.3az Energy-Efficient Ethernet, and zero-touch O&M via SNMP/Web/CLI or Ruijie Cloud.
Overview
Highlights
- High Switching Capacity: With a switching capacity of 67 Gbps and a forwarding rate of 50 Mpps, the RG-S5350-24GT4SFP-P-E efficiently handles high traffic loads, ensuring smooth and uninterrupted network performance.
- PoE+ Support: Supports IEEE 802.3af/at PoE/PoE+ power supply on ports 1-24 for up to 30 W per port, and meets the power supply needs of terminals such as VoIP phones, wireless access points, and IP cameras.
- In addition, this switch comes with 24 Gigabit Ethernet ports and 4 SFP uplink ports, giving it flexibility to connect to different types of network devices and accommodate different topologies and demands.
- Wifi / NetworkingConfigure spreadThe RG-S5350-24GT4SFP-P-E supports IEEE 802.1X authentication, IP Source Guard and Dynamic ARP Inspection, providing network security protection against unauthorized users and network attacks.
- Comprehensive Management: With SNMP, Web, and CLI management interfaces, this switch makes it easy to configure, monitor, and maintain for network administrators.
Recommended Accessories
Here are some compatible accessories to enhance the functionality of the Ruijie RG-S5350-24GT4SFP-P-E:
| Product Name | Category | Description |
| Ruijie RG-PA150IB-F | Power Supply Units |
150W AC power supply module, suitable for industrial switches like the RG-S5350-24GT4SFP-P-E. |
| Ruijie RG-PD150IB-F | Power Supply Units |
150W DC power supply module, offering a compact solution for smaller setups. |
| Ruijie RG-PA600I-P-F | Power Supply Units |
600W AC power supply module, providing higher power output for demanding applications. |
| MokerLink 1U Rack Mount Kit | Rack Mount Kits |
Compatible with 19-inch switches, including the RG-S5350-24GT4SFP-P-E, facilitating secure rack installation. |
| Ruijie XG-SFP-SR-MM850 | SFP Transceivers |
10G SFP+ transceiver with 850nm wavelength, suitable for short-range fiber connections. |
Comparison with Similar Models
| Model | Downlinks & Uplinks | Switching / Forwarding | PoE Budget | VSU Members |
|---|---|---|---|---|
| RG-S5350-24GT4SFP-P-E | 24×GE PoE+ + 4×1 GE SFP | 67 Gbps / 50 Mpps | 24 × 30 W = 720 W | Up to 4 |
| RG-S5350-24GT4SFP-E | 24×GE + 4×1 GE SFP | 67 Gbps / 50 Mpps | None | Up to 4 |
| RG-S5350-48GT4SFP-P-E | 48×GE PoE+ + 4×1 GE SFP | 125 Gbps / 94 Mpps | 48 × 30 W = 1 440 W | Up to 4 |
| RG-S5350-12GT4SFP-P-E | 12×GE PoE+ + 4×1 GE SFP | 125 Gbps / 94 Mpps | 12 × 30 W = 360 W | Up to 4 |
Specifications
| Parameter | Specification |
| Model | RG-S5350-24GT4SFP-P-E |
| Port Configuration | 24 x 10/100/1000BASE-T, 4 x 1GE SFP |
| PoE Support | Ports 1 to 24 support PoE/PoE+ (IEEE802.3af/at) power supply |
| Switching Capacity | 67 Gbps |
| Forwarding Rate | 50 Mpps |
| MAC Address Table | 16,000 entries |
| ARP Table Size | 4,000 |
| IPv4 Unicast Routes | 6,000 |
| IPv6 Unicast Routes | 2,000 |
| Access Control Entries | Ingress: 1,750; Egress: 800 |
| Operating Temperature | 0°C to 45°C |
| Storage Temperature | -40°C to +70°C |
| Power Input | AC: 100V to 240V, 50/60Hz |
| Maximum Power Consumption | 35 W (without PoE load); 405 W (full PoE load) |
| Dimensions (W x D x H) | 442 mm x 220 mm x 43.6 mm |
| Weight | 3.3 kg |
| Mounting | 19-inch rack mount |
| Ingress Protection | IP40 (Protection from solid objects larger than 1mm) |
| ESD Protection | Air discharge: 8 kV / Contact discharge: 6 kV |
