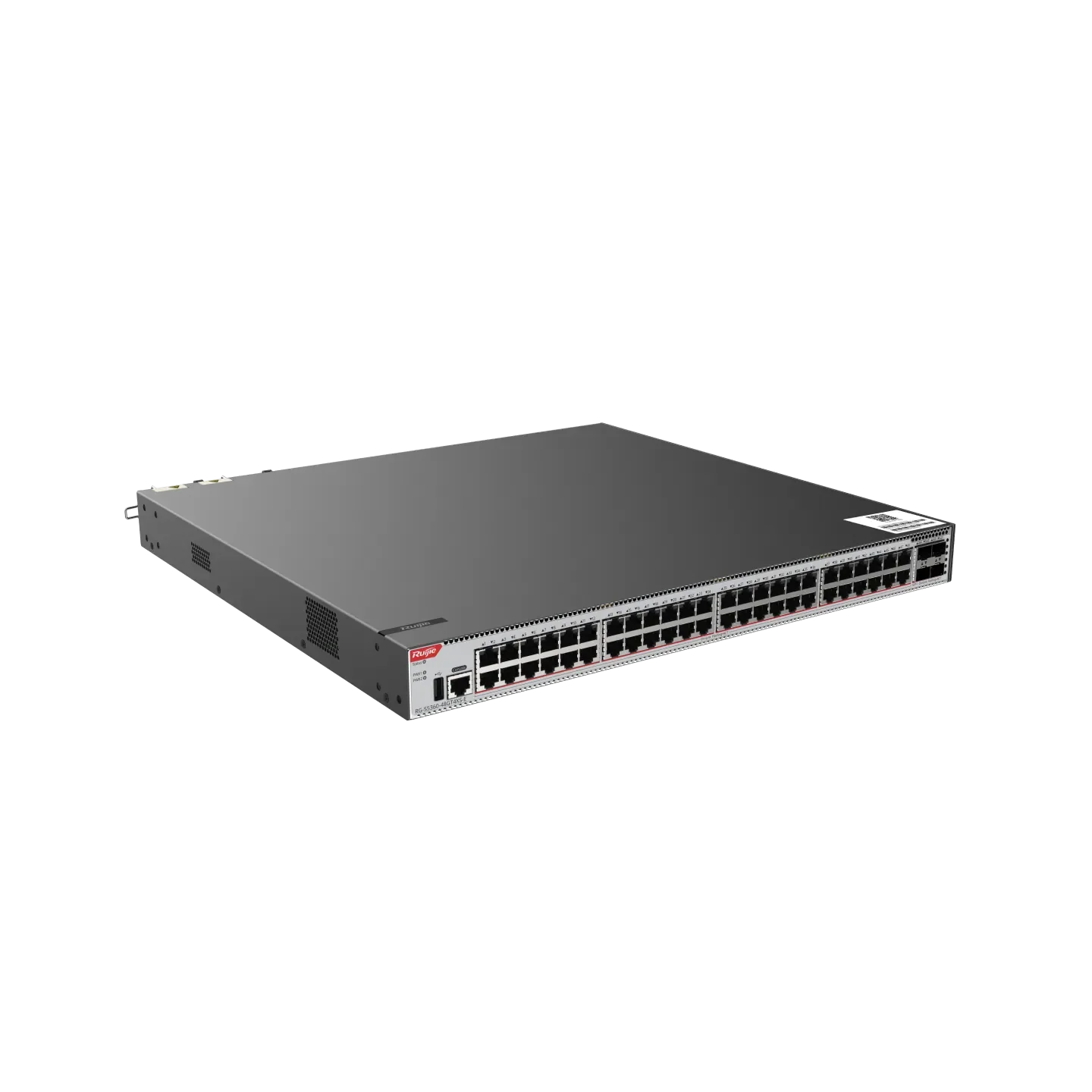

Ruijie RG-S5360-48GT4XS-E Industrial 48×Gigabit & 4×10G SFP+ Switch
Ruijie RG-S5360-48GT4XS-E 48-Port GE Layer 3 Managed Access Switch, 4×10 GE SFP+ Uplinks
The RG-S5360-48GT4XS-E from Ruijie’s S5360-E Essentials series delivers high-density, high-reliability Layer 3 access for large-scale campus and enterprise networks. It provides 48 auto-sensing Gigabit RJ-45 ports and 4 fixed 10 GE SFP+ uplinks (supporting 1 GE/2.5 GE/10 GE optics).
Built on a dual-core 1.0 GHz CPU with 1 GB DDR4, 512 MB flash, 16 MB BootROM, and a 4 MB packet buffer running RGOS 12.X, it offers 211 Gbps non-blocking capacity and 158 Mpps forwarding.
The fanless, IP 40-rated 1 RU chassis supports two hot-swappable power-module slots (1+1 redundancy), wide-temp operation (–40 °C to +65 °C), 10 kV common-mode surge protection, and integrates with Ruijie INC/Cloud for plug-and-play O&M.
Overview
Highlights
- High Switching Capacity: Featuring a switching capacity of 211 Gbps and a forwarding rate of 158 Mpps, the RG-S5360-48GT4XS-E manages substantial traffic loads effectively, delivering seamless and uninterrupted network performance.
- Versatile connectivity: The switch has 48 Gigabit Ethernet ports and 4 SFP+ uplink ports, providing adaptable connectivity options for various network topologies and needs.
- Advanced Security Features: The RG-S5360-48GT4XS-E supports IEEE 802.1X authentication, IP Source Guard, and Dynamic ARP Inspection to safeguard your network against unauthorized access and security threats.
- Key Features SNMP、Web、CLI Have Multiple Management Interface, Easy To Configure, Monitor and Maintain.
Recommended Accessories
Here are some compatible accessories to enhance the functionality of the Ruijie RG-S5360-48GT4XS-E:
| Product Name | Category | Description |
| Ruijie RG-PA70IB | Power Supply Units |
70W AC power supply module, suitable for industrial switches like the RG-S5360-48GT4XS-E. |
| Ruijie RG-PA600I-P-F | Power Supply Units |
600W AC power supply module, providing higher power output for demanding applications. |
| Ruijie RG-PA1000I-P-F | Power Supply Units |
1000W AC power supply module, offering robust power support for large-scale deployments. |
| Ruijie XG-SFP-SR-MM850 | SFP Transceivers |
10G SFP+ transceiver with 850nm wavelength, suitable for short-range fiber connections. |
| MokerLink 1U Rack Mount Kit | Rack Mount Kits |
Compatible with 19-inch switches, including the RG-S5360-48GT4XS-E, facilitating secure rack installation. |
Comparison with Similar Models
| Model | Downlinks & Uplinks | Capacity / Forwarding | Power Redundancy |
|---|---|---|---|
| RG-S5360-48GT4XS-E | 48×GE + 4×10 GE SFP+ | 211 Gbps / 158 Mpps | 2× hot-swap PSUs |
| RG-S5360-24GT4XS-E | 24×GE + 4×10 GE SFP+ | 154 Gbps / 115 Mpps | 2× hot-swap PSUs |
| RG-S5360-48GT4XS-P-E | 48×GE PoE+ + 4×10 GE SFP+ | 211 Gbps / 158 Mpps | 1+1 PoE PSUs |
| RG-S5360-48GT4SFP-E | 48×GE + 4×1 GE SFP | 125 Gbps / 94 Mpps | 2× hot-swap PSUs |
Specifications
| Parameter | Specification |
| Model | RG-S5360-48GT4XS-E |
| Port Configuration | 48 x 10/100/1000BASE-T, 4 x 1GE/2.5GE/10GE SFP+ |
| Switching Capacity | 211 Gbps |
| Forwarding Rate | 158 Mpps |
| MAC Address Table | 16,000 entries |
| ARP Table Size | 4,000 |
| IPv4 Unicast Routes | 6,000 |
| IPv6 Unicast Routes | 2,000 |
| Access Control Entries | Ingress: 1,750; Egress: 800 |
| Operating Temperature | –40°C to +65°C |
| Storage Temperature | –40°C to +70°C |
| Power Input | AC: 100V to 240V, 50/60Hz |
| Maximum Power Consumption | 40 W (without PoE load); 600 W (full PoE load) |
| Dimensions (W x D x H) | 442 mm x 220 mm x 43.6 mm |
| Weight | 3.3 kg |
| Mounting | 19-inch rack mount |
| Ingress Protection | IP40 (Protection from solid objects larger than 1mm) |
| ESD Protection | Air discharge: 8 kV / Contact discharge: 6 kV |
More Details
Quality Certifications
Warranty
100% Low Price Guarantee
Network-switch.com provides high-quality products at low wholesale prices
100% Quality Assurance
All items are ORIGINAL and GENUINE only.
Item conditions are "New Sealed". They are fully tested by Ruijie RCNP Engineers.
Free Technical Support
Our FREE Expert Consultancy Support is over the phone, by chat, by email or by login remotely.
100% Money Back Guarantee
You can contact our customer service team to exchange or return any product that you bought from us.
Flexible Secure Payment & Shipment
Verified authorization: Mcafee Secure, VeriSign Secured
Return Material Authorization (RMA) Process
Standard Warranty Policy
Original New Sealed Enterprise Hardware: 3 Years
Original New Sealed Consumer Devices: 1 Year
The Support Contacts
If your Ruijie products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.
