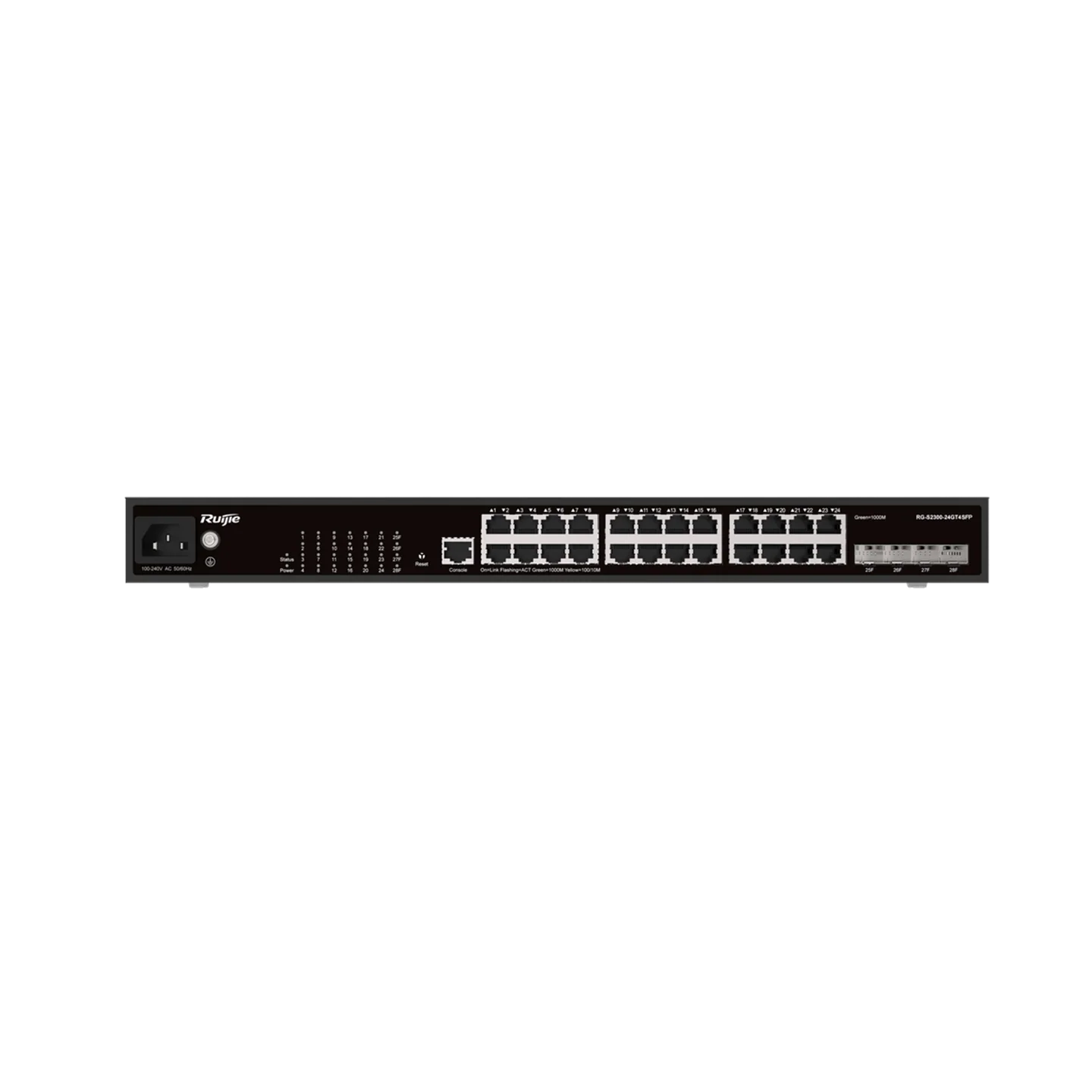

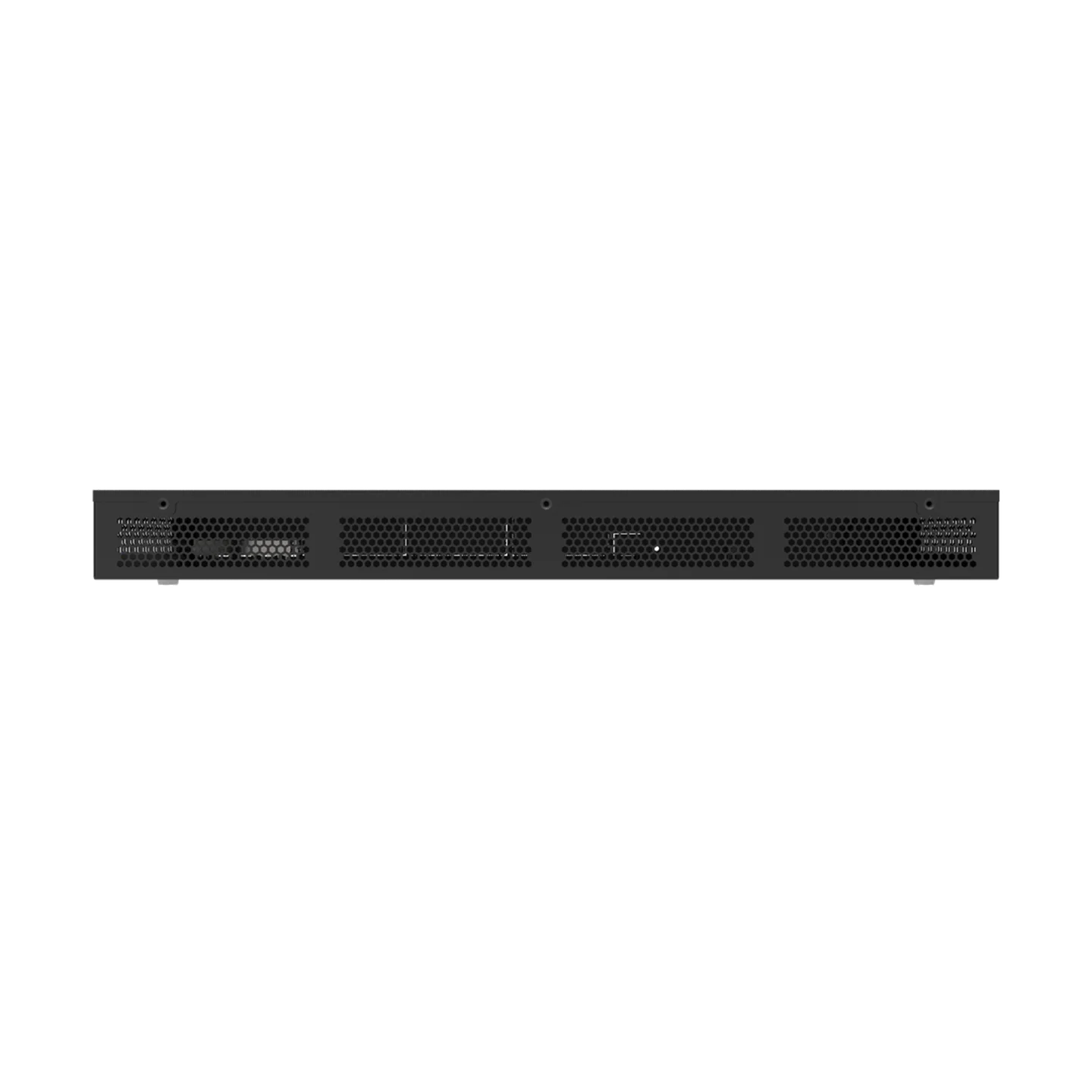

Ruijie RG-S2300-24GT4SFP 24×1G & 4×1G SFP Gigabit Access Switch
Ruijie RG-S2300-24GT4SFP 24-Port Gigabit Managed Switch with 4×1 Gbps SFP Uplinks
The Ruijie RG-S2300-24GT4SFP has been specifically designed as a high-performance layer 2 managed switch. The switch supports 24 Gigabit Ethernet ports and 4 SFP uplink ports, offering adaptable connectivity and fast data transfer for multiple applications.
With a switching capacity of 56 Gbps and a forwarding rate of 41.66 million packets per second (Mpps), it ensures smooth and efficient network performance even in high-traffic environments.
Operating at an extended temperature range of Architecture 0~50°C, the RG-S2300-24GT4SFP is designed to be a reliable solution in demanding conditions in varying deployment environments from industrial to enterprise.
Overview
Highlights
-
High Switching Capacity: With a switching capacity of 56 Gbps and a forwarding rate of 41.66 Mpps, the RG-S2300-24GT4SFP efficiently handles high traffic loads, ensuring smooth and uninterrupted network performance.
-
Wide Operating Temperature Range: The switch operates reliably in temperatures ranging from 0°C to 50°C, making it perfect for use in various environmental conditions, such as industrial and enterprise settings.
-
Flexible Connectivity: With 24 Gigabit Ethernet ports and 4 SFP uplink ports, the RG-S2300-24GT4SFP offers versatile connectivity options, accommodating different network topologies and demands.
-
Advanced Security Features: The RG-S2300-24GT4SFP supports IEEE 802.1X authentication, IP Source Guard, and Dynamic ARP Inspection to safeguard your network against unauthorized access and security threats.
-
Comprehensive Management: This switch offers multiple management interfaces, including SNMP, Web, and CLI, providing easy configuration, monitoring, and maintenance for network administrators.
Recommended Accessories
Here are some compatible accessories to enhance the functionality of the Ruijie RG-S2300-24GT4SFP:
| Product Name | Category | Description |
| Ruijie RG-PA240-48 | Power Supply Units |
240W DIN-Rail AC/DC power supply, suitable for industrial switches like the RG-S2300-24GT4SFP. |
| Ruijie RG-PA120-48 | Power Supply Units |
120W DIN-Rail AC/DC power supply, offering a compact solution for smaller setups. |
|
MokerLink 1U Rack Mount Kit |
Rack Mount Kits |
Compatible with 19-inch switches, including the RG-S2300-24GT4SFP, facilitating secure rack installation. |
| Ruijie XG-SFP-SR-MM850 | SFP Transceivers |
10G SFP+ transceiver with 850nm wavelength, suitable for short-range fiber connections. |
| Ruijie XG-SFP-LR-SM1310 | SFP Transceivers |
10G SFP+ transceiver with a 1310nm wavelength, designed for long-range single-mode fiber links. |
Comparison with Similar Models
| Model | Downlinks | Uplinks | PoE Support | Switching Capacity | Licensing |
|---|---|---|---|---|---|
| RG-S2300-24GT4SFP | 24×1 GbE data-only | 4×1 Gbps SFP | None | 56 Gbps / 41.66 Mpps | Layer 2 |
| RG-S2300-24GT4XS | 24×1 GbE data-only | 4×10 Gbps SFP+ | None | 128 Gbps / 96 Mpps | Layer 2 |
| RG-S2300-24GT4SFP-D | 24×1 GbE data-only | 4×1 Gbps SFP | None | 56 Gbps / 41.66 Mpps | Layer 2 (DC) |
| Model | Downlink Ports | Uplink Ports | Switching Capacity | Forward Rate | Brand |
|---|---|---|---|---|---|
| Ruijie RG‑S2300‑24GT4XS | 24×Gigabit Ethernet | 4×1/10 Gbps SFP+ | 128 Gbps | 96 Mpps | Ruijie |
| NS‑S2300‑24GT4XS | 24×Gigabit Ethernet | 4×1/10 Gbps SFP+ | 128 Gbps | 96 Mpps | Network‑Switch (our brand) |
| Ruijie RG‑S2300‑24GT4SFP | 24×Gigabit Ethernet | 4×1 Gbps SFP | 56 Gbps | 41.66 Mpps | Ruijie |
| NS‑S2300‑24GT4SFP | 24×Gigabit Ethernet | 4×1 Gbps SFP | 56 Gbps | 41.66 Mpps | Network‑Switch |
| Ruijie RG‑S2300‑8GT4SFP | 8×Gigabit Ethernet | 4×1 Gbps SFP | 56 Gbps | ~41.6 Mpps | Ruijie |
| NS‑S2300‑8GT4SFP | 8×Gigabit Ethernet | 4×1 Gbps SFP | 56 Gbps | ~41.6 Mpps | Network‑Switch |
Specification
| Parameter | Specification |
| Model | RG-S2300-24GT4SFP |
| Port Configuration | 24 x 10/100/1000BASE-T, 4 x SFP |
| PoE Support | IEEE 802.3af/at PoE+ supported, Ports 1 to 24 support PoE functionality |
| PoE Power Budget | Maximum 370W (48V DC input) |
| Switching Capacity | 56 Gbps |
| Forwarding Rate | 41.66 Mpps |
| MAC Address Table | 16,000 entries |
| VLAN Support | Supports up to 4,094 VLANs |
| Operating Temperature | 0°C to 50°C |
| Power Input | 12V DC to 56V DC |
| Power Redundancy | Dual power input support (DC) |
| Dimensions | 440 mm x 208 mm x 44 mm |
| Weight | Approx. 2.4 kg |
| Mounting | 19-inch rack mount |
| Ingress Protection | IP40 (Protection from solid objects larger than 1mm) |
| ESD Protection | 8kV (Electrostatic Discharge protection) |
| Ring Protection | Supports ERPS (Ethernet Ring Protection Switching) |
| Management |
Supports SNMP, Web, and CLI management, compatible with Ruijie Cloud management platform |
| MTBF | >200,000 hours |
