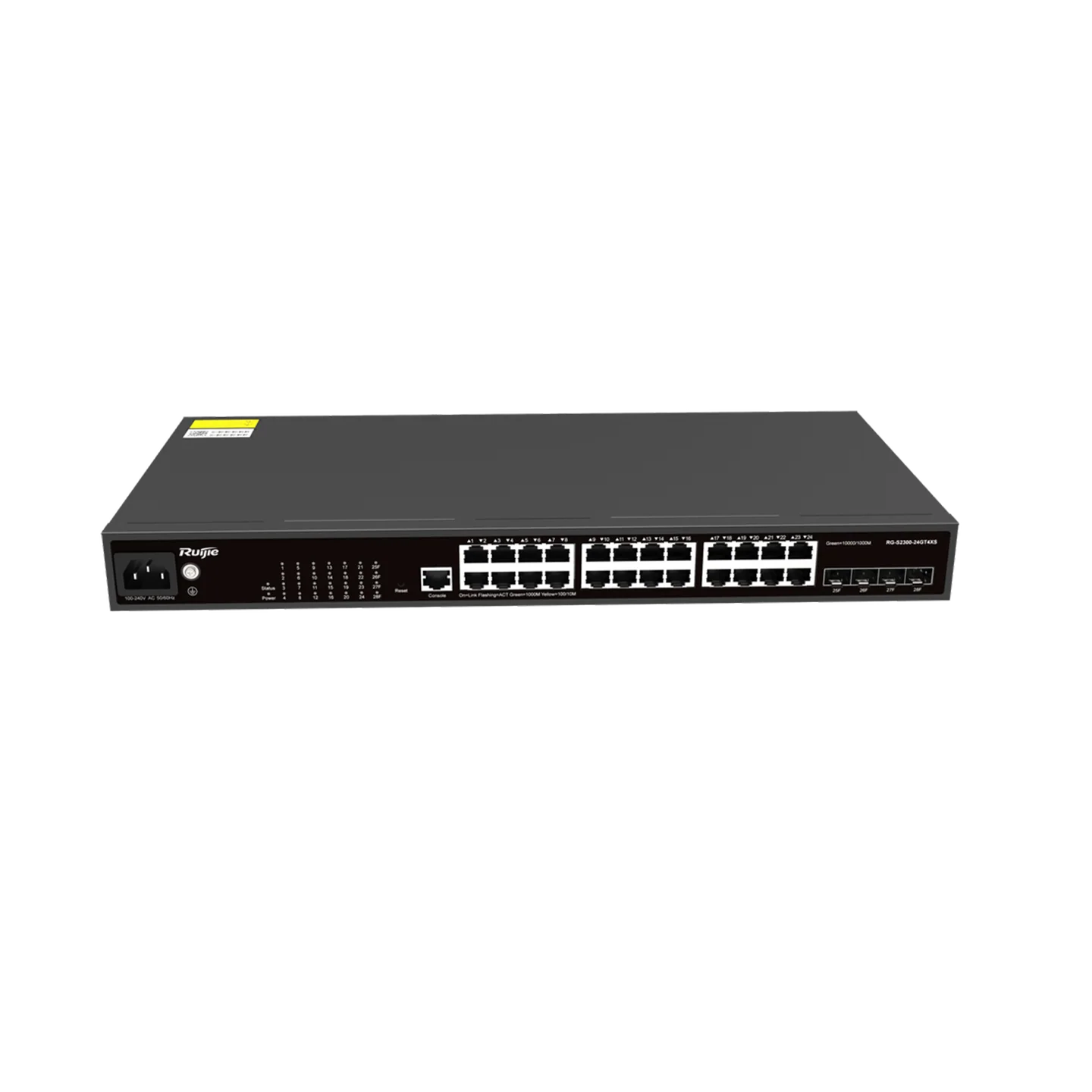

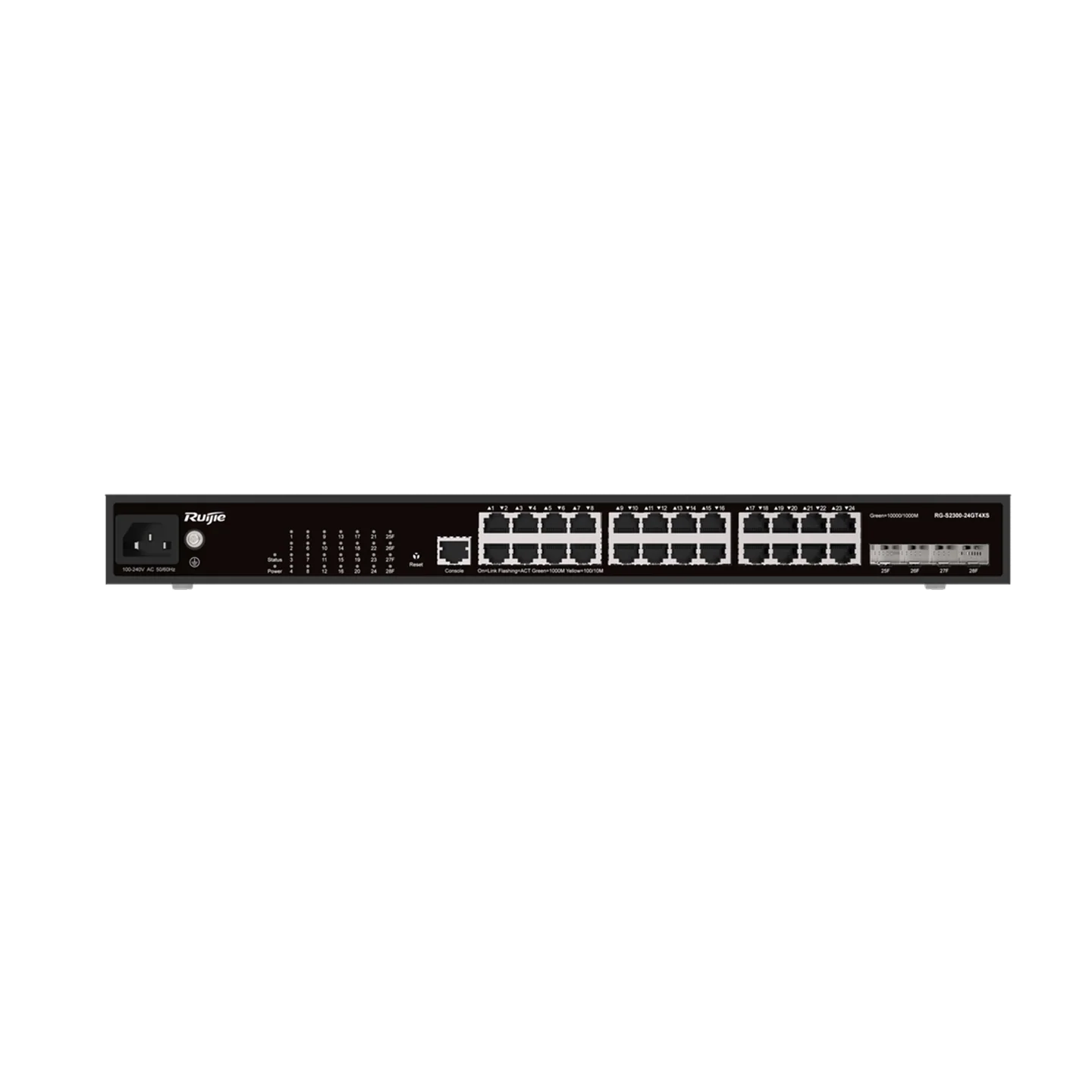

Ruijie RG-S2300-24GT4XS 24×1G & 4×10G SFP+ Gigabit Access Switch
Ruijie RG-S2300-24GT4XS 24-Port Gigabit Layer 2 Managed Switch with 4×10 Gbps SFP+ Uplinks
Ruijie RG-S2300-24GT4XS: The next-generation, high-performance Layer 2 managed switch that is optimized to handle the demands of today's dynamic network environment.
Offering 24 Gigabit Ethernet switch ports and 4 SFP+ uplink ports, this device provides flexible connectivity and high-speed data transmission capacities for a range of applications. It provides a switching capacity of 128 Gbps and forwarding rate of 96 Mpps making it ideal for smooth and efficient performance in networks with high traffic.
Thank you for your time. The switch provides built-in security features, including IEEE 802.1X authentication and Dynamic ARP Inspection, against common attacks. It also provides all management options (SNMP, Web, and CLI) for simplifying network configuration and monitoring.
Overview
Highlights
-
High Switching Capacity: With a switching capacity of 128 Gbps and a forwarding rate of 96 Mpps, the RG-S2300-24GT4XS efficiently handles high traffic loads, ensuring smooth and uninterrupted network performance.
-
Wide Operating Temperature Range: The switch operates reliably in temperatures ranging from 0°C to 50°C, making it perfect for use in various environmental conditions, such as industrial and enterprise settings.
-
Flexible Connectivity: With 24 Gigabit Ethernet ports and 4 SFP+ uplink ports, the RG-S2300-24GT4XS offers versatile connectivity options, accommodating different network topologies and demands.
-
Advanced Security Features: The RG-S2300-24GT4XS supports IEEE 802.1X authentication, IP Source Guard, and Dynamic ARP Inspection to safeguard your network against unauthorized access and security threats.
-
Comprehensive Management: This switch offers multiple management interfaces, including SNMP, Web, and CLI, providing easy configuration, monitoring, and maintenance for network administrators.
Recommended Accessories
Here are some compatible accessories to enhance the functionality of the Ruijie RG-S2300-24GT4XS:
| Product Name | Category | Description |
| Ruijie RG-PA240-48 | Power Supply Units |
240W DIN-Rail AC/DC power supply, suitable for industrial switches like the RG-S2300-24GT4XS. |
| Ruijie RG-PA120-48 | Power Supply Units |
120W DIN-Rail AC/DC power supply, offering a compact solution for smaller setups. |
| MokerLink 1U Rack Mount Kit | Rack Mount Kits |
Compatible with 19-inch switches, including the RG-S2300-24GT4XS, facilitating secure rack installation. |
| Ruijie XG-SFP-SR-MM850 | SFP Transceivers |
10G SFP+ transceiver with 850nm wavelength, suitable for short-range fiber connections. |
| Ruijie XG-SFP-LR-SM1310 | SFP Transceivers |
10G SFP+ transceiver with a 1310nm wavelength, designed for long-range single-mode fiber links. |
Comparison with Similar Models
| Model | Access Ports | Uplinks | PoE Support |
|---|---|---|---|
| RG-S2300-24GT4XS | 24×1 GbE | 4×1/10 Gbps SFP+ | No |
| RG-S2300-24GT4SFP | 24×1 GbE | 4×1 Gbps SFP | No |
| RG-S2300-8GT4SFP | 8×1 GbE | 4×1 Gbps SFP | No |
| Model | Downlink Ports | Uplink Ports | Switching Capacity | Forward Rate | Brand |
|---|---|---|---|---|---|
| Ruijie RG‑S2300‑24GT4XS | 24×Gigabit Ethernet | 4×1/10 Gbps SFP+ | 128 Gbps | 96 Mpps | Ruijie |
| NS‑S2300‑24GT4XS | 24×Gigabit Ethernet | 4×1/10 Gbps SFP+ | 128 Gbps | 96 Mpps | Network‑Switch (our brand) |
| Ruijie RG‑S2300‑24GT4SFP | 24×Gigabit Ethernet | 4×1 Gbps SFP | 56 Gbps | 41.66 Mpps | Ruijie |
| NS‑S2300‑24GT4SFP | 24×Gigabit Ethernet | 4×1 Gbps SFP | 56 Gbps | 41.66 Mpps | Network‑Switch |
| Ruijie RG‑S2300‑8GT4SFP | 8×Gigabit Ethernet | 4×1 Gbps SFP | 56 Gbps | ~41.6 Mpps | Ruijie |
| NS‑S2300‑8GT4SFP | 8×Gigabit Ethernet | 4×1 Gbps SFP | 56 Gbps | ~41.6 Mpps | Network‑Switch |
Specifications
| Parameter | Specification |
| Model | RG-S2300-24GT4XS |
| Port Configuration | 24 x 10/100/1000BASE-T, 4 x SFP+ |
| PoE Support | Not supported |
| Switching Capacity | 128 Gbps |
| Forwarding Rate | 96 Mpps |
| MAC Address Table | 32,000 entries |
| VLAN Support | Supports up to 4,094 VLANs |
| Operating Temperature | 0°C to 50°C |
| Power Input | 100V to 240V AC, 50/60Hz |
| Dimensions | 440 mm x 220 mm x 43.6 mm |
| Weight | Approx. 2.7 kg |
| Mounting | 19-inch rack mount |
| Ingress Protection | IP40 (Protection from solid objects larger than 1mm) |
| ESD Protection | 8kV (Electrostatic Discharge protection) |
| Ring Protection | Supports ERPS (Ethernet Ring Protection Switching) |
| Management | Supports SNMP, Web, and CLI management, compatible with Ruijie Cloud management platform |
| MTBF | 200,000 hours |
