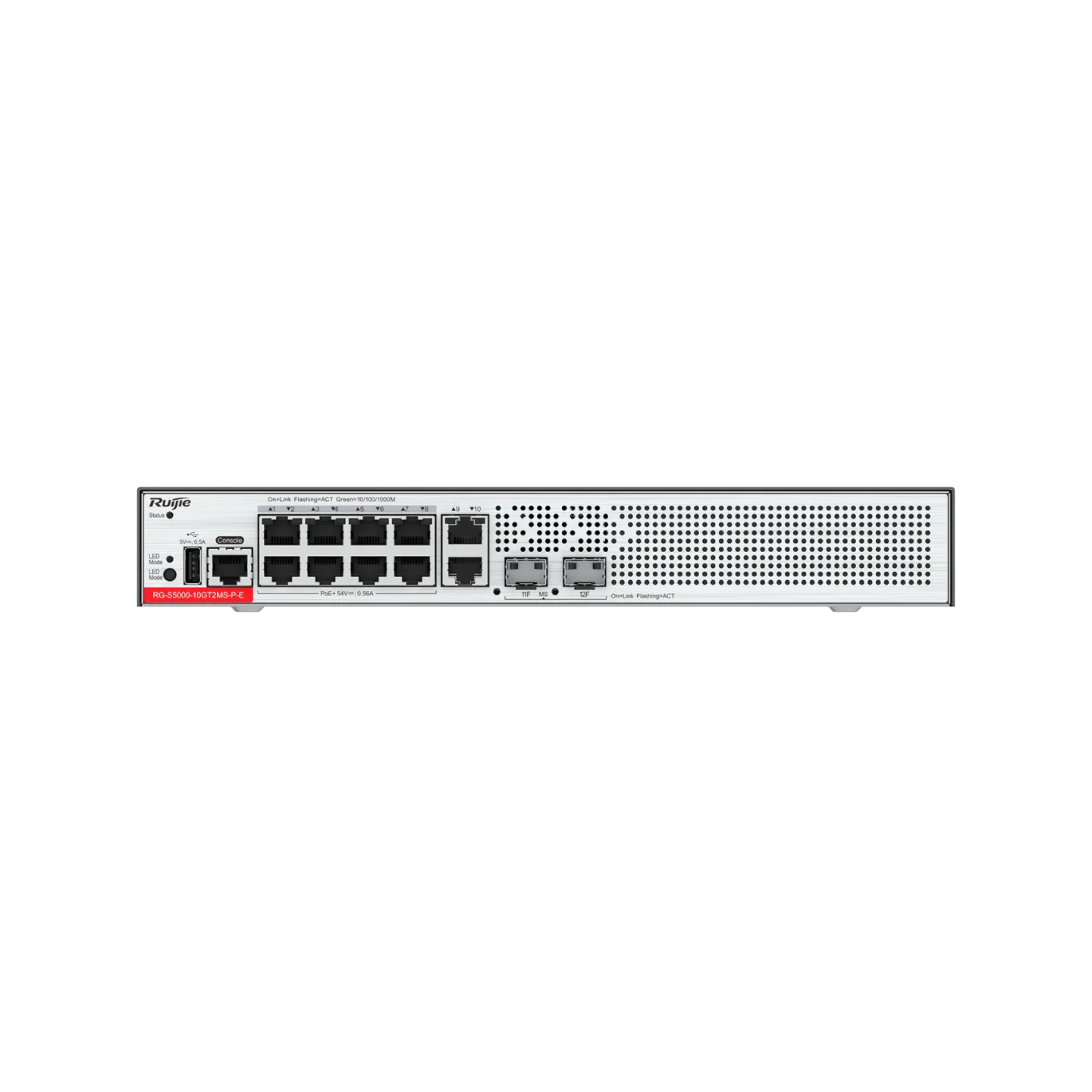

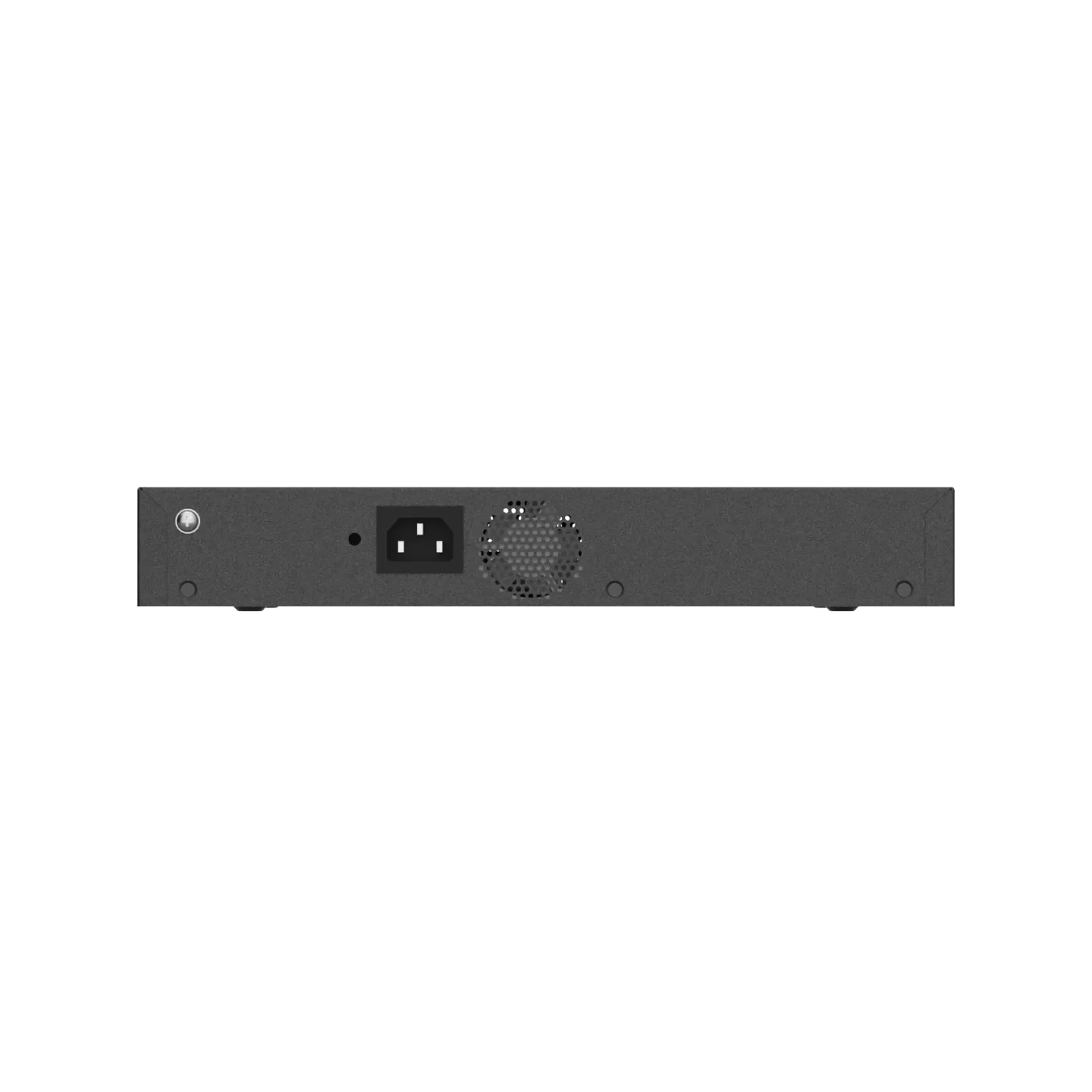

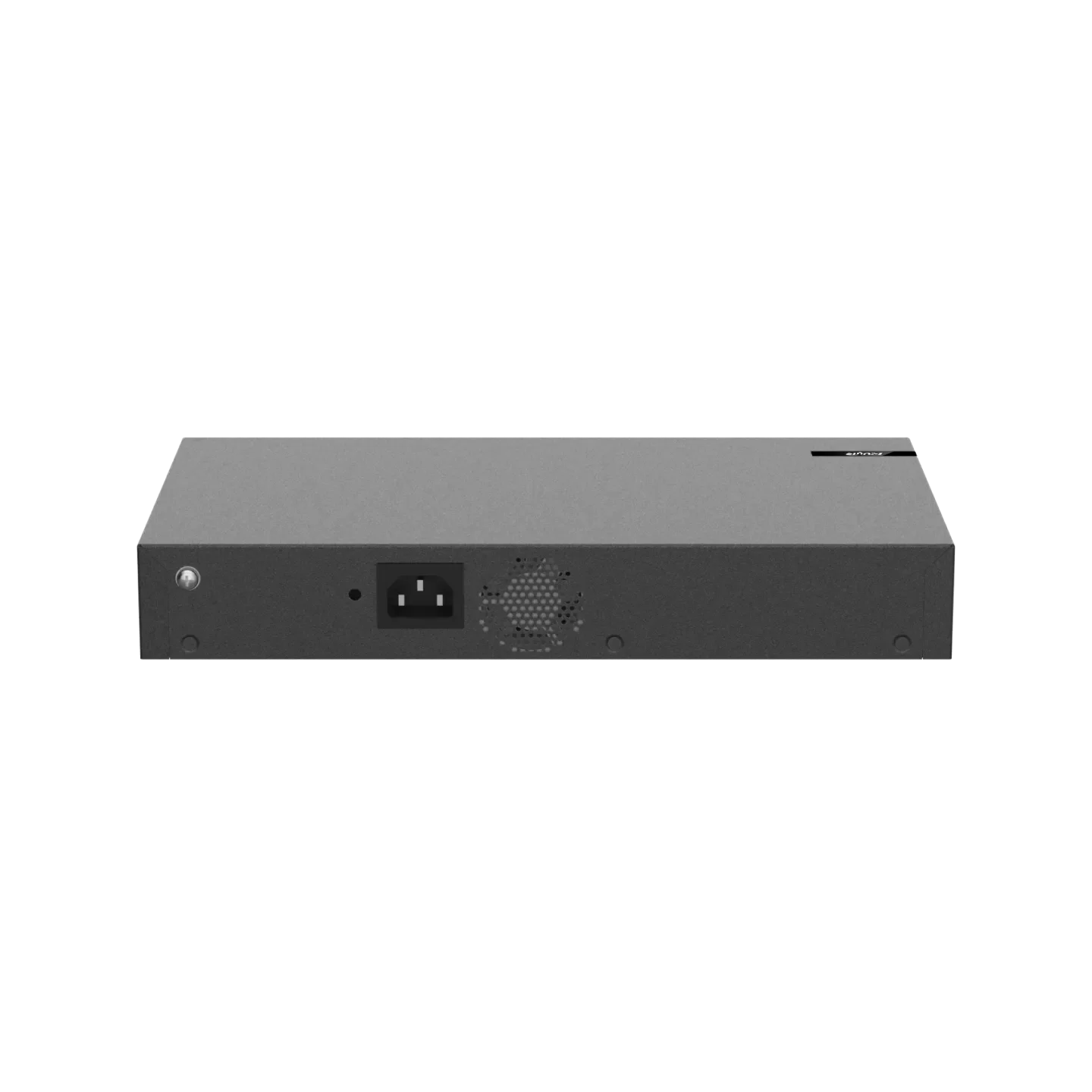

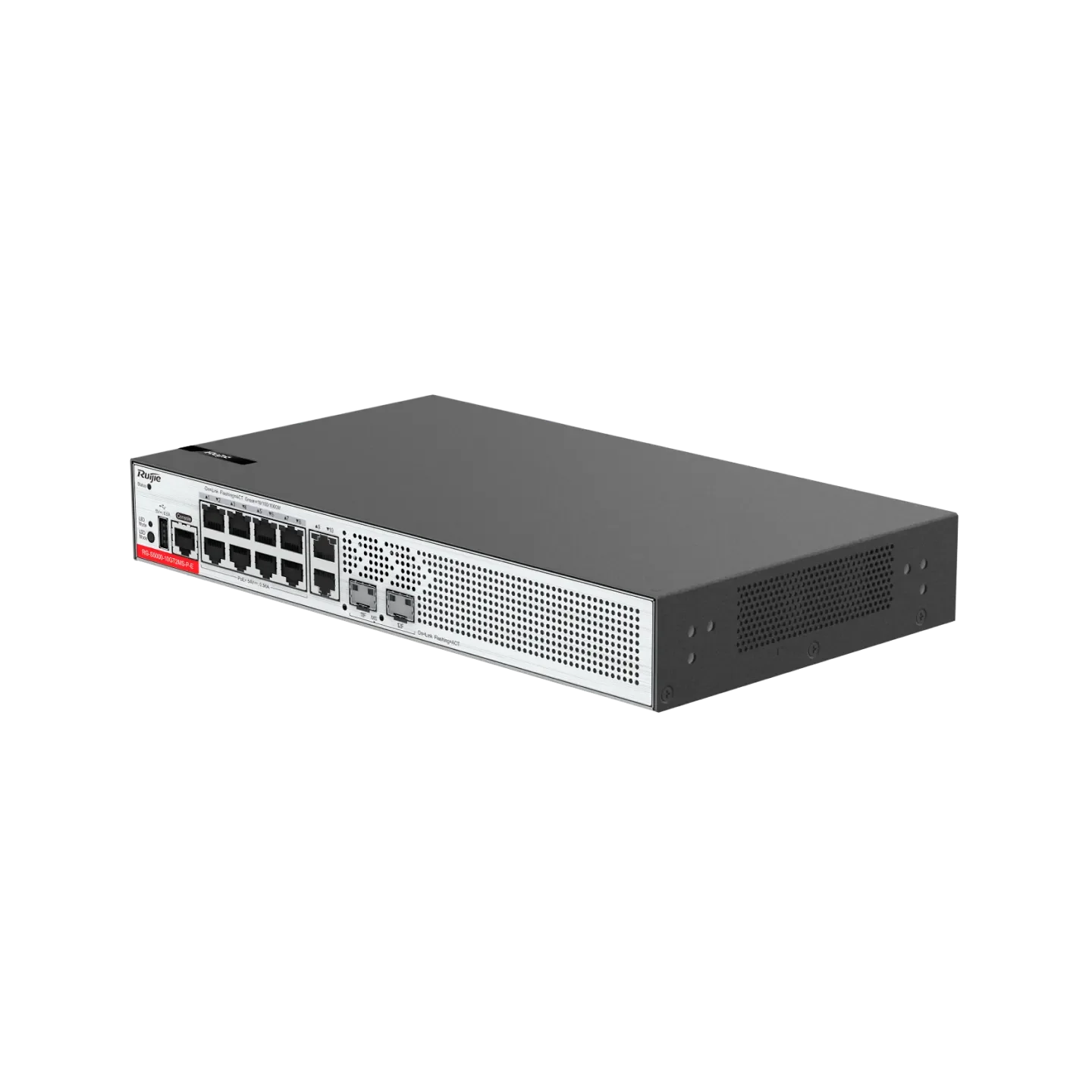

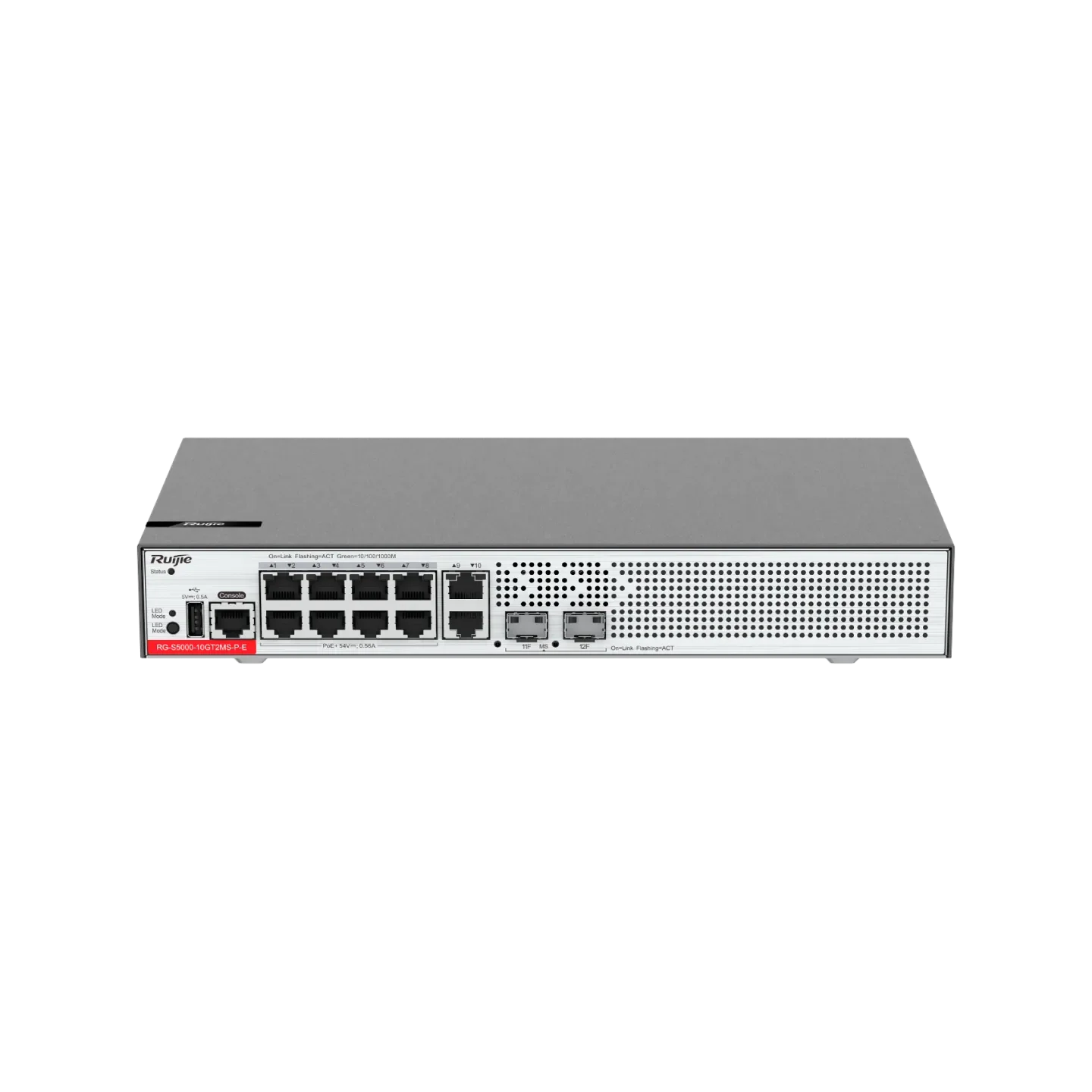

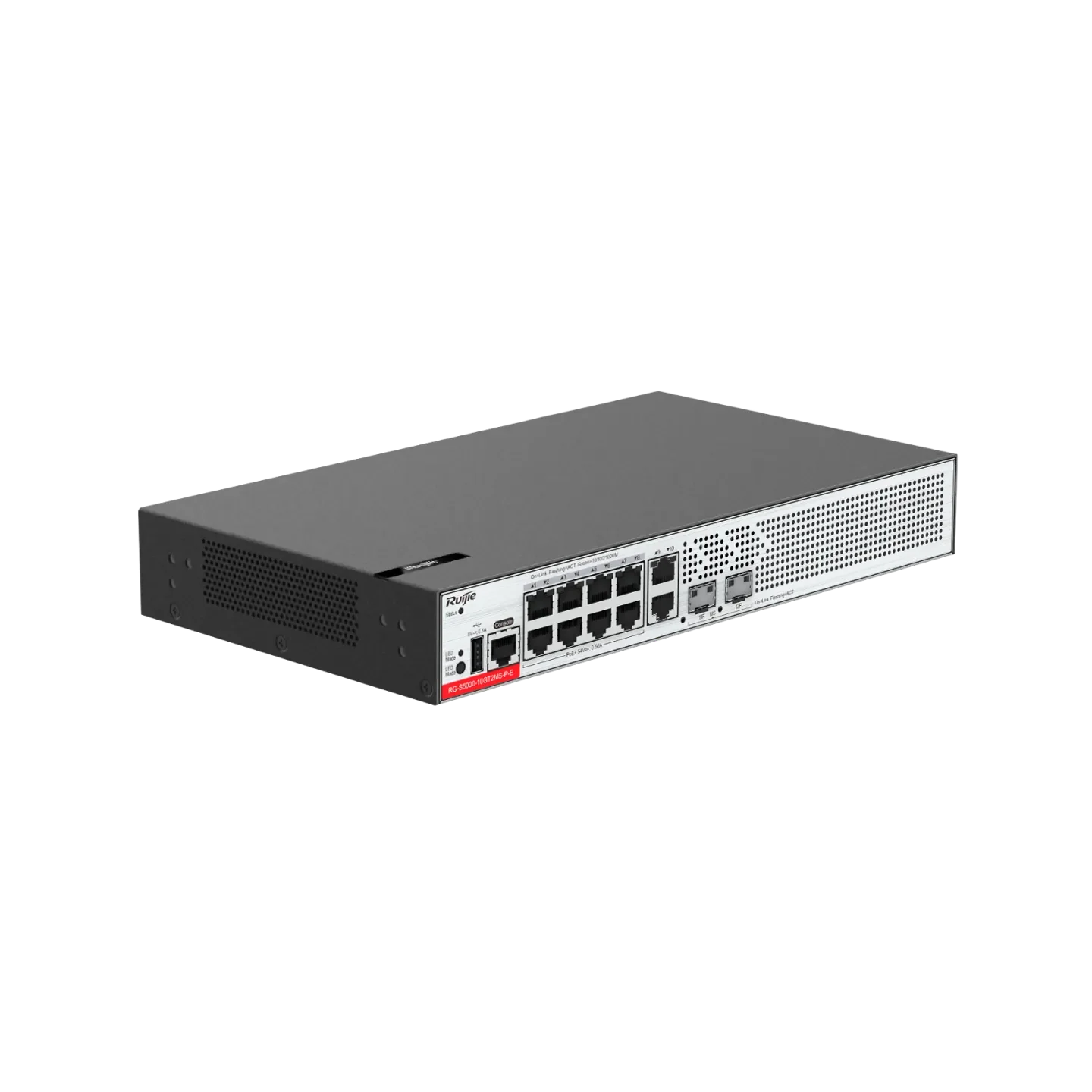

Ruijie RG-S5000-10GT2MS-P-E 10×1G PoE+ & 2×2.5G SFP Layer 2+ Switch
Ruijie RG-S5000-10GT2MS-P-E 10-Port Gigabit Layer 2+ Managed PoE+ Switch, 2×2.5 GE Uplink SFP+, Essentials
The RG-S5000-10GT2MS-P-E is part of Ruijie’s Simplified Gigabit Switch Essentials series, designed for small‐to‐medium campus and enterprise edge deployments. It features 10 auto-negotiating 10/100/1000 BASE-T ports—ports 1–8 delivering IEEE 802.3af/at PoE+ (up to 125 W total)—and two fixed SFP+ slots supporting 1 GbE or 2.5 GbE optics.
Housed in a fanless, naturally-cooled IP 40 chassis with a fixed AC input (100–240 V AC), it runs L2+ services including static routing and RIP/RIPng, Rapid Link Detection (RLDP), and ERPS ring protection.
Hardware CPU Protection Policy (CPP) and Network Foundation Protection (NFPP) guard the control plane, while 10 kV surge immunity and IEEE 802.3az Energy-Efficient Ethernet ensure resilient, low-noise operation.
Overview
Highlights
- High Switching Capacity: With a 36G switching capacity and 27Mpps forwarding rate, the RG-S5000-10GT2MS-P-E caters to high traffic while delivering smooth performance without drops in service.
- PoE+ Supply: 802.3af/at PoE/PoE+ power supply is supported on ports 1 to 8, with 30 W per port to supply electricity for terminals such as VoIP phones, wireless access points, and IP cameras.
- Versatile Connectivity options: The RG-S5000-10GT2MS-P-E includes 10 Gigabit Ethernet ports and 2 SFP+ uplink ports, providing flexible connectivity options for varying network topologies and requirements.
- Powerful Cybersecurity Mechanisms: It provides a range of security measures, including IEEE 802.1X for user authentication, IP Source Guard, and Dynamic ARP Inspection to protect against unauthorized access and various network threats.
- All-in-one Management: Support SNMP, Web and CLI for the substitute simple configuration, monitoring and maintaining.
Recommended Accessories
Here are some compatible accessories to enhance the functionality of the Ruijie RG-S5000-10GT2MS-P-E:
| Product Name | Category | Description |
| Ruijie RG-PA240-48 | Power Supply Units |
240W DIN-Rail AC/DC power supply, suitable for industrial switches like the RG-S5000-10GT2MS-P-E. |
| Ruijie RG-PA120-48 | Power Supply Units |
120W DIN-Rail AC/DC power supply, offering a compact solution for smaller setups. |
| MokerLink 1U Rack Mount Kit | Rack Mount Kits |
Compatible with 19-inch switches, including the RG-S5000-10GT2MS-P-E, facilitating secure rack installation. |
| Ruijie XG-SFP-SR-MM850 | SFP Transceivers |
10G SFP+ transceiver with 850nm wavelength, suitable for short-range fiber connections. |
| Ruijie XG-SFP-LR-SM1310 | SFP Transceivers |
10G SFP+ transceiver with a 1310nm wavelength, designed for long-range single-mode fiber links. |
Comparison with Similar Models
| Model | PoE+ Ports | Uplinks | Capacity | Forwarding | PoE Budget |
|---|---|---|---|---|---|
| RG-S5000-10GT2MS-P-E | 8×PoE+ | 2×2.5 GE SFP+ | 30 Gbps | 22.5 Mpps | 125 W |
| RG-S5000-10GT2MS-E | 0 | 2×2.5 GE SFP+ | 30 Gbps | 22.5 Mpps | N/A |
| RG-S5000-24GT4MS-P-E | 24×PoE+ | 4×2.5 GE SFP+ | 82 Gbps | 51 Mpps | 370 W |
| RG-S5000-24GT4MS-E | 0 | 4×2.5 GE SFP+ | 68 Gbps | 51 Mpps | N/A |
| Model | Ports (Access / Uplink) | PoE Support | Capacity | Forward Rate | Key Features |
|---|---|---|---|---|---|
| Ruijie RG‑S5000‑10GT2MS‑E | 10 × 1 GbE, 2 × 2.5 GbE SFP | None | 36 Gbps | ~27 Mpps | L2+, RLDP, 10 kV protection |
| NS‑S5000‑10GT2MS‑E | Same | None | Same | Same | Same specs under your brand |
| Ruijie RG‑S5000‑10GT2MS‑P‑E | 10 × 1 GbE (8 PoE+), 2× SFP | PoE+ (125 W) | 36 Gbps | ~27 Mpps | L2+, PoE+, RLDP, surge protect |
| NS‑S5000‑10GT2MS‑P‑E | Same | Same | Same | Same | Brand equivalent PoE model |
| Ruijie RG‑S5000‑24GT4MS‑E | 24 × 1 GbE, 4 × 2.5 GbE SFP | None | ~68 Gbps | ~51 Mpps | High-density, fanless, L2+/RIP |
| NS‑S5000‑24GT4MS‑E | Same | None | Same | Same | Voice identical, brand-labeled |
| Ruijie RG‑S5000‑48GT4MS‑E | 48 × 1 GbE, 4 × 2.5 GbE SFP | None | ~139 Gbps | ~104 Mpps | Larger port count, high throughput |
| NS‑S5000‑48GT4MS‑E | Same | None | Same | Same | Equivalent 48‑port version |
| Ruijie RG‑S5000‑24GT4MS‑P‑E | 24 × 1 GbE PoE+, 4×2.5 GbE SFP | PoE+ (370 W) | ~68 Gbps | ~51 Mpps | High-power PoE, RLDP, L2+, surge protect |
| NS‑S5000‑24GT4MS‑P‑E | Same | Same | Same | Same | PoE budget high, under your label |
Specifications
| Parameter | Specification |
| Model | RG-S5000-10GT2MS-P-E |
| Port Configuration | 10 x 10/100/1000BASE-T, 2 x SFP+ |
| PoE Support | Ports 1 to 8 support PoE/PoE+ (IEEE802.3af/at) power supply |
| Switching Capacity | 36 Gbps |
| Forwarding Rate | 27 Mpps |
| MAC Address Table | 16,000 entries |
| ARP Table Size | 512 |
| ND Table Size | 256 |
| IPv4 Unicast Routes | 64 |
| IPv6 Unicast Routes | 64 |
| Access Control Entries | 500 |
| Operating Temperature | 0°C to 45°C |
| Storage Temperature | -40°C to +70°C |
| Power Input | 100V to 240V AC, 50/60Hz |
| Dimensions | 260 mm x 170 mm x 43.6 mm |
| Weight | Approx. 2.5 kg |
| Mounting | 19-inch rack mount |
| Ingress Protection | IP40 (Protection from solid objects larger than 1mm) |
| ESD Protection | Air discharge: 8 kV / Contact discharge: 6 kV |
| Surge Protection | Service port: 10 kV / Power port: Common mode |
