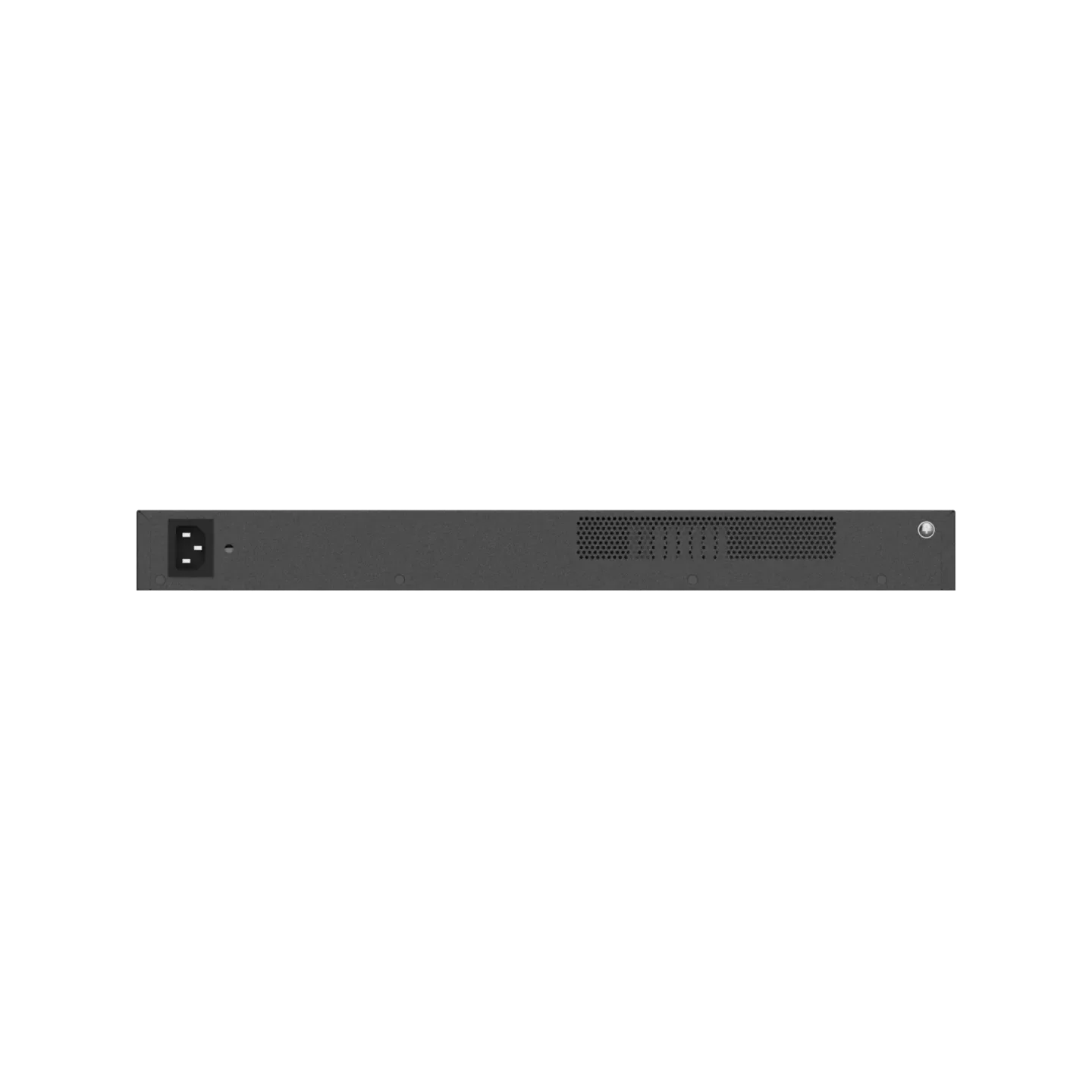

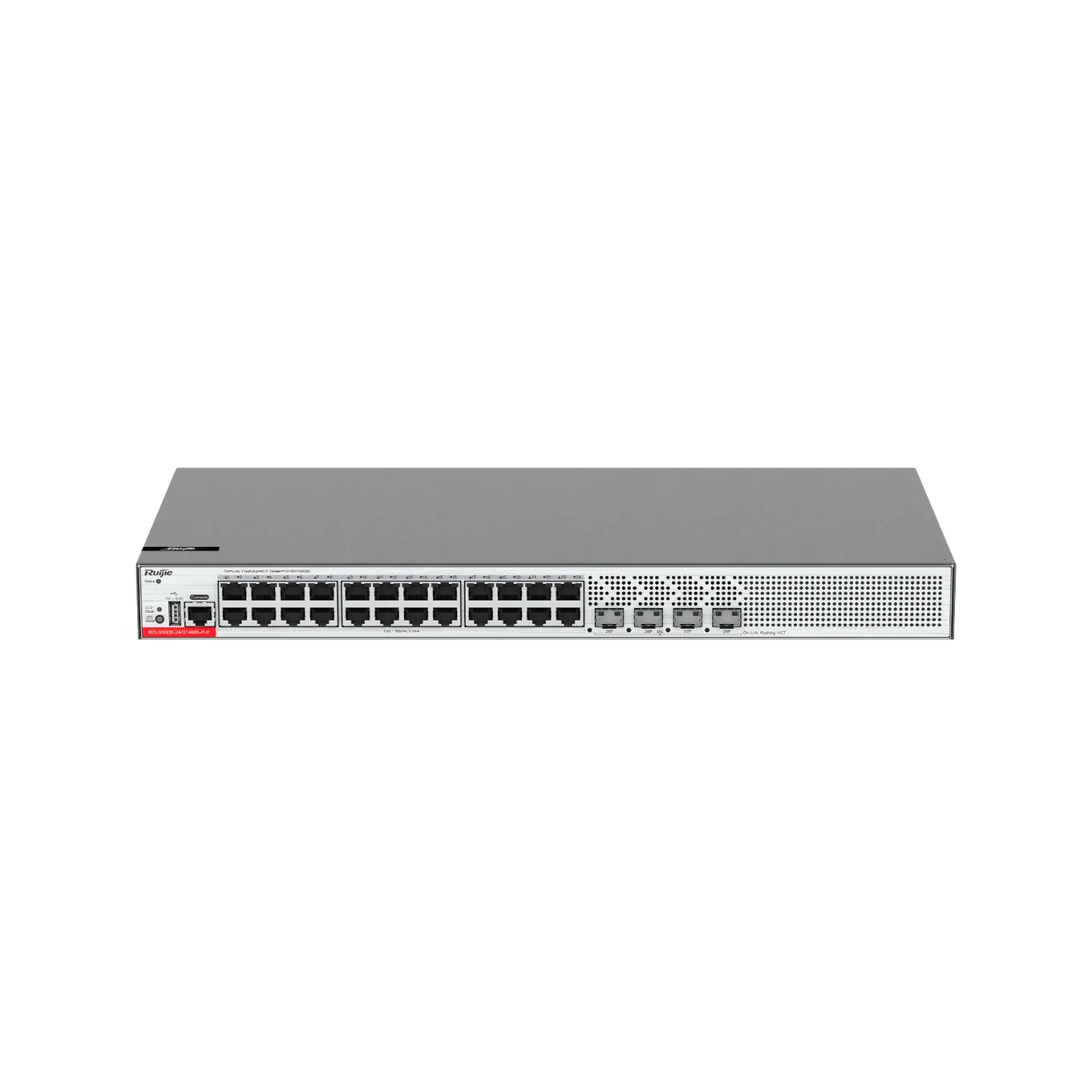

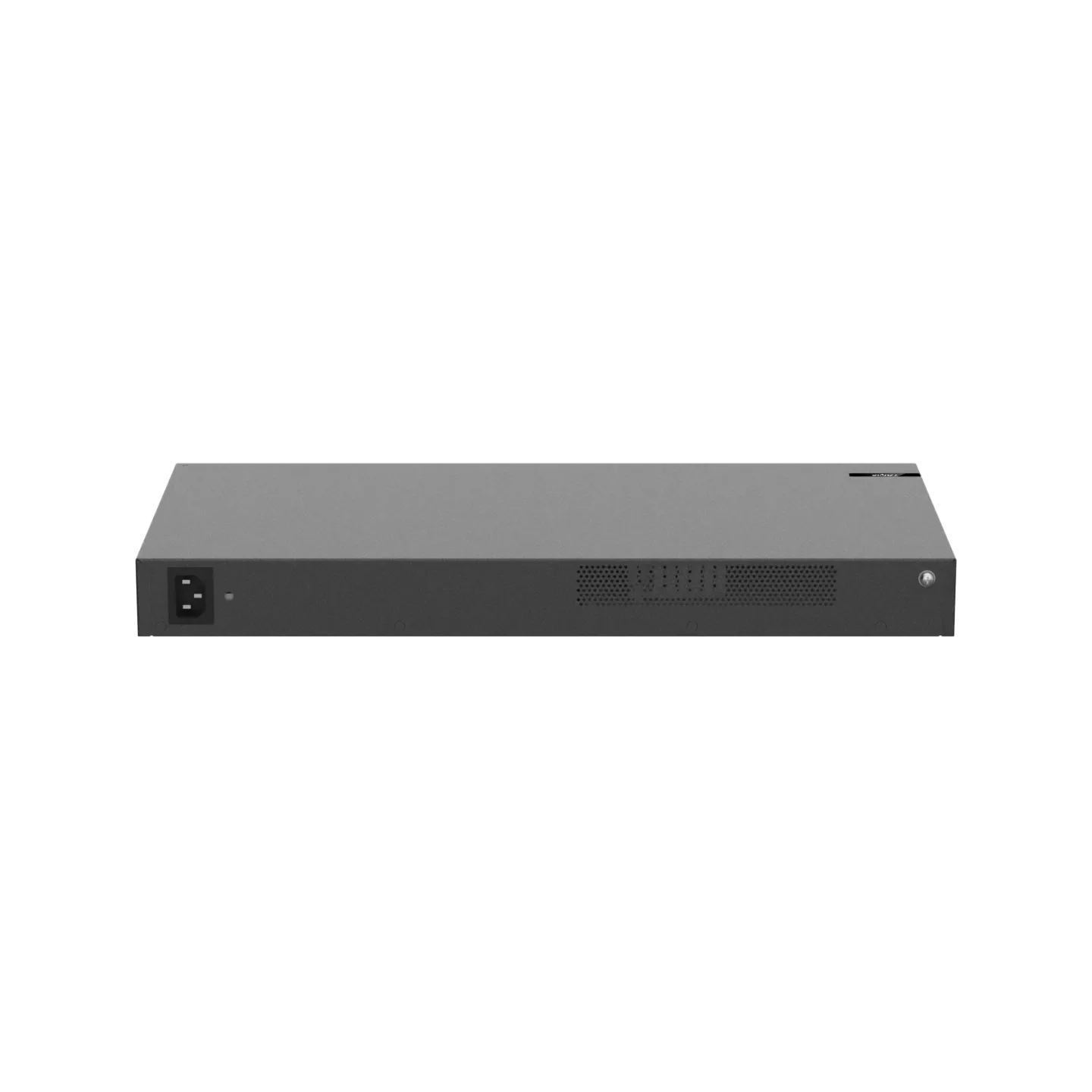

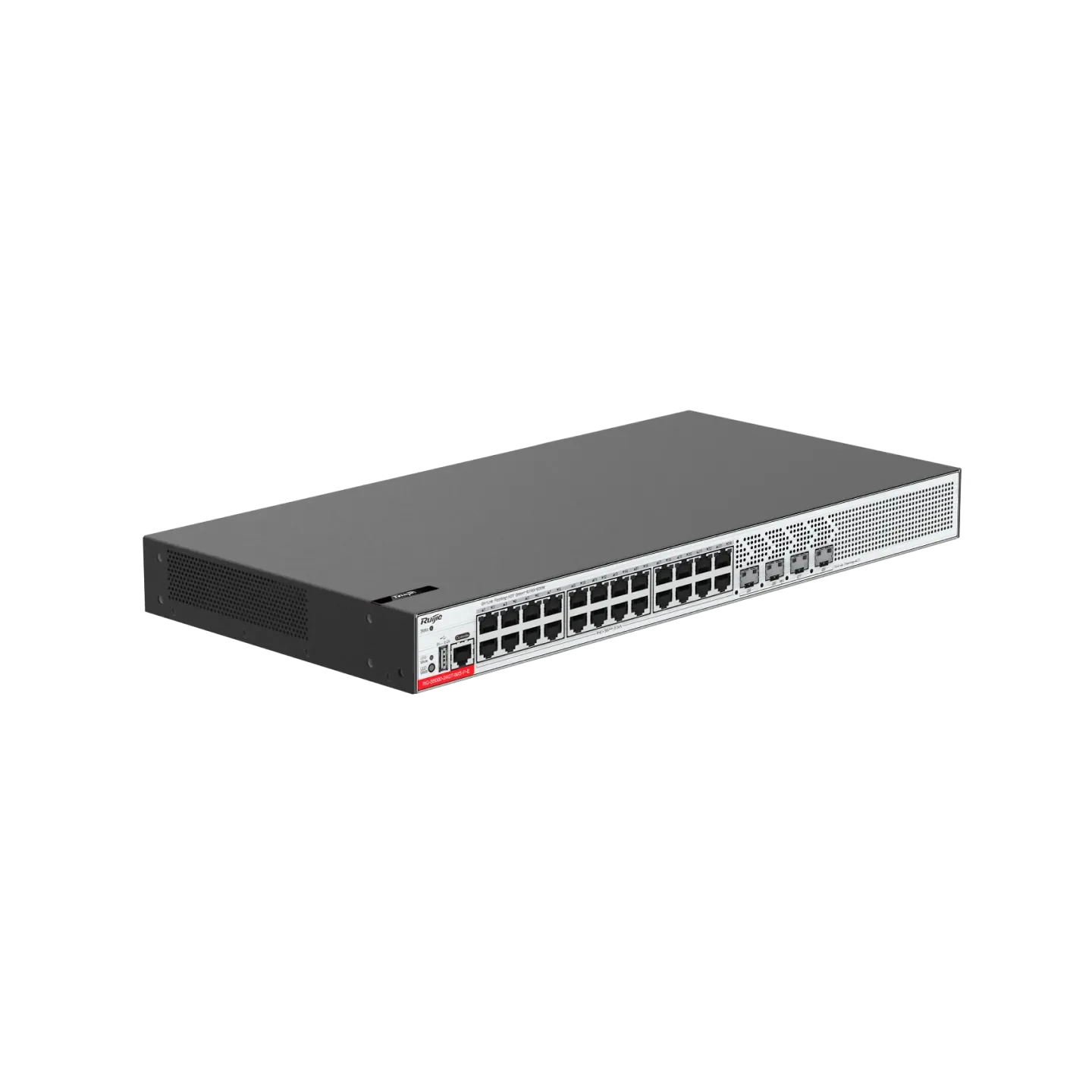

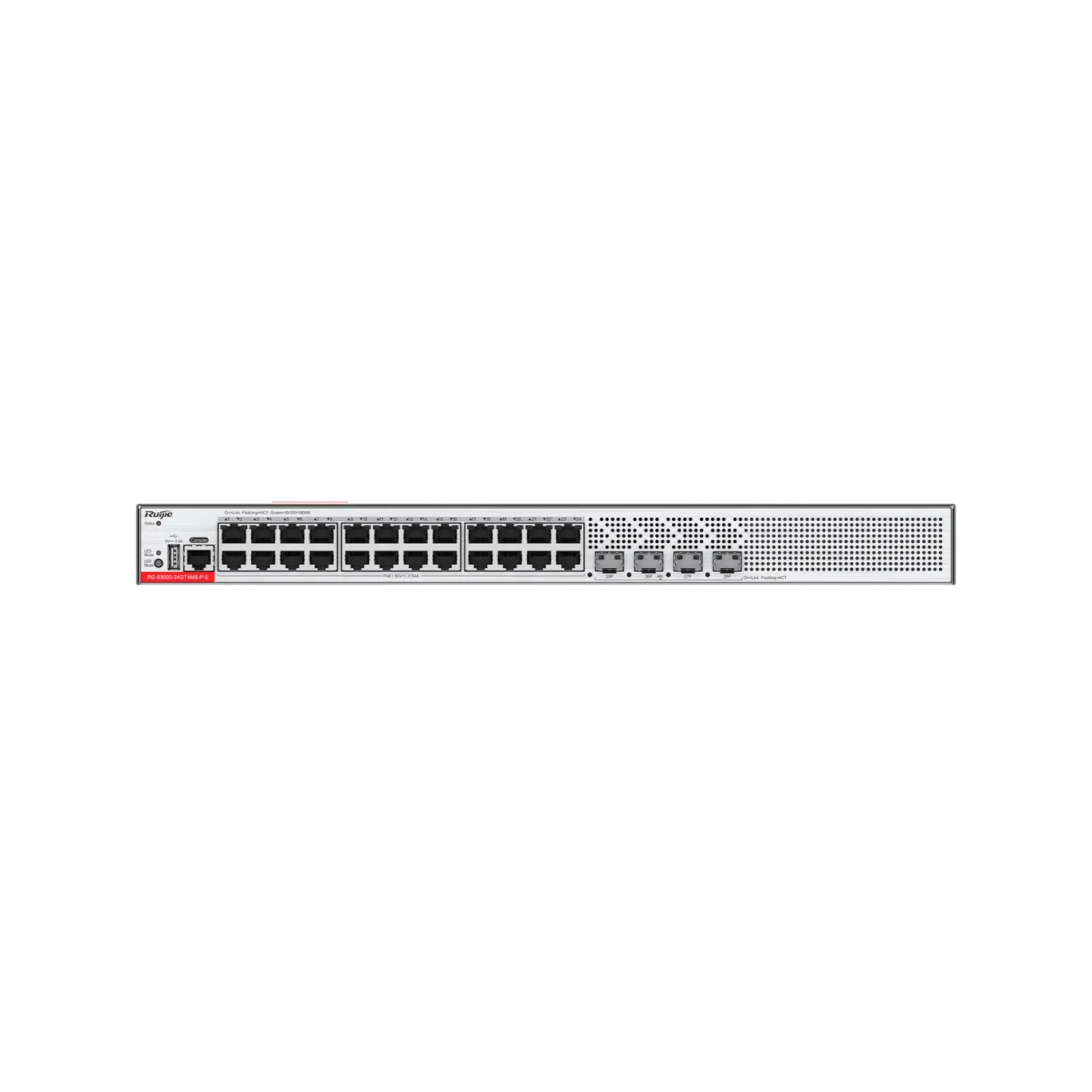

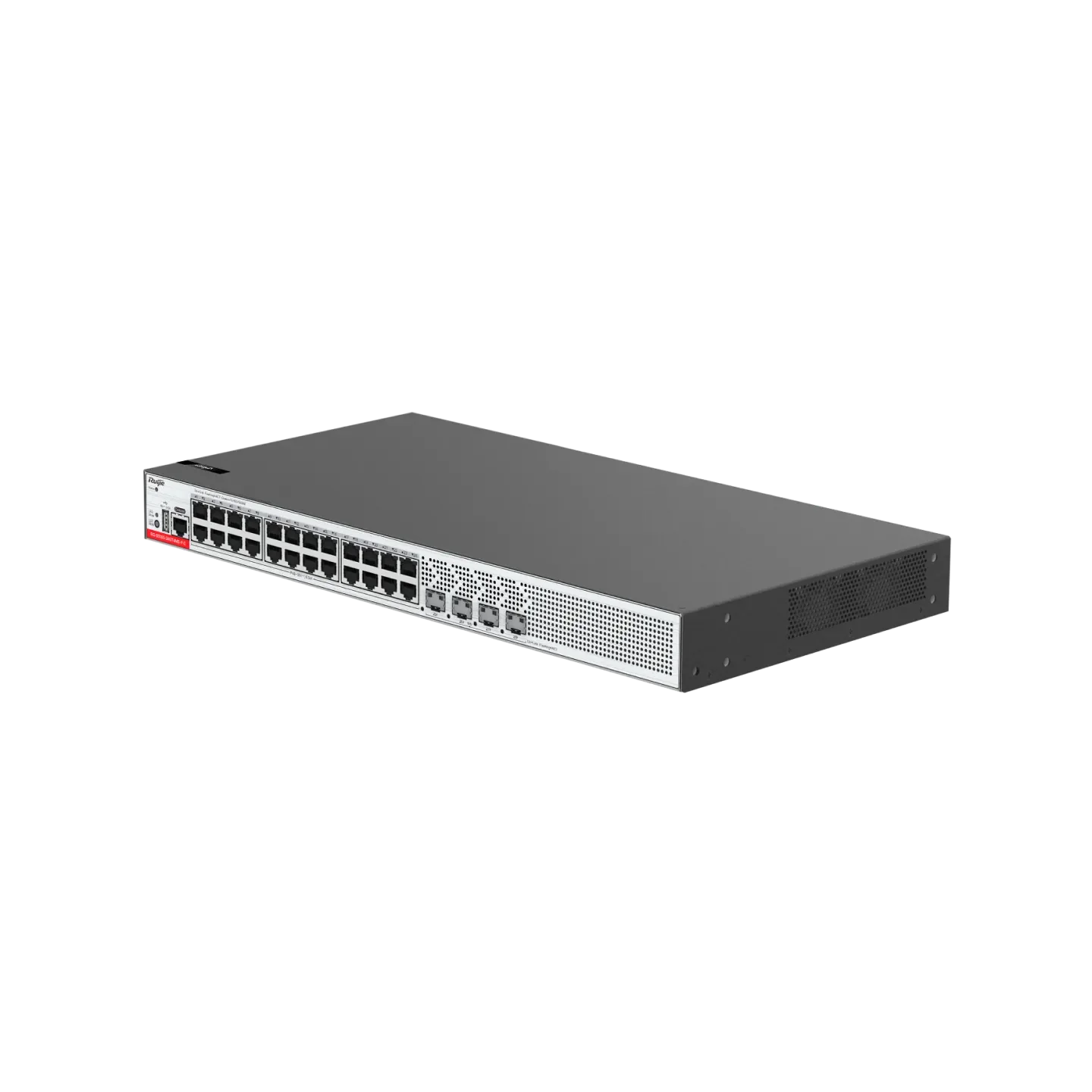

Ruijie RG-S5000-24GT4MS-P-E 24×1G PoE+ & 4×2.5G SFP Layer 2+ Switch
Ruijie RG-S5000-24GT4MS-P-E 24-Port Gigabit Layer 2+ Managed PoE+ Switch, 4x2.5 GE Uplink SFP, Essentials
The RG-S5000-24GT4MS-P-E is part of Ruijie’s Simplified Gigabit Switch (RG-S5000-E) Essentials series, tailored for wired, wireless, and mixed-media networks in university, hospital, government, and enterprise campus scenarios.
It offers 24 auto-negotiating 10/100/1000 BASE-T ports (ports 1–24; ports 1–8 supply PoE+/up to 30 W each) and four fixed SFP slots supporting 1 GbE or 2.5 GbE optics. Housed in a fanless, naturally-cooled IP 40 chassis with a built-in AC PSU, it delivers 82 Gbps non-blocking switching capacity and 61 Mpps forwarding.
As an L2+ switch, it supports static routing, RIP/RIPng, Rapid Link Detection Protocol (RLDP), industry-leading 10 kV port surge protection, and hardware CPU Protection Policy (CPP) plus Network Foundation Protection Policy (NFPP) to safeguard the control plane—all managed via Web GUI, CLI, SNMP v1/v2c/v3, RMON, or Ruijie Cloud.
Overview
Highlights
- High Switching Capacity: The RG-S5000-24GT4MS-P-E boasts a switching capacity of 82 Gbps and a forwarding rate of 61 Mpps, allowing it to handle high traffic loads with ease and ensuring smooth and uninterrupted network performance.
- PoE+ Support: Ports 1-24 can supply IEEE 802.3af/at PoE/PoE+ with up to 30 W per port for terminal power supply needs (e.g. VoIP phone, wireless access point, IP camera).
- The RG-S5000-24GT4MS-P-E is an 24 Gigabit Ethernet ports and 4 SFP+ uplink ports router.
- Pros: Supports advanced security features such as IEEE 802.1X authentication, IP Source Guard, and Dynamic ARP Inspection to prevent unauthorized access and security attacks.
- Extensive Management: The switch supports SNMP, Web, and CLI management interfaces which offer simple configuration, monitoring, and maintenance for network administrators.
Recommended Accessories
Here are some compatible accessories to enhance the functionality of the Ruijie RG-S5000-24GT4MS-P-E:
| Product Name | Category | Description |
| Ruijie RG-PA240-48 | Power Supply Units |
240W DIN-Rail AC/DC power supply, suitable for industrial switches like the RG-S5000-24GT4MS-P-E. |
| Ruijie RG-PA120-48 | Power Supply Units |
120W DIN-Rail AC/DC power supply, offering a compact solution for smaller setups. |
|
MokerLink 1U Rack Mount Kit |
Rack Mount Kits |
Compatible with 19-inch switches, including the RG-S5000-24GT4MS-P-E, facilitating secure rack installation. |
| Ruijie XG-SFP-SR-MM850 | SFP Transceivers |
10G SFP+ transceiver with 850nm wavelength, suitable for short-range fiber connections. |
| Ruijie XG-SFP-LR-SM1310 | SFP Transceivers |
10G SFP+ transceiver with a 1310nm wavelength, designed for long-range single-mode fiber links. |
Comparison with Similar Models
| Model | Downlinks | Uplinks | Routing | PoE+ | Capacity / Forwarding |
|---|---|---|---|---|---|
| RG-S5000-24GT4MS-P-E | 24×1 GbE (8 PoE+) | 4×1/2.5 GbE SFP | Static, RIP | Yes | 82 Gbps / 61 Mpps |
| RG-S5000-10GT2MS-P-E | 10×1 GbE (8 PoE+) | 2×1/2.5 GbE SFP | Static, RIP | Yes | 30 Gbps / 22.5 Mpps |
| RG-S5000-24GT4MS-E | 24×1 GbE (no PoE) | 4×1/2.5 GbE SFP | Static, RIP | No | 68 Gbps / 51 Mpps |
| RG-S5000-48GT4MS-P-E | 48×1 GbE (30 W/port PoE+) | 4×1/2.5 GbE SFP | Static, RIP | Yes | 139 Gbps / 104 Mpps |
| Model | Ports (Access / Uplink) | PoE Support | Capacity | Forward Rate | Key Features |
|---|---|---|---|---|---|
| Ruijie RG‑S5000‑10GT2MS‑E | 10 × 1 GbE, 2 × 2.5 GbE SFP | None | 36 Gbps | ~27 Mpps | L2+, RLDP, 10 kV protection |
| NS‑S5000‑10GT2MS‑E | Same | None | Same | Same | Same specs under your brand |
| Ruijie RG‑S5000‑10GT2MS‑P‑E | 10 × 1 GbE (8 PoE+), 2× SFP | PoE+ (125 W) | 36 Gbps | ~27 Mpps | L2+, PoE+, RLDP, surge protect |
| NS‑S5000‑10GT2MS‑P‑E | Same | Same | Same | Same | Brand equivalent PoE model |
| Ruijie RG‑S5000‑24GT4MS‑E | 24 × 1 GbE, 4 × 2.5 GbE SFP | None | ~68 Gbps | ~51 Mpps | High-density, fanless, L2+/RIP |
| NS‑S5000‑24GT4MS‑E | Same | None | Same | Same | Voice identical, brand-labeled |
| Ruijie RG‑S5000‑48GT4MS‑E | 48 × 1 GbE, 4 × 2.5 GbE SFP | None | ~139 Gbps | ~104 Mpps | Larger port count, high throughput |
| NS‑S5000‑48GT4MS‑E | Same | None | Same | Same | Equivalent 48‑port version |
| Ruijie RG‑S5000‑24GT4MS‑P‑E | 24 × 1 GbE PoE+, 4×2.5 GbE SFP | PoE+ (370 W) | ~68 Gbps | ~51 Mpps | High-power PoE, RLDP, L2+, surge protect |
| NS‑S5000‑24GT4MS‑P‑E | Same | Same | Same | Same | PoE budget high, under your label |
Specifications
| Parameter | Specification |
| Model | RG-S5000-24GT4MS-P-E |
| Port Configuration | 24 x 10/100/1000BASE-T, 4 x SFP+ |
| PoE Support | Ports 1 to 24 support PoE/PoE+ (IEEE802.3af/at) power supply |
| Switching Capacity | 82 Gbps |
| Forwarding Rate | 61 Mpps |
| MAC Address Table | 16,000 entries |
| ARP Table Size | 512 |
| ND Table Size | 256 |
| IPv4 Unicast Routes | 64 |
| IPv6 Unicast Routes | 64 |
| Access Control Entries | 500 |
| Operating Temperature | 0°C to 45°C |
| Storage Temperature | -40°C to +70°C |
| Power Input | 100V to 240V AC, 50/60Hz |
| Dimensions | 440 mm x 220 mm x 43.6 mm |
| Weight | Approx. 2.5 kg |
| Mounting | 19-inch rack mount |
| Ingress Protection | IP40 (Protection from solid objects larger than 1mm) |
| ESD Protection | Air discharge: 8 kV / Contact discharge: 6 kV |
| Surge Protection | Service port: 10 kV / Power port: Common mode |
