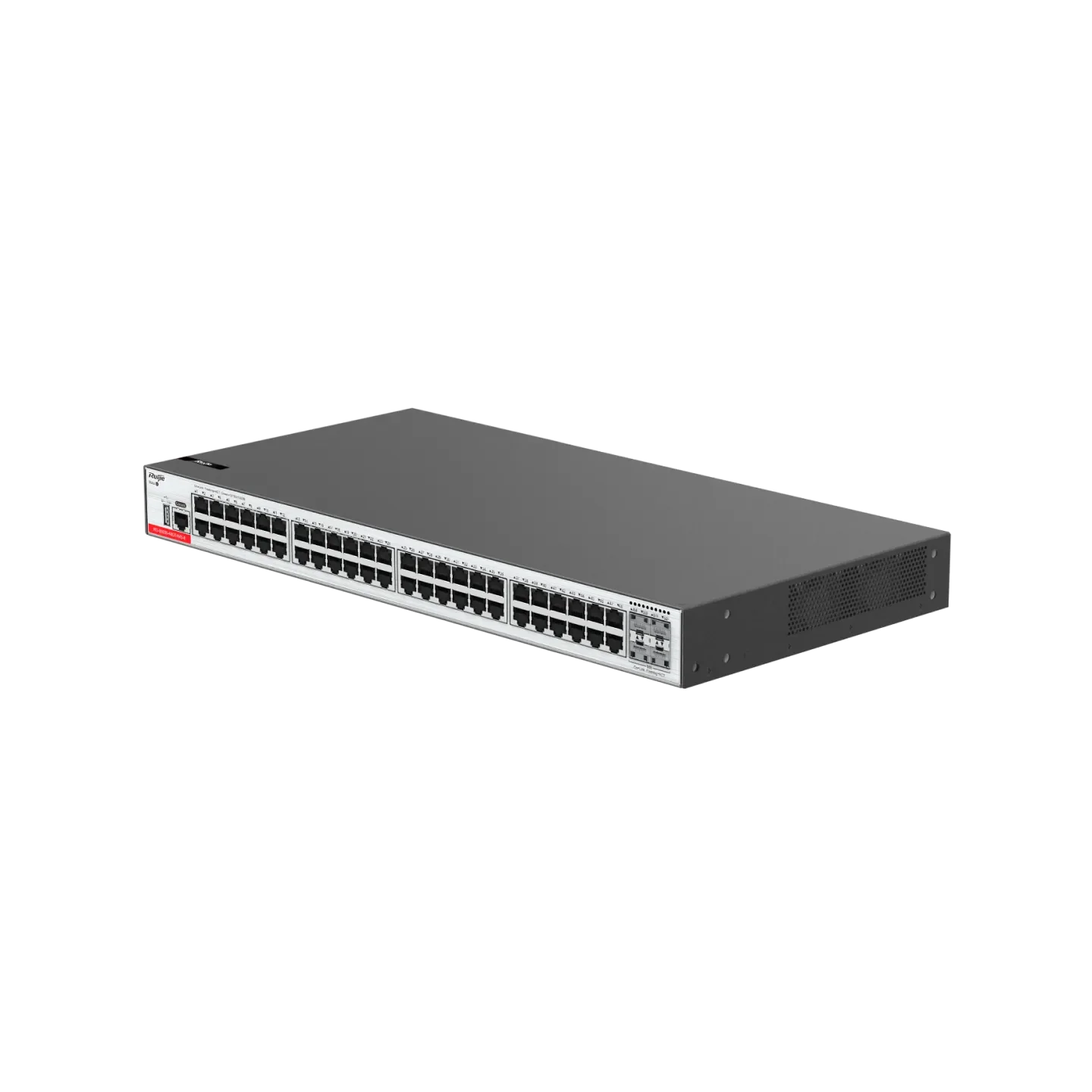

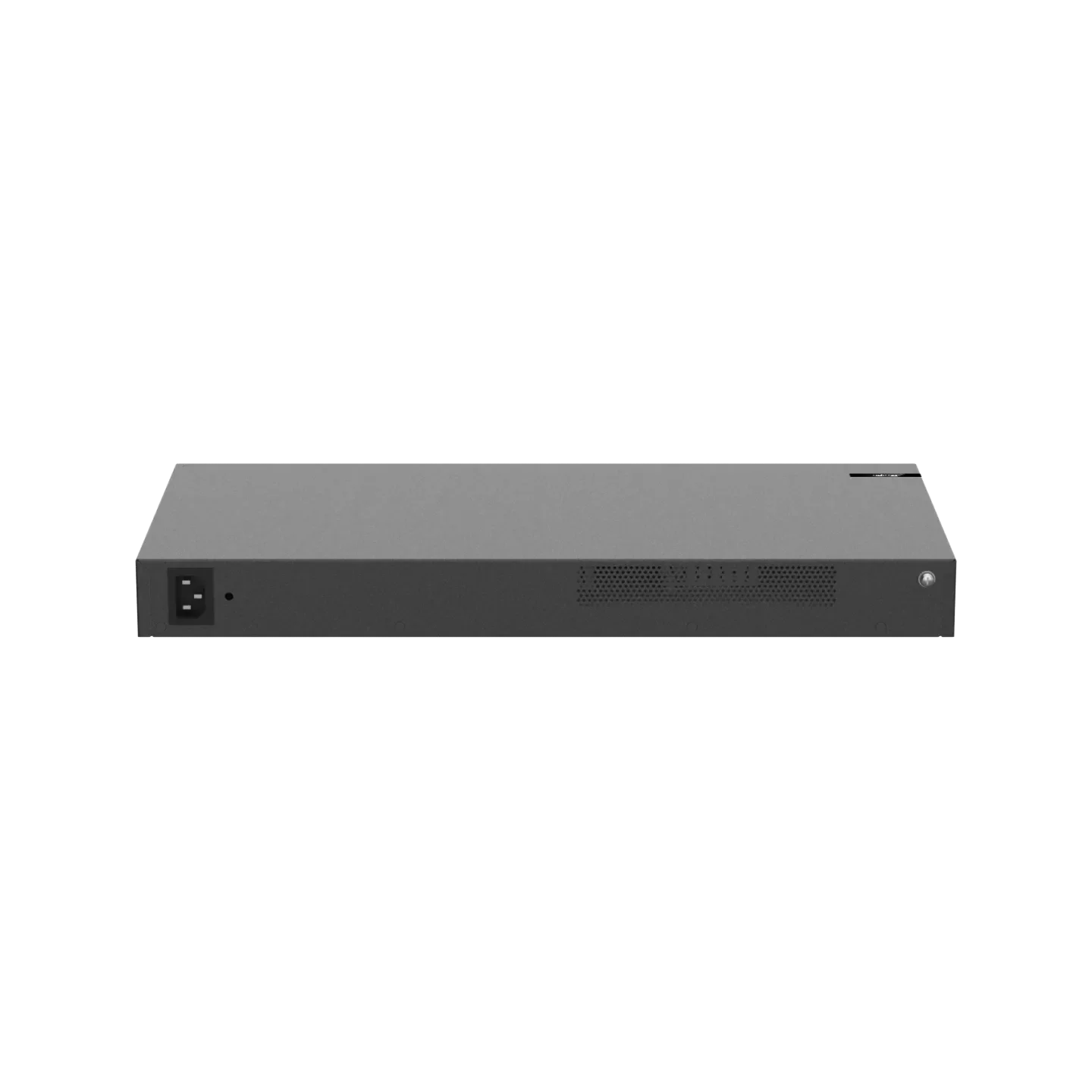

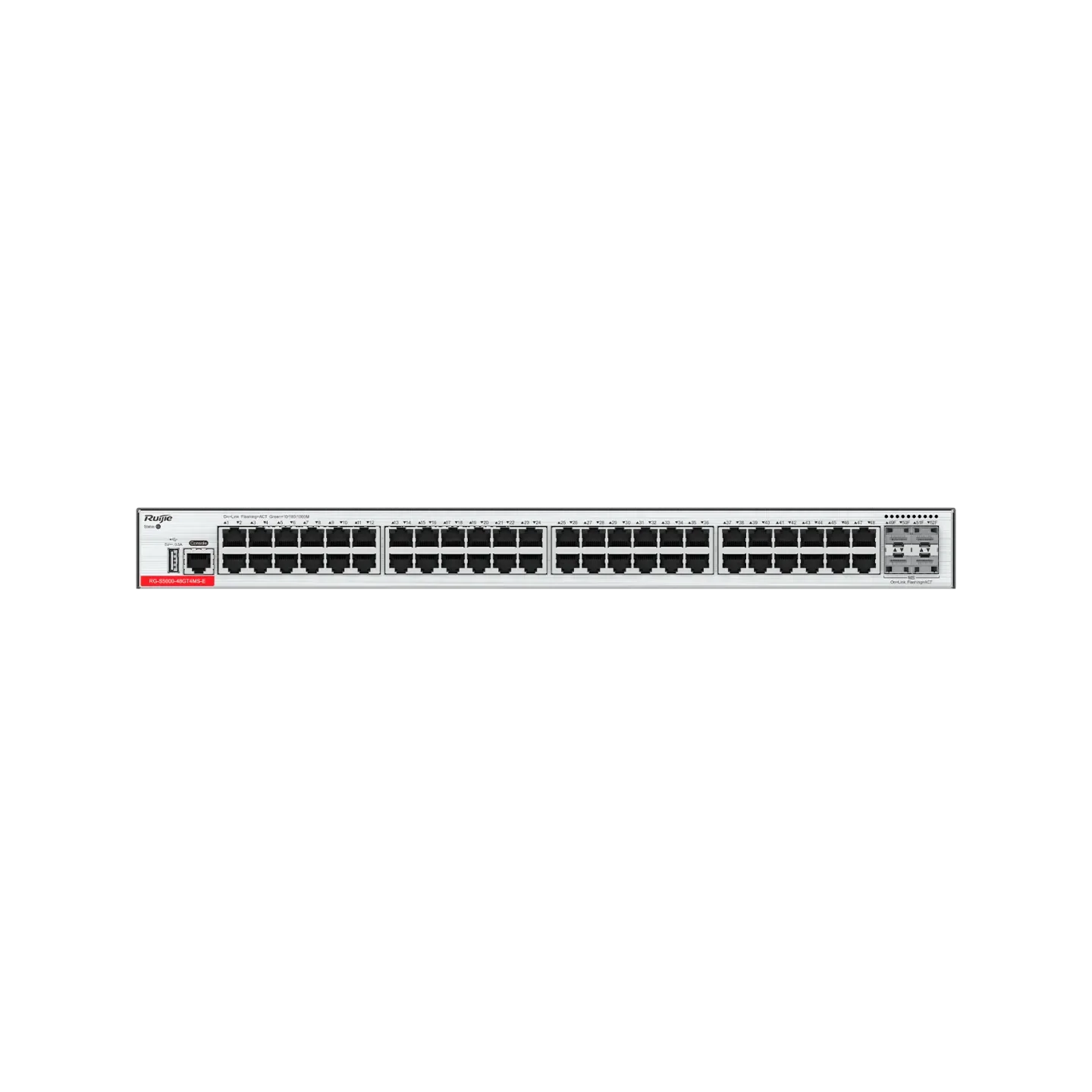

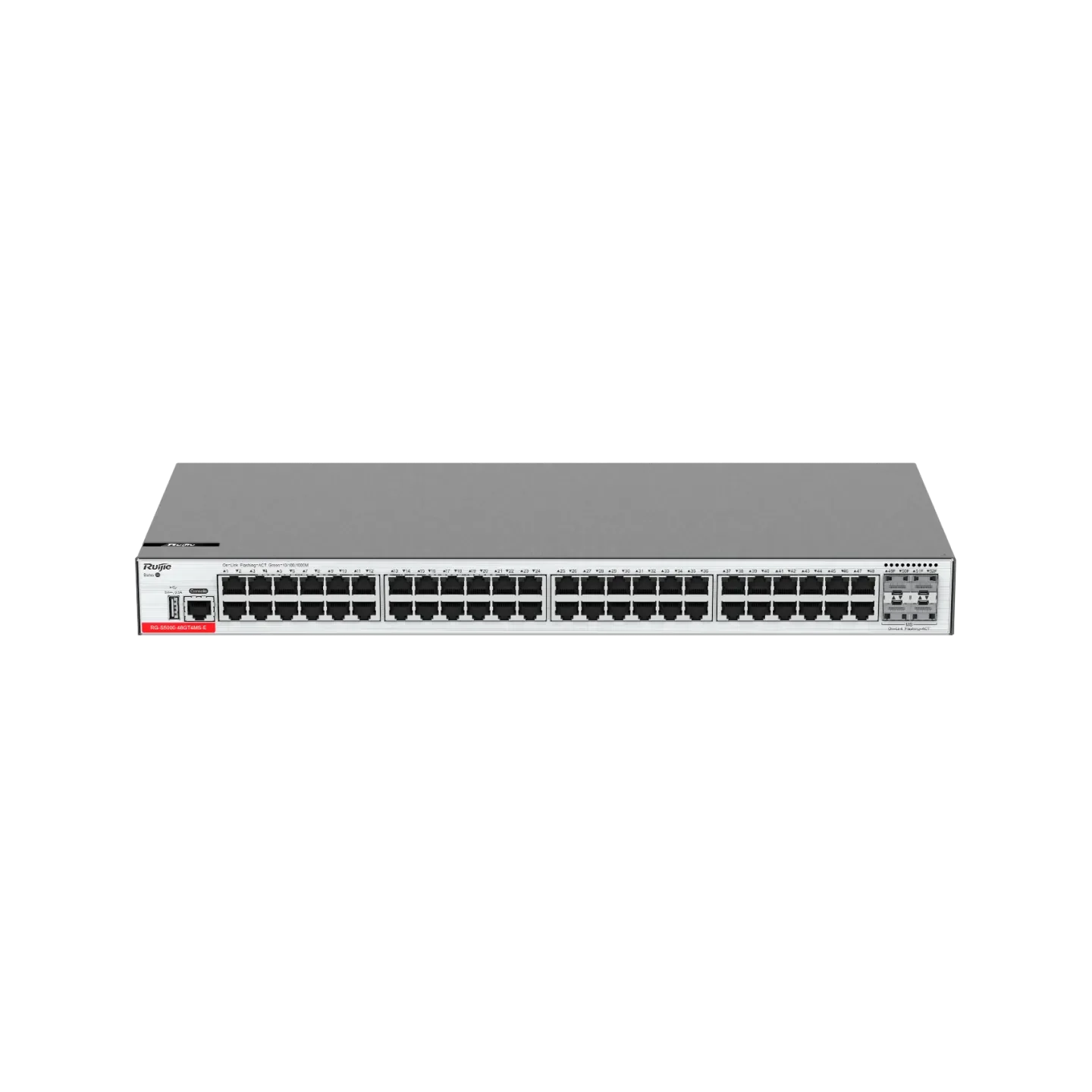

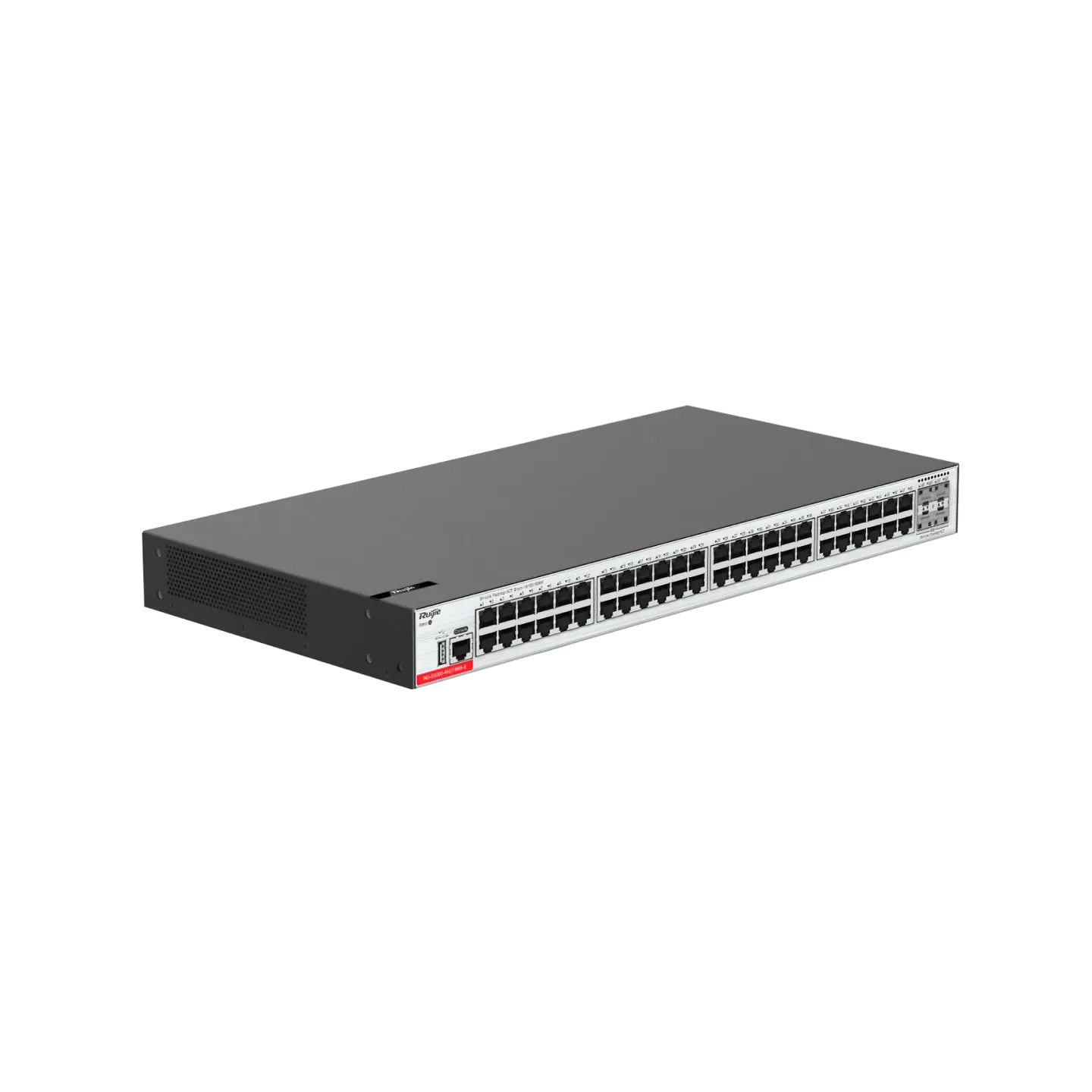

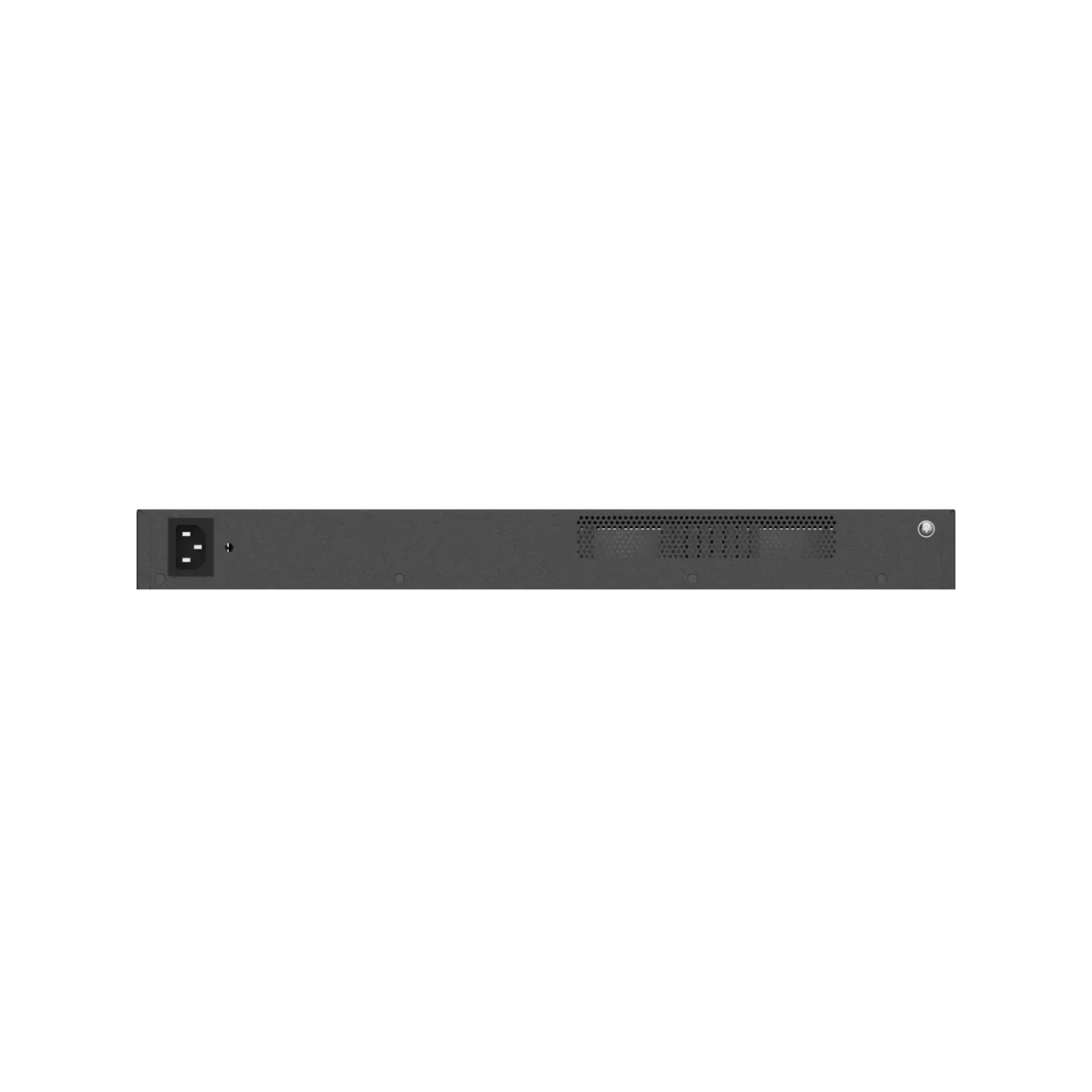

Ruijie RG-S5000-48GT4MS-E 48×1G & 4×2.5G SFP Layer 2+ Switch
Ruijie RG-S5000-48GT4MS-E 48-Port Gigabit Layer 2+ Managed Switch with 4×2.5 GE Uplink SFP, Essentials
The RG-S5000-48GT4MS-E belongs to Ruijie’s Simplified Gigabit Switch (RG-S5000-E) Essentials series, tailored for enterprise and campus edge access. It offers 48 auto-negotiating 10/100/1000 BASE-T ports plus four fixed SFP slots supporting 1 GbE or 2.5 GbE modules, all housed in a silent, naturally-cooled, IP40 chassis.
As an L2+ switch, it supports static routing and RIP, Rapid Link Detection Protocol (RLDP) for unidirectional-link detection, and up to 10 kV common-mode surge protection on all ports.
Hardware CPU Protection Policy (CPP) and Network Foundation Protection Policy (NFPP) guard the control plane, while IEEE 802.3az Energy-Efficient Ethernet ensures low power consumption.
Overview
Highlights
- Switching Capacity: 139 Gbps; Forwarding Rate: 104 Mpps. RG-S5000-48GT4MS-E support high forwarding rate, so the port queue is less, which mean high switching capacity, the network packet loss rate is much lower.
- Extended Working Temperature: 0°C to 45°C operating temperature, applicable for industrial and enterprise POP for use.
- Compatibility and Versatility: The RG-S5000-48GT4MS-E features 48 Gigabit Ethernet ports and 4 SFP+ uplink ports, ensuring that it can meet the needs of a variety of network topologies and traffic requirements.
- Enhanced locking up Forced Security (IEEE 802.1X locking up, IP Source Guard, Dynamic ARP Inspection).
- The switch provides SNMP, Web, and CLI management interfaces for configuration, monitoring, and maintenance of the network, giving flexibility to network administrators.
Recommended Accessories
Here are some compatible accessories to enhance the functionality of the Ruijie RG-S5000-48GT4MS-E:
| Product Name | Category | Description |
| Ruijie RG-PA240-48 | Power Supply Units |
240W DIN-Rail AC/DC power supply, suitable for industrial switches like the RG-S5000-48GT4MS-E. |
| Ruijie RG-PA120-48 | Power Supply Units |
120W DIN-Rail AC/DC power supply, offering a compact solution for smaller setups. |
| MokerLink 1U Rack Mount Kit | Rack Mount Kits |
Compatible with 19-inch switches, including the RG-S5000-48GT4MS-E, facilitating secure rack installation. |
| Ruijie XG-SFP-SR-MM850 | SFP Transceivers |
10G SFP+ transceiver with 850nm wavelength, suitable for short-range fiber connections. |
| Ruijie XG-SFP-LR-SM1310 | SFP Transceivers |
10G SFP+ transceiver with a 1310nm wavelength, designed for long-range single-mode fiber links. |
Comparison with Similar Models
| Model | Downlinks | Uplinks | Routing | PoE | Capacity |
|---|---|---|---|---|---|
| RG-S5000-48GT4MS-E | 48×10/100/1000 BASE-T | 4×1/2.5 GbE SFP | Static, RIP | No | 116 Gbps / 87 Mpps |
| RG-S5000-24GT4MS-E | 24×10/100/1000 BASE-T | 4×1/2.5 GbE SFP | Static, RIP | No | 68 Gbps / 51 Mpps |
| RG-S5000-48GT4MS-P-E | 48×10/100/1000 BASE-T + PoE+ (370 W) | 4×1/2.5 GbE SFP | Static, RIP | Yes | 116 Gbps / 87 Mpps |
| Model | Ports (Access / Uplink) | PoE Support | Capacity | Forward Rate | Key Features |
|---|---|---|---|---|---|
| Ruijie RG‑S5000‑10GT2MS‑E | 10 × 1 GbE, 2 × 2.5 GbE SFP | None | 36 Gbps | ~27 Mpps | L2+, RLDP, 10 kV protection |
| NS‑S5000‑10GT2MS‑E | Same | None | Same | Same | Same specs under your brand |
| Ruijie RG‑S5000‑10GT2MS‑P‑E | 10 × 1 GbE (8 PoE+), 2× SFP | PoE+ (125 W) | 36 Gbps | ~27 Mpps | L2+, PoE+, RLDP, surge protect |
| NS‑S5000‑10GT2MS‑P‑E | Same | Same | Same | Same | Brand equivalent PoE model |
| Ruijie RG‑S5000‑24GT4MS‑E | 24 × 1 GbE, 4 × 2.5 GbE SFP | None | ~68 Gbps | ~51 Mpps | High-density, fanless, L2+/RIP |
| NS‑S5000‑24GT4MS‑E | Same | None | Same | Same | Voice identical, brand-labeled |
| Ruijie RG‑S5000‑48GT4MS‑E | 48 × 1 GbE, 4 × 2.5 GbE SFP | None | ~139 Gbps | ~104 Mpps | Larger port count, high throughput |
| NS‑S5000‑48GT4MS‑E | Same | None | Same | Same | Equivalent 48‑port version |
| Ruijie RG‑S5000‑24GT4MS‑P‑E | 24 × 1 GbE PoE+, 4×2.5 GbE SFP | PoE+ (370 W) | ~68 Gbps | ~51 Mpps | High-power PoE, RLDP, L2+, surge protect |
| NS‑S5000‑24GT4MS‑P‑E | Same | Same | Same | Same | PoE budget high, under your label |
Specifications
| Parameter | Specification |
| Model | RG-S5000-48GT4MS-E |
| Port Configuration | 48 x 10/100/1000BASE-T, 4 x SFP+ |
| PoE Support | Not supported |
| Switching Capacity | 139 Gbps |
| Forwarding Rate | 104 Mpps |
| MAC Address Table | 16,000 entries |
| ARP Table Size | 512 |
| ND Table Size | 256 |
| IPv4 Unicast Routes | 64 |
| IPv6 Unicast Routes | 64 |
| Access Control Entries | 500 |
| Operating Temperature | 0°C to 45°C |
| Storage Temperature | -40°C to +70°C |
| Power Input | 100V to 240V AC, 50/60Hz |
| Dimensions | 440 mm x 220 mm x 43.6 mm |
| Weight | Approx. 2.8 kg |
| Mounting | 19-inch rack mount |
| Ingress Protection | IP40 (Protection from solid objects larger than 1mm) |
| ESD Protection | Air discharge: 8 kV / Contact discharge: 6 kV |
| Surge Protection | Service port: 10 kV / Power port: Common mode 6 kV, Differential mode 2 kV |
| Management | Supports SNMP, Web, and CLI management, compatible with Ruijie Cloud management platform |
| MTBF | >200,000 hours |
