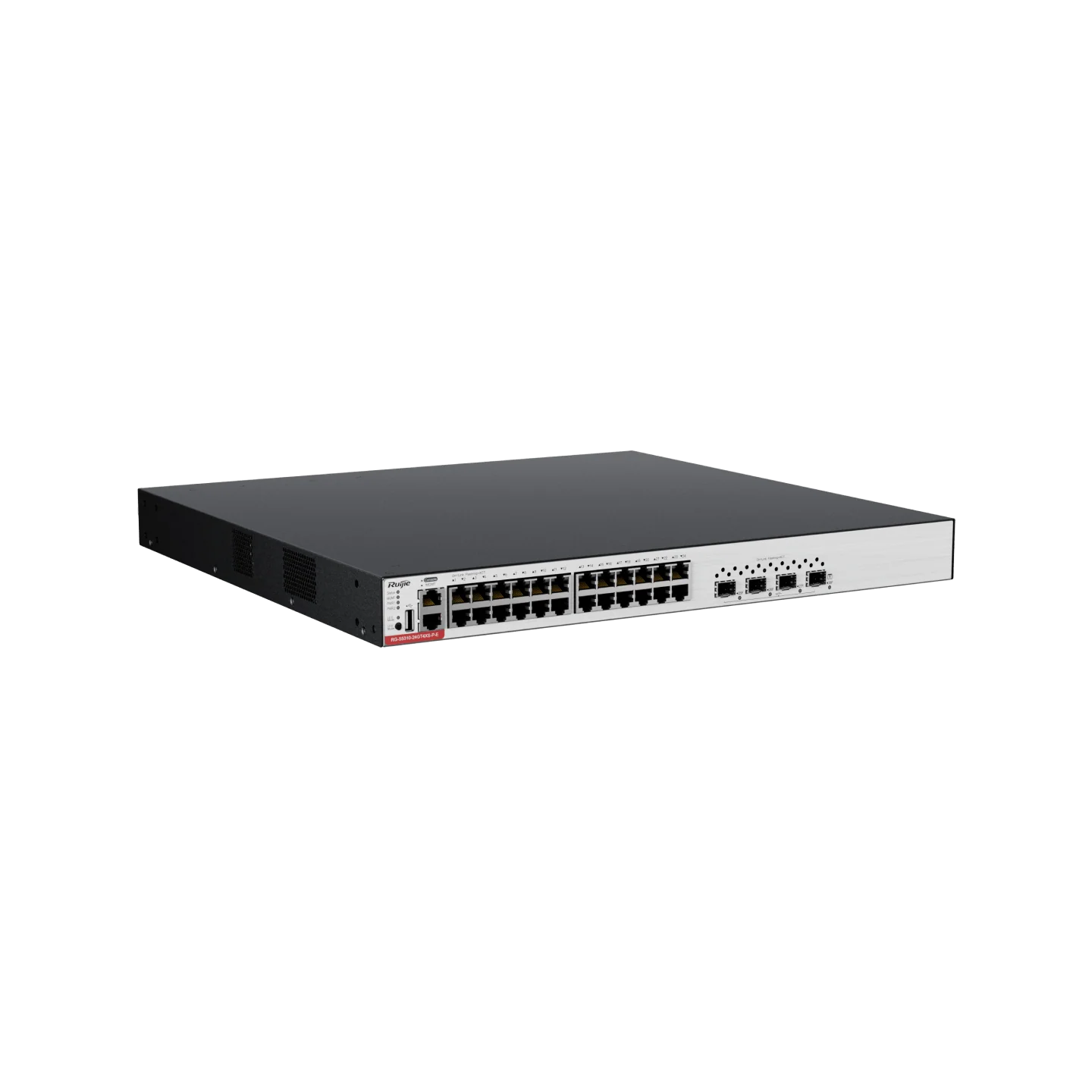

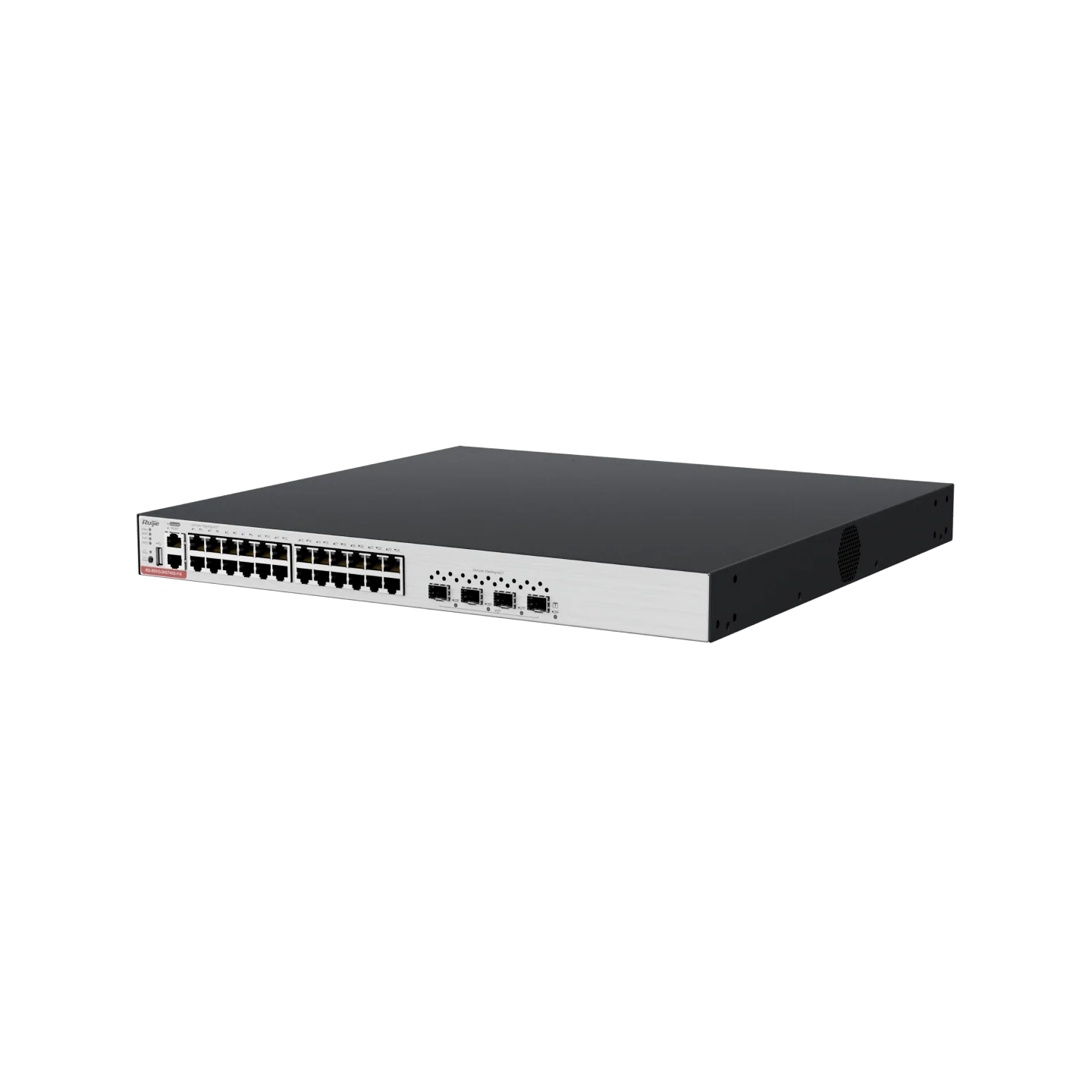

Ruijie RG-S5310-24GT4XS-P-E 24×1G PoE+ & 4×10G SFP+ Layer 3 Switch
Ruijie RG-S5310-24GT4XS-P-E 24-Port GE Layer 3 Access Switch with PoE+, 4×10 GE SFP+ Uplinks
The RG-S5310-24GT4XS-P-E from Ruijie’s S5310-E Essentials series delivers high-density, high-performance Layer 3 access for large-sized enterprise and campus networks. It features 24 auto-negotiating 10/100/1000 BASE-T ports with PoE/PoE+ (up to 30 W per port) and four fixed SFP+ uplinks supporting both 1 GE and 10 GE modules.
Housed in a 1 RU chassis with two hot-swappable power-module slots (up to 740 W PoE budget with RG-PA1000I-P-F or 370 W with RG-PA600I-P-F), it runs Ruijie’s RGOS Essentials, supports VSU virtualization for up to four switches, and integrates CPU Protection Policy (CPP) and Network Foundation Protection (NFPP) for robust security and control-plane stability. Centralized O&M is enabled via Ruijie INC or Cloud.
Overview
Highlights
- High Switching Capacity: RG-S5310-24GT4XS-P-E is equipped with154G switching capacity and 115M forwarding rate, effectively accommodating high traffic loads, thus ensuring realization of smooth and uninterrupted networks.
- PoE+ PSE on Ports 1 to 24: Support IEEE 802.3af/at Power over Ethernet (PoE/PoE+) PSE power supply, up to 30 W each port can supply poer to terminals such as VoIP phones, wireless access points and IP cameras.
- Multi Gig-Access: The RG-S5310-24GT4XS-P-E has 24 Gigabit Ethernet ports and supports 4 SFP+ uplink ports. Its flexible and multi-gig-access ensures that customers deploy a wide range of devices in various network topologies.
- Ubiquitous Security Features: Providing IEEE 802.1X authentication, IP Source Guard, and Dynamic ARP Inspection, the RG-S5310-24GT4XS-P-E ensures your network is protected from unauthorized access and security threats.
- Comprehensive Management: Multiple management interfaces of this switch (SNMP, Web, and CLI) help you quickly configure, monitor, and maintain Coverge network administrators.
Recommended Accessories
Here are some compatible accessories to enhance the functionality of the Ruijie RG-S5310-24GT4XS-P-E:
| Product Name | Category | Description |
| Ruijie RG-PA150IB-F | Power Supply Units |
150W AC power supply module, suitable for industrial switches like the RG-S5310-24GT4XS-P-E. |
| Ruijie RG-PD150IB-F | Power Supply Units |
150W DC power supply module, offering a compact solution for smaller setups. |
| Ruijie RG-PA600I-P-F | Power Supply Units |
600W AC power supply module, providing higher power output for demanding applications. |
| MokerLink 1U Rack Mount Kit | Rack Mount Kits |
Compatible with 19-inch switches, including the RG-S5310-24GT4XS-P-E, facilitating secure rack installation. |
| Ruijie XG-SFP-SR-MM850 | SFP Transceivers |
10G SFP+ transceiver with 850nm wavelength, suitable for short-range fiber connections. |
Comparison with Similar Models
| Model | Downlinks | Uplinks | PoE Budget | Capacity / Forwarding |
|---|---|---|---|---|
| RG-S5310-24GT4XS-P-E | 24×1 GE PoE+ (10/100/1000 BASE-T) | 4×1 GE/10 GE SFP+ | 740 W / 370 W | 154 Gbps / 115 Mpps |
| RG-S5310-24GT4XS-E | 24×1 GE (10/100/1000 BASE-T) | 4×1 GE/10 GE SFP+ | None | 154 Gbps / 115 Mpps |
| RG-S5310-48GT4XS-P-E | 48×1 GE PoE+ | 4×1 GE/10 GE SFP+ | 1 440 W | 211 Gbps / 158 Mpps |
| RG-S5310-24SFP4XS-P-E | 24×1 GE SFP | 4×1 GE/10 GE SFP+ | 740 W / 370 W | 154 Gbps / 115 Mpps |
| Model | Downlinks | Uplinks | PoE | Capacity | Forwarding | Brand |
|---|---|---|---|---|---|---|
| Ruijie RG‑S5310‑24GT4XS‑E | 24 × 1 GbE | 4 × 10 Gbps SFP+ | No | 208 Gbps | 155 Mpps | Ruijie |
| Network‑Switch NS‑S5310‑24GT4XS‑E | 24 × 1 GbE | 4 × 10 Gbps SFP+ | No | 208 Gbps | 155 Mpps | Network‑Switch (OEM) |
| Ruijie RG‑S5310‑48GT4XS‑E | 48 × 1 GbE | 4 × 10 Gbps SFP+ | No | 176 Gbps | 131 Mpps | Ruijie |
| Network‑Switch NS‑S5310‑48GT4XS‑E | 48 × 1 GbE | 4 × 10 Gbps SFP+ | No | 176 Gbps | 131 Mpps | Network‑Switch |
| Ruijie RG‑S5310‑24SFP4XS‑E | 24 × SFP (1 Gbps) | 4 × 10 Gbps SFP+ | No | 208 Gbps | 155 Mpps | Ruijie |
| Network‑Switch NS‑S5310‑24SFP4XS‑E | 24 × SFP (1 Gbps) | 4 × 10 Gbps SFP+ | No | 208 Gbps | 155 Mpps | Network‑Switch |
| Ruijie RG‑S5310‑48SFP4XS‑E | 48 × SFP (1 Gbps) | 4 × 10 Gbps SFP+ | No | 176 Gbps | 131 Mpps | Ruijie |
| Network‑Switch NS‑S5310‑48SFP4XS‑E | 48 × SFP (1 Gbps) | 4 × 10 Gbps SFP+ | No | 176 Gbps | 131 Mpps | Network‑Switch |
| Ruijie RG‑S5310‑24GT4XS‑P‑E | 24 × 1 GbE (PoE+) | 4 × 10 Gbps SFP+ | PoE+ (740W) | 208 Gbps | 155 Mpps | Ruijie |
| Network‑Switch NS‑S5310‑24GT4XS‑P‑E | 24 × 1 GbE (PoE+) | 4 × 10 Gbps SFP+ | PoE+ (740W) | 208 Gbps | 155 Mpps | Network‑Switch |
| Ruijie RG‑S5310‑48GT4XS‑P‑E | 48 × 1 GbE (PoE+) | 4 × 10 Gbps SFP+ | PoE+ (1,480W) | 211 Gbps | 158 Mpps | Ruijie |
| Network‑Switch NS‑S5310‑48GT4XS‑P‑E | 48 × 1 GbE (PoE+) | 4 × 10 Gbps SFP+ | PoE+ (1,480W) | 211 Gbps | 158 Mpps | Network‑Switch |
Specifications
| Parameter | Specification |
| Model | RG-S5310-24GT4XS-P-E |
| Port Configuration | 24 x 10/100/1000BASE-T, 4 x 1G/10G SFP+ |
| PoE Support | Ports 1 to 24 support PoE/PoE+ (IEEE802.3af/at) power supply |
| Switching Capacity | 154 Gbps |
| Forwarding Rate | 115 Mpps |
| MAC Address Table | 32,000 entries |
| ARP Table Size | 4K |
| ND Table Size | 2K |
| IPv4 Unicast Routes | 8K |
| IPv6 Unicast Routes | 4K |
| ACL Entries | Ingress: 3,500; Egress: 1,500 |
| Operating Temperature | 0°C to 45°C |
| Storage Temperature | -40°C to +70°C |
| Power Input | AC: 100V to 240V, 50/60Hz |
| Maximum Power Consumption | 65 W (without PoE load); 810 W (full PoE load) |
| Dimensions (W x D x H) | 442 mm x 420 mm x 43.6 mm |
| Weight | 4.3 kg |
| Mounting | 19-inch rack mount |
| Ingress Protection | IP40 (Protection from solid objects larger than 1mm) |
