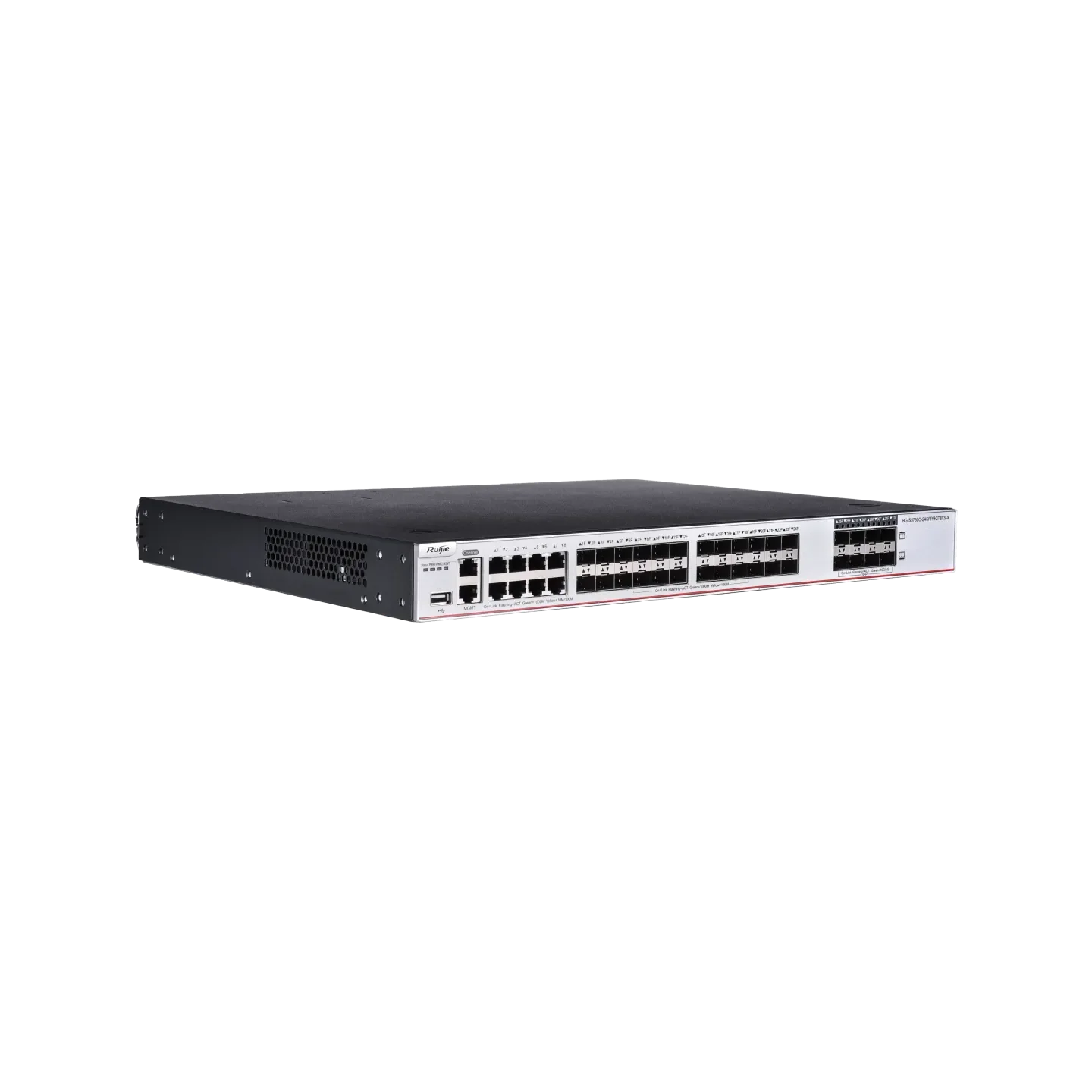

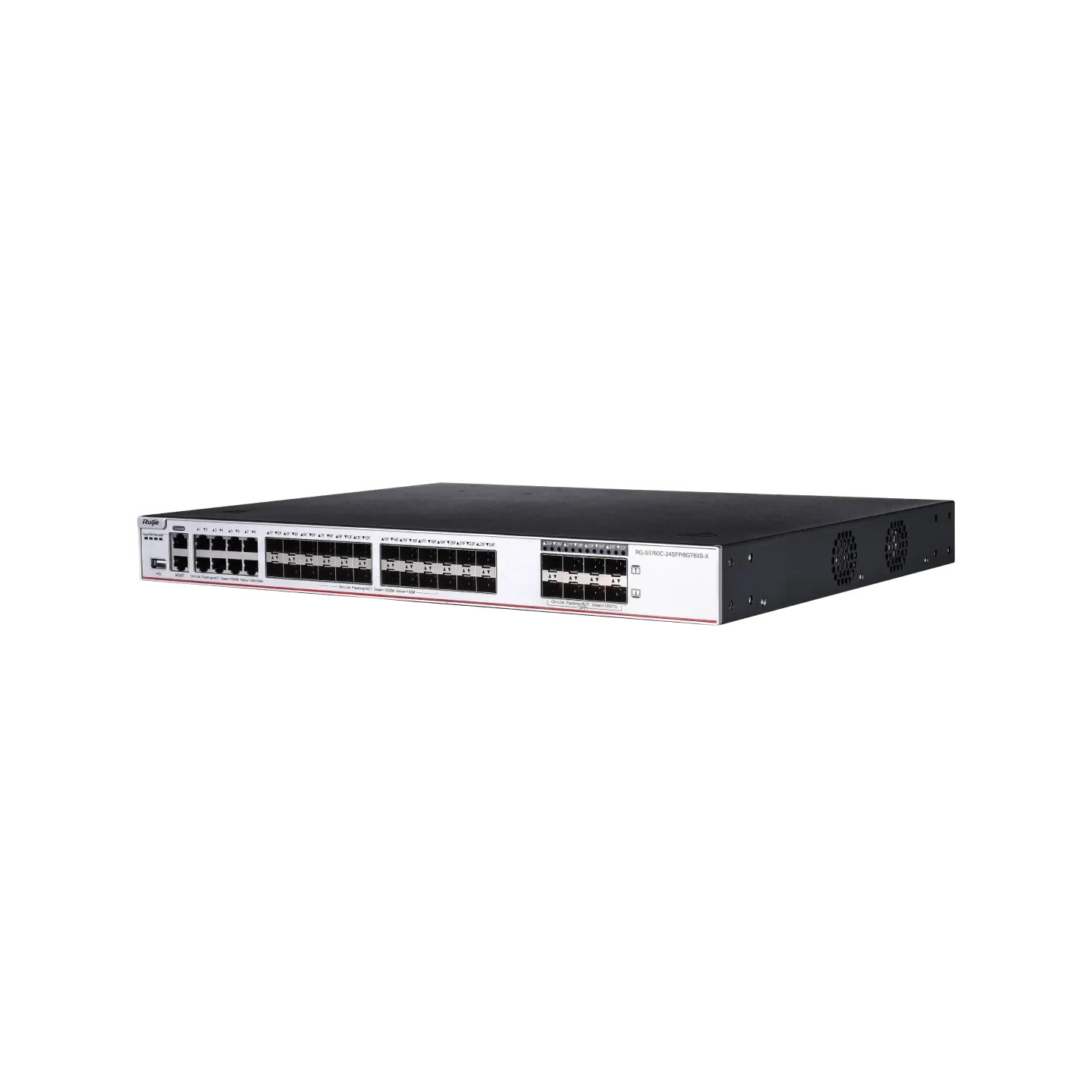

Ruijie RG-S5760C-24SFP/8GT8XS-X 24×SFP/8×GE + 8×10G SFP+ Switch
Ruijie RG-S5760C-24SFP/8GT8XS-X 1 RU 24×1 Gb SFP + 8×Combo + 8×1/10 Gb SFP+ Core/Aggregation Switch
The Ruijie RG-S5760C-24SFP/8GT8XS-X is an advanced enterprise-level Layer 3 managed switch for application in campus networks.
With its 24 × 1GE SFP ports (8 combo ports are built in) and 8 × 1GE/10GE SFP+ uplink ports, you have flexible and scalable connectivity options.
It offers features like Virtual Switch Unit (VSU) virtualization, extensive Layer 3 routing protocols, and powerful security policies, making it suitable for aggregation layers of medium- to large-scale networks.
Overview
Highlights
- High-Density Port Configuration: Provides 24 × 1GE SFP ports (including 8 combo ports) and 8 × 1GE/10GE SFP+ uplink ports, supporting flexible deployment options.
- VSU Virtualization: Supports Virtual Switch Unit (VSU) technology, allowing multiple physical switches to operate as a single logical unit, simplifying network management and enhancing reliability.
- Advanced Layer 3 Routing: Offers comprehensive Layer 3 routing protocols, including static routing, RIP, OSPF, IS-IS, and BGP, supporting both IPv4 and IPv6 networks.
- Robust Security Features: Incorporates multiple security mechanisms such as ACLs, DHCP Snooping, ARP inspection, and support for SSH and SNMPv3 for secure management.
- High Reliability: Features hot-swappable power modules with redundancy, ensuring continuous operation and service reliability.
- Efficient Management: Supports various management methods, including CLI, web-based management, Telnet, and integration with Ruijie’s INC for simplified operations and maintenance.
Recommended Accessories
Here are some compatible accessories to enhance the functionality of the Ruijie RG-S5760C-24SFP/8GT8XS-X:
| Product Model | Category | Description |
| RG-PA150IB-F | Power Supply Module | 150W AC power supply module, supporting hot-swapping and redundancy. |
| RG-PD150IB-F | Power Supply Module | 150W DC power supply module, supporting hot-swapping and redundancy. |
| M5000X-4XS2CQ | Expansion Module | 4 × 10GE SFP+ ports and 2 × 100GE QSFP28 ports, enhancing uplink capacity. |
| MINI-GBIC-GT | Optical Transceiver | 1000BASE-GT mini GBIC module for copper connections. |
| MINI-GBIC-SX-MM850 | Optical Transceiver | 1000BASE-SX mini GBIC module (LC connector), 850 nm, up to 550 m over MMF. |
| MINI-GBIC-LX-SM1310 | Optical Transceiver | 1000BASE-LX mini GBIC module (LC connector), 1310 nm, up to 10 km over SMF. |
| XG-SFP-SR-MM850 | Optical Transceiver | 10GE SR module, SFP+ form factor, LC connector, 850 nm, up to 300 m over OM3 MMF. |
| XG-SFP-LR-SM1310 | Optical Transceiver | 10GE LR module, SFP+ form factor, LC connector, 1310 nm, up to 10 km over SMF. |
Comparison with Similar Models
| Model | Fixed / Uplink Ports | Switching Capacity | Packet Forwarding Rate |
|---|---|---|---|
| RG-S5760C-24GT8XS-X | 24×10/100/1000 BASE-T + 8×1G/10 Gb SFP+ | 880 Gbps / 7.92 Tbps | 426 Mpps / 600 Mpps |
| RG-S5760C-24SFP/8GT8XS-X | 24×1 Gb SFP + 8×10/100/1000 BASE-T (combo) + 8×1/10 Gb SFP+ | 880 Gbps / 7.92 Tbps | 426 Mpps / 600 Mpps |
| RG-S5760C-48GT4XS-X | 48×10/100/1000 BASE-T + 4×1 Gb/10 Gb SFP+ | 880 Gbps / 7.92 Tbps | 402 Mpps / 600 Mpps |
Specifications
| Parameter | Specification |
| Model | RG-S5760C-24SFP/8GT8XS-X |

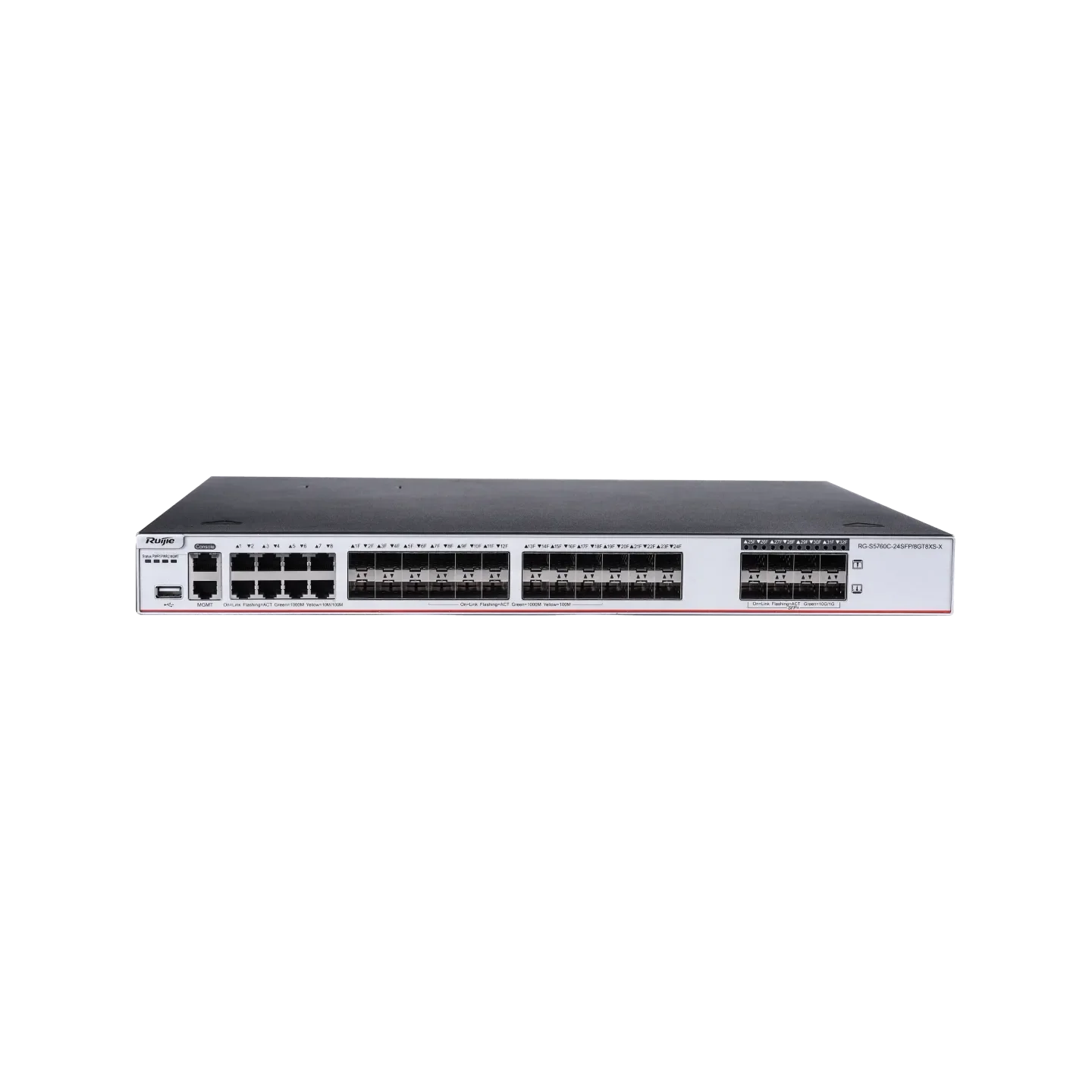

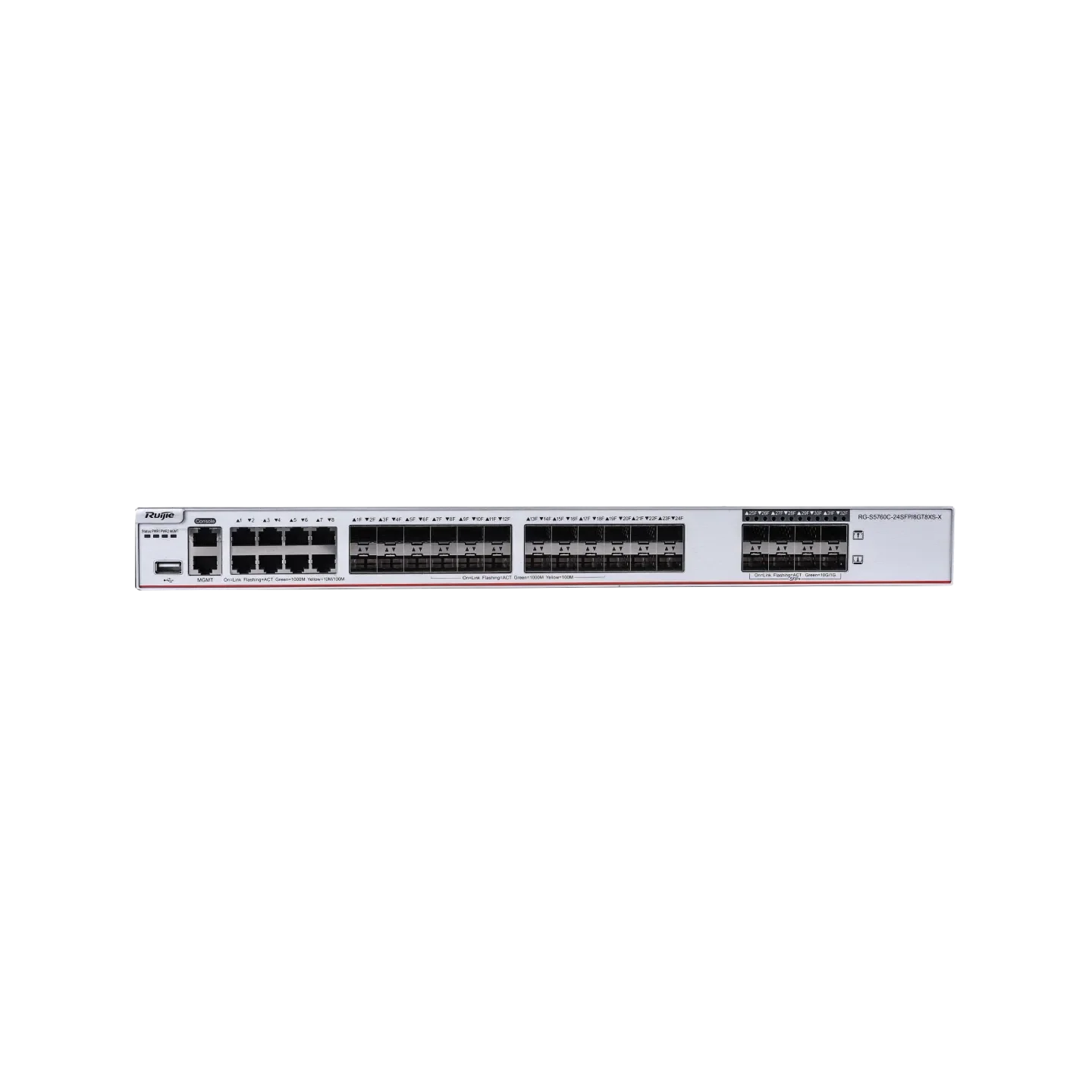

| Service Ports | 24 × 1GE SFP ports (Ports 1–16 support 100/1000 Mbps; Ports 17–24 support 1000 Mbps only), including 8 combo ports |
| Uplink Ports | 8 × 1GE/10GE SFP+ |
| Switching Capacity | 688 Gbps |
| Packet Forwarding Rate | 512 Mpps |
| MAC Address Table | 64,000 entries |
| ARP Table Size | 24,000 entries |
| IPv4 Unicast Routes | 24,000 entries |
| IPv6 Unicast Routes | 14,000 entries |
| IPv4 Multicast Routes | 4,000 entries |
| IPv6 Multicast Routes | 2,000 entries |

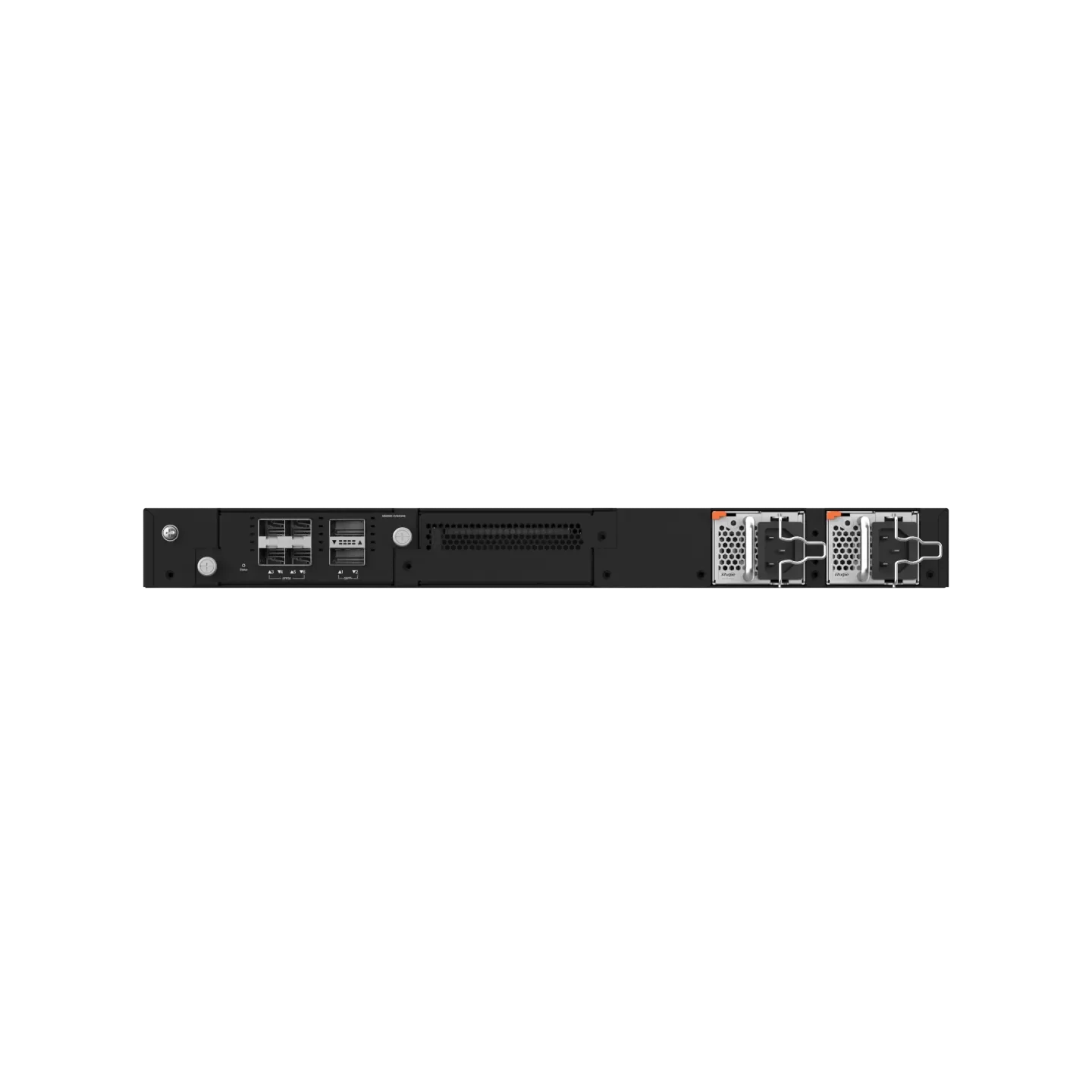

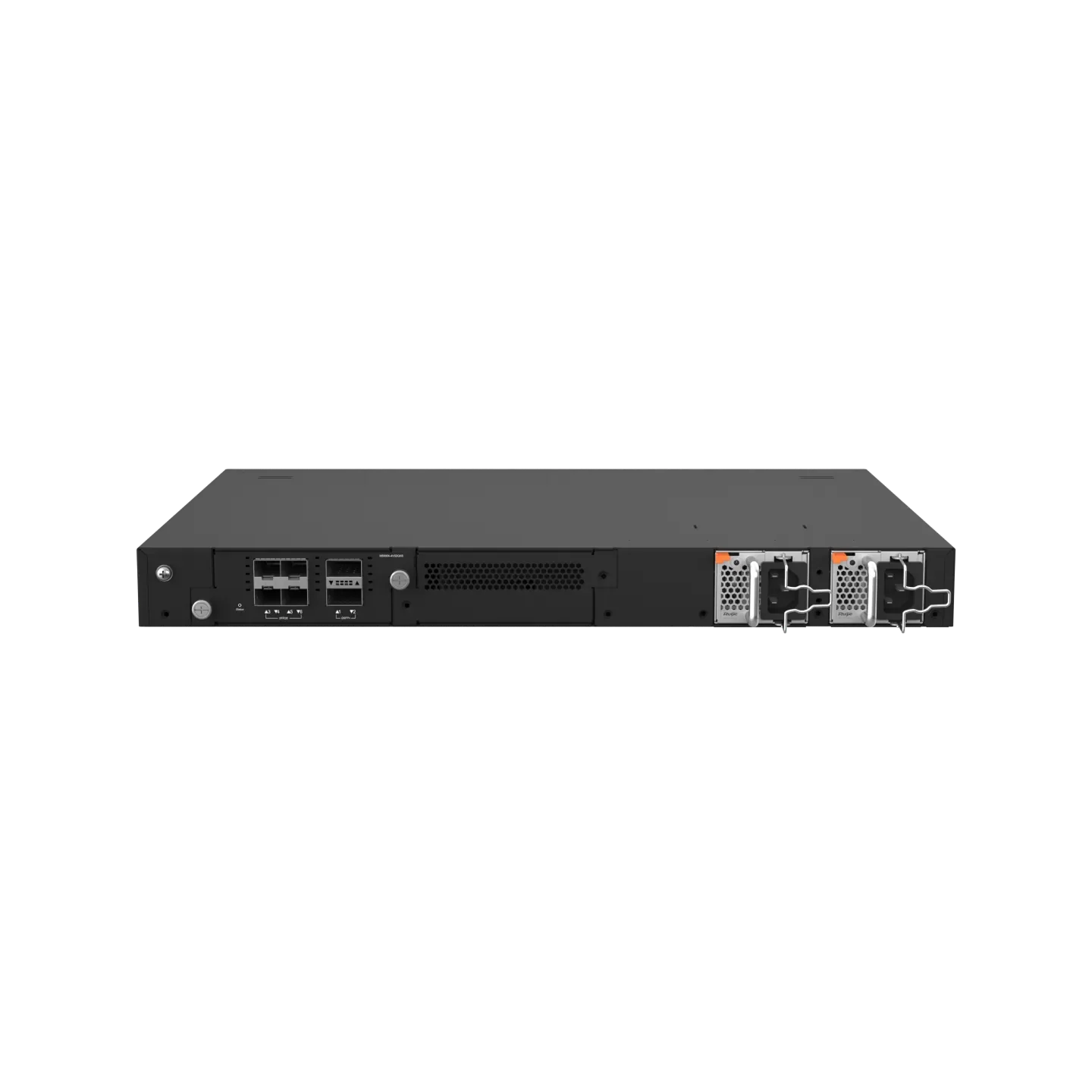

| Power Module Slots | 2 (supporting 1+1 redundancy) |
| Fan Module Slots | 2 built-in fixed fans |
| Management Ports | 1 × Management, 1 × Console, 1 × USB 2.0 |
| Expansion Slots | 1 × expansion module slot |
| Dimensions (W × D × H) | 440 mm × 340 mm × 44 mm (17.32 in. × 13.39 in. × 1.73 in., 1 RU) |
| Weight | Approximately 4.3 kg (including all modules) |
| Power Supply | AC 100–240V, HVDC 192–288V |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Operating Humidity | 10% to 90% RH (non-condensing) |
| MTBF | ≥ 200,000 hours |
More Details
