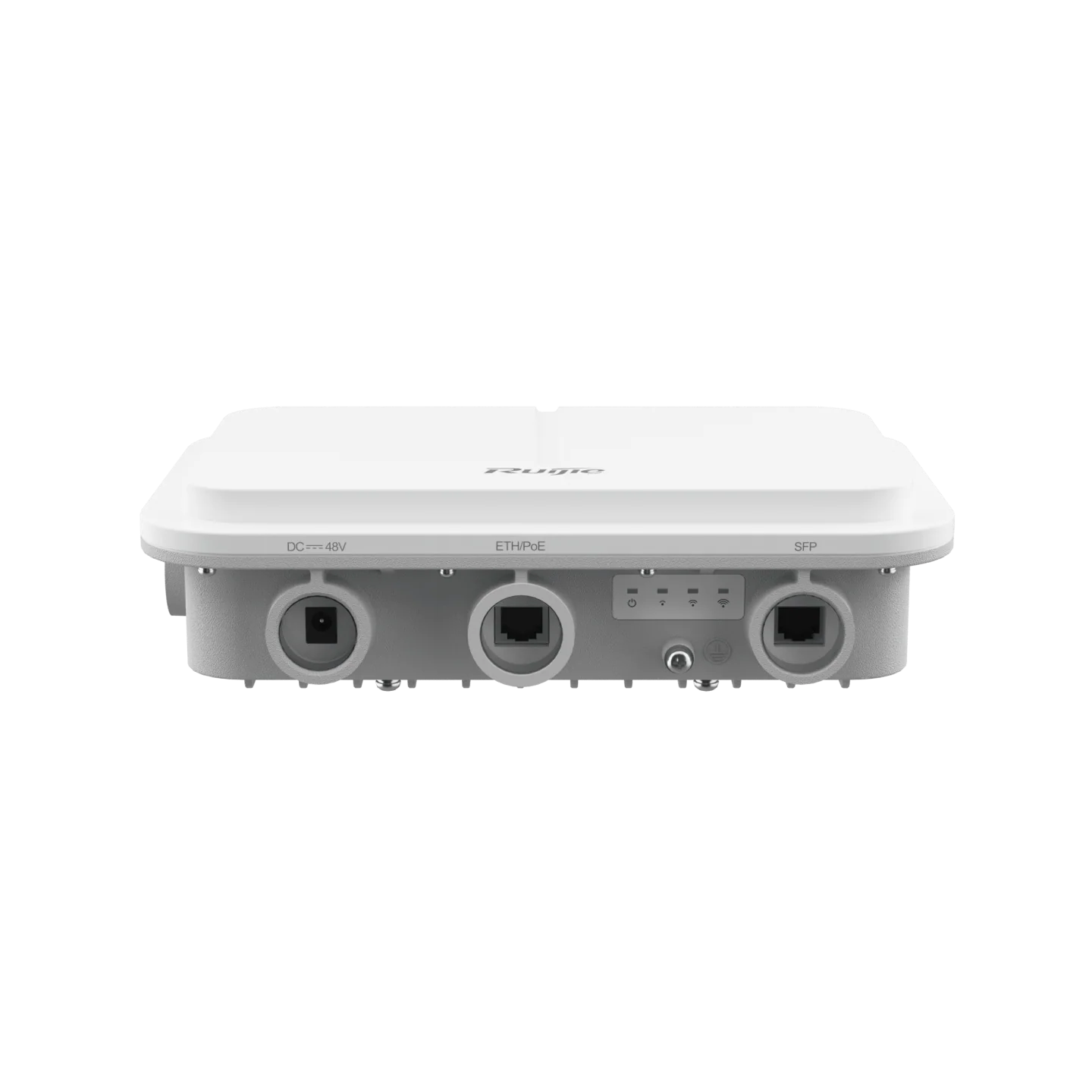

Ruijie RG-AP680-CD(V3) Outdoor Wi-Fi 6 AP, 2.976 Gbps, Directional IP68
Ruijie RG-AP680-CD(V3) Outdoor Wi-Fi 6 AP — Dual-Radio 4×4:4 MIMO & 2.976 Gbps
The RG-AP680-CD(V3) is a high-performance, industrial-grade Wi-Fi 6 access point designed for harsh outdoor environments—squares, parks, sports fields, rail hubs, and smart-city deployments.
It features dual-band radios (2.4 GHz + 5 GHz) supporting four spatial streams and 1024-QAM for up to 2.976 Gbps aggregate throughput. A built-in intelligent directional antenna maximizes coverage and mitigates interference, while hybrid management modes (Fit/Fat or Ruijie WIS Cloud) simplify large-scale rollouts.
Enterprise-grade encryption (WPA3, PPSK, 802.1X), DFS, and TxBF ensure secure, reliable connectivity under IP68-rated protection.
Overview
Highlight
- Dual-Radio Design: Equipped with 2x2 MIMO on both 2.4 GHz and 5 GHz bands, providing a combined peak data rate of up to 2.976 Gbps.
- Advanced Wireless Technologies: Supports OFDMA, MU-MIMO, and 1024-QAM, enhancing efficiency and reducing latency in high-density environments.
- Flexible Deployment: Supports both wall and pole mounting options, as well as PoE and DC power supply modes, catering to diverse installation requirements.
- Enhanced Security: Incorporates WPA3 encryption, 802.1X authentication, and PPSK, ensuring robust network security.
- Intelligent Management: Compatible with Ruijie’s WIS Cloud platform and supports hybrid management modes (Cloud / Controller / Standalone) for simplified operations and maintenance.
- Industrial-Grade Design: Features an IP68-rated enclosure, 6 kV lightning protection, and operates in temperatures ranging from –40°C to +65°C, ensuring reliable performance in harsh outdoor environments.
Recommended Accessories
| Accessory | Category | Description |
|---|---|---|
| 10 GE SFP+ SR Transceiver | Uplink Module | 10GBASE-SR, 850 nm LC duplex, up to 300 m over OM3/OM4 fiber |
| IEEE 802.3at PoE Injector | Power | PoE+ injector for RJ45 port (up to 30 W) |
| ZigBee/RFID USB Module | IoT Expansion | USB adapter for external ZigBee/RFID networking |
| Wall/Pole Mount Kit | Installation Accessory | Corrosion-resistant brackets for secure outdoor mounting |
Comparison with Similar Models
| Model | Peak Wireless Rate | Uplink Ports | Ruggedness |
|---|---|---|---|
| RG-AP680-CD(V3) | 2.976 Gbps | 1×2.5 GE SFP + 1×1 GE RJ45 | IP68; –40 °C to +65 °C |
| RG-AP680-O | 2.4 Gbps | 1×1 GE SFP + 1×1 GE RJ45 | IP68; –40 °C to +65 °C |
| RG-AP680-AR | 2.4 Gbps | 1×10 GE SFP+ + 1×10 GE RJ45 | IP54; –10 °C to +50 °C |
Specification
| Parameter | Specification |
| Model | RG-AP680-CD(V3) |
| Wi-Fi Standards | IEEE 802.11a/b/g/n/ac/ax |
| Radio Configuration | Dual-radio: 2.4 GHz (2x2 MIMO), 5 GHz (2x2 MIMO) |
| Peak Data Rate | Up to 2.976 Gbps |
| Ethernet Ports | 1 × 10/100/1000BASE-T RJ45 Ethernet port with auto-negotiation, 1 × 2.5GE SFP port, 1 × RJ45 console port |
| Antenna Type | Built-in directional antennas (2.4 GHz: 9 dBi, 5 GHz: 9 dBi),(external antennas for additional purchase) |
| Power Supply | Supports DC and PoE power supply (IEEE 802.3af/at/bt) |
| Maximum Power Consumption | 12.95 W |
| Security | WPA3, WPA2, WPA, 802.1X, PPSK |
| Management | Supports Fat, Fit, and Cloud modes; compatible with Ruijie WIS Cloud |
| Operating Temperature | –40°C to +65°C (–40°F to 149°F) |
| Storage Temperature | –40°C to +85°C (–40°F to 185°F) |
| Operating Humidity | 0% to 100% RH (non-condensing) |
| Storage Humidity | 0% to 100% RH (non-condensing) |
| Dimensions (W × D × H) | 251 mm × 168 mm × 64 mm (9.88 in. × 6.61 in. × 2.52 in.) |
| Weight | AP: 1.5 kg (3.31 lbs); Mounting bracket: 0.2 kg (0.44 lbs) |
| Warranty | Limited lifetime warranty |
