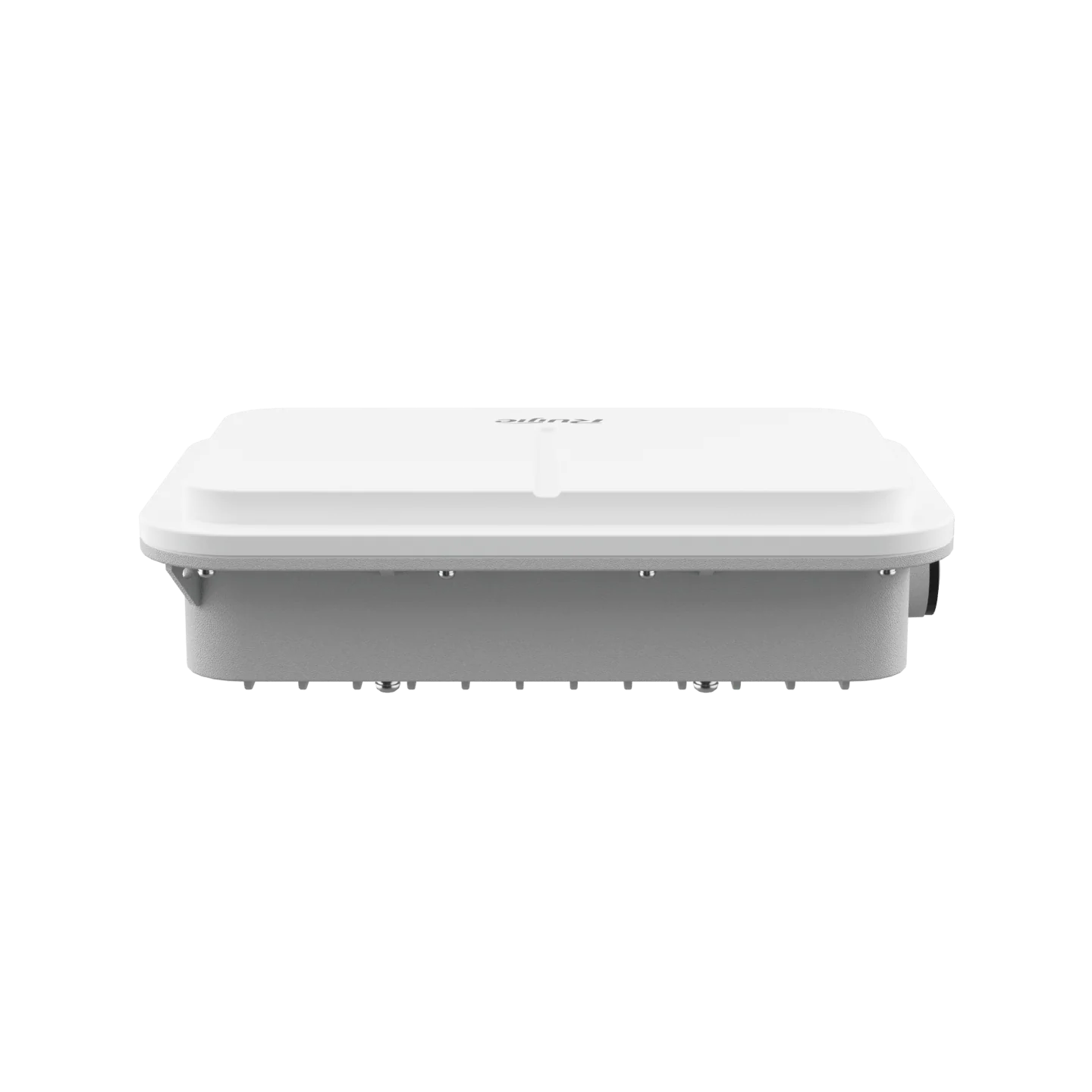

Ruijie RG-AP680-O(V3) Outdoor Wi-Fi 6 AP, 2.976 Gbps, 2.5 G SFP IP68

Ruijie RG-AP680-O(V3) Outdoor Wi-Fi 6 AP — Dual-Radio 4×4 Omnidirectional & IP68 Rugged 2.976 Gbps Throughput

TThe RG-AP680-O(V3) is Ruijie’s omnidirectional-antenna variant in the AP680-V3 family, engineered for expansive outdoor coverage in campuses, parks, and smart-city deployments.

It features dual-band 2.4 GHz/5 GHz radios with 4×4:4 MU-MIMO, delivering an aggregate device rate of 2.976 Gbps over a 160 MHz channel. Built to IP68 standards, it operates from –40 °C to +65 °C, survives 6 kV lightning strikes, and supports up to 1024 concurrent clients.

Hybrid-cloud management (Fit/Fat or Ruijie WIS Cloud) and a choice of 2.5 G SFP or 1 G RJ45 PoE uplink simplify large-scale O&M.

Overview

Highlight

• Dual-Radio Design: Equipped with 2x2 MIMO on both 2.4 GHz and 5 GHz bands, providing a combined peak data rate of up to 2.976 Gbps.
• Advanced Wireless Technologies: Supports OFDMA, MU-MIMO, and 1024-QAM, enhancing efficiency and reducing latency in high-density environments.
• Flexible Deployment: Supports both wall and pole mounting options, as well as PoE and DC power supply modes, catering to diverse installation requirements.
• Enhanced Security: Incorporates WPA3 encryption, 802.1X authentication, and PPSK, ensuring robust network security.
• Intelligent Management: Compatible with Ruijie’s WIS Cloud platform and supports hybrid management modes (Cloud / Controller / Standalone) for simplified operations and maintenance.
• Industrial-Grade Design: Features an IP68-rated enclosure, 6 kV lightning protection, and operates in temperatures ranging from –40°C to +65°C, ensuring reliable performance in harsh outdoor environments.

Recommended Accessories

Comparison with Similar Models

Specification

Parameter	Specification
Model	RG-AP680-O(V3)
Wi-Fi Standards	IEEE 802.11a/b/g/n/ac/ax
Radio Configuration	Dual-radio: 2.4 GHz (2x2 MIMO), 5 GHz (2x2 MIMO)
Peak Data Rate	Up to 2.976 Gbps
IP Rating	IP68
Antenna Type	Wi-Fi ● 2.4 GHz: two built-in omnidirectional antennas, with peak antenna gain of 4 dBi. ● 5 GHz: two built-in omnidirectional antennas, with peak antenna gain of 6 dBi. Bluetooth ● One integrated vertically polarized omnidirectional antenna, with peak antenna gain of 5 dBi.
Power Supply	Supports DC and PoE power supply (IEEE 802.3af/at/bt)

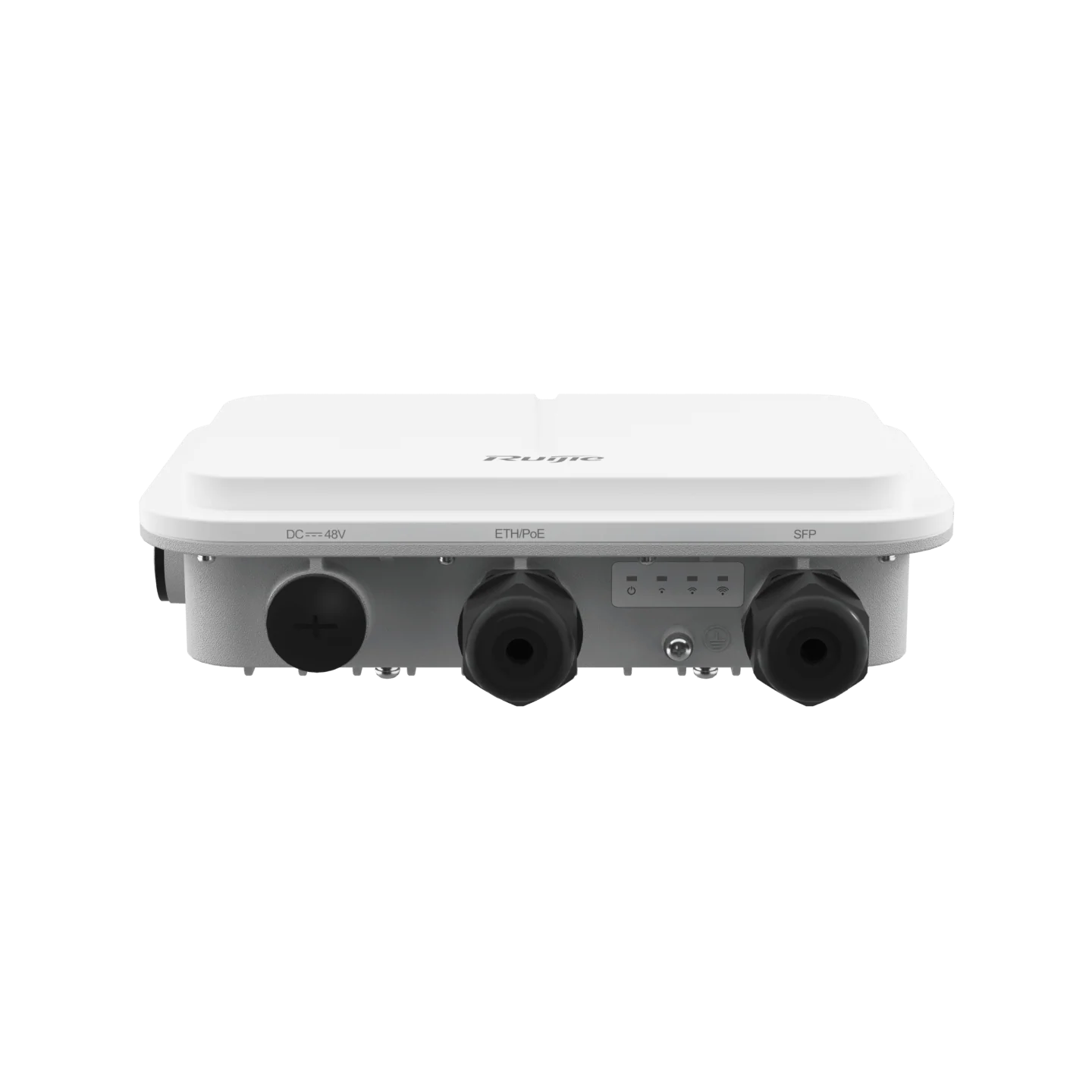

Port	1 x 100/1000Base-T port 1 x 2.5GE SFP port, compatibility with 1GE modules, supporting auto-negotiation 1 x RJ45 console port (serial console port) 1 x Bluetooth 5.0
Security	WPA3, WPA2, WPA, 802.1X, PPSK
Management	Supports Fat, Fit, and Cloud modes; compatible with Ruijie WIS Cloud
Operating Temperature	–40°C to +65°C (–40°F to 149°F)
Storage Temperature	–40°C to +85°C (–40°F to 185°F)
Operating Humidity	5% to 95% RH (non-condensing)
Storage Humidity	5% to 95% RH (non-condensing)
Dimensions (W × D × H)	Main unit: 251 mm x 168 mm x 64 mm (9.88 in. x 6.61 in. x 2.52 in.) Shipping: 405 mm x 232 mm x 325 mm (15.94 in. x 9.13 in. x 12.80 in.)
Environment	Storage temperature: –40°C to +85°C (–40°F to +185°F) Storage humidity: 0% RH to 100% RH (non-condensing) Storage altitude: –500 m to +5,000 m (–1640.42 ft. to +16,404.20 ft.) Operating temperature: –40°C to +65°C (-40°F to +149°F) Operating humidity: 0% RH to 100% RH (non-condensing) Operating altitude: –500 m to +4,000 m (–1,640.42 ft. to +13,123.36 ft.) Note: At an altitude in the range of 1,800–4,000 m (5,905.51–13,123.36 ft.), every time the altitude increases by 220 m (721.78 ft.), the maximum temperature decreases by 1°C (1.8°F).
Maximum power consumption	Maximum power consumption: 12.95 W ● DC power: 12.95 W ● 802.3at (PoE+): 12.95 W ● 802.3af (PoE): 12.95 W ● Idle mode: 6.0 W
Mounting	Ceiling/Wall/Pole-mount (a mounting bracket is delivered with the main unit)
Weight	Main unit: 1.0 kg (2.2 lbs) Mounting bracket: 0.9 kg (1.98 lbs) Shipping: 3.15 kg (6.94 lbs)
Warranty	Limited lifetime warranty
